FEATURES AND SPECIFICATIONS
Features and Benefits
s
Blind mating panel mount receptacle
s
For wire-to-wire and wire-to-board applications
s
Fully isolated terminals to protect contacts from damage
s
Uses standard Mini-Fit series terminals
Reference Information
Product Specification: PS-5556-0002
Packaging: Tray and bag
UL File No.: E29179
CSA File No.: LR19980
TUV License No.: R75142
Mates With:
42404, 42440, 43759, 43810, 43879, 44068
and
44474
headers or
42475
and
43770
plugs
Use With:
5556
or
44476
HCS
terminals
Designed In: Millimeters
Electrical
Current: (Used with 16 AWG)
Circuits
Amperes-BMI
Amperes-BMI
with HCS
2–3
9
12
4–6
8
11
7–10
7
10
12–24
6
9
4.20mm (.165") Pitch
Mini-Fit, BMI
™
Receptacle
42474/43760
Dual Row
With Panel Mount Ears
Physical
Housing: 6/6 nylon, UL 94V-2 or 94V-0
Contact: Brass or Phosphor Bronze
Plating: Tin, select Gold or overall Gold
Operating Temperature: -40 to +105˚C

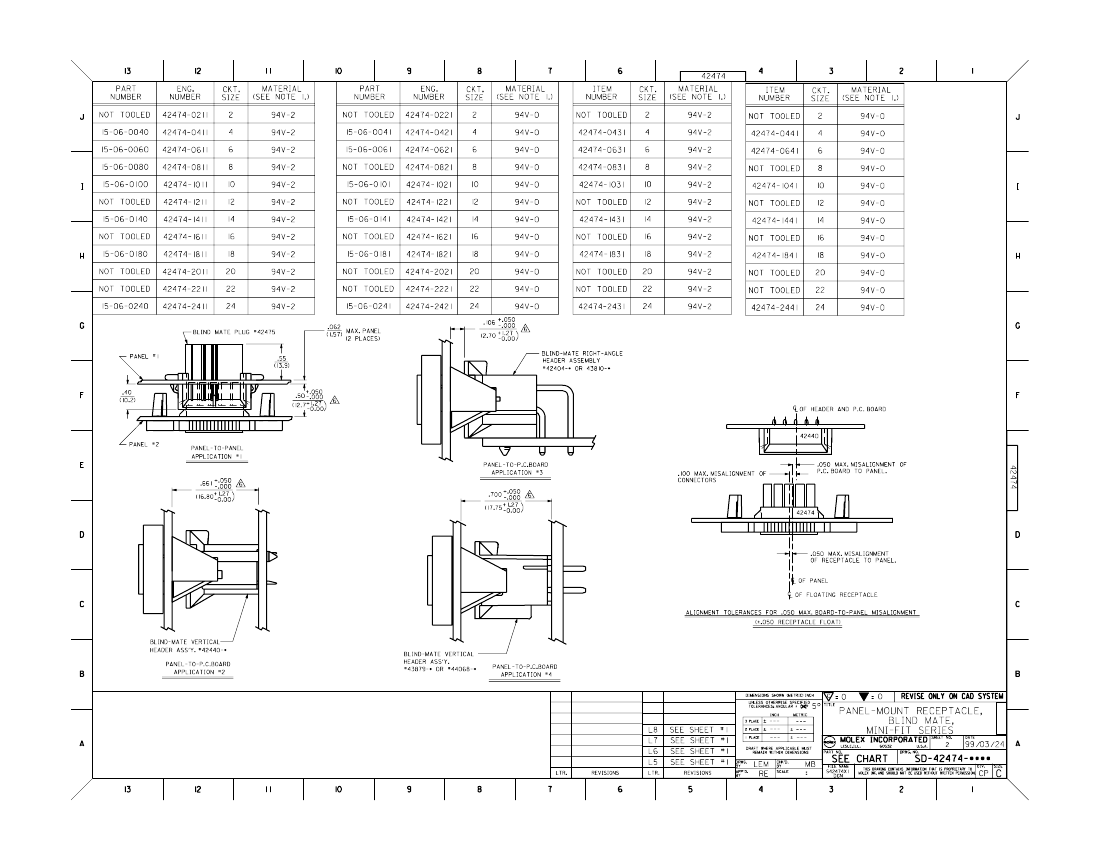

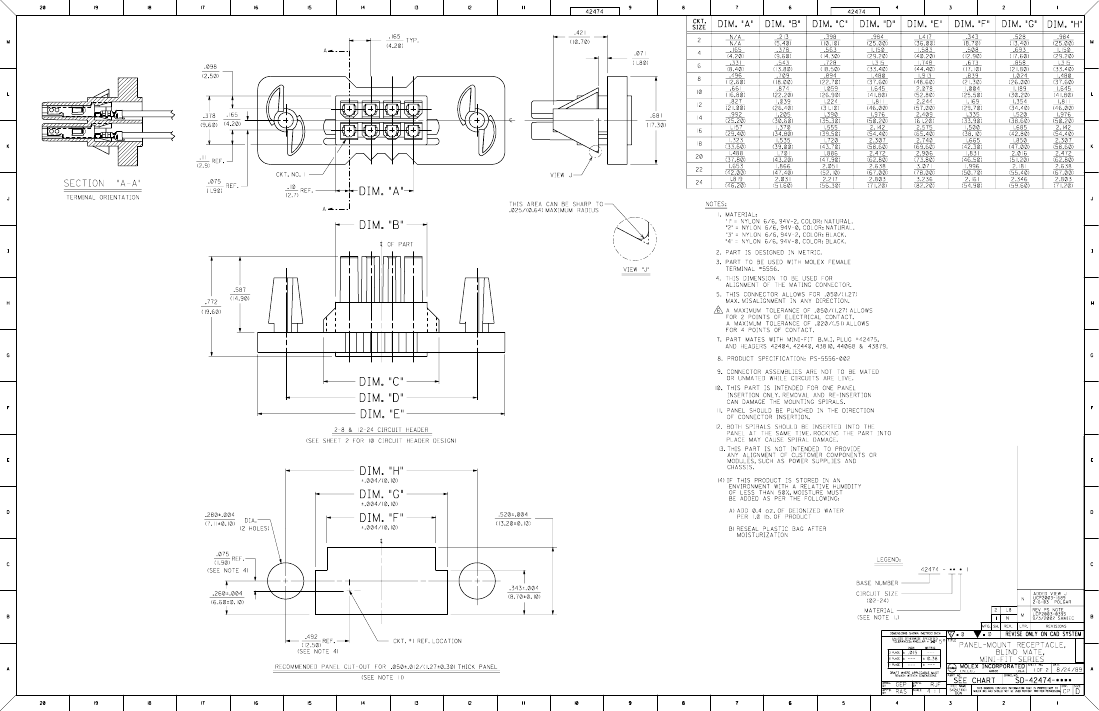

CATALOG DRAWING (FOR REFERENCE ONLY)
Order No.
15-04-0211
Polarizing Key

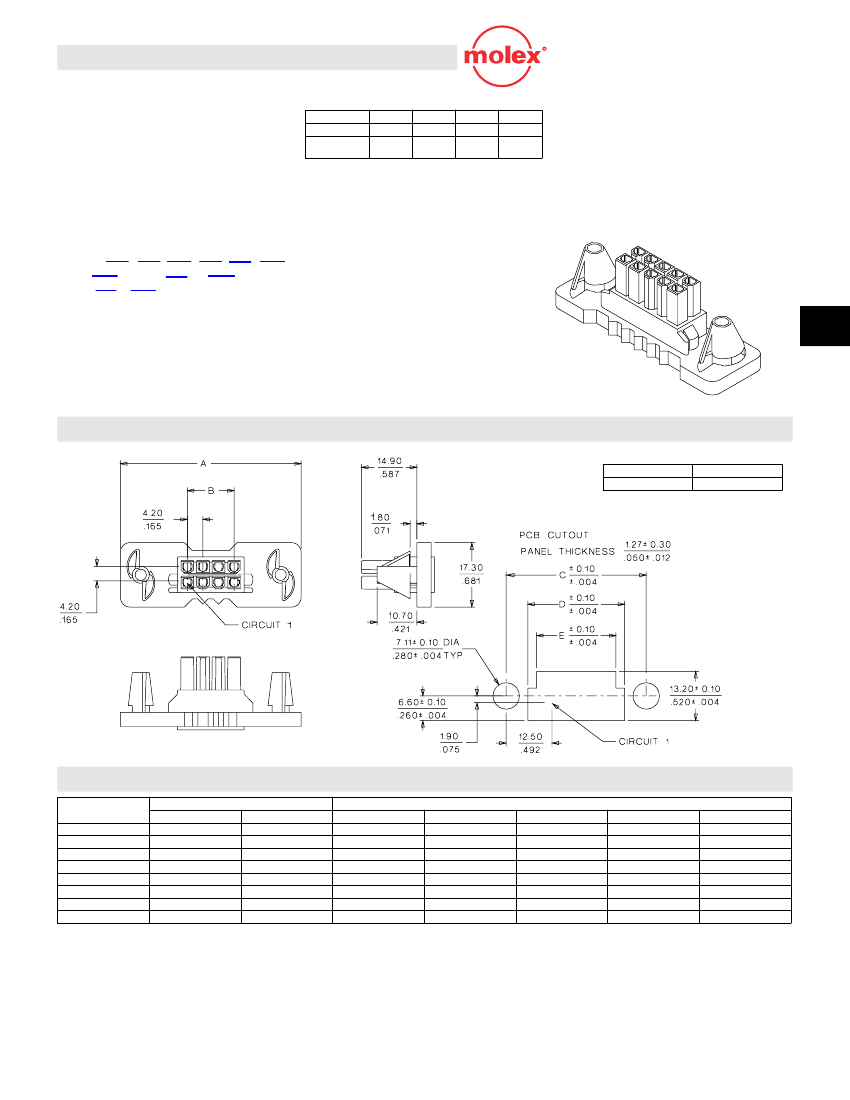

ORDERING INFORMATION AND DIMENSIONS
Circuits
4
6
8
10
14
18
24
36
Order No.
94V-2
• 15-06-0040
• 15-06-0060
• 15-06-0080
• 15-06-0100
• 15-06-0140
• 15-06-0180
• 15-06-0240
43760-0001
94V-0
• 15-06-0041
• 15-06-0061
• 15-06-0101
• 15-06-0141
• 15-06-0181
• 15-06-0241
40.20
44.40
48.60
52.80
61.20
69.60
82.20
107.40
A
(1.583)
(1.748)
(1.913)
(2.078)
(2.409)
(2.740)
(3.236)
(4.228)
4.20
8.40
12.60
16.80
25.20
33.60
46.20
71.40
B
(.165)
(.331)
(.496)
(.661)
(.992)
(1.323)
(1.819)
(2.811)
Dimension
C
29.20 (1.150)
33.40 (1.315)
37.60 (1.480)
41.80 (1.645)
50.20 (1.976)
58.60 (2.307)
71.20 (2.803)
96.40 (3.795)
D
(.693)
(.858)
(1.023)
(1.189)
(1.520)
(1.850)
(2.346)
(3.208)
E
(.508)
(.673)
(.838)
(1.004)
(1.335)
(1.665)
(2.161)
(3.023)
17.60
21.80
26.00
30.20
38.60
47.00
59.60
81.50
12.90
17.10
21.30
25.50
33.90
42.30
54.90
76.78
• US Standard Product, available through Molex franchised distributors
MX01
F-63
Power Connectors
Mechanical
Contact Insertion Force: 1.5kg max.
Contact Retention to Housing: 3.0kg min.
Wire Pull-Out Force: 9.0kg min.
Mating Force: 0.7kg (1.54 lb) max.
Unmating Force: 0.35kg (0.7 lb) min.
Normal Force: 200g min.
Durability: 30 cycles
F
