813-22-009-30-001-101 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 813-22-009-30-001-101

813-22-009-30-001-101: DescriptionBoard Stacking Connector, 9 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size180KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

813-22-009-30-001-101 Overview

Board Stacking Connector, 9 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, ROHS COMPLIANT

813-22-009-30-001-101 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOW PROFILE
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD (20) OVER NICKEL (100)
Contact completed and terminated	GOLD (20) OVER NICKEL (100)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	YES
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	813
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	9
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

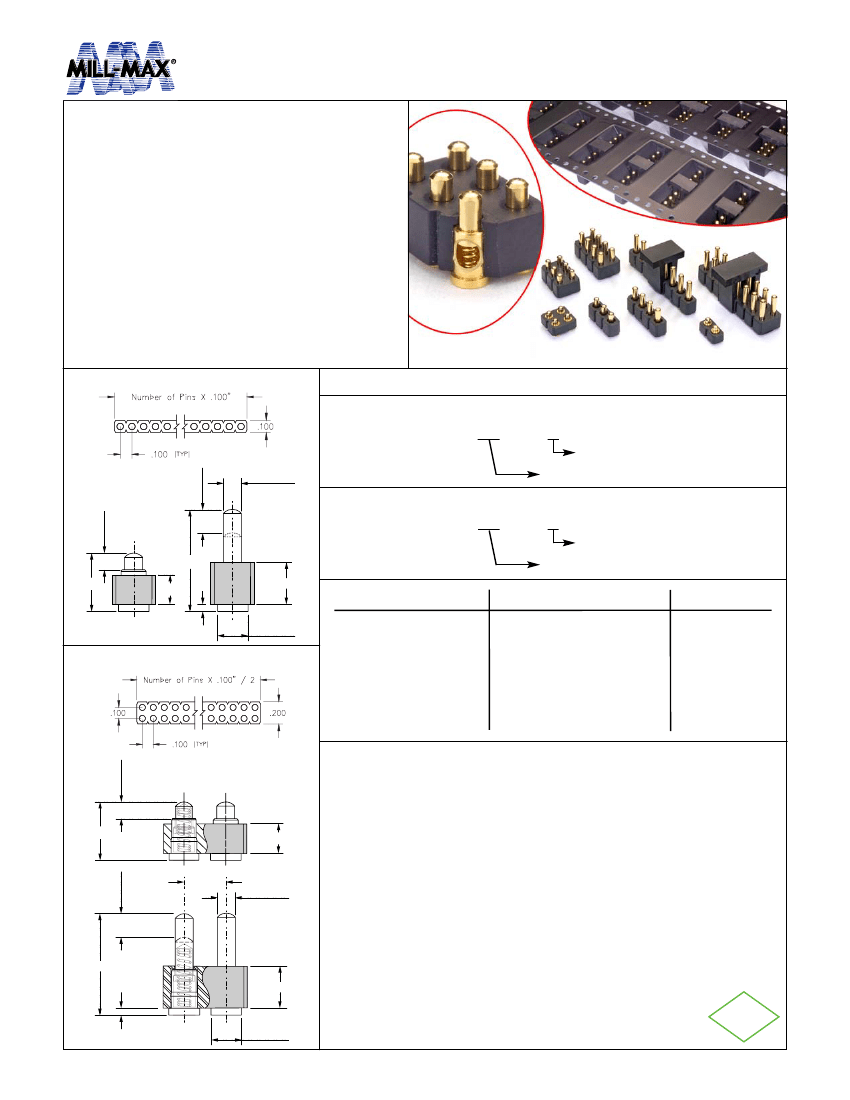

SPRING LOADED CONNECTORS

Surface Mount, Low Profile

Single and Double Row Strips

•

Modular contacts for use on .100” grid, available in

five heights from .137” to .236”, supplied in single

and double row contact strips.

•

Precision machined piston / base and gold plated

components assure a 1,000,000 min. cycle life.

•

Pistons have a long stroke relative to the low pro-

file of the assembly.

•

Low resistance, high current contacts are rated at

2 amps continuous, 3 amps peak.

•

High temperature thermoplastic insulators are suit-

able for surface mount processes.

•

Both 811 & 813 series, contact styles 1 thru 4, are

available on 32mm wide carrier tape for pick and

place assembly per EIA-481. See page 119 for

strip lengths available and ordering information.

Series 811, 813

SINGLE ROW Series 811

Ordering Information

Single Row Series 811

811-22-0XX-30-00X-101

Specify contact style

0-4

Specify # of contacts

01-64

Double Row Series 813

813-22-0XX-30-00X-101

Specify contact style

0-4

Specify # of contacts

04-72

CONTACT STYLE

INITIAL HEIGHT

.137

.177

.197

.217

.236

Stroke

.042 DIA.

Stroke

.071

.110

Stroke B

.039

.045

.055

Style 0 only

.016

.072 DIA.

DOUBLE ROW Series 813

Technical Specifications

Stroke

Style 0 only

.071

.100

.042 DIA.

.110

.016

Materials:

Contact piston & Base: Machined copper alloy plated 20µ” gold

over 100µ” nickel

Spring: Beryllium copper plated 10µ” gold

Insulator: High temp. thermoplastic rated UL94 V-0

Mechanical:

Spring force @ initial height (A): 25 grams

Spring force @ mid stroke (B/2): 60 grams

Spring force @ full stroke (B): 95 grams

Durability: 1,000,000 cycles min.

Coplanarity: .005” (Single Row up to 10 pins; Double Row up to

20 pins) For higher pin counts contact Tech Support.

Electrical:

Voltage rating: 100Vrms/150Vdc

Current rating: 2A (continous), 3A (peak) per contact

Contact resistance: 20mΩ max.

Insulation resistance: 10,000MΩ min.

Dielectric strength: 700Vrms min.

Capacitance: 1pF max.

Stroke

.072 DIA.

w w w. m i l l - m a x . c o m

117

516-922-6000
