88K20K-0S3L5

Description
RF 1.6/5.6 DIN Connector, Female, Panel Mount, Cable Mount, Jack, ROHS COMPLIANT
CategoryThe connector    The connector
File Size71KB,2 Pages
ManufacturerRosenberger
Websitehttps://www.rosenberger.com/
Download Datasheet Parametric View All

88K20K-0S3L5 Overview

RF 1.6/5.6 DIN Connector, Female, Panel Mount, Cable Mount, Jack, ROHS COMPLIANT

88K20K-0S3L5 Parametric

Parameter NameAttribute value
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
Other featuresCAPTIVE CENTER CONTACT, INSERTION LOSS AND VSWR MAX AT: 1 GHZ
Body/casing typeJACK
Characteristic impedance75 Ω
Connector typeRF 1.6/5.6 DIN CONNECTOR
Contact to complete cooperationGOLD
Contact completed and terminatedGOLD
Contact point genderFEMALE
Coupling typeSNAP
DIN complianceNO
Filter functionNO
IEC complianceNO
Insertion loss0.1 dB
insulator materialLIQUID CRYSTAL POLYMER
JESD-609 codee4
MIL complianceNO
Manufacturer's serial number88K20K-0S3L5
Installation methodRIGHT ANGLE
Installation typeCABLE
Maximum operating frequency12 GHz
OptionsGENERAL PURPOSE
Panel mountingYES
voltage standing wave ratio1.22
Base Number Matches1
TECHNICAL DATA SHEET
1.6/5.6
III. Generation

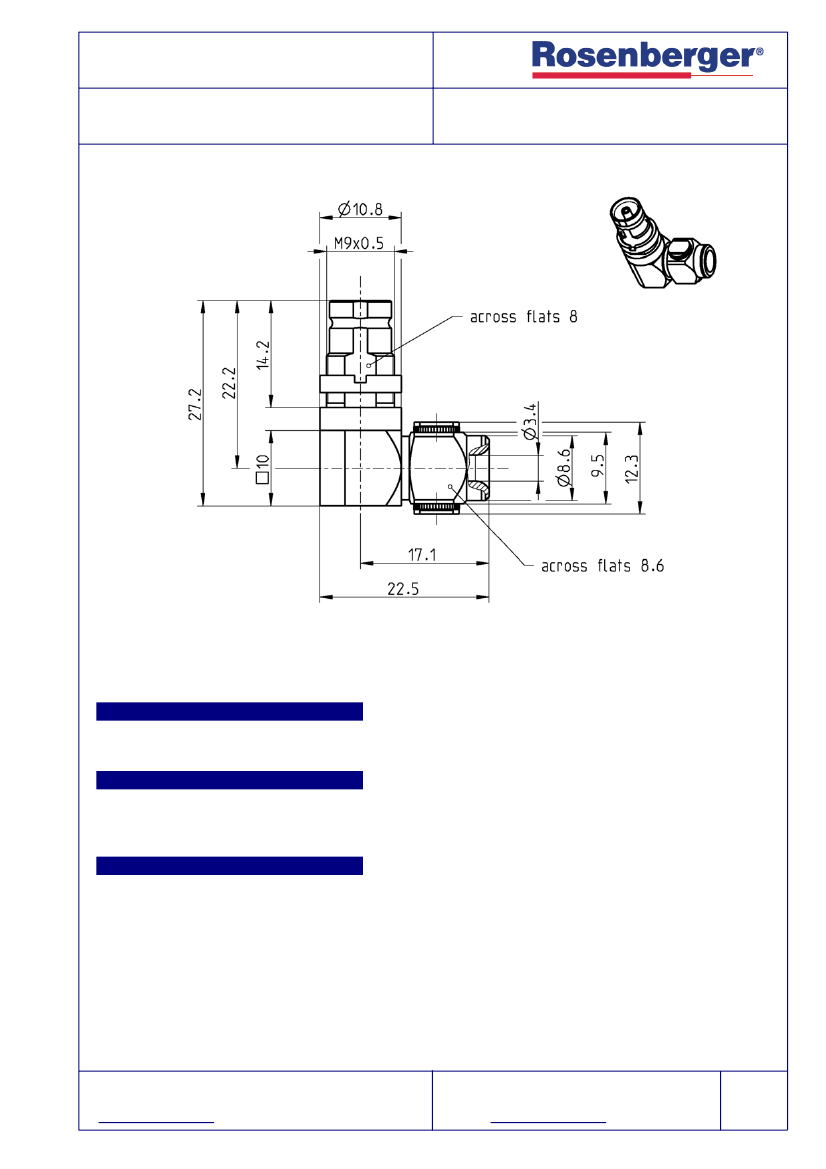

RIGHT ANGLE JACK
Q-GRIP 2. GENERATION
88K20K-0S3L5
All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
CECC 22 240
Documents
Assembly instruction
Panel piercing
88 A6
B 27
Material and plating
Connector parts
Center contact
Outer contact
Body
Dielectric
Dielectric
Dielectric
Material
Beryllium copper
Brass
Brass
LCP
POM
PTFE
Plating
AuroDur, gold plated
AuroDur, gold plated
Nickel, 2.5-5 µm
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
