88S20P-009L5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 88S20P-009L5

88S20P-009L5: DescriptionRF 1.6/5.6 DIN Connector, Male, Cable Mount, Crimp Terminal, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size53KB，2 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/

Download Datasheet Parametric View All

88S20P-009L5 Overview

RF 1.6/5.6 DIN Connector, Male, Cable Mount, Crimp Terminal, Plug, ROHS COMPLIANT

88S20P-009L5 Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	CAPTIVE CENTER CONTACT, INSERTION LOSS MAX AT: 2 GHZ, VSWR MAX AT: 4 GHZ
Body/casing type	PLUG
Characteristic impedance	75 Ω
Connector type	RF 1.6/5.6 DIN CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.1 dB
insulator material	LIQUID CRYSTAL POLYMER/POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	88S20P-009L5
Installation method	RIGHT ANGLE
Installation type	CABLE
Maximum operating frequency	12 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP
voltage standing wave ratio	1.67
Base Number Matches	1

Preview

Download Datasheet

View All

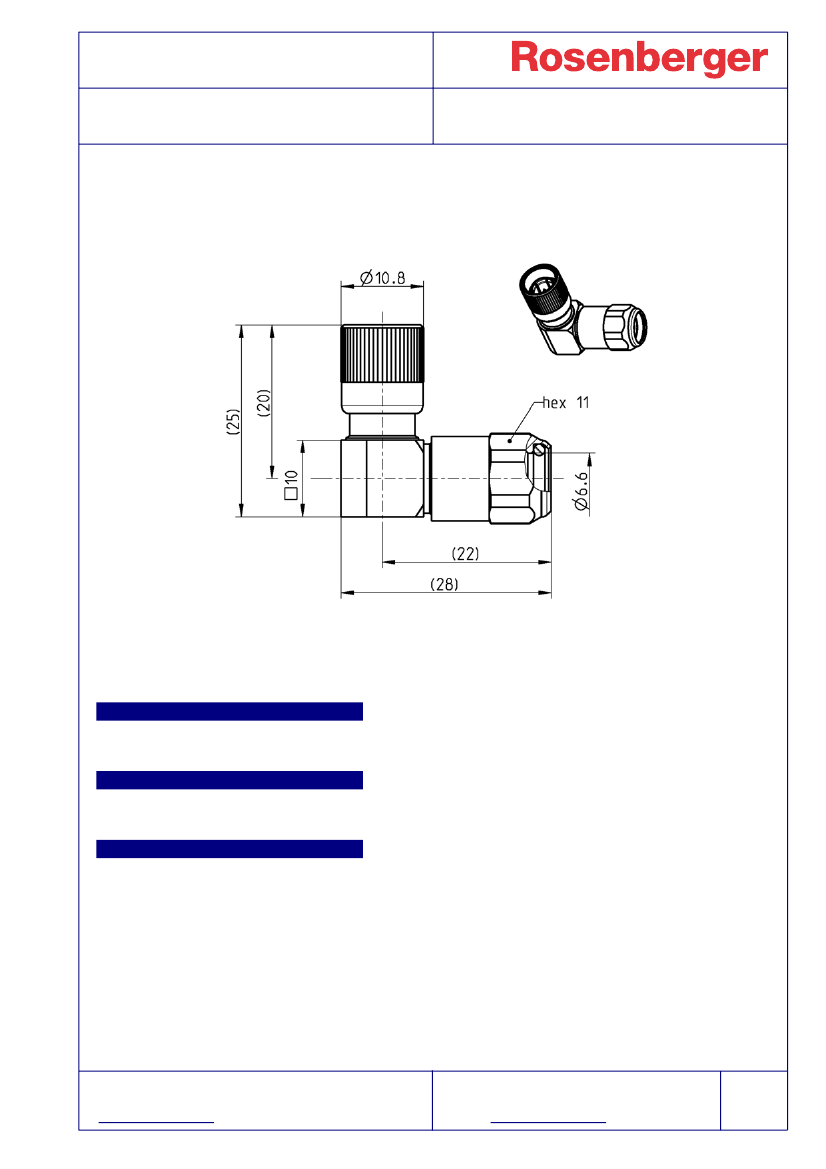

TECHNICAL DATA SHEET

1.6/5.6

III. Generation

RIGHT ANGLE PLUG

Q-GRIP

88S20P-009L5

All dimensions are in mm; tolerances according to ISO 2768 m-H

Interface

According to

CECC 22 240

Documents

Assembly instruction

88 A3

Material and plating

Connector parts

Center contact

Outer contact

Body

Coupling nut

Dielectric

Material

Beryllium copper

Brass

PTFE

LCP

Plating

AuroDur®, gold plated

Nickel, 2.5-5 µm

RF_35/11.05/3.1

Rosenberger Hochfrequenztechnik GmbH & Co. KG

P.O.Box 1260

D-84526 Tittmoning

Germany

www.rosenberger.de

Tel.: +49 8684 18-0

Fax: +49 8684 18-499

email: info@rosenberger.de

Page

1/2
