88953-936 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 88953-936

88953-936: DescriptionBoard Connector, 96 Contact(s), 4 Row(s), Male, Straight, Solder Terminal; CategoryThe connector The connector; File Size1MB，8 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

88953-936 Overview

Board Connector, 96 Contact(s), 4 Row(s), Male, Straight, Solder Terminal

88953-936 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact completed and terminated	TIN LEAD
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	88953
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	4
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	96
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

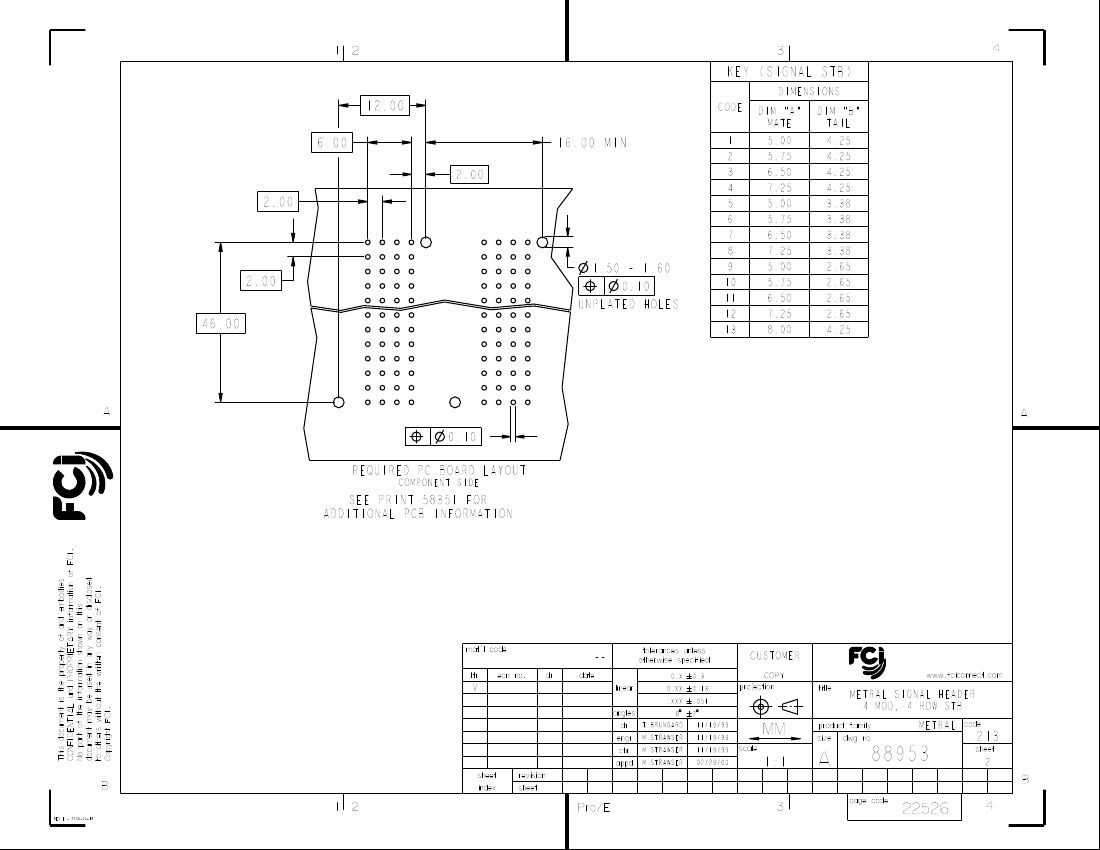

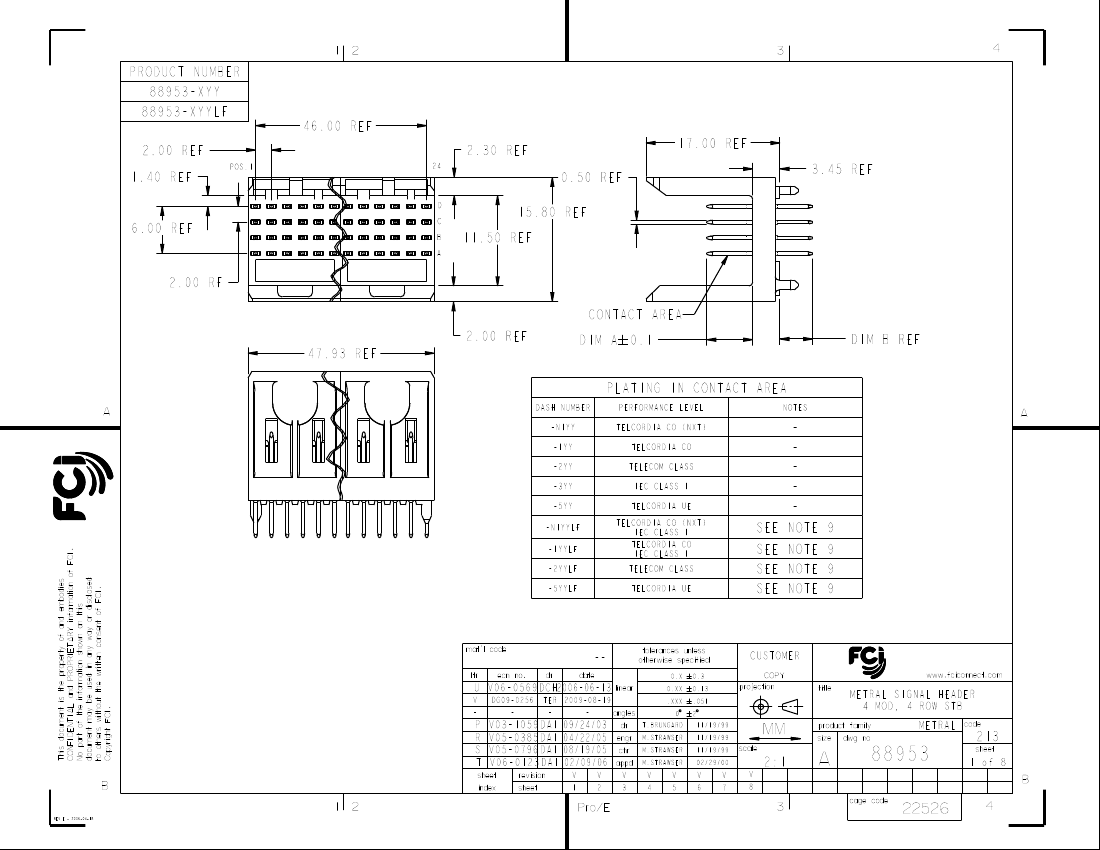

PRODUCT NUMBER

88953-XYY

88953-XYYLF

2.00 REF

1.40 REF

POS.1

46.00 REF

2.30 REF

0.50 REF

17.00 REF

3.45 REF

6.00 REF

15.80 REF

11.50 REF

2.00 RF

CONTACT AREA

2.00 REF

47.93 REF

DIM A 0.1

DIM B REF

PLATING IN CONTACT AREA

DASH NUMBER

-N1YY

-1YY

-2YY

-3YY

-5YY

-N1YYLF

-1YYLF

-2YYLF

-5YYLF

PERFORMANCE LEVEL

TELCORDIA CO (NXT)

TELCORDIA CO

TELECOM CLASS

IEC CLASS 1

TELCORDIA UE

TELCORDIA CO (NXT)

IEC CLASS 1

TELCORDIA CO

IEC CLASS 1

TELECOM CLASS

TELCORDIA UE

NOTES

SEE NOTE 9

CONFIDENTIAL and PROPRIETARY information of FCI.

This document is the property of and embodies

to others without the written consent of FCI.

document may be used in any way or disclosed

No part of the information shown on this

mat'l code

ecn no.

date

tolerances unless

otherwise specified

CUSTOMER

COPY

projection

title

www.fciconnect.com

ltr

0.X

0.XX

.XXX

angles

engr

chr

appd

0.3

0.13

.051

linear

U V06-0569 DCH2006-06-13

DG09-0256

TER 2009-08-19

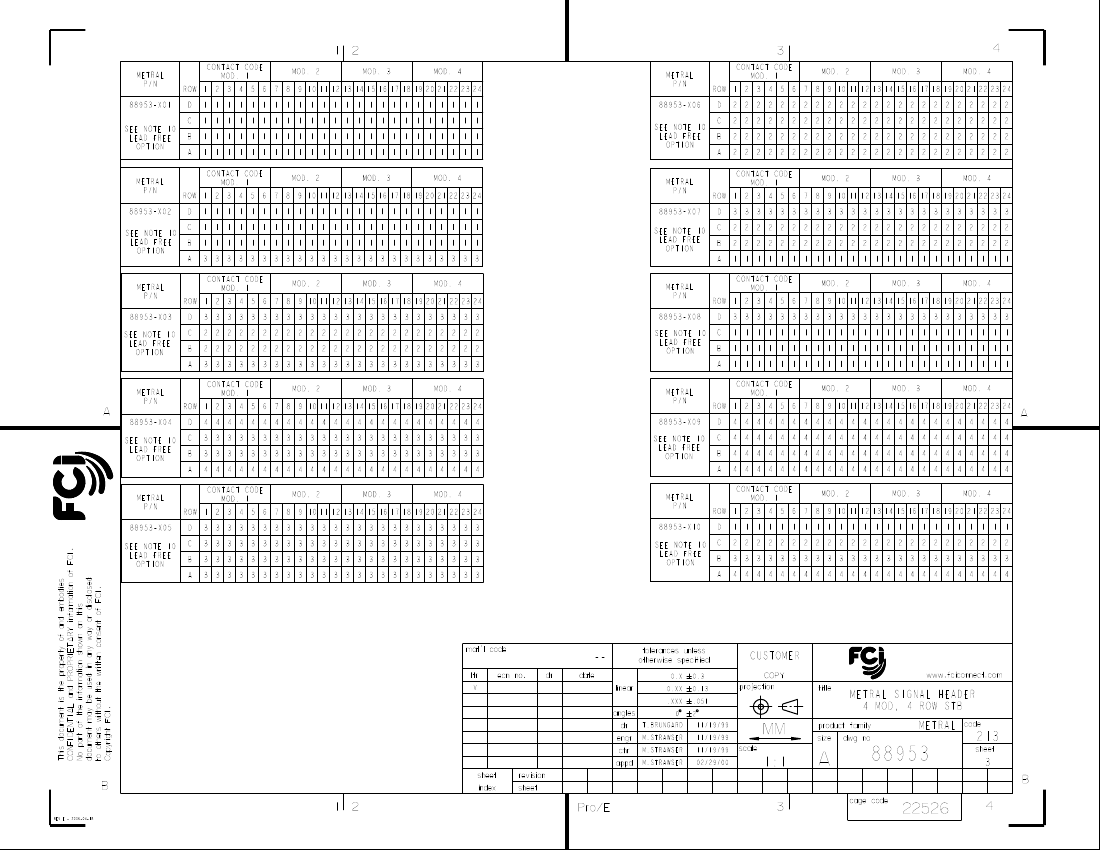

METRAL SIGNAL HEADER

4 MOD, 4 ROW STB

METRAL

code

dwg no

V03-1059 DAI

V05-0385 DAI

V05-0796 DAI

V06-0123 DAI

revision

sheet

09/24/03

04/22/05

08/19/05

02/09/06

Pro/E

T.BRUNGARD

M.STRAWSER

11/19/99

02/29/00

scale

product family

size

2:1

88953

cage code

213

sheet

1 of 8

sheet

REV E - 2006-04-18

index

22526

PDM: Rev:V

STATUS:

Released

Printed: Nov 30, 2009
