87711-003 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 87711-003

87711-003: DescriptionBoard Connector, 44 Contact(s), Male, Right Angle, Solder Terminal, Guide Slot, Black Insulator, Receptacle; CategoryThe connector The connector; File Size164KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

87711-003 Overview

Board Connector, 44 Contact(s), Male, Right Angle, Solder Terminal, Guide Slot, Black Insulator, Receptacle

87711-003 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Other features	POLARIZED PIN POSITIONS
body width	0.335 inch
subject depth	0.63 inch
body length	3.25 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S40P4
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	BRASS
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	10000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	87711
Mixed contacts	YES
Installation option 1	GUIDE SLOT
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	85 °C
Minimum operating temperature
Plating thickness	8u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Termination type	SOLDER
Total number of contacts	44
Base Number Matches	1

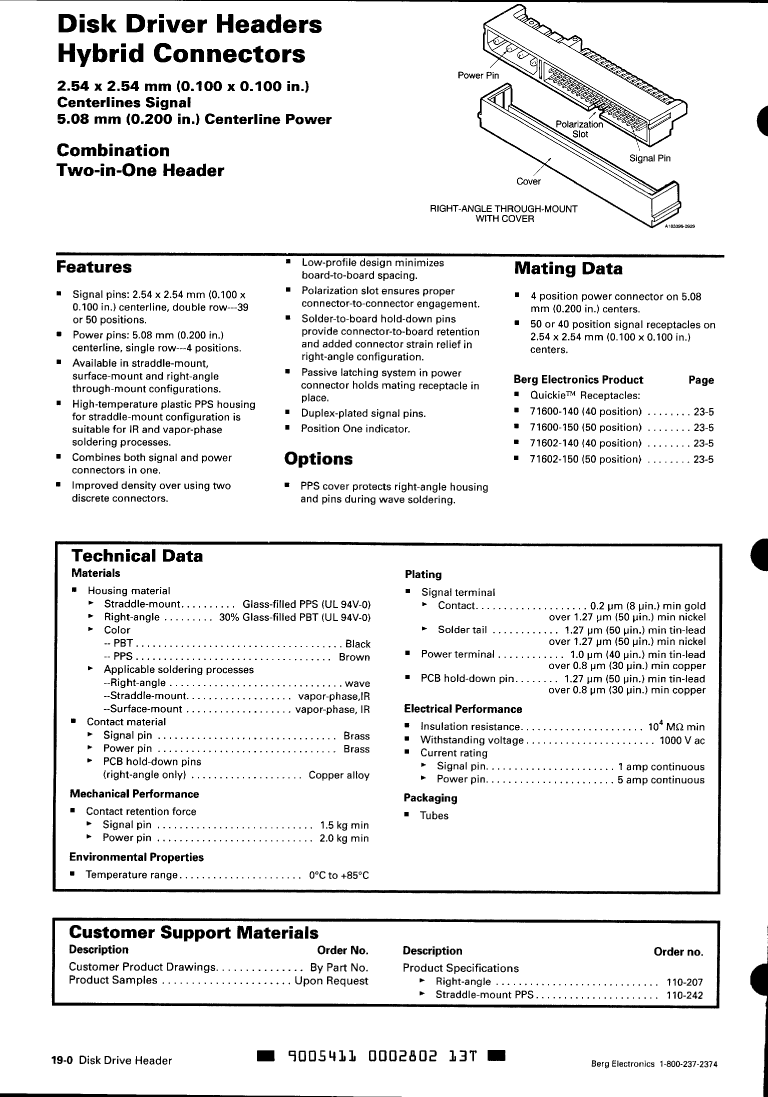

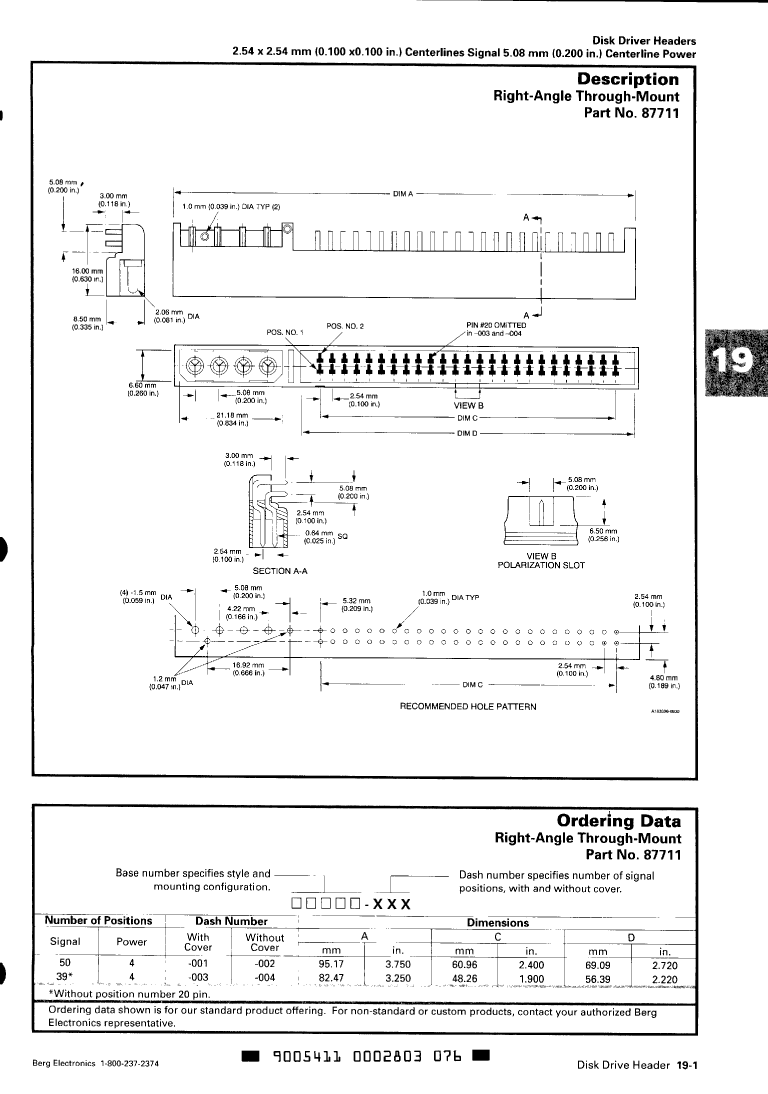

Preview

Download Datasheet

View All

87711-003 Related Products

	87711-003	87711-002	87711-001
Description	Board Connector, 44 Contact(s), Male, Right Angle, Solder Terminal, Guide Slot, Black Insulator, Receptacle	Board Connector, 54 Contact(s), Male, Right Angle, Solder Terminal, Guide Slot, Black Insulator, Receptacle	Board Connector, 54 Contact(s), Male, Right Angle, Solder Terminal, Guide Slot, Black Insulator, Receptacle
Reach Compliance Code	compliant	compliant	compliant
body width	0.335 inch	0.335 inch	0.335 inch
subject depth	0.63 inch	0.63 inch	0.63 inch
body length	3.25 inch	3.75 inch	3.75 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact arrangement	S40P4	S50P4	S50P4
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Contact point gender	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V
Insulation resistance	10000000000 Ω	10000000000 Ω	10000000000 Ω
Insulator color	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	87711	87711	87711
Mixed contacts	YES	YES	YES
Installation option 1	GUIDE SLOT	GUIDE SLOT	GUIDE SLOT
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
Maximum operating temperature	85 °C	85 °C	85 °C
Plating thickness	8u inch	8u inch	8u inch
Rated current (signal)	1 A	1 A	1 A
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.118 inch	0.118 inch	0.118 inch
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	44	54	54
Base Number Matches	1	1	1
