808-MJ-3-B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 808-MJ-3-B

808-MJ-3-B: DescriptionFiber Optic Connector Adapter, Multi Mode, Duplex; CategoryThe connector The connector; File Size159KB，2 Pages; ManufacturerMethode Electronics Inc.

Download Datasheet Parametric Compare View All

808-MJ-3-B Overview

Fiber Optic Connector Adapter, Multi Mode, Duplex

808-MJ-3-B Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	INSERTION LOSS LESS THAN 0.2DB TYP
Connection Type	DUPLEX
Connector type	FIBER OPTIC CONNECTOR ADAPTER
Coupling type	SNAP
DIN compliance	NO
IEC compliance	NO
Insertion loss	0.2 dB
MIL compliance	NO
model	MULTI
Installation type	PANEL
Base Number Matches	1

Preview

Download Datasheet

View All

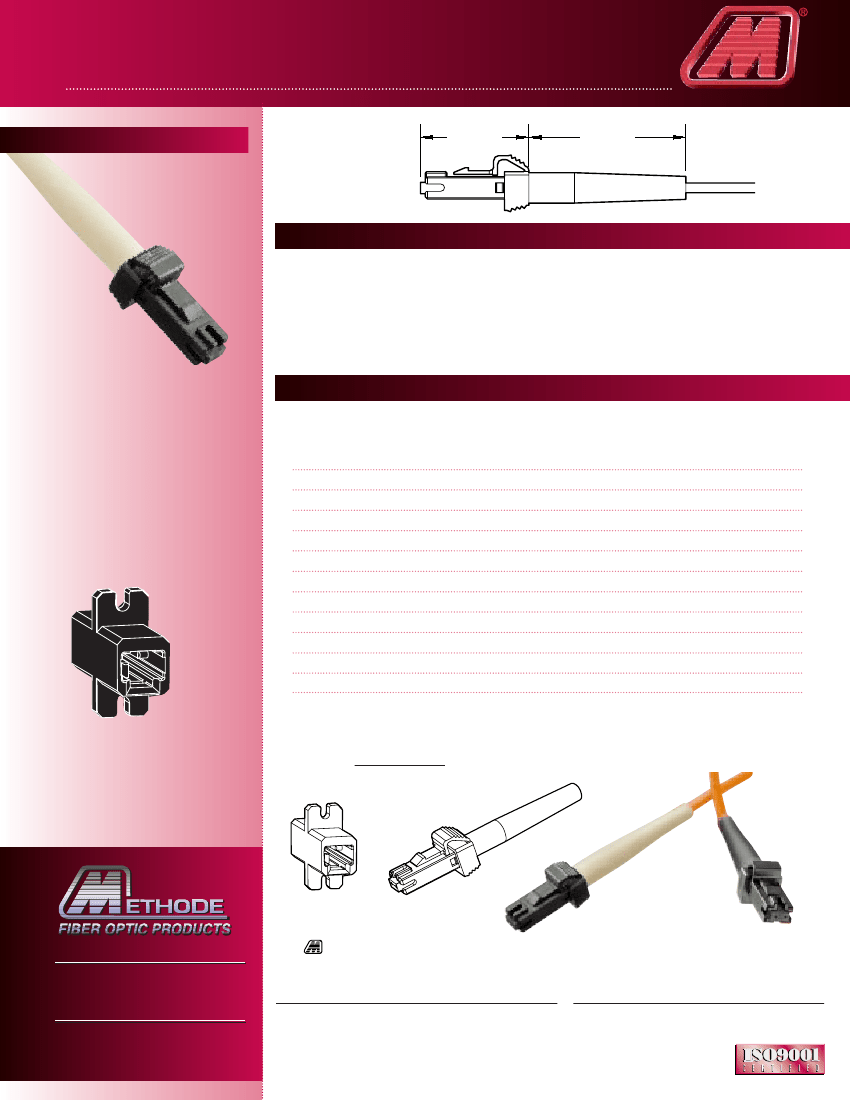

808 Series MT-RJ Dual Multimode

Fiber Connectors & Assemblies

FEATURES

MT-RJ

Connector

ethode

Series 808 MT-RJ

connectors are designed

to bring together the latest

advances in precision molding

and multi-fiber ferrule technology,

providing the end user with an

optical interface that is easier

and more cost effective to install.

At half the size of comparable

duplex SC connectors, yet using

the same space in patch panels

and networking equipment as

RJ-45 copper connectors, the

MT-RJ connector doubles the

capacity of existing networking

infrastructures.

The MT-RJ connectors and assemblies

meet or exceed EIA/TIA-568A

requirements and are compatible

with other MT-RJ style connector

solutions. Insertion losses are

typically 0.2dB, which keep system

loss budgets well within the 0.75 dB

established in EIA/TIA-568A.

Methode’s MT-RJ Connector is

designed to be used with dual fiber,

single jacket cables with diameters

from 2.4mm to 3.1mm.

Small

Form Factor

Half the size of duplex SC

Dual fiber connectivity

Familiar Latching

Mechanism

Uses Standard .178, .151

Hex Crimp

Male & Female

Connectors

Ergonomic design

BENEFITS

Doubles Port Density

Ease of Use

Lower Installed Cost

Uses standard .178, .151 Hex Crimp

PERFORMANCE DATA

Insertion Loss:

Temperature Rating:

Multimode <.2 dB (typical)

-40° to +80° C

MATERIALS

Dust Cover:

Ferrule:

Thermoplastic Rubber

Boot:

Thermopolymer

Body:

MT-RJ

Connector

Thermoplastic Rubber

Reinforced Thermoplastic

(Flame Retardant)

Crimp Sleeve:

Brass

PATCHCORD CONNECTORS

Part Number

MJ3-103-3

MJ3-003-3

MJ3-104-3

MJ3-004-3

Type

Male (w/pins)

Female

Male (w/pins)

Female

Fiber Type

62.5/125 MM

50/125 MM

Boot Color

Beige

Black

ADAPTERS

The Americas

7444 W. Wilson Avenue

Chicago, IL 60656 U.S.A.

708.867.9600 Fax: 708.867.9621

Part Number

808-MJ-1

808-MJ-3

Description

MT-RJ Adapter w/Flange

MT-RJ Adapter w/Reduced Flange

800.323.6858

www.methode.com

Please add the suffix “-B” to indicate bulk packaging. Bulk packaging is in 100 piece units.

Note:

Please contact Methode Fiber Optic Products customer service at 800/323-6858

for cable assembly part number information.

FM2022-9134

808-MJ-3-B Related Products

	808-MJ-3-B	808-MJ-3	808-MJ-1-B	808-MJ-1
Description	Fiber Optic Connector Adapter, Multi Mode, Duplex	Fiber Optic Connector Adapter, Multi Mode, Duplex	Fiber Optic Connector Adapter, Multi Mode, Duplex	Fiber Optic Connector Adapter, Multi Mode, Duplex
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	INSERTION LOSS LESS THAN 0.2DB TYP	INSERTION LOSS LESS THAN 0.2DB TYP	INSERTION LOSS LESS THAN 0.2DB TYP	INSERTION LOSS LESS THAN 0.2DB TYP
Connection Type	DUPLEX	DUPLEX	DUPLEX	DUPLEX
Connector type	FIBER OPTIC CONNECTOR ADAPTER	FIBER OPTIC CONNECTOR ADAPTER	FIBER OPTIC CONNECTOR ADAPTER	FIBER OPTIC CONNECTOR ADAPTER
Coupling type	SNAP	SNAP	SNAP	SNAP
DIN compliance	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
Insertion loss	0.2 dB	0.2 dB	0.2 dB	0.2 dB
MIL compliance	NO	NO	NO	NO
model	MULTI	MULTI	MULTI	MULTI
Installation type	PANEL	PANEL	PANEL	PANEL
