82_MCX-S50-0-29/111_N datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 82_MCX-S50-0-29/111_N

Preview

82_MCX-S50-0-29/111_N: DescriptionRF MCX Connector, Female, Board Mount, Surface Mount Terminal, Jack, ROHS COMPLIANT; CategoryThe connector The connector; File Size98KB，1 Pages; ManufacturerHUBER+SUHNER; Environmental Compliance

Download Datasheet Parametric View All

82_MCX-S50-0-29/111_N Overview

RF MCX Connector, Female, Board Mount, Surface Mount Terminal, Jack, ROHS COMPLIANT

82_MCX-S50-0-29/111_N Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	STANDARD: IEC 60169-36
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF MCX CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	PERFLUOROALKOXY/POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	MCX
Installation method	STRAIGHT
Installation type	BOARD
Maximum operating frequency	6 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	SURFACE MOUNT
Base Number Matches	1

Preview

Download Datasheet

View All

HUBER+SUHNER

®

DATA SHEET

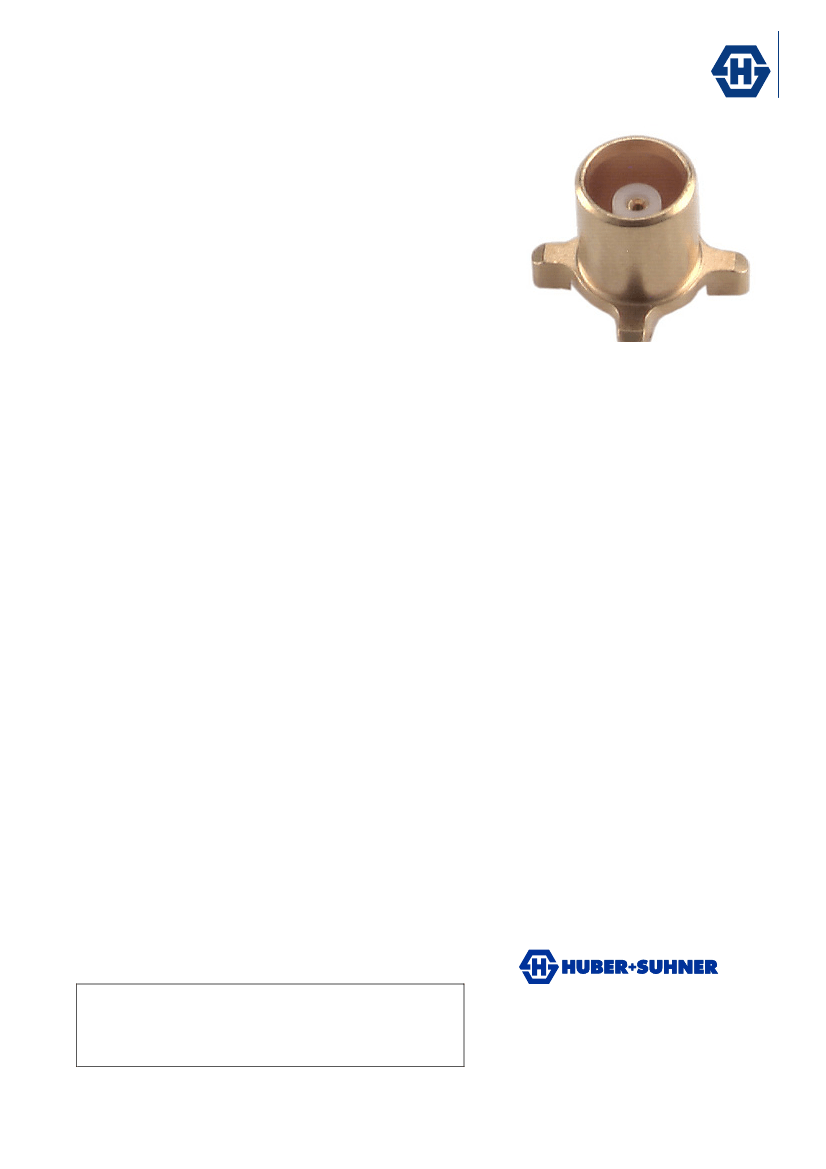

Coaxial PCB Connector: 82_MCX-S50-0-29/111_N

Description

Rev.: C

Straight PCB jack

Interface Standards

IEC 60169-36_CECC 22220

Technical Data

Electrical Data

Impedance

Interface frequency max.

50

Ω

6 GHz

surface mount

0.0004 kg

-55 °C to 155 °C

compliant

Material

Copper Beryllium Alloy

Brass

PFA / PTFE

DOU-00012753

DCA-00012755

DOU-00012756

82_MCX-S50-0-29/111_NH

82_MCX-S50-0-29/111_NM

82_MCX-S50-0-29/111_NE

Surface Plating

Gold Plating (Nickel underplated)

SUCOPRO Plating

Mechanical Data

Board mounting type

Weight

Environmental Data

Operating Temperature

2002/95/EC (RoHS)

Material Data

Piece Parts

Centre contact

Outer contact

Body

Insulator
