87566-103LF datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 87566-103LF

Preview

87566-103LF: DescriptionTelecom and Datacom Connector, 80 Contact(s), Female, Straight, Press Fit Terminal, Locking, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size296KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

87566-103LF Overview

Telecom and Datacom Connector, 80 Contact(s), Female, Straight, Press Fit Terminal, Locking, Receptacle, LEAD FREE

87566-103LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.276 inch
subject depth	0.453 inch
body length	2.717 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	CENTRONIC
DIN compliance	NO
Dielectric withstand voltage	500VDC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	60.048 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
MIL compliance	NO
Manufacturer's serial number	87566
Match contact row spacing	0.075 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD AND PANEL
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell material	POLYAMIDE
Terminal length	0.181 inch
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	80
UL Flammability Code	94V-0
Evacuation force-minimum value	6.672 N
Base Number Matches	1

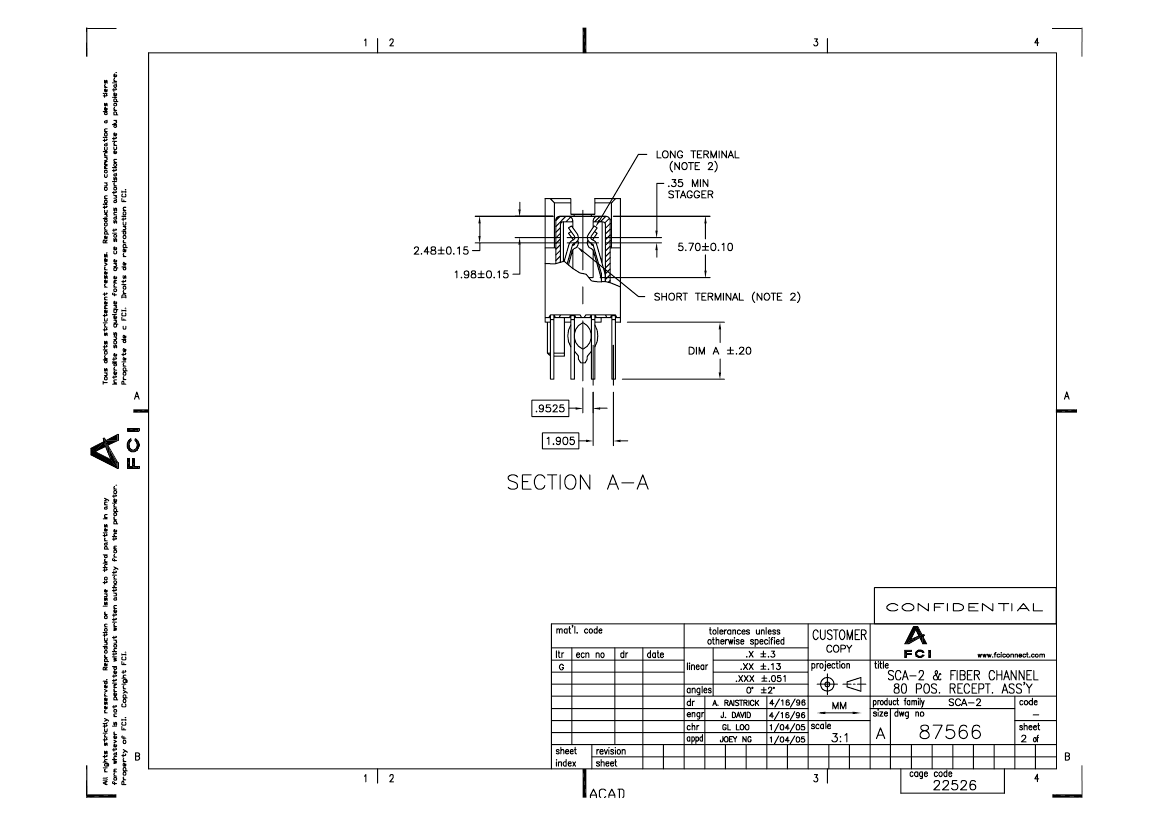

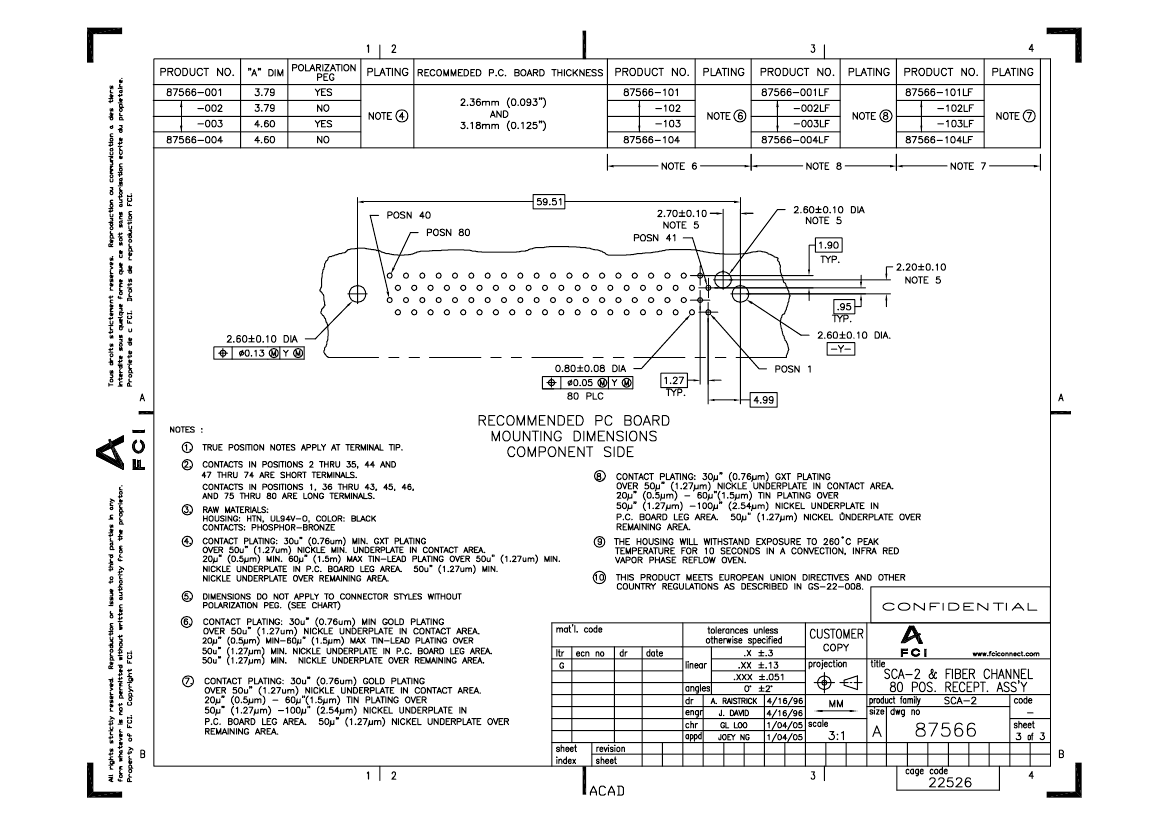

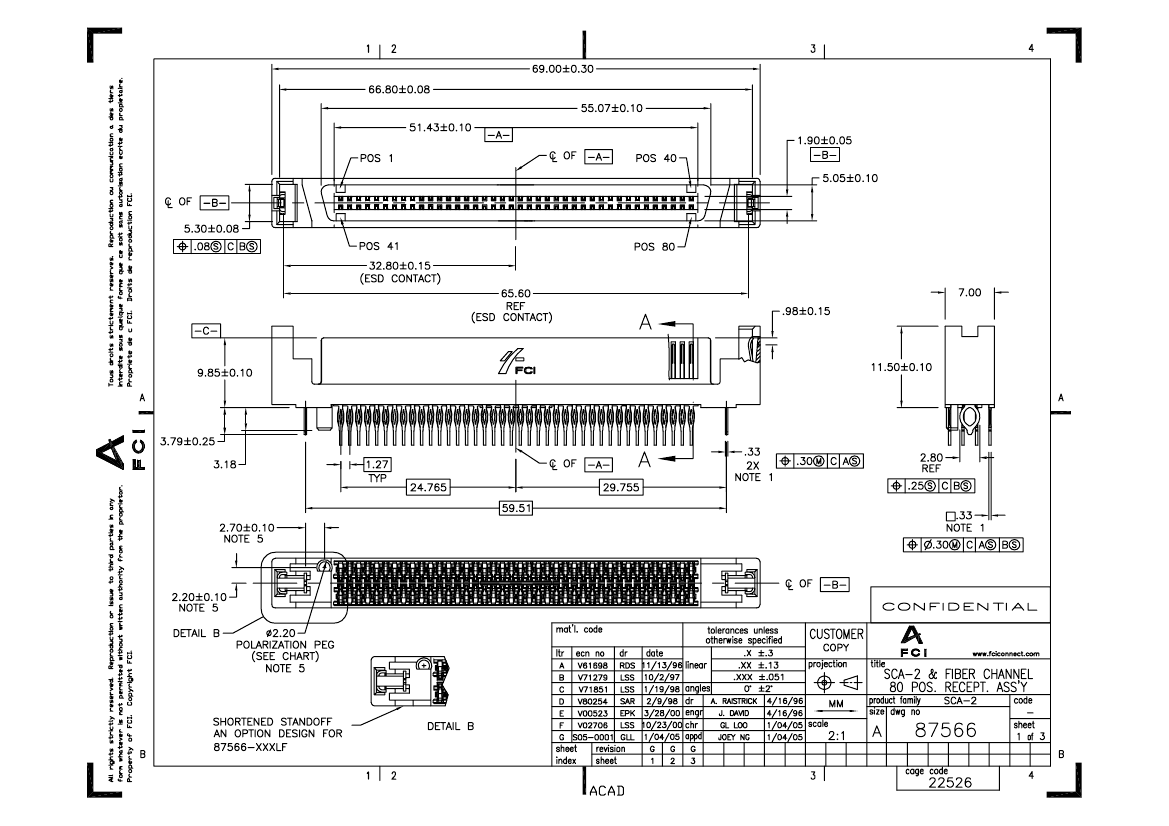

Preview

Download Datasheet

View All

PDM: Rev:G

STATUS:

Released

Printed: Mar 11, 2011

.

87566-103LF Related Products

	87566-103LF	87566-003LF	87566-003	87566-004	87566-101	87566-103
Description	Telecom and Datacom Connector, 80 Contact(s), Female, Straight, Press Fit Terminal, Locking, Receptacle, LEAD FREE	Telecom and Datacom Connector, 80 Contact(s), Female, Straight, Press Fit Terminal, Locking, Receptacle, LEAD FREE	Telecom and Datacom Connector, 80 Contact(s), Female, Straight, Press Fit Terminal, Locking, Receptacle	Telecom and Datacom Connector, 80 Contact(s), Female, Straight, Press Fit Terminal, Locking, Receptacle	Telecom and Datacom Connector, 80 Contact(s), Female, Straight, Press Fit Terminal, Locking, Receptacle	Telecom and Datacom Connector, 80 Contact(s), Female, Straight, Press Fit Terminal, Locking, Receptacle
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
body width	0.276 inch	0.276 inch	0.276 inch	0.276 inch	0.276 inch	0.276 inch
subject depth	0.453 inch	0.453 inch	0.453 inch	0.453 inch	0.453 inch	0.453 inch
body length	2.717 inch	2.717 inch	2.717 inch	2.717 inch	2.717 inch	2.717 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NICKEL PALLADIUM GOLD (30) OVER NICKEL	GOLD FLASH (30) OVER PALLADIUM NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	15 mΩ	15 mΩ	15 mΩ	15 mΩ	15 mΩ	15 mΩ
Contact style	CENTRONIC	CENTRONIC	CENTRONIC	CENTRONIC	CENTRONIC	CENTRONIC
DIN compliance	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	500VDC V	500VDC V	500VDC V	500VDC V	500VDC V	500VDC V
empty shell	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
maximum insertion force	60.048 N	60.048 N	.8896 N	.8896 N	.8896 N	.8896 N
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	87566	87566	87566	87566	87566	87566
Match contact row spacing	0.075 inch	0.075 inch	0.075 inch	0.075 inch	0.075 inch	0.075 inch
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL
PCB row number	4	4	4	4	4	4
Number of rows loaded	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	1.905 mm	1.905 mm	1.905 mm	1.905 mm	1.905 mm	1.905 mm
Plating thickness	30u inch	30u inch	30u inch	30u inch	30u inch	30u inch
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell material	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE
Terminal length	0.181 inch	0.181 inch	0.181 inch	0.181 inch	0.149 inch	0.181 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	80	80	80	80	80	80
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Evacuation force-minimum value	6.672 N	6.672 N	6.672 N	6.672 N	6.672 N	6.672 N
Base Number Matches	1	1	1	1	1	1
ECCN code	EAR99	EAR99	EAR99	-	EAR99	EAR99
Other features	-	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
JESD-609 code	-	e3	e0	e0	e0	e0
Contact completed and terminated	-	-	TIN LEAD (60) OVER NICKEL	TIN LEAD (60) OVER NICKEL	TIN LEAD (60) OVER NICKEL	TIN LEAD (60) OVER NICKEL
