954-103-58399G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 954-103-58399G

954-103-58399G: DescriptionFiber Optic Connector Adapter; CategoryThe connector The connector; File Size599KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

954-103-58399G Overview

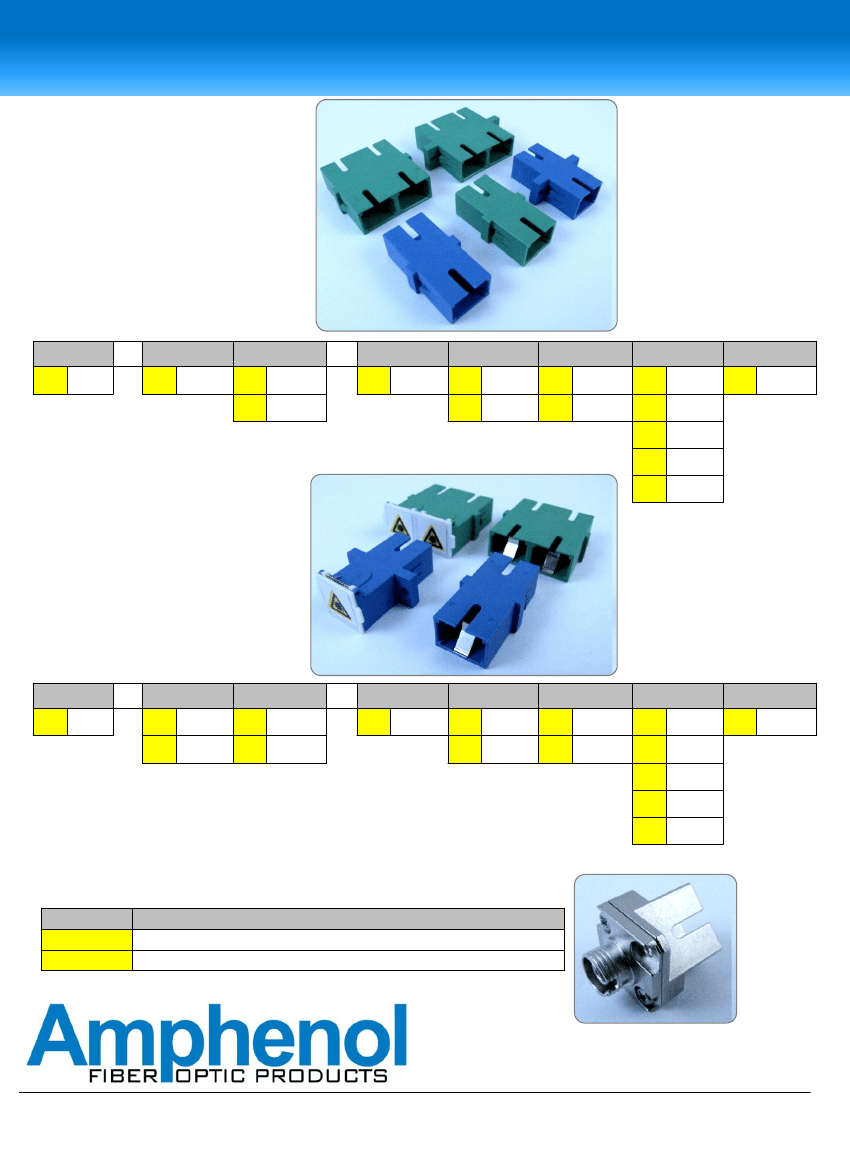

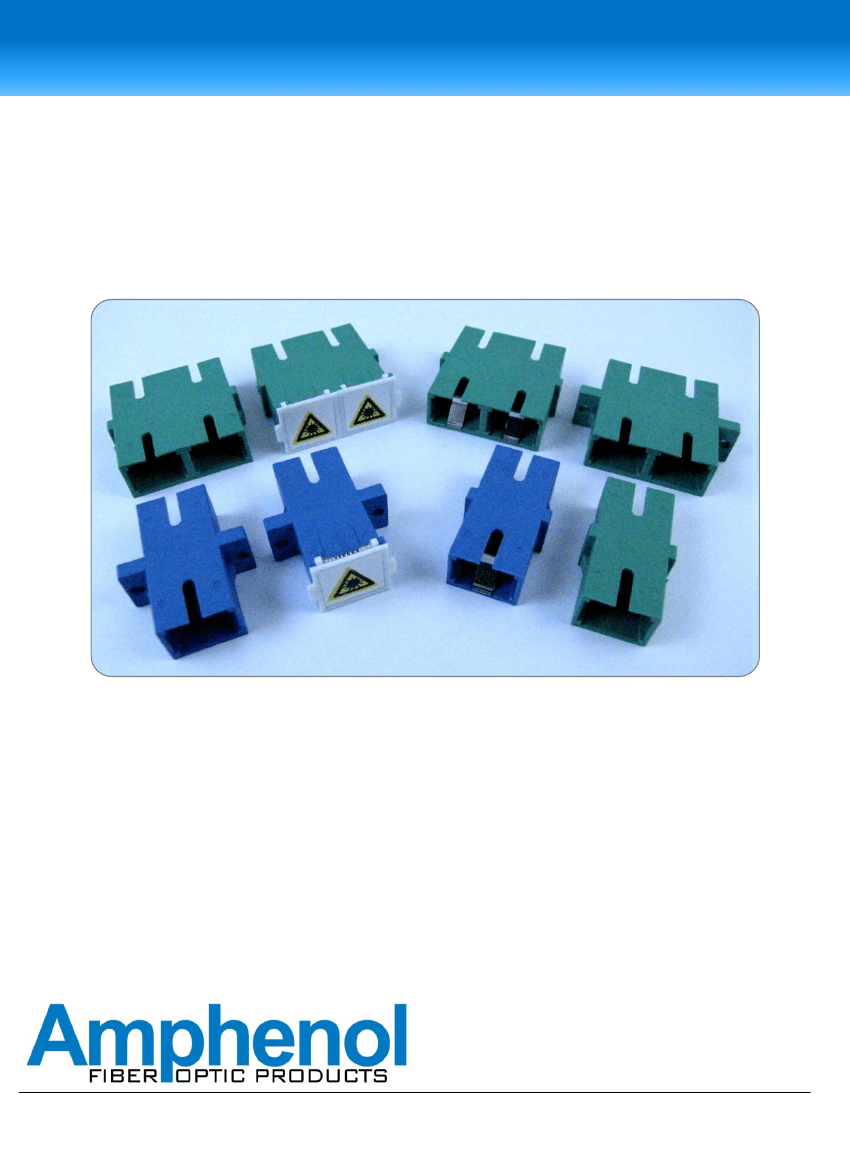

Fiber Optic Connector Adapter

954-103-58399G Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Connector type	FIBER OPTIC CONNECTOR ADAPTER
Manufacturer's serial number	954
Base Number Matches	1

Preview

Download Datasheet

View All

954 Series SC Connectors

Amphenol’s premier high performance fiber

optic 954 Series SC connectors utilize a push pull

retention feature enabling easy insertion and

removal, making it ideally suited for high-density

applications. The SC connector features an

internal cavity and epoxy injection tube that

virtually eliminates the possibility of improper

epoxy application, thus providing higher

manufacturing yields and superior quality.

Amphenol’s 954 Series SC connectors are

compliant to the EIA/TIA-604, IEC 60874, and

fully tested by a third party test lab per Telcordia

GR-326 specifications.

Features/Benefits

•

Third party tested per Telcordia GR-326

Easy push pull coupling mechanism enables quick

installation and the audible click signifies when

connector is locked in place

Pull proof design prevents signal interruption

Teflon tube in rear of connector insures clean epoxy

injection

Duplex version utilizes a removable flexible clip

providing a float between channels A and B

High temperature and UL 94-V0 rated plastic

housing and boots available in multiple colors

Tight tolerance ferrules for low loss performance

Available in singlemode, angled singlemode, and

multimode versions

Available with 900µm, 2.0mm, 3.0mm, and 90

degree boots in multiple colors

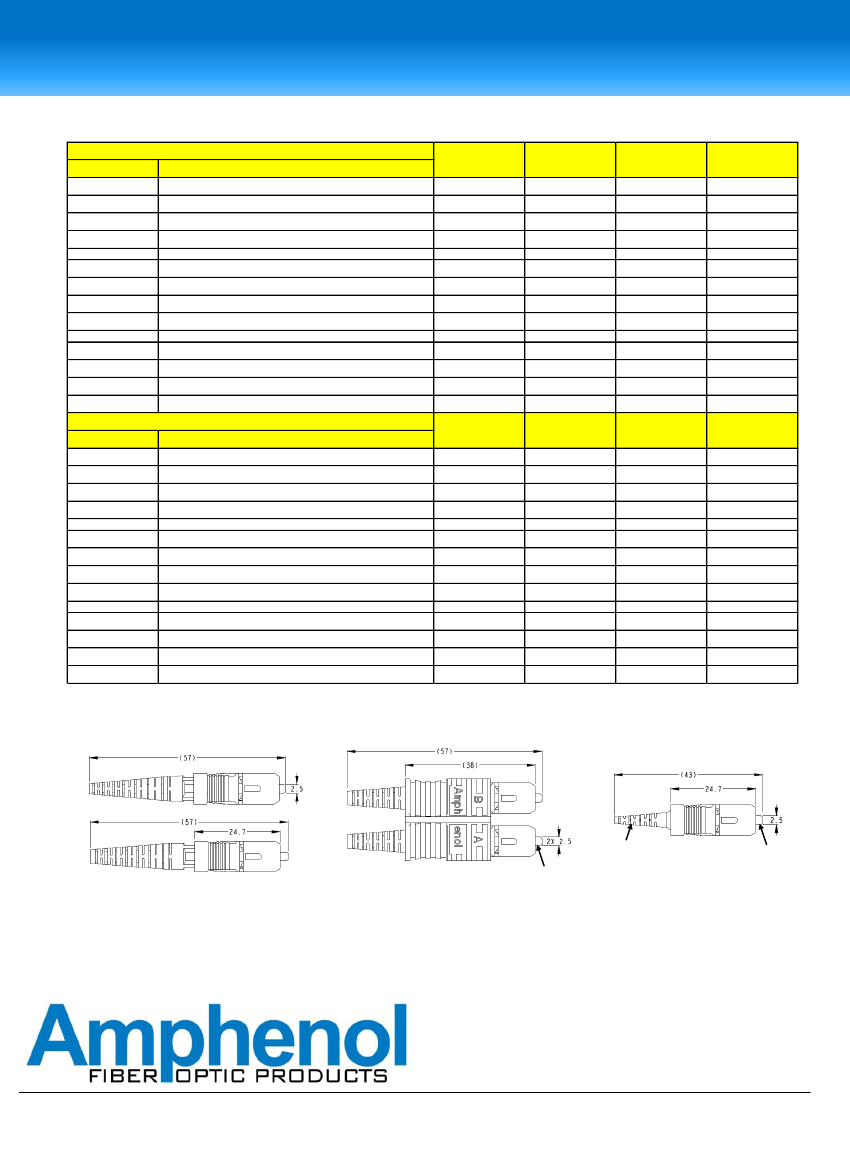

Specifications

Insertion Loss:

≤ 0.15dB typical, singlemode

≤ 0.30dB typical, APC

≤ 0.35dB typical, multimode

≤ -55dB*

≤ -65dB*

•

Return Loss:

Ultra (UPC)

Angle (APC)

Durability:

< 0.2dB change, 500mating cycles

Temperature:

<0.3dB change, -40 to +85°C

Intermateability:

The Amphenol 954 Series SC Connectors are

mechanically and optically intermateable with NTT-

SC type products and conform to JIS, ANSI, TIA/EIA,

IEC, and Telcordia specifications.

*Performance is polish dependent

www.amphenol-fiberoptics.com

sales@amphenol-fiberoptics.com

Customer Service 800-944-6446
