94685-504 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 94685-504

94685-504: DescriptionBoard Connector, 100 Contact(s), 2 Row(s), Female, Right Angle, 0.025 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size214KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

94685-504 Overview

Board Connector, 100 Contact(s), 2 Row(s), Female, Right Angle, 0.025 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle

94685-504 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PANEL MOUNTABLE, STRADDLE MOUNT
body width	0.44 inch
subject depth	0.715 inch
body length	1.82 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NICKEL PALLADIUM GOLD (60) OVER NICKEL
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	250 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.417 N
Insulation resistance	10000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e0
MIL compliance	NO
Plug contact pitch	0.025 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Plating thickness	60u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	0.635 mm
Termination type	SURFACE MOUNT
Total number of contacts	100
Evacuation force-minimum value	.1112 N
Base Number Matches	1

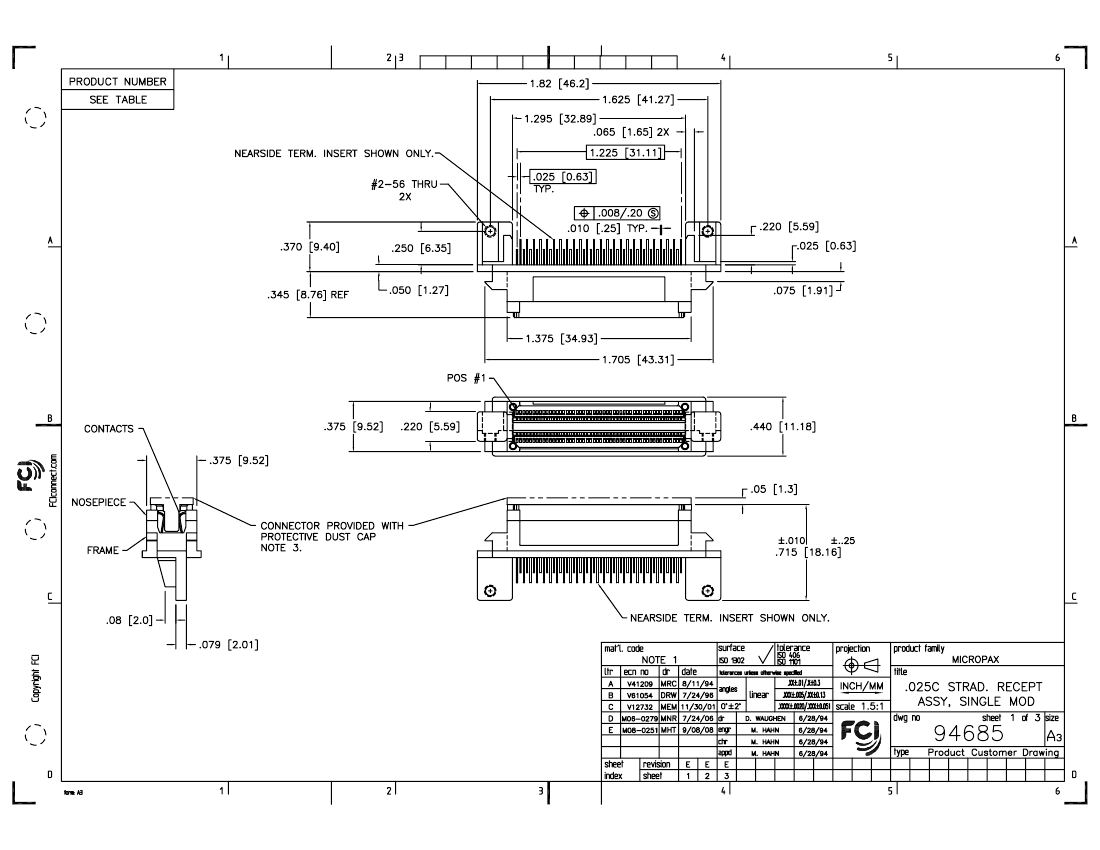

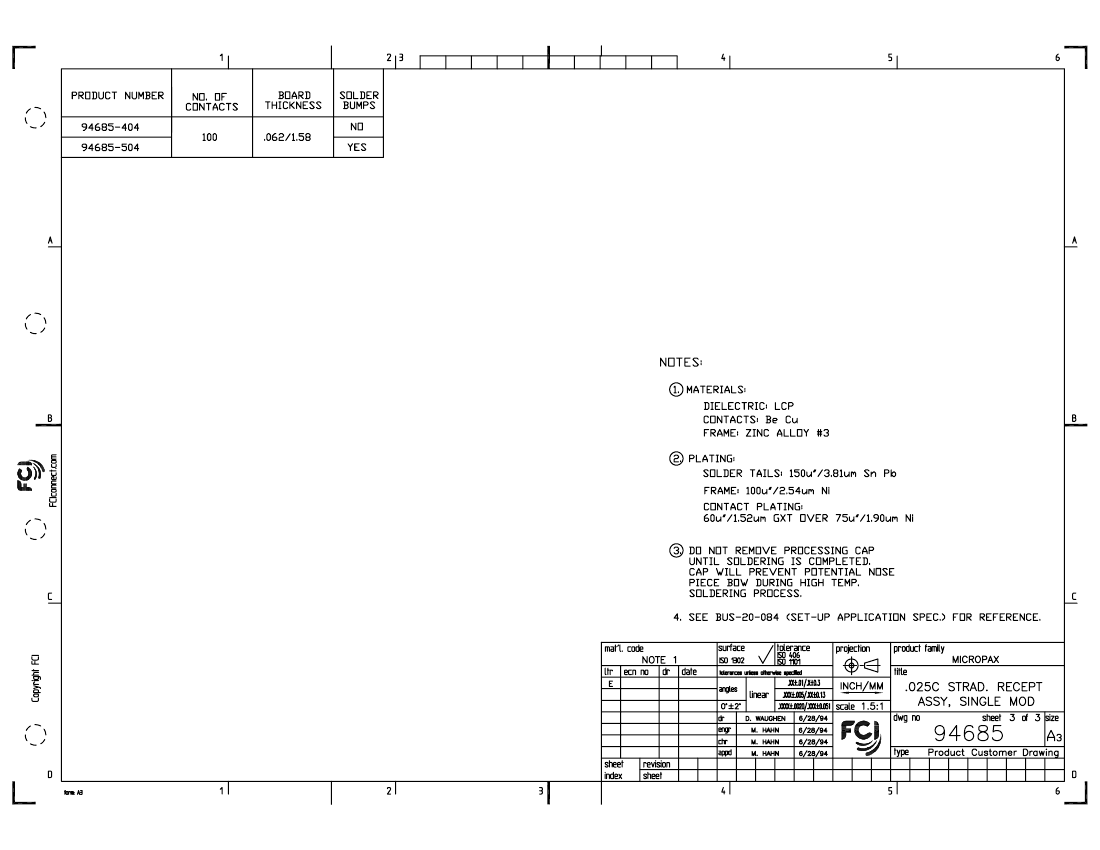

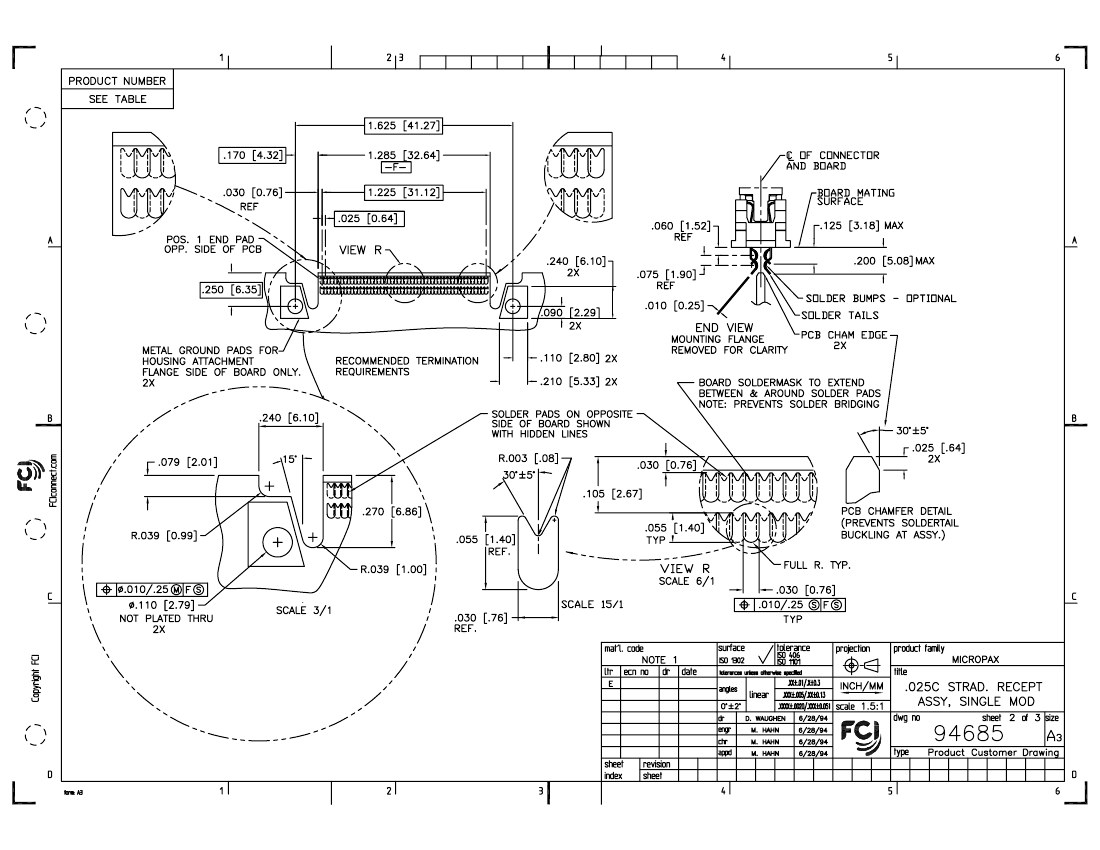

Preview

Download Datasheet

View All

PDM: Rev:E

STATUS:

Released

Printed: Feb 10, 2010

94685-504 Related Products

	94685-504	94685-404	94685-504LF	94685-404LF
Description	Board Connector, 100 Contact(s), 2 Row(s), Female, Right Angle, 0.025 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle	Board Connector, 100 Contact(s), 2 Row(s), Female, Right Angle, 0.025 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle	Board Connector, 100 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal, Receptacle	Board Connector, 100 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal, Receptacle
Is it lead-free?	Contains lead	Contains lead	Lead free	Lead free
Is it Rohs certified?	incompatible	incompatible	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant
Other features	PANEL MOUNTABLE, STRADDLE MOUNT	PANEL MOUNTABLE, STRADDLE MOUNT	PANEL MOUNTABLE, STRADDLE MOUNT	PANEL MOUNTABLE, STRADDLE MOUNT
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NICKEL PALLADIUM GOLD (60) OVER NICKEL	NICKEL PALLADIUM GOLD (60) OVER NICKEL	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	BERYLLIUM COPPER	BERYLLIUM COPPER	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	0.635 mm	0.635 mm	0.635 mm	0.635 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	100	100	100	100
Base Number Matches	1	1	1	-
