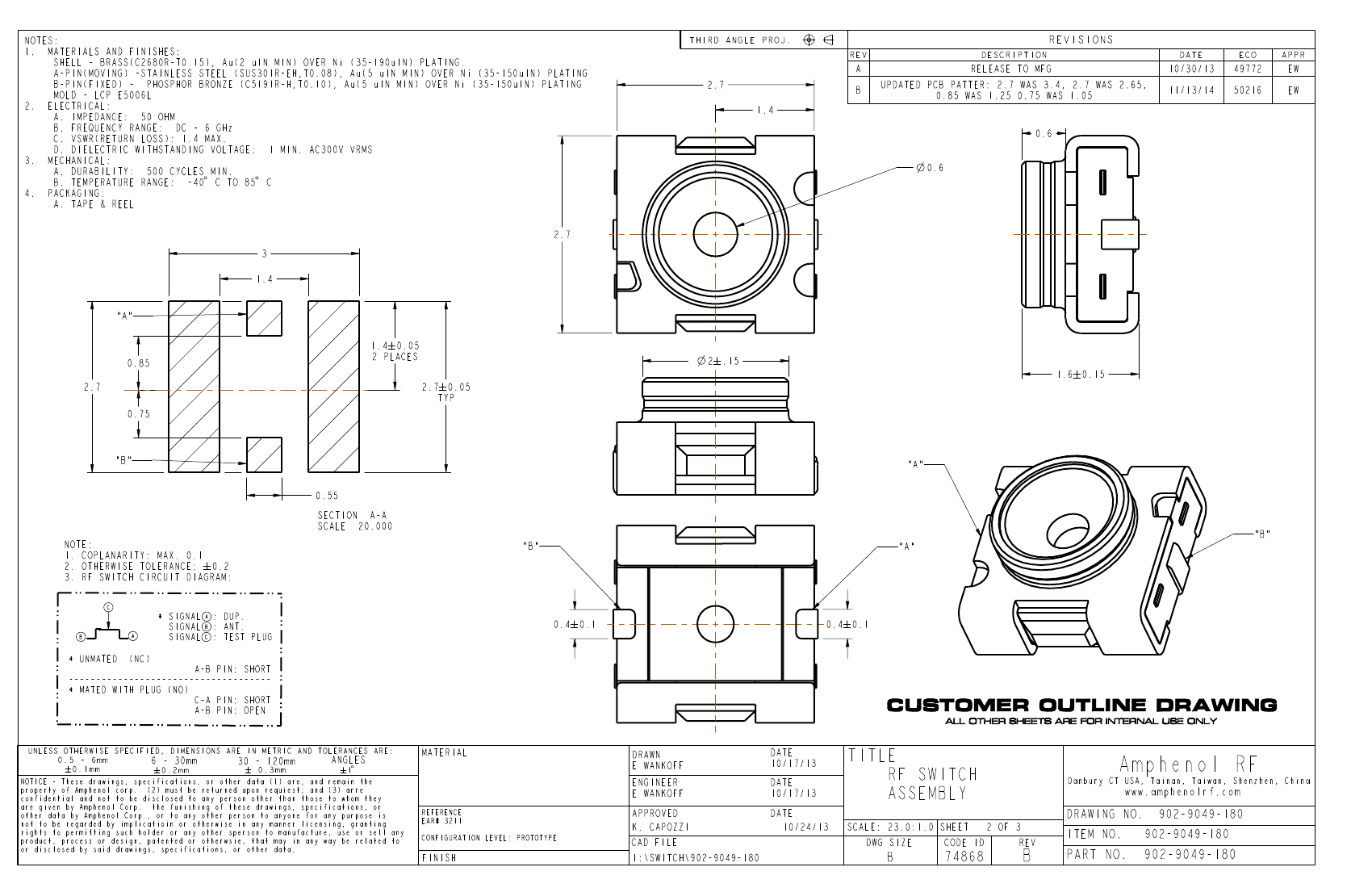

NOTES:
1. MATERIALS AND FINISHES:
SHELL - BRASS(C2680R-T0.15), Au(2 uIN MIN) OVER Ni (35-190uIN) PLATING.
A-PIN(MOVING) -STAINLESS STEEL (SUS301R-EH,T0.08), Au(5 uIN MIN) OVER Ni
B-PIN(FIXED) - PHOSPHOR BRONZE (C5191R-H,T0.10), Au(5 uIN MIN) OVER Ni
MOLD - LCP E5006L
2. ELECTRICAL:
A. IMPEDANCE: 50 OHM
B. FREQUENCY RANGE: DC - 6 GHz
C. VSWR(RETURN LOSS): 1.4 MAX.
D. DIELECTRIC WITHSTANDING VOLTAGE: 1 MIN. AC300V VRMS
3. MECHANICAL:
A. DURABILITY: 500 CYCLES MIN.
B. TEMPERATURE RANGE: -40 $C TO 85 $C
4. PACKAGING:
A. TAPE & REEL
THIRD ANGLE PROJ.
REV
REVISIONS
A
RELEASE TO MFG
DESCRIPTION
(35-150uIN) PLATING
(35-150uIN) PLATING
2.7
1.4
B
UPDATED PCB PATTER: 2.7 WAS 3.4, 2.7 WAS 2.65,
0.85 WAS 1.25 0.75 WAS 1.05
0.6
0.6
10/30/13
11/13/14
DATE
49772
50216
ECO
APPR
EW
EW
2.7
3
1.4
"A"
1.4 #
0.05
2 PLACES
2.7 #
0.05
TYP
0.75
0.85
2.7
2 #
.15
1.6 #
0.15
"B"
0.55
SECTION A-A
SCALE 20.000
NOTE:
1. COPLANARITY: MAX. 0.1
2. OTHERWISE TOLERANCE:
#
0.2
3. RF SWITCH CIRCUIT DIAGRAM:
C
"A"
"B"
"A"
"B"
B
A
* SIGNAL
SIGNAL
SIGNAL
A
B
C
: DUP.
: ANT.
: TEST PLUG
0.4 #
0.1
0.4 #
0.1
* UNMATED
A-B PIN: SHORT
-------------------------------------
* MATED WITH PLUG (NO)
C-A PIN: SHORT
A-B PIN: OPEN
(NC)
NOTICE - These drawings, specifications, or other data (1) are, and remain the
property of Amphenol corp. (2) must be returned upon requiest; and (3) arre
confidential and not to be disclosed to any person other than those to whom
they
are given by Amphenol Corp. the funishing of these drawings, specifications,
or
other data by Amphenol Corp., or to any other person to anyone for any purpose
is
not to be regarded by implicatioin or otherwise in any manner licensing,
granting
rights to permitting such holder or any other sperson to manufacture, use or
sell any
product, process or design, patented or otherwsie, that may in any way be
related to
or disclosed by said drawings, specifications, or other data.
UNLESS OTHERWISE SPECIFIED, DIMENSIONS ARE IN METRIC AND TOLERANCES ARE:
0.5 - 6mm
ANGLES
6 - 30mm
30 - 120mm
#
0.1mm
# 0.3mm
# $
1
#
0.2mm
MATERIAL
DRAWN
E WANKOFF
ENGINEER
E WANKOFF
DATE
10/17/13
DATE
10/17/13
DATE
10/24/13
REFERENCE
EAR# 3211
CONFIGURATION LEVEL: PROTOTYPE
FINISH
CAD FILE
APPROVED
K. CAPOZZI
I:\SWITCH\ 902-9049-180
TITLE
RF SWITCH
ASSEMBLY
SCALE: 23.0:1.0 SHEET
DWG SIZE
Danbury CT USA, Tainan, Taiwan, Shenzhen, China
Amphenol RF
www.amphenolrf.com
B
CODE ID
2 OF 3
DRAWING NO.
902-9049-180
902-9049-180
74868
REV
B
ITEM NO.
PART NO.
902-9049-180
