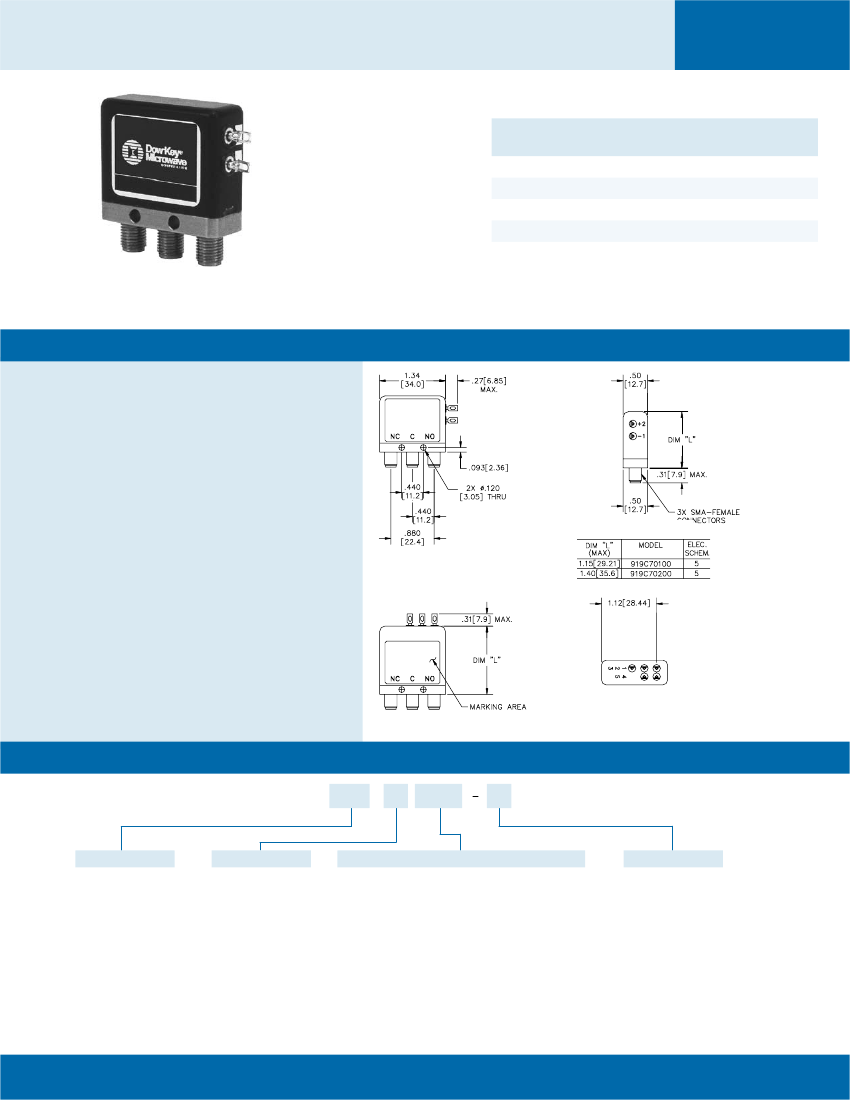

919 Failsafe | SMA
805 Pulse Latch
SPDT
DC-18 GHz
Ruggedized
1M Life Cycles
RF Characteristics
810 Failsafe
Frequency
GHz
DC-1
1-4
4-8
8-12.4
12.4-18
VSWR
(max)
1.15
1.25
1.35
1.45
1.50
Isolation
dB (min)
80
80
70
60
60
Ins. Loss
dB (max)
0.15
0.20
0.35
0.45
0.50
Specifications
Operating Voltage
:
28 Vdc (20-30 Vdc)
Coil Current (max. @ nom. Vdc & 25 °C)*:
28 Vdc 120 mA
Switching Time:
20 ms maximum
Operating Temperature:
-55 °C to +85°C
Mechanical Life Cycles:
1,000,000 minimum
Vibration, Operating:
20g’s sine/random
Mechanical Shock, Non-Operating:
50G, 1/2 Sine, 11 ms
Nominal Weight*:
2.0 oz. (57 g.)
* Performance and weight varies depending on selected options.
Mechanical
Mechanical
Top View
Top View
919C70200 Shown
For Electrical Schematic, see page # 1-20
Part Number Selector
919C
7
0100
XX
Family
Connectors
Voltage
Options
919C = SPDT Failsafe
7 = SMA Female
0100 = 28 Vdc
0200 = 28 Vdc with Indicators
30 = TTL High
60 = High Power*
*See Power Chart on page # iii
AS9100/ISO-9001: 2000 Certified
Dow-Key Microwave
www.dowkey.com
800.266.3695
1-19
