Variable Attenuators
Model 940-60
dc to 4.0 GHz
Model 940-114
dc to 2.0 GHz

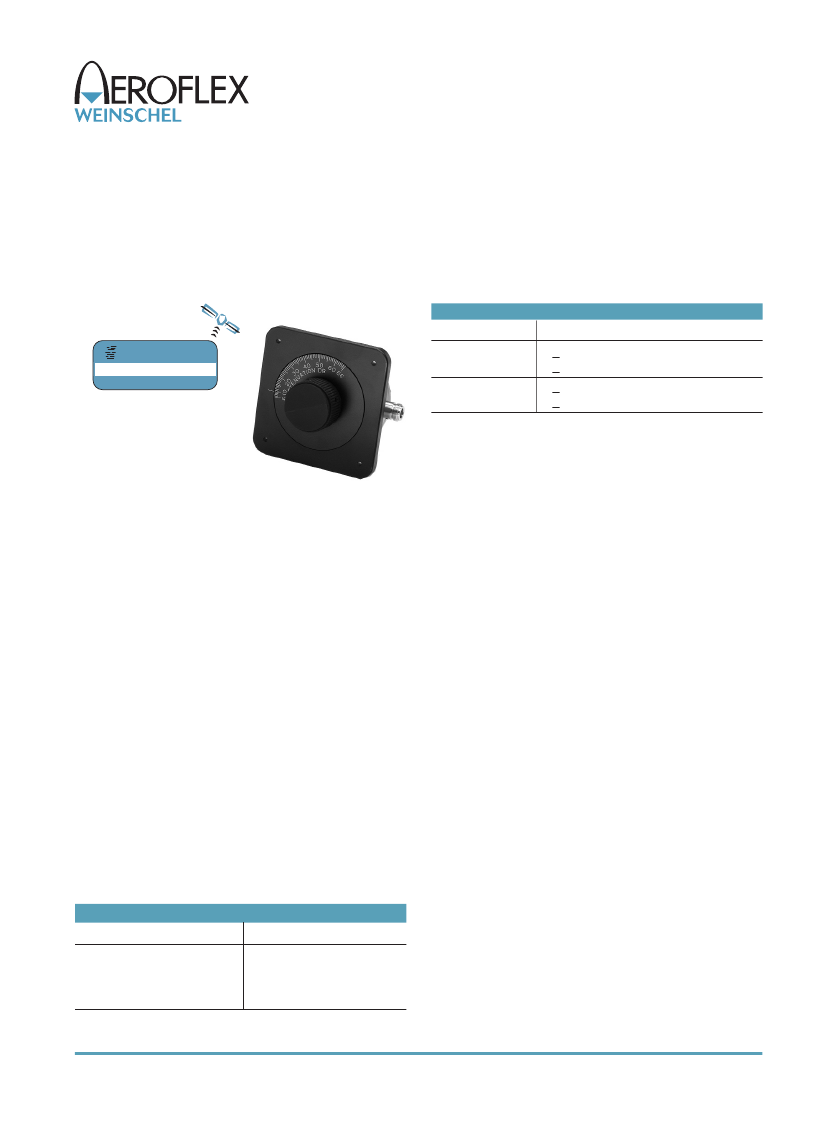

Precision Continuously Variable Attenuators
5 Watts
Choice of SMA or Type N Connectors
DIRECT READING DIAL ACCURACY:
Model
www.argosysales.com
800-542-4457
RoHS
ACCURACY*
+ 0.25 dB or 0.4% @ 2 GHz
+ 0.25 dB or 0.4% @ 1 GHz
+ 0.5 dB or 1% @ 2 GHz
+ 0.5 dB or 1% @ 1 GHz
940-60-XX
940-114-XX
940-60-XX-1
940-114-XX-1
*Whichever is greater.
EXPRESS
Features
o
Wide Variable Attenuation Range
- Variable attenua-
tion range of 60 dB for Model 940-60 and 114 dB for
Model 940-114, with minimum insertion loss at 6 dB.
o
Approximately Linear Calibrated Dial -
Direct reading
dial individually calibrated in approximately linear 1 dB
increments from 6 dB to full scale.
o
Rugged
- Designed to meet the environmental require-
ments of MIL-A-24215.
o
Long Life
- These variable attenuators offer a cycle life
of up to 10,000 cycles. Optional models are also avail-
able to extend the life to 50,000 cycles.
o
Available
Express
Models:
940-60-11
940-60-33
940-60-33-1
Other models may be available for Express delivery.
CHARACTERISTIC INSERTION LOSS, RESIDUAL:
6 dB nominal
DIAL CALIBRATION (in 1 dB increments):
Model 940-60:
6 to 66 dB
Model 940-114: 6 to 120 dB
DIAL INCREMENTS:
1 dB
RESOLUTION OF SCALE:
Model 940-60:
~ 115°
Model 940-114: ~ 270°
CYCLE LIFE:
A cycle consists of a rotation from minimum
to maximum and back to minimum
Model 940-XX-XX :
10,000
Model 940-XX-XX-1:
50,000
PHASE SHIFT WITH CHANGE IN ATTENUATION:
1° per dB x f(GHz) maximum
POWER RATING:
5 watts average to 40°C ambient tem-
perature, derated linearly to 0 watts @ 85°C. 500 watts
peak (5
μsec
pulse width; 0.5% duty cycle).
POWER COEFFICIENT:
< 0.005 dB/dB/watt
TEMPERATURE COEFFICIENT:
<0.001 dB/dB/°C
TEMPERATURE RANGE:
Specifications
NOMINAL IMPEDANCE:
50
Ω
FREQUENCY RANGE:
Model 940-60:
Model 940-114:
INCREMENTAL ATTENUATION RANGE:
Model 940-60:
60 dB
Model 940-114: 114 dB
MAXIMUM SWR:
Frequency Range (GHz)
dc - 1
1-2
2-3
3-4
SWR
1.50
1.60
1.70
1.80
dc to 4.0 GHz
dc to 2.0 GHz
Operating:
Nonoperating:
Model 940-60:
Model 940-114:
0°C to +85°C
-55°C to +125°C.
0.05 x A x (F - Fd) dB
0.1 x A x (F - Fd) dB
FREQUENCY SENSITIVITY:
A = Attenuation setting in dB, Fd = Dial cut frequency in
GHz, F= Operation frequency in GHz
TEST DATA:
Test frequency for Model 940-60 is 2 GHz and
1 GHz for 940-114. Test data is available at additional cost.
136
5305 Spectrum Drive, Frederick, MD 21703-7362
s
TEL: 301-846-9222, 800-638-2048
s
Fax: 301-846-9116
web: www.aeroflex.com/weinschel
s
email: weinschel-sales@aeroflex.com
Revision Date: 9/30/2012
Variable Attenuators
Specifications-Con’t
CONNECTOR:
SMA or Type N connector per MIL-STD-
348 interface dimensions - mate nondestructively with
MIL-C-39012 connector.
INPUT (J1)
OUTPUT (J2)
Connector Options
11
SMA, Female SMA, Female
12
SMA, Female SMA, Male
22
SMA, Male
SMA, Male
33
N, Female
N, Female
34
N, Female
N, Male
44
N, Male
N, Male
CONSTRUCTION:
Aluminum body and stainless steel
connector; gold plated beryllium copper contacts. Knob is
included with each unit.
WEIGHT:
Net 1,570 g (3 lbs, 8 oz)
MODEL NUMBER DESCRIPTION:
Example:
940 - XX - XX - *
Basic Model
Number
Attenuation
Value (dB)
Connector Options
* Add -1 for long life version.
ACCESSORIES
ATTENUATOR STAND, MODEL 940 Z:
This stand allows a
user to easily mount any Model 940 for those bench
applications.

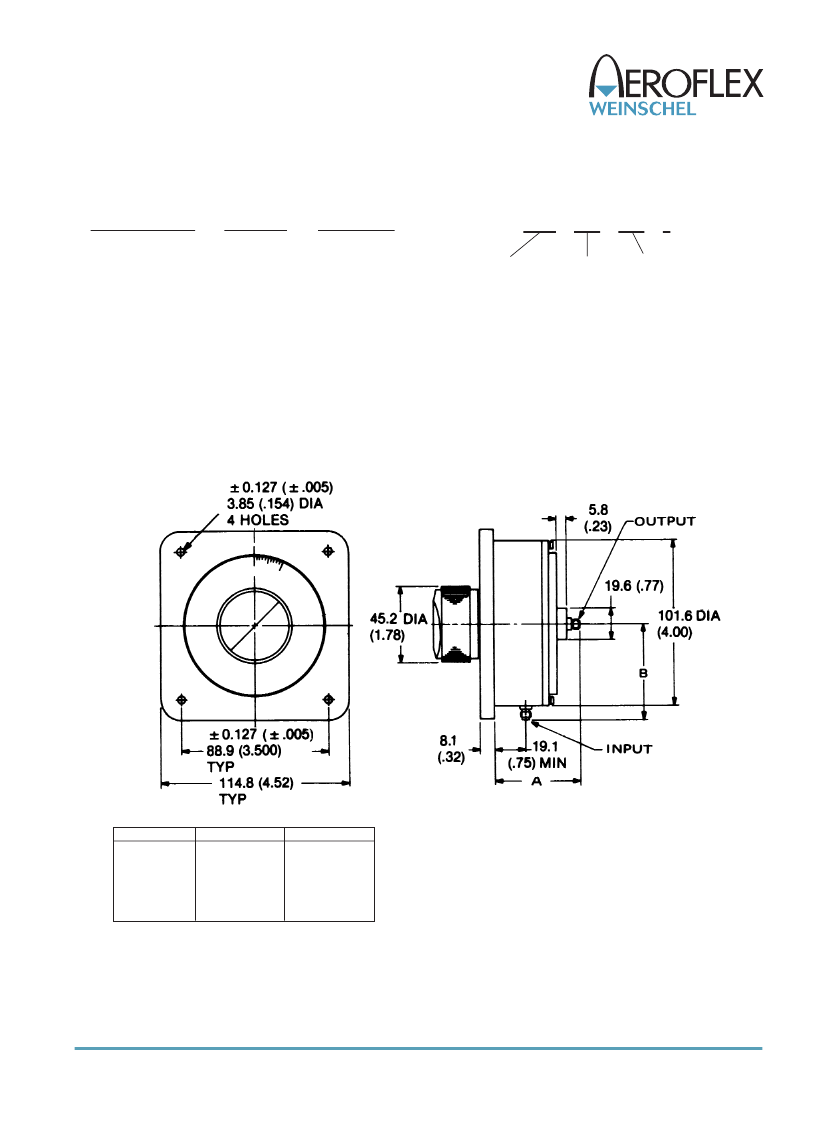

PHYSICAL DIMENSIONS:
Model No.
940-XX-11
940-XX-12
940-XX-22
940-XX-33
940-XX-34
940-XX-44
DIM A
52.3 (2.06)
55.6 (2.19)
55.6 (2.19)
61.0 (2.40)
66.0 (2.60)
66.0 (2.60)
DIM B
58.2 (2.29)
58.2 (2.29)
61.5 (2.42)
68.1 (2.68)
68.1 (2.68)
71.9 (2.83)
NOTE:
1. All dimensions are given in mm (inches) and are maximum, unless
otherwise specified.
2. Unit available with RoHS compliant materials, specify when ordering.
137
5305 Spectrum Drive, Frederick, MD 21703-7362
s
TEL: 301-846-9222, 800-638-2048
s
Fax: 301-846-9116
web: www.aeroflex.com/weinschel
s
email: weinschel-sales@aeroflex.com
Revision Date: 9/30/2012
