95CW06E3J datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 95CW06E3J

Preview

95CW06E3J: DescriptionKeypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 12VDC, 2.55N, Solder Terminal, Surface Mount-straight,; CategoryMechanical and electronic products switch; File Size75KB，2 Pages; ManufacturerGrayhill; Websitehttp://www.grayhill.com

Download Datasheet Parametric View All

95CW06E3J Overview

Keypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 12VDC, 2.55N, Solder Terminal, Surface Mount-straight,

95CW06E3J Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle
Actuator color	RED
Actuator type	PUSHBUTTON
Other features	APPROVAL UL & 77PCS/TUBE
body width	6.1976 mm
Body color	BLACK
Body length or diameter	6.8 mm
center contact material	PHOSPHOR BRONZE
Center contact plating	SILVER
Circuit configuration	1X1
Maximum contact current (DC)	0.05 A
Contact (DC) maximum rated R load	.05A@12VDC
Contact function	ON-OFF
Contact resistance	0.1 mΩ
contact time	SNAP ACTION
Maximum contact voltage (DC)	12 V
Electrical life	500000 Cycle(s)
End contact material	PHOSPHOR BRONZE
End contact plating	SILVER
Insulation resistance	100000000 Ω
JESD-609 code	e0
Installation features	SURFACE MOUNT-STRAIGHT
Number of switches	1
Maximum operating force	2.55 N
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
method of packing	TAPE AND REEL; TUBE
seal	SILICONE RUBBER
Solderability	HAND
surface mount	NO
Switch action	MOMENTARY-TACTILE
switch function	SPST
Switch type	KEYPAD SWITCH
Terminal surface	Tin/Lead (Sn/Pb)
Terminal material	BRASS
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

Washable Tactile Switches

SERIES 95C

6mm Square, Washable

FEATURES

• Designed to Allow Submersed Washing

After Soldering

• Excellent Tactile Feedback

• Thru-hole, Gull Wings, Right Angle,

and J-Lead Versions

• Surface Mount Versions Compatible with

SMT Assembly Including Infrared and

Vapor Phase

• Ultraminiature and Lightweight Structure

Suitable for High Density Mounting

• Insert Molded Terminals to Prevent Flux

Build-up During Soldering

APPLICATIONS

Used in applications such as consumer

electronics, audio equipment, PCs, VCRs,

cable boxes, modems, communications

equipment, controls, security and alarm

equipment, and test and measurement

equipment.

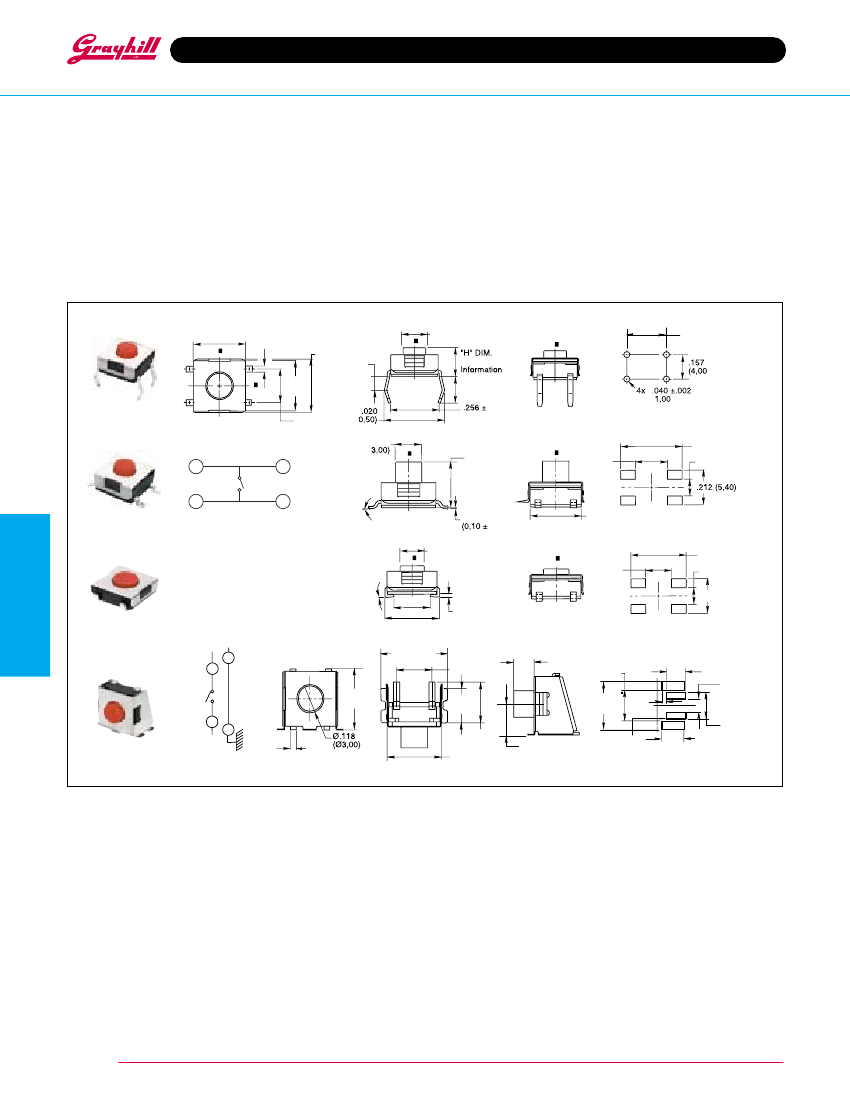

DIMENSIONS:

Washable Switches

Top View

.244 (6,20)

C

L

.027

(0,70)

In inches (and millimeters)

Front View

Thru-Hole

.248

(6,30)

.071

+0.0-.02

(1,80

+0,0-0,5)

C

L

Ø.118 (Ø3,00)

C

L

See Ordering

.138 ±.020

(3,50 ±0,50)

.020

(6,50 ±0,50)

Ø.118

(Ø

±.004

±0,10)

Ø

(4xØ

±0,05)

Side View

.256 ±.004

(6,50 ±0,10)

C

L

Thru-hole

.236

(6,00)

.157

(4,00)

.311 ±

(7,90 ±

P.C.B. LAYOUT

C

L

T1

T2

Gull Wing

"H" DIM.

See Ordering

Information

C

L

.433 (11,00)

.267

(6,80)

.102 (2,60)

T3

Gull Wing

CIRCUITRY

T4

0˚

10˚

.004 ±.004

0,10)

Ø.118 (Ø3,00)

.228

(5,80)

P.C.B. LAYOUT

J-Lead

0˚

C

L

C

L

.157

(4,00)

.339 (8,60)

.102 (2,60)

.212 (5,40)

Tact Switches

.177 (4,50)

10˚

J-Lead

.268 (6,80)

0.297 ±0.02

(7,55 ±0,50)

.016

(0,40)

"H" DIM. ±0,008

("H" DIM. ±0,20)

See Ordering

Information

0.157 ±0.02

(4,00 ±0,50)

P.C.B. LAYOUT

F1

T1

.276

(7,02)

.228 ±0.004

(5,80 ±0,10)

.354 ±0.004 0.031

(9,00 ±0,10) (0,80)

.146 (3,70)

0.098

±0.004

(2,50

±0,10)

0.197

±0.004

.165 (5,00

(4,20) ±0,10)

0.154

(3,90)

0.181

(4,61)

.240 (6,10)

T2

F2

.028

(0,70)

Right Angle

CIRCUITRY

0.136 ±0.012

(3,45 ±0,30)

0.067

(1,70)

P.C.B. LAYOUT

Unless otherwise specified, tolerances are ±.010 (0,25).

SPECIFICATIONS:

Washable Switches

Materials

Base:

UL94V-0 Nylon or PPA high-temp

thermoplastic, black

Cover:

Stainless steel, tin-plated steel

Actuator:

UL94V-0 Nylon thermoplastic

Terminal:

Brass with silver-plating

Contact:

Phospher bronze with silver-plating

Cap:

Thermoplastic ABS

Seal:

Silicone Rubber

Insulation Resistance:

100 MΩ min. at

500Vdc

Dielectric Strength:

No dielectric breakdown

after 250V for one minute

Contact Arrangement:

single pole, single

throw

Vibration:

MIL-STD-202F, Method 201A.

Passed 6 hours (2 hours in each) of three

perpendicular planes at a cycle of 10-55-

10Hz/minute. High reliability.

Soldering Process

Hand Soldering:

Use a soldering iron of 30

watts, controlled at 320°C (608°F)

approximately 2 seconds while applying

solder.

Reflow Soldering

(surface mount versions

only): Peak temperature 240°C (464°F).

Wave Soldering:

260C° (500°F) maximum

for 5 seconds subject to PCB .063 in. (1,60

mm) thickness.

Environmental

Operating Temp. Range:

-25 to 70°C

Storage Temp. Range:

-30 to 80°C

Mechanical Shock:

MIL-STD-202F, Method

213B, Test Condition A. Gravity: 50G's (peak

value), 11 msec. Direction and times: 6 sides

and 3 times in each direction. High reliability.

Electrical

Rating:

50mA, 12 Vdc

Life:

See table, page C-12

Contact Resistance:

100 mΩ max.

C-11

Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois

60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com
