966W
Typical Applications
Land Mobile Radio
Cellular Telephony
Radio in the Local Loop
Test Equipment
Digital Switching
TCXO
Features
Hermetic Seal Package
Wide Temperature Range
High Frequency
Low Aging
EFC Standard
Surface Mount Available
Stratus III Option Available
Frequency Range
Parameters
Operating
Temperature Range
Frequency Stability *
(ppm)
> 30 MHz – 622 MHz
Model Numbers
Clipped Sine Wave
(1 Vpp min. into 1kΩ)
Square Wave
(CMOS)
0....50°C
0.....70°C
-20....+70°C
±
1.0 ppm
±
2.0 ppm
±
2.5 ppm
±
5.0 ppm
±
1.5 ppm
±
2.0 ppm
±
2.0 ppm
±
2.5 ppm
966VWAB
966VWAD
966VWDE
966VWDF
966VWBC
966VWBD
966VWED
966VWEE
966VWHAB
966VWHAD
966VWHDE
966VWHDF
966VWHBC
966VWHBD
966VWHED
966VWHEE
Typical Phase Noise @ 40 MHz
-40....+85°C
Note: Model 966 custom versions available with output waveforms of SINE & ECL
Additional Parameters
Supply Voltage:
Current
Clipped Sinewave:
CMOS:
Aging:
Electrical Frequency
Control
Voltage Range:
Deviation:
Slope:
Input Impedance:
+5 Vdc
±
5%
2 mA to 60 mA
10 mA to 60 mA
±
1.0 ppm/year
0.5 to 4.5 Vdc
±
8 ppm min.
(others available)
Positive
> 10 kohms
1Hz Offset
10Hz Offset
100Hz Offset
1kHz Offset
10kHz Offset
<- 55 dBc / Hz
<-90 dBc / Hz
<-120 dBc / Hz
<-140dBc / Hz
<-150dBc / Hz
* Stratum III option of ±4.6 ppm total for all conditions over 20 years available.
Corning Frequency Control • 2002 Standard Product Specifications
v2.0.2002-02-05
1/2
Corning Frequency Control Inc.
• 100 Watts Street • Mount Holly Springs, Pennsylvania 17065, USA • Tel 1-717-486-3411 • Fax 1-717-486-5920 • www.corningfrequency.com
Corning Frequency Control GmbH & Co. KG
• Landstrasse D-74924 Neckarbischofsheim, Germany • Tel +49-7268-801-0 • Fax +49-07268-801-281 • www.corningfrequency.de
966W

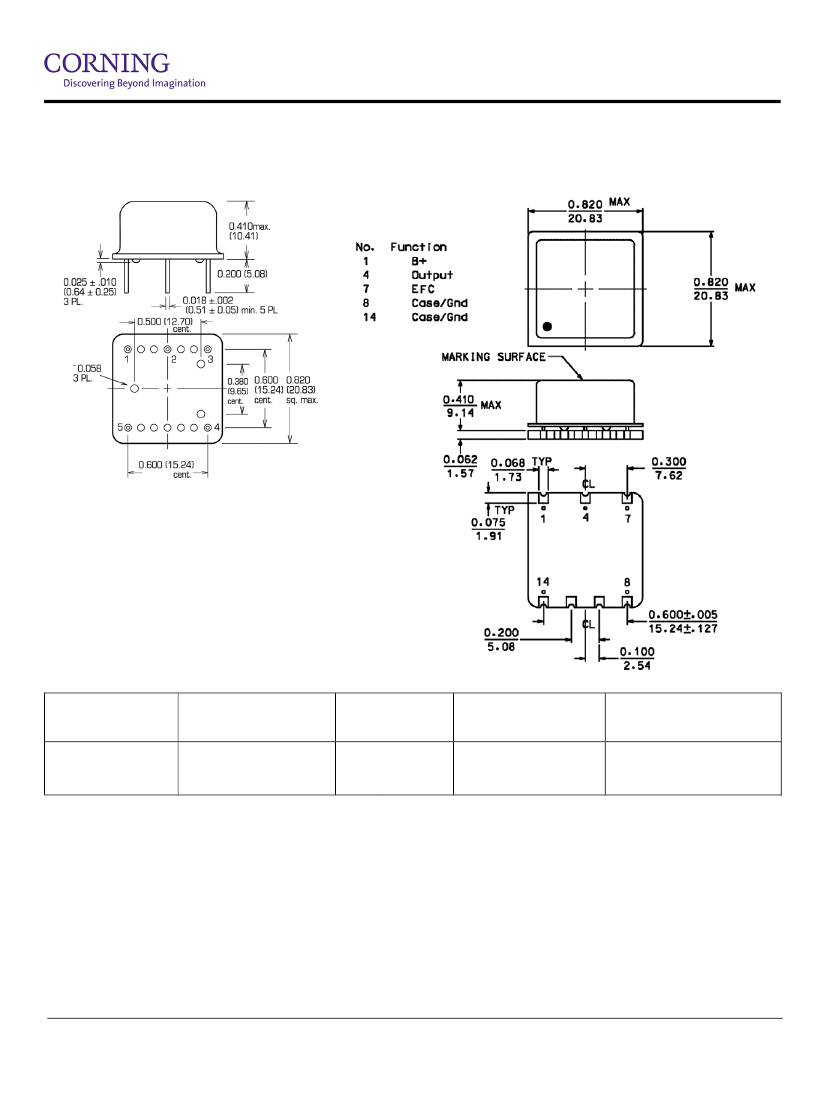

Enclosures
Through-Hole
Surface-Mount
TCXO
PIN CONNECTIONS
1 – Supply
2 – RF Output
3 – EFC
4 – GND
5 – GND
Model
EFC
Waveshape
Freq. Stab.
Temp. Range
Package
Code
Frequency
966W
Blank = No EFC
V= EFC Option
Typical P/N = 966VWHABT40
HAB
T = Through-hole
S = Surface-mount
40M00000
Remove "V" from Model Number when ordering without EFC.
Gull wing option available for surface mounting; contact Factory for details.
Unless otherwise specified, any TCXO ordered without either Mechanical or
Electrical Trim capability shall have a frequency calibration tolerance at Room
Temperature of ± 2ppm and the frequency stability tolerance over temperature
will be from that measured value.
Corning Frequency Control • 2002 Standard Product Specifications
v2.0.2002-02-05
2/2
Corning Frequency Control Inc.
• 100 Watts Street • Mount Holly Springs, Pennsylvania 17065, USA • Tel 1-717-486-3411 • Fax 1-717-486-5920 • www.corningfrequency.com
Corning Frequency Control GmbH & Co. KG
• Landstrasse D-74924 Neckarbischofsheim, Germany • Tel +49-7268-801-0 • Fax +49-07268-801-281 • www.corningfrequency.de
