9653666815 datasheet, PDF - EEWORLD Datasheet

9653666815: DescriptionD Subminiature Connector, 25 Contact(s), Male, Solder Terminal; CategoryThe connector The connector; File Size204KB，1 Pages; ManufacturerHARTING

Download Datasheet Parametric Compare View All

9653666815 Overview

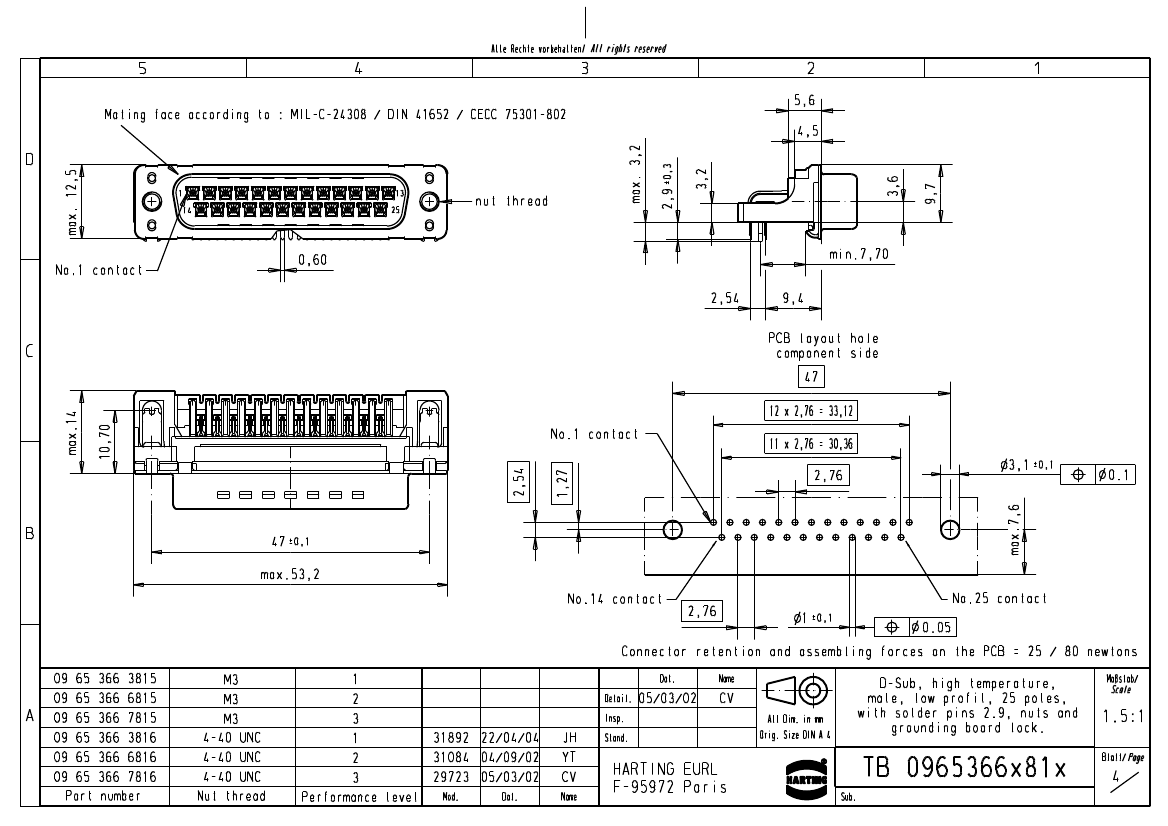

D Subminiature Connector, 25 Contact(s), Male, Solder Terminal

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STANDARDS: DIN 41652; IEC 60807
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
DIN compliance	YES
empty shell	NO
Filter function	NO
IEC compliance	YES
insulator material	GLASS FILLED PCT/THERMOPLASTIC
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	9653666815
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	STEEL
Housing size	3/B
Termination type	SOLDER
Total number of contacts	25
UL Flammability Code	94V-0
Base Number Matches	1

	9653666815	9653666816
Description	D Subminiature Connector, 25 Contact(s), Male, Solder Terminal	D Subminiature Connector, 25 Contact(s), Male, Solder Terminal
Reach Compliance Code	unknown	unknown
Other features	STANDARDS: DIN 41652; IEC 60807	STANDARDS: DIN 41652; IEC 60807
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD	GOLD
Contact completed and terminated	GOLD	GOLD
Contact point gender	MALE	MALE
DIN compliance	YES	YES
empty shell	NO	NO
Filter function	NO	NO
IEC compliance	YES	YES
insulator material	GLASS FILLED PCT/THERMOPLASTIC	GLASS FILLED PCT/THERMOPLASTIC
JESD-609 code	e4	e4
MIL compliance	NO	NO
Manufacturer's serial number	9653666815	9653666816
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO
Installation type	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	STEEL	STEEL
Housing size	3/B	3/B
Termination type	SOLDER	SOLDER
Total number of contacts	25	25
UL Flammability Code	94V-0	94V-0
Base Number Matches	1	1
