M3H-50PIN: DescriptionThree-Way Power Dividers 1 - 100 MHz and 50 - 300 MHz; CategoryWireless rf/communication Radio frequency and microwave; File Size56KB，2 Pages; ManufacturerMACOM; Websitehttp://www.macom.com

Download Datasheet Parametric Compare View All

M3H-50PIN Overview

Three-Way Power Dividers 1 - 100 MHz and 50 - 300 MHz

M3H-50PIN Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	MACOM
Reach Compliance Code	compli
Other features	ISOLATION-MIN (DB):30
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	44.77 dBm
Maximum insertion loss	0.5 dB
Maximum operating frequency	100 MHz
Minimum operating frequency	1 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	SPLITTER
Maximum voltage standing wave ratio	1.3

Preview

Download Datasheet

View All

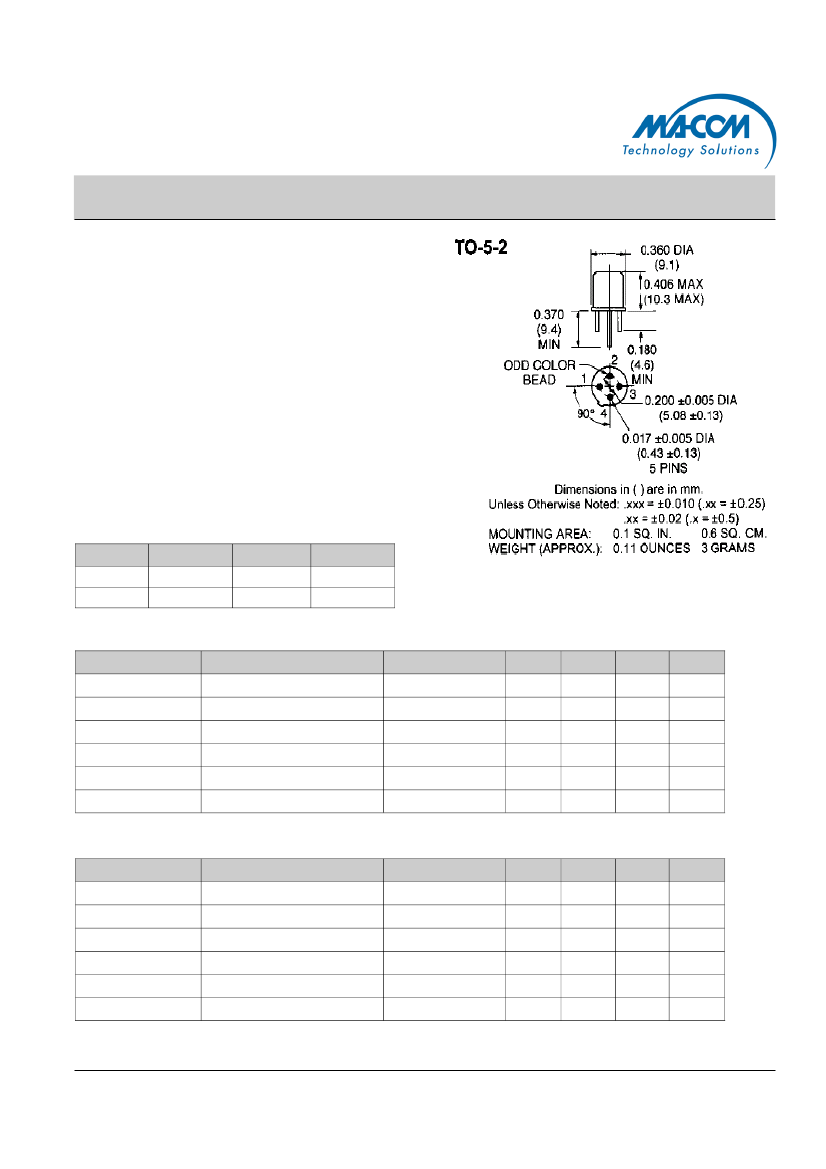

M3H-50 / M3V-50

Three-Way Power Dividers,

1 - 100 MHz and 50 - 300 MHz

Features

•

Ideal for High Density Packaging

High Isolation

VSWR: 1.3:1 Max.

Impedance: 50 Ohms Nominal

Maximum Power Rating or Input Power: 1 Watt

Max.

•

Internal Load Dissipation: 0.05 Watts Max.

•

MIL-STD-202 Screening Available

Rev. V3

Description

A Power Divider is ideally a lossless reciprocal

device which can also perform vector summation of

two or more signals and thus is sometimes called a

power combiner or summer.

Pin Configuration

Pin No.

P1

P2

Function

Out

In

Pin No.

P3

P4

Function

Out

M3H-50 Electrical Specifications

1

: T

A

= -55°C to +85°C

Parameter

Frequency

Insertion Loss

Isolation

Amplitude Balance

Phase Balance

VSWR

Test Conditions

—

Less Coupling

—

Frequency

1 - 100

1 - 100 MHz

Units

MHz

dB

°

Ratio

Min

—

30

—

Typ

—

Max

—

0.5

—

0.2

1.0

1.3:1

M3V-50 Electrical Specifications

1

: T

A

= -55°C to +85°C

Parameter

Frequency

Insertion Loss

Isolation

Amplitude Balance

Phase Balance

VSWR

Test Conditions

—

Less Coupling

—

Frequency

50 - 300 MHz

Units

MHz

dB

°

Ratio

Min

—

25

—

Typ

—

Max

—

0.75

—

0.2

2.0

1.3:1

1. All specification apply with 50 ohm source and load impedance.

1

ADVANCED:

Data Sheets contain information regarding a product M/A-COM Technology Solutions

•

North America

Tel: 800.366.2266 •

Europe

Tel: +353.21.244.6400

is considering for development. Performance is based on target specifications, simulated results,

•

India

Tel: +91.80.4155721

•

China

Tel: +86.21.2407.1588

and/or prototype measurements. Commitment to develop is not guaranteed.

Visit www.macomtech.com for additional data sheets and product information.

PRELIMINARY:

Data Sheets contain information regarding a product M/A-COM Technology

Solutions has under development. Performance is based on engineering tests. Specifications are

typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.

M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make

Commitment to produce in volume is not guaranteed.

changes to the product(s) or information contained herein without notice.

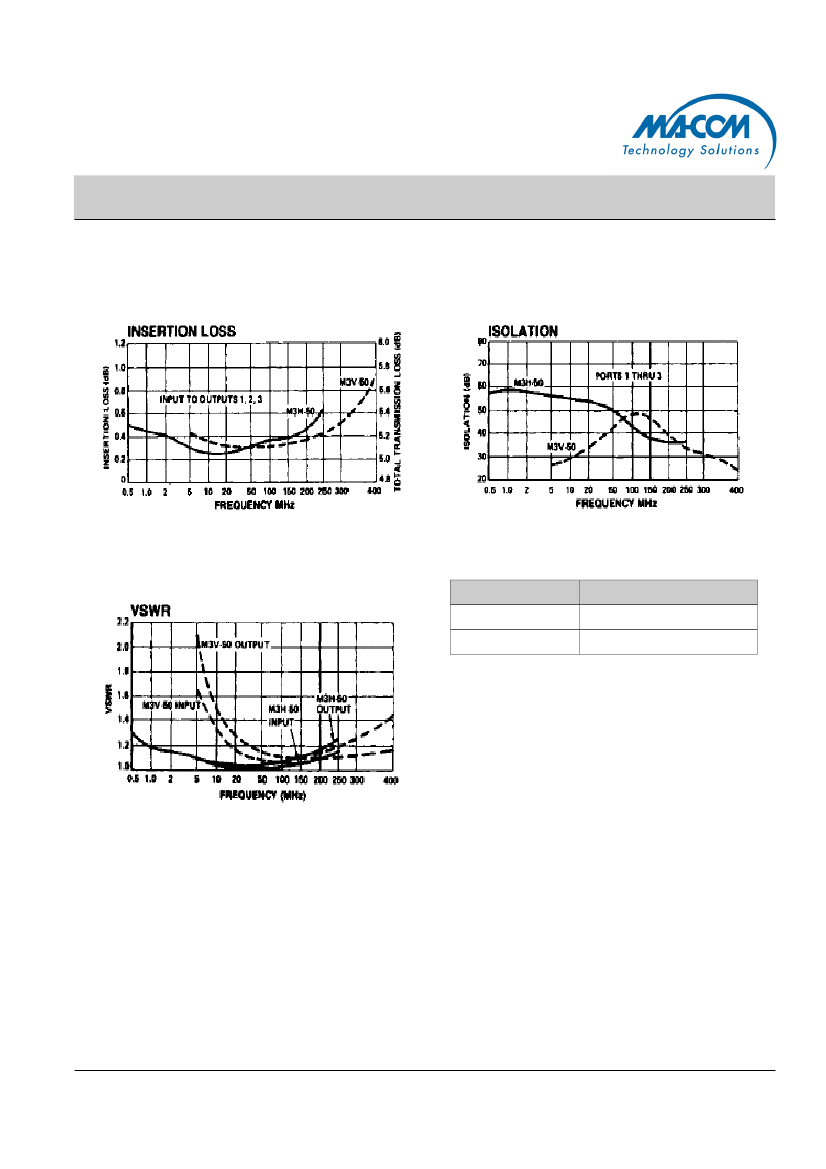

M3H-50PIN Related Products

	M3H-50PIN	M3H-50	M3V-50	M3V-50PIN
Description	Three-Way Power Dividers 1 - 100 MHz and 50 - 300 MHz	Three-Way Power Dividers 1 - 100 MHz and 50 - 300 MHz	Three-Way Power Dividers 1 - 100 MHz and 50 - 300 MHz	Three-Way Power Dividers 1 - 100 MHz and 50 - 300 MHz
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	MACOM	MACOM	MACOM	MACOM
Reach Compliance Code	compli	unknow	unknow	compli
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω
Maximum input power (CW)	44.77 dBm	30 dBm	30 dBm	44.77 dBm
Maximum insertion loss	0.5 dB	0.5 dB	0.75 dB	0.75 dB
Maximum operating frequency	100 MHz	100 MHz	300 MHz	300 MHz
Minimum operating frequency	1 MHz	1 MHz	50 MHz	50 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	SPLITTER	SPLITTER	SPLITTER	SPLITTER
Maximum voltage standing wave ratio	1.3	1.3	1.3	1.3
