96S-6043-1431-9 datasheet, PDF

96S-6043-1431-9: DescriptionBoard Euro Connector, 32 Contact(s), 3 Row(s), Female, Right Angle, 0.1 inch Pitch, Press Fit Terminal, Plug; CategoryThe connector The connector; File Size237KB，4 Pages; ManufacturerWinchester Electronics

Download Datasheet Parametric View All

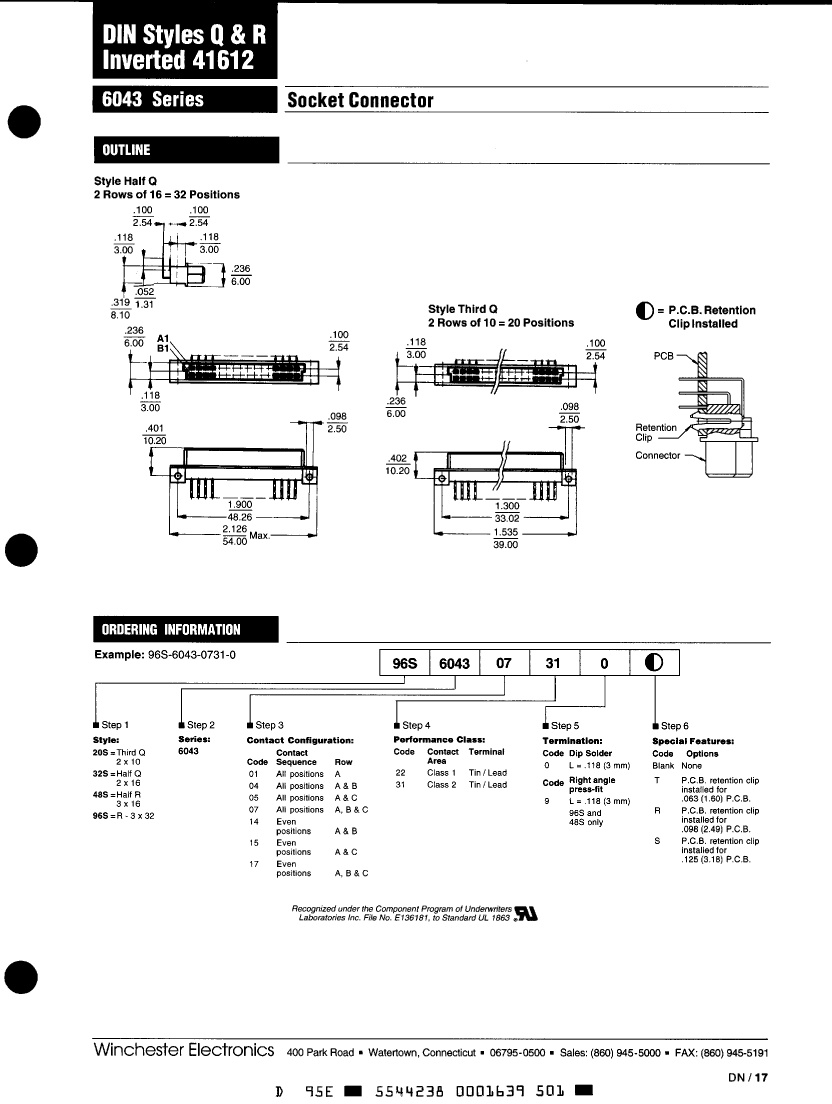

96S-6043-1431-9 Overview

Board Euro Connector, 32 Contact(s), 3 Row(s), Female, Right Angle, 0.1 inch Pitch, Press Fit Terminal, Plug

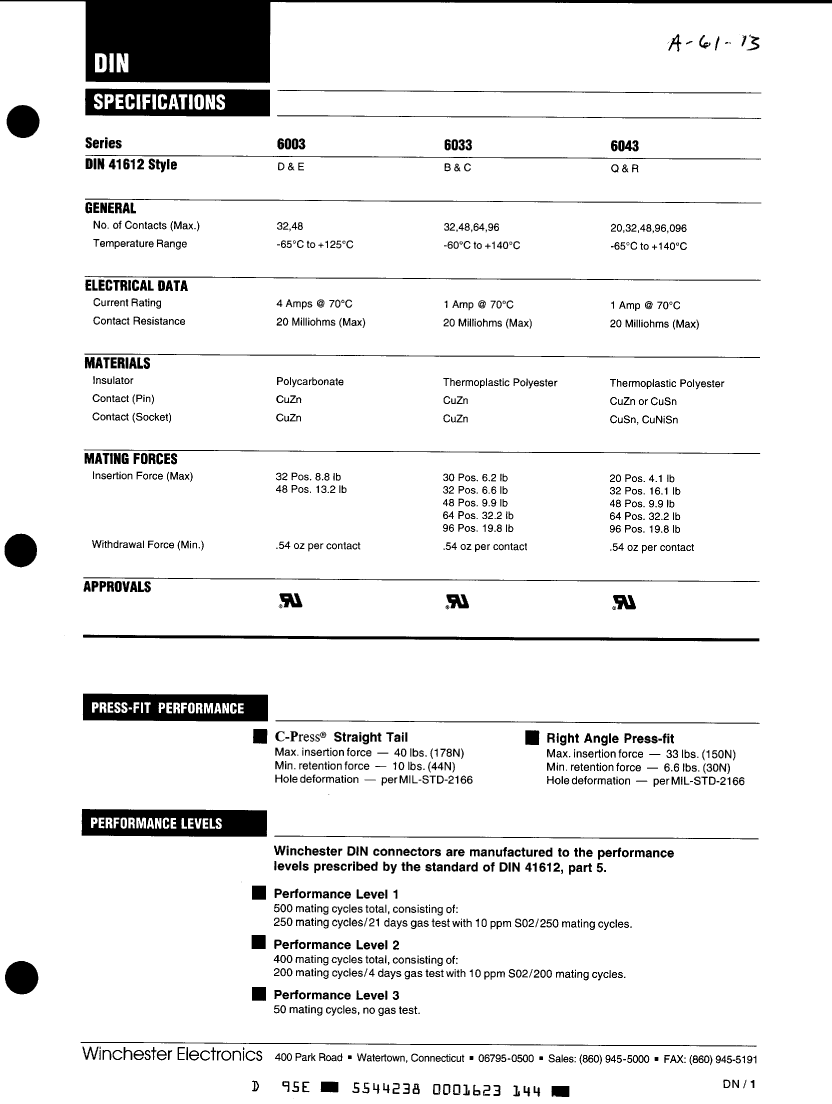

Parameter Name	Attribute value
Reach Compliance Code	unknown

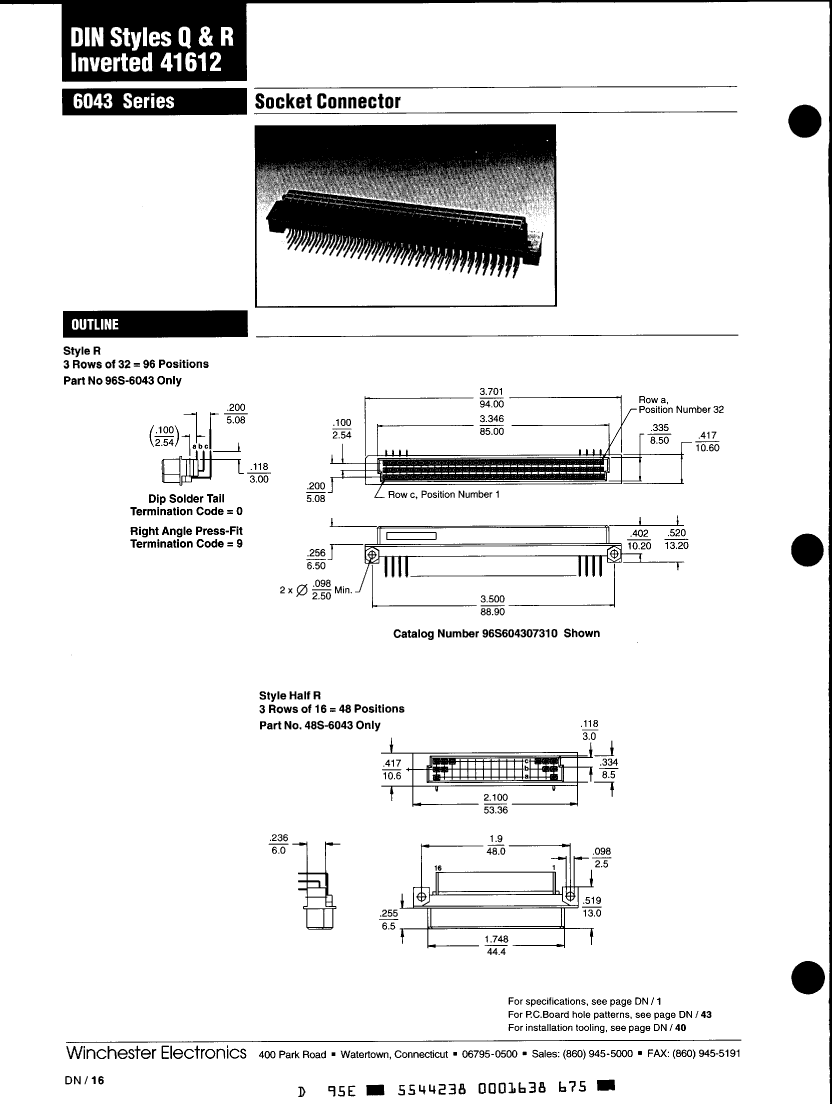

body width	0.417 inch
subject depth	0.72 inch
body length	3.701 inch
Body/casing type	PLUG
Connector type	BOARD EURO CONNECTOR
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
insulator material	POLYESTER
Manufacturer's serial number	6043
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Loaded row name	A,B
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	140 °C
Minimum operating temperature	-65 °C

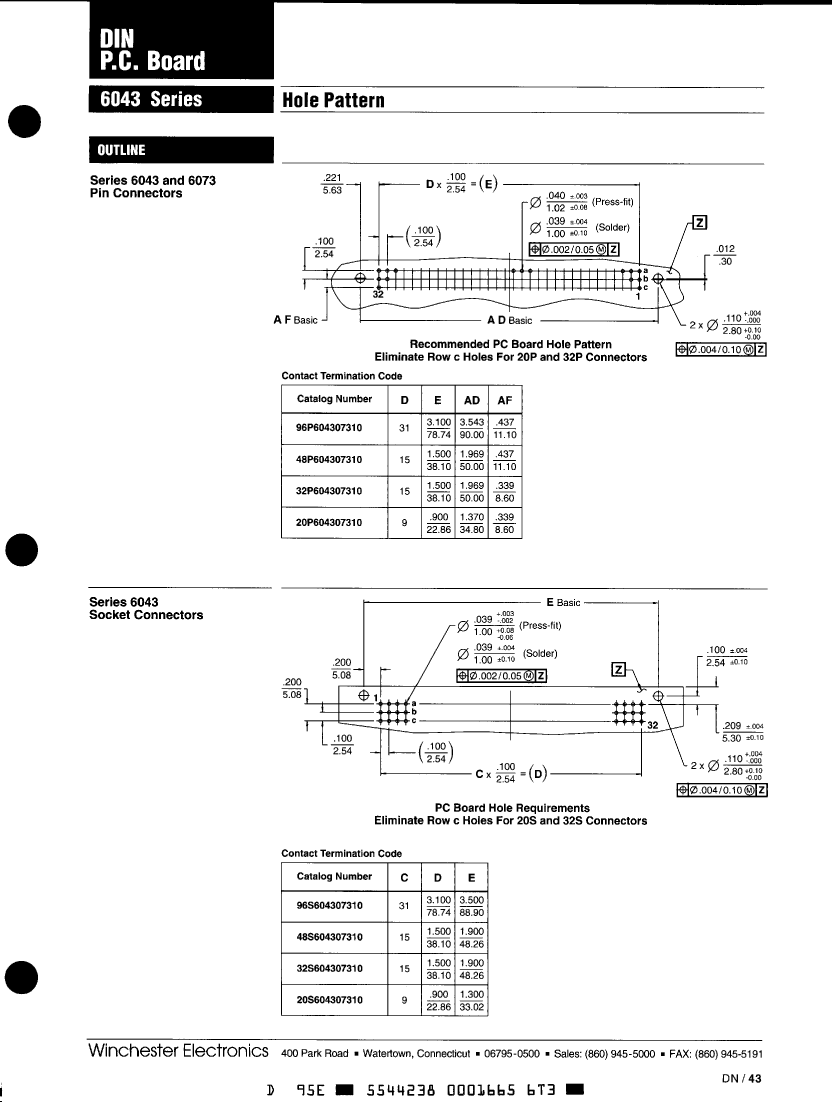

PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	ENDS
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	32
Evacuation force-minimum value	.139 N
Base Number Matches	1
