98424-S52-10CLF datasheet, PDF

98424-S52-10CLF: DescriptionBoard Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Cream Insulator; CategoryThe connector The connector; File Size182KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

98424-S52-10CLF Overview

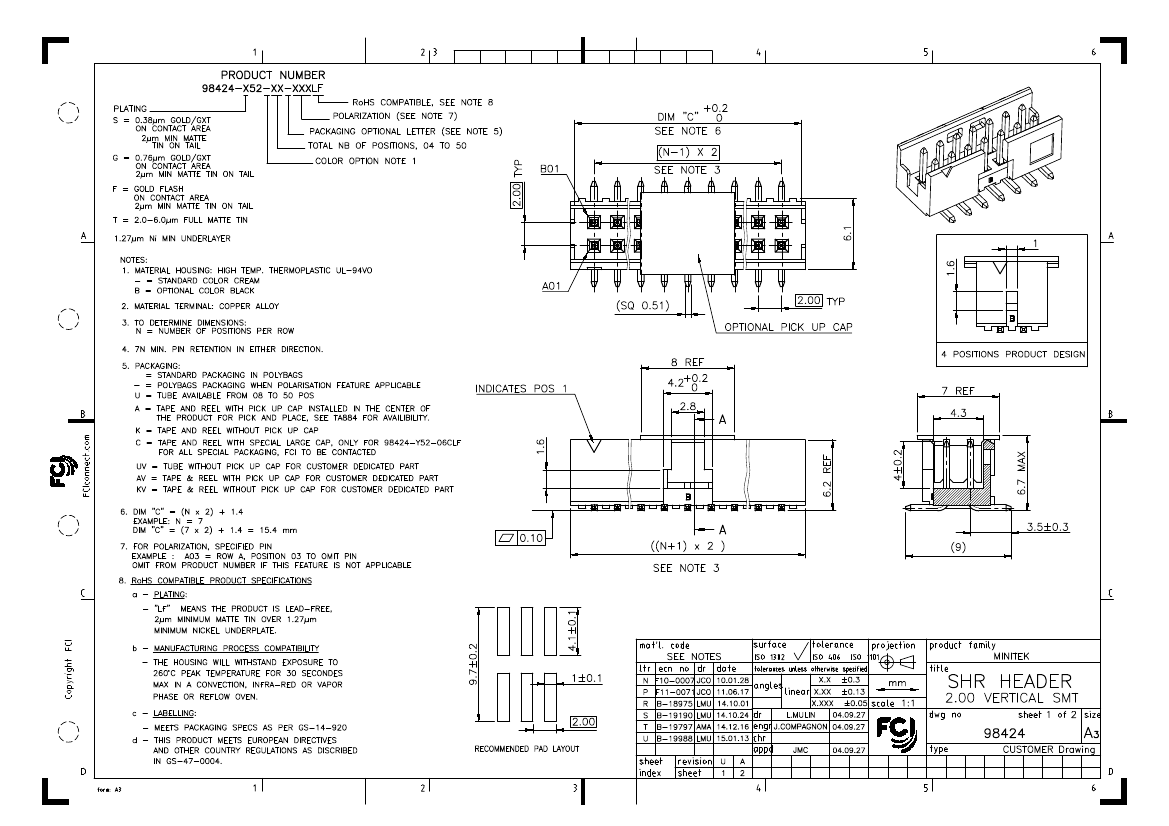

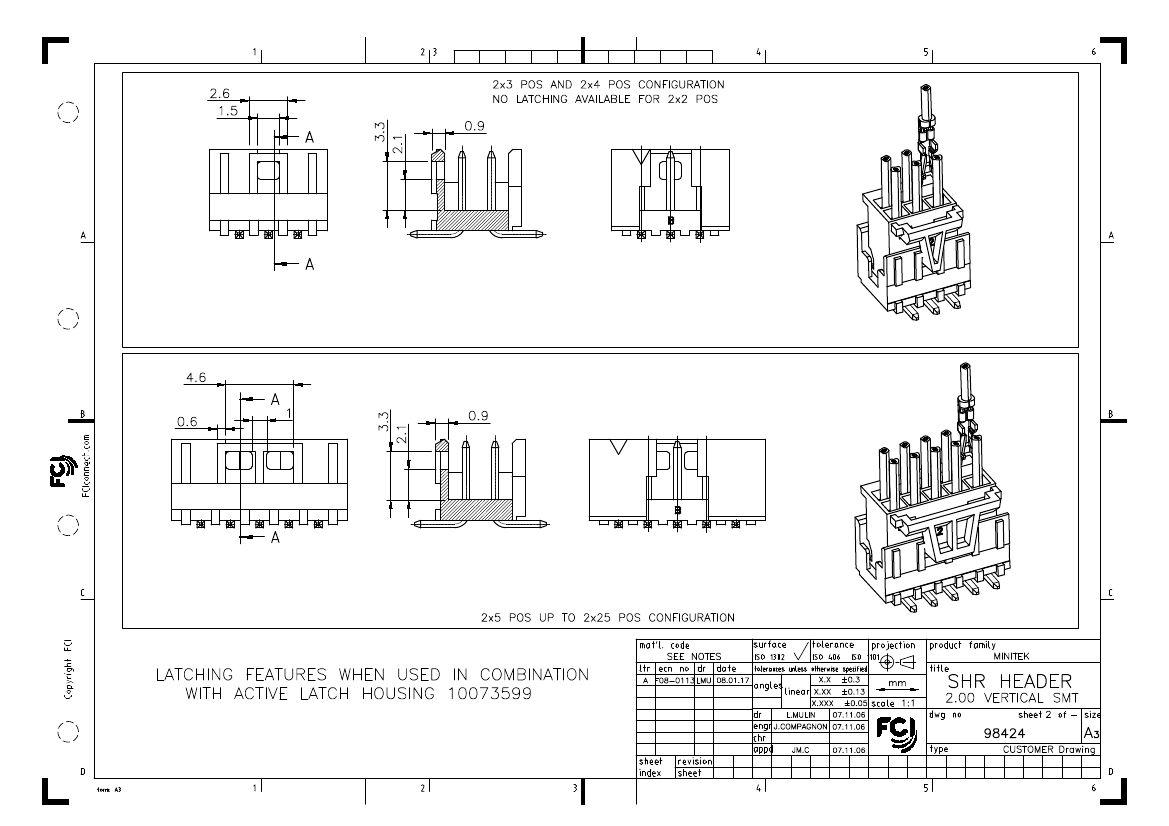

Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Cream Insulator

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
body width	0.24 inch
subject depth	0.244 inch
body length	0.472 inch
Connector type	BOARD CONNECTOR
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	900VAC V
Durability	100 Cycles
maximum insertion force	1.7514 N
Insulation resistance	1000000000 Ω
Insulator color	CREAM
insulator material	THERMOPLASTIC
JESD-609 code	e3
Manufacturer's serial number	98424
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.588 mm
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	10
Evacuation force-minimum value	.1946 N
Base Number Matches	1

PDS: Rev :U

STATUS:Released

Printed: Jan 15, 2015
