90628-0134: DescriptionBoard Connector, 28 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size172KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

90628-0134 Overview

Board Connector, 28 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle

90628-0134 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	C-GRID III
body width	0.2 inch
subject depth	0.098 inch
body length	1.4 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	350VDC V
Filter function	NO
IEC compliance	NO
maximum insertion force	3.0024 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Manufacturer's serial number	90628
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	160u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.114 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	28
UL Flammability Code	94V-0
Evacuation force-minimum value	.1946 N
Base Number Matches	1

Preview

Download Datasheet

View All

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

Sizes 4 to 80 circuits

Easy breakaway to smaller sizes

Contact and plating orientation according to DIN 41651

North/south contact orientation avoids overstress

High pin retention and high mechanical stability

after soldering

s

Stackable side-to-side

s

Electrical

Voltage: 350V

Current: 3.0A

Contact Resistance: 20m

Ω

max.

Insulation Resistance: 5000 M

Ω

min.

Mechanical

Contact Retention to Housing: 20N (2.0kgf) min.

Mating Force: 1N max. Gold and 3N max. Tin

Unmating Force: 0.2N min. Gold and 0.2N min. Tin

Normal Force: 1N

Physical

Housing: Black glass-filled polyester, UL 94V-0

Contact: Copper Alloy, 0.64mm (.025") square pins

Plating: See Table

Operating Temperature: -55 to +125˚C

2.54mm (.100") Pitch

C-Grid III

™

Kinked Pin Header

90628

Dual Row

Vertical

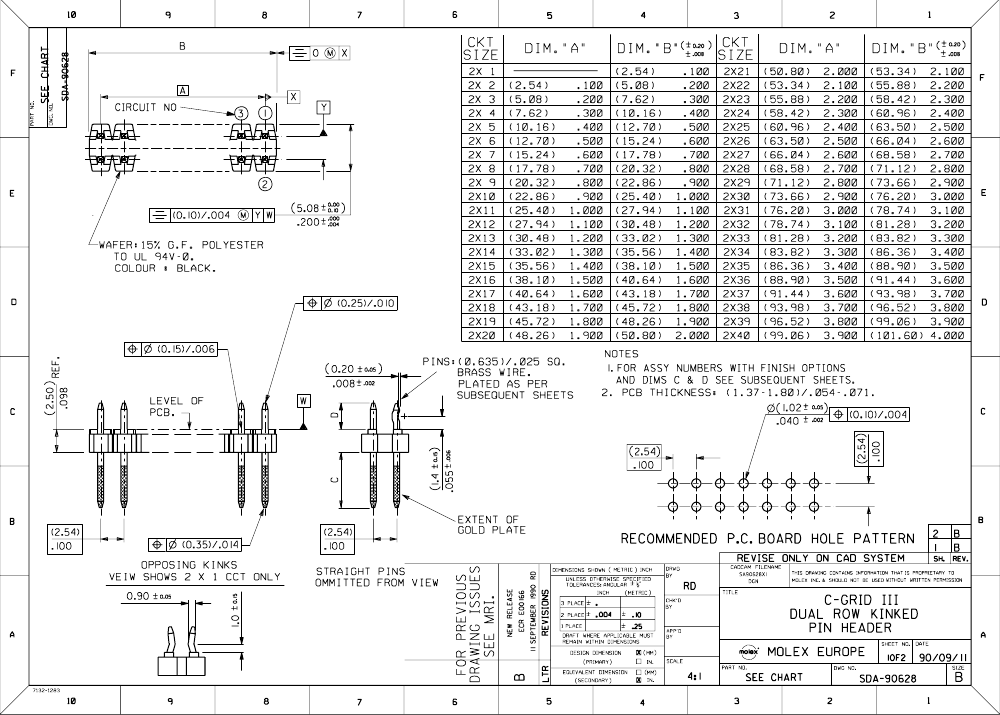

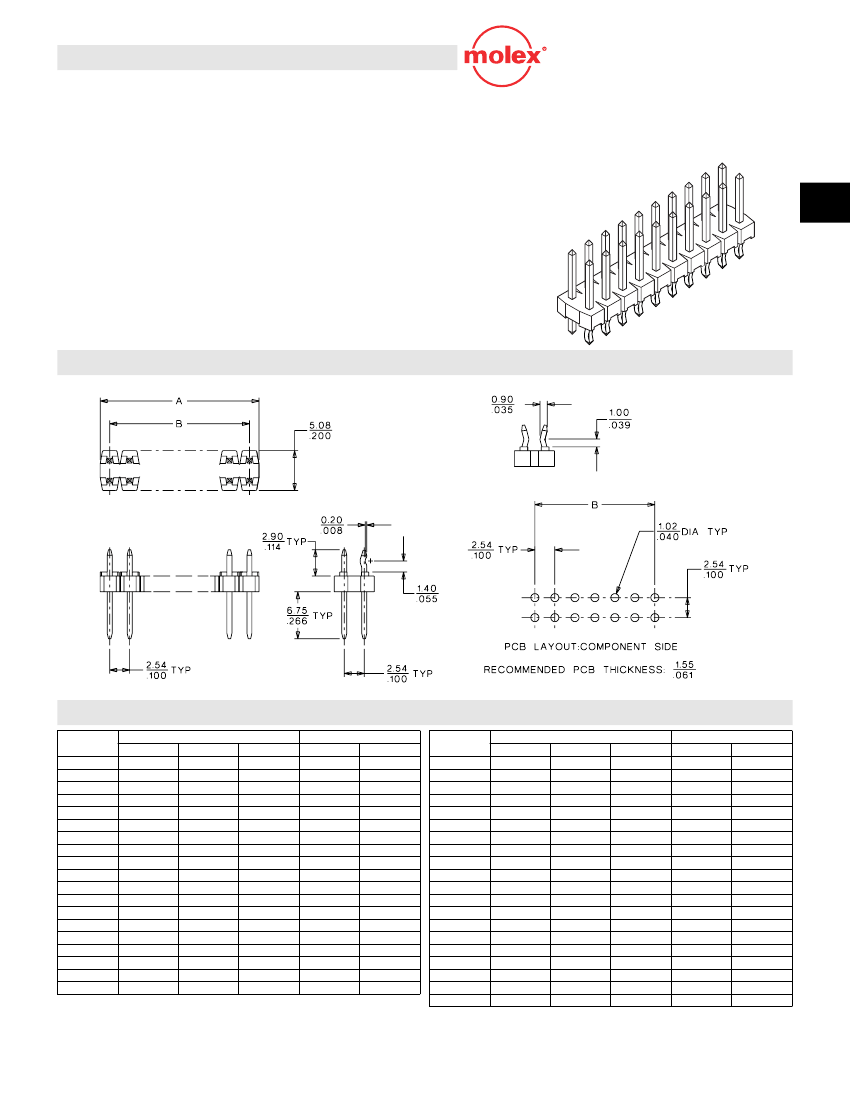

CATALOG DRAWING (FOR REFERENCE ONLY)

Not For Use With Molex SL

™

Components

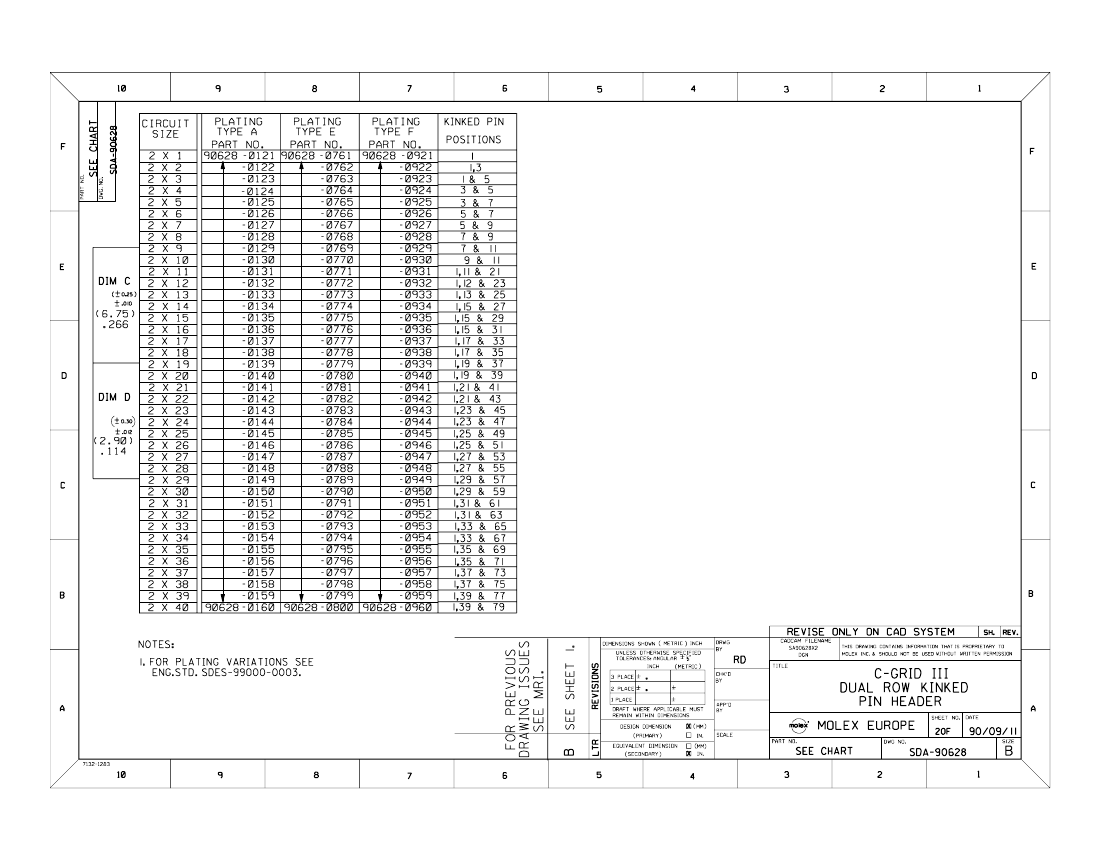

ORDERING INFORMATION AND DIMENSIONS

Circuits

4

6

8

10

12

14

16

18

20

22

24

26

28

30

32

34

36

38

40

Plating A

90628-0122

90628-0123

90628-0124

90628-0125

90628-0126

90628-0127

90628-0128

90628-0129

90628-0130

90628-0131

90628-0132

90628-0133

90628-0134

90628-0135

90628-0136

90628-0137

90628-0138

90628-0139

90628-0140

Order No.

Plating E

90628-0762

90628-0763

90628-0764

90628-0765

90628-0766

90628-0767

90628-0768

90628-0769

90628-0770

90628-0771

90628-0772

90628-0773

90628-0774

90628-0775

90628-0776

90628-0777

90628-0778

90628-0779

90628-0780

Plating F

90628-0922

90628-0923

90628-0924

90628-0925

90628-0926

90628-0927

90628-0928

90628-0929

90628-0930

90628-0931

90628-0932

90628-0933

90628-0934

90628-0935

90628-0936

90628-0937

90628-0938

90628-0939

90628-0940

Dimension

A

B

5.08 (.200)

2.54 (.100)

7.62 (.300)

5.08 (.200)

10.16 (.400)

7.62 (.300)

12.70 (.500)

10.16 (.400)

15.24 (.600)

12.70 (.500)

17.78 (.700)

15.24 (.600)

20.32 (.800)

17.78 (.700)

22.86 (.900)

20.32 (.800)

25.40 (1.000)

22.86 (.900)

27.94 (1.100)

25.40 (1.000)

30.48 (1.200)

27.94 (1.100)

33.02 (1.300)

30.48 (1.200)

35.56 (1.400)

33.02 (1.300)

38.10 (1.500)

35.56 (1.400)

40.64 (1.600)

38.10 (1.500)

43.18 (1.700)

40.64 (1.600)

45.72 (1.800)

43.18 (1.700)

48.76 (1.900)

45.72 (1.800)

50.80 (2.000)

48.76 (1.900)

Circuits

42

44

46

48

50

52

54

56

58

60

62

64

66

68

70

72

74

76

78

80

Plating A

90628-0141

90628-0142

90628-0143

90628-0144

90628-0145

90628-0146

90628-0147

90628-0148

90628-0149

90628-0150

90628-0151

90628-0152

90628-0153

90628-0154

90628-0155

90628-0156

90628-0157

90628-0158

90628-0159

• 90628-0160

Order No.

Plating E

90628-0781

90628-0782

90628-0783

90628-0784

90628-0785

90628-0786

90628-0787

90628-0788

90628-0789

90628-0790

90628-0791

90628-0792

90628-0793

90628-0794

90628-0795

90628-0796

90628-0797

90628-0798

90628-0799

• 90628-0800

Plating F

90628-0941

90628-0942

90628-0943

90628-0944

90628-0945

90628-0946

90628-0947

90628-0948

90628-0949

90628-0950

90628-0951

90628-0952

90628-0953

90628-0954

90628-0955

90628-0956

90628-0957

90628-0958

90628-0959

• 90628-0960

Dimension

A

B

53.34 (2.100)

50.80 (2.000)

55.88 (2.200)

53.34 (2.100)

58.42 (2.300)

55.88 (2.200)

60.46 (2.400)

58.42 (2.300)

63.50 (2.500)

60.46 (2.400)

66.04 (2.600)

63.50 (2.500)

68.58 (2.700)

66.04 (2.600)

71.12 (2.800)

68.58 (2.700)

73.66 (2.900)

71.12 (2.800)

76.20 (3.000)

73.66 (2.900)

78.24 (3.100)

76.20 (3.000)

81.28 (3.200)

78.24 (3.100)

83.82 (3.300)

81.28 (3.200)

86.36 (3.400)

83.82 (3.300)

88.90 (3.500)

86.36 (3.400)

91.44 (3.600)

88.90 (3.500)

93.98 (3.700)

91.44 (3.600)

96.52 (3.800)

93.98 (3.700)

99.06 (3.900)

96.52 (3.800)

101.60 (4.000)

99.06 (3.900)

• Molex European standard product, usually available within shorter lead times

For other available versions contact Molex

Plating A: 4

µ

m (160

µ

") Tin/Lead over Nickel

Plating E: 0.38

µ

m (15

µ

") selective Gold over Nickel and 4

µ

m (160

µ

") Tin/Lead over Nickel

Plating F: 0.76

µ

m (30

µ

") selective Gold over Nickel and 4

µ

m (160

µ

") Tin/Lead over Nickel

MX01

C-97

2.54mm (.100") Pitch

Reference Information

Product Speciﬁcation: PS-99020-0001

Packaging: Bag

Mates With: C-Grid III Housing and Connectors

Designed In: Inches
