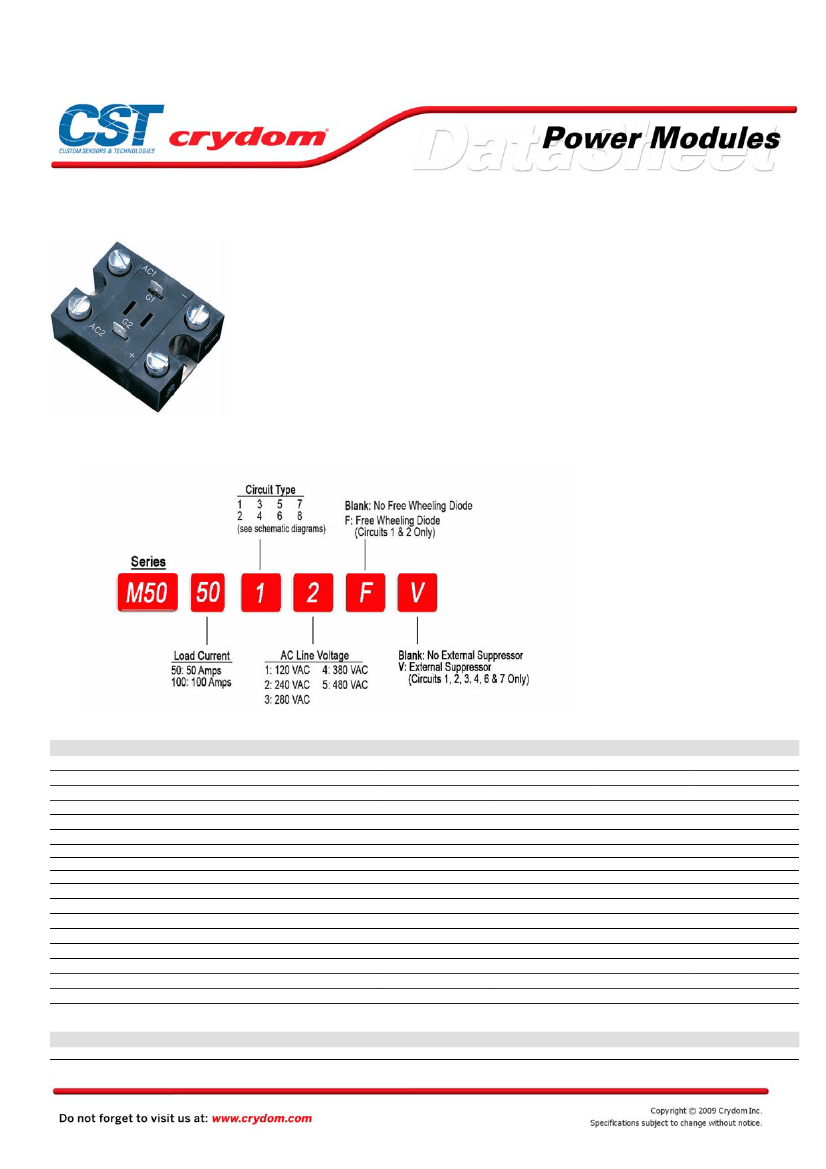

M50 Series
•
Over 40KW output Capability
•

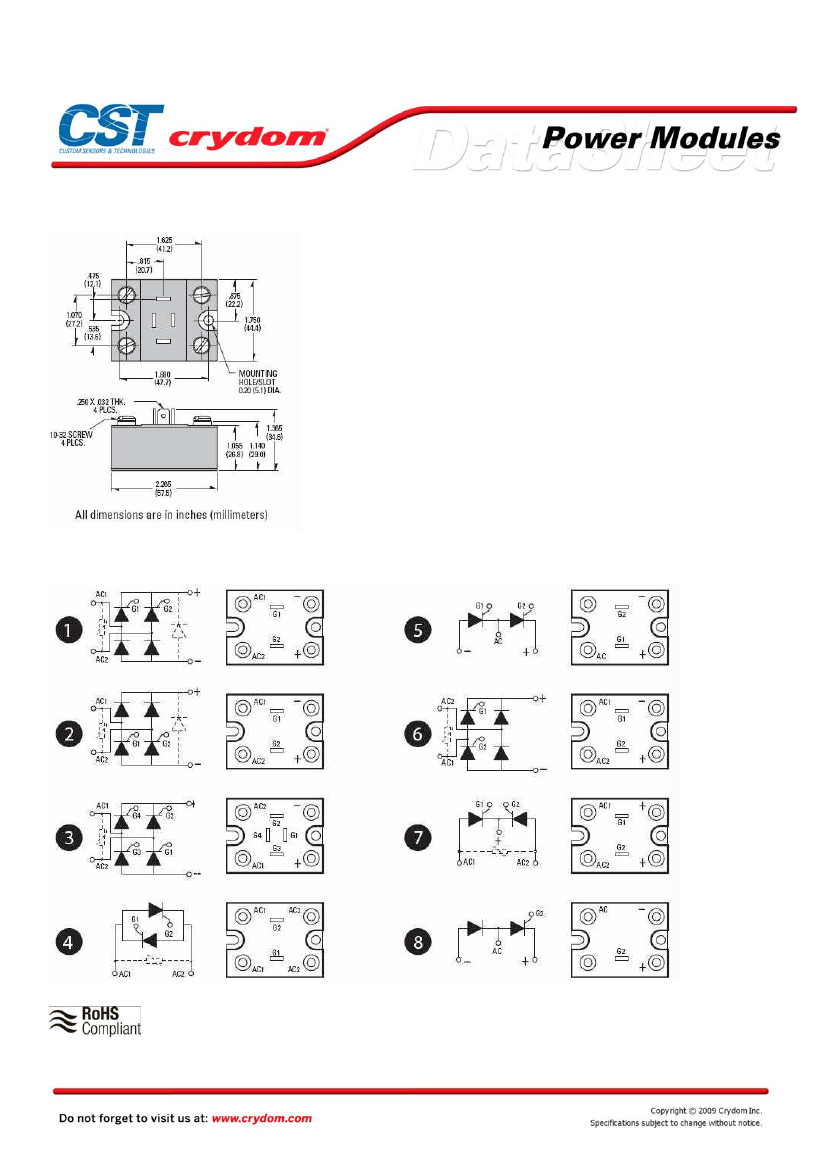

8 Different Circuits to Choose from
• 50 and 100A outputs
AVAILABLE OPTIONS
ELECTRICAL SPECIFICATIONS
Description
Maximum DC Output Current (Tc = 85°C)
Maximum Voltage Drop @ Amps Peak
Operating Junction Temperature Range
Critical Rate of Rise of On-State Current @ TJ=125°C
Critical Rate of Rise of Off-State Voltage [V/µs]
Repetitive Peak Reverse Voltage (AC Line Nominal) [Vpk]
Symbol
I
D
V
F
T
J
di/dt
dv/dt
V
RRM
M5050
50 A
1.7V @ 50A
-40 - 125°C
100A/µs
500V/µs
400 (120 VAC)
600 (240 VAC)
800 (280 VAC)
1200 (480 VAC)
M50100
100 A
1.4V @ 100A
-40 - 125°C
100A/µs
500V/µs
Maximum Non-Repetitive Surge Current (1/2 Cycle, 60 Hz) [A]
Maximum I²T for Fusing (t=8.3ms) [A²sec]
Maximum Required Gate Current to Trigger @ 25°C [mA]
Maximum Required Gate Voltage to Trigger @ 25°C [V]
Average Gate Power [W]
Maximum Peak Reverse Gate Voltage [V]
Maximum Thermal Resistance, Junction to Ceramic Base per Chip [°C/W]
Isolation Voltage [Vrms]
I
TSM
IT
I
GT
V
GT
P
G(AV)
V
GM
R
JC
V
ISOL
2
600
1500
150
3.0
0.5
5.0
0.7°C/W
2500
1500
9350
150
3.0
0.5
5.0
0.36°C/W
2500
GENERAL SPECIFICATIONS
Description
Weight (typical)
3.75 oz (106g)
3.75 oz (106g)
