AN6656 datasheet, PDF - EEWORLD Datasheet

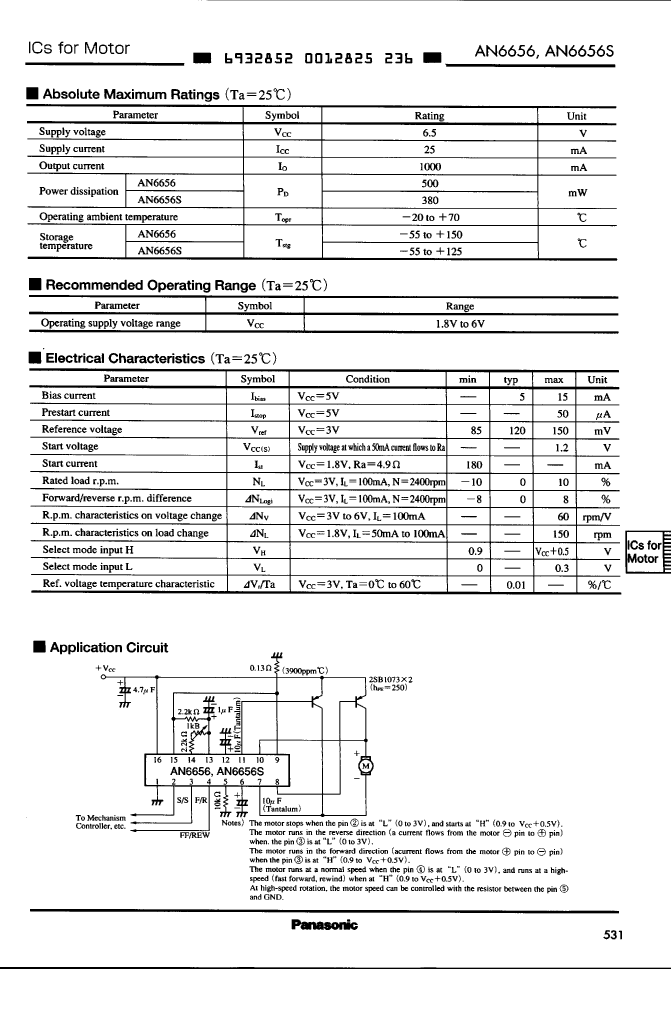

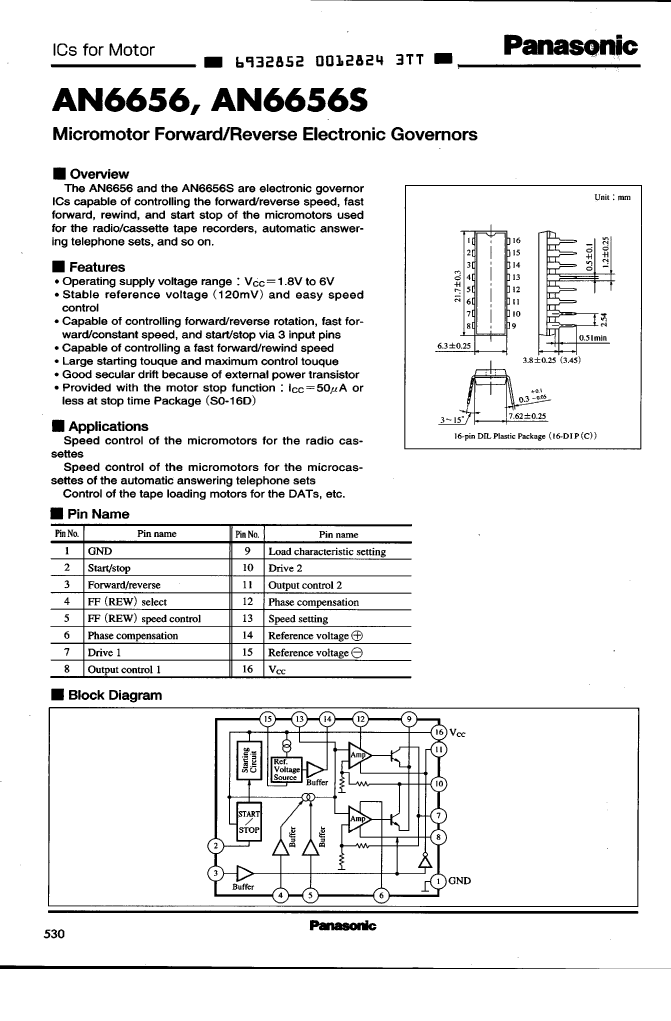

AN6656: DescriptionBrush DC Motor Controller, 1A, BIPolar, PDIP16, 0.300 INCH, PLASTIC, DIP-16; CategoryOther integrated circuit (IC) The signal circuit; File Size76KB，2 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric Compare View All

AN6656 Overview

Brush DC Motor Controller, 1A, BIPolar, PDIP16, 0.300 INCH, PLASTIC, DIP-16

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	BRUSH DC MOTOR CONTROLLER
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
length	21.7 mm
Number of functions	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	1.8/6 V
Certification status	Not Qualified
Maximum seat height	4.05 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	1.8 V
Nominal supply voltage (Vsup)	3 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1

	AN6656	AN6656S
Description	Brush DC Motor Controller, 1A, BIPolar, PDIP16, 0.300 INCH, PLASTIC, DIP-16	Brush DC Motor Controller, 1A, BIPolar, PDSO16, SOP-16
Is it Rohs certified?	incompatible	incompatible
Parts packaging code	DIP	SOIC
package instruction	DIP, DIP16,.3	SOP, SOP16,.25
Contacts	16	16
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Analog Integrated Circuits - Other Types	BRUSH DC MOTOR CONTROLLER	BRUSH DC MOTOR CONTROLLER
JESD-30 code	R-PDIP-T16	R-PDSO-G16
JESD-609 code	e0	e0
length	21.7 mm	10.1 mm
Number of functions	1	1
Number of terminals	16	16
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C
Maximum output current	1 A	1 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP
Encapsulate equivalent code	DIP16,.3	SOP16,.25
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	1.8/6 V	1.8/6 V
Certification status	Not Qualified	Not Qualified
Maximum seat height	4.05 mm	1.9 mm
Maximum supply voltage (Vsup)	6 V	6 V
Minimum supply voltage (Vsup)	1.8 V	1.8 V
Nominal supply voltage (Vsup)	3 V	3 V
surface mount	NO	YES
technology	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	4.2 mm
