ACF7301C-1500 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> ACF7301C-1500

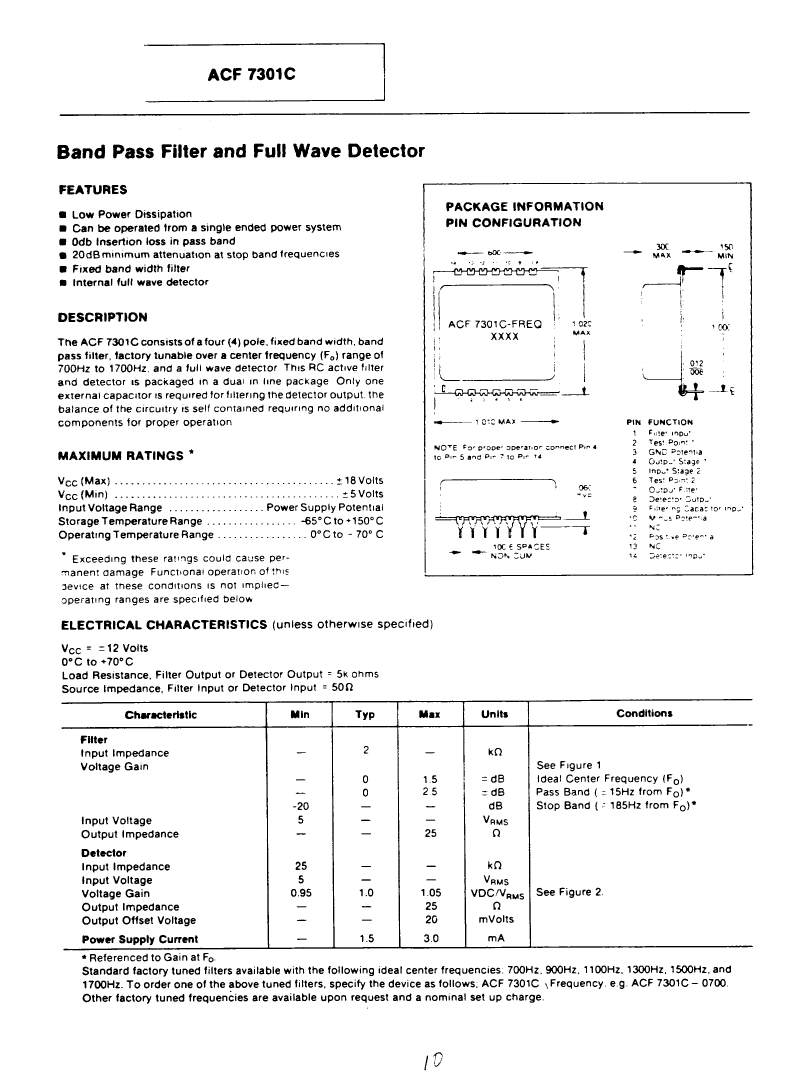

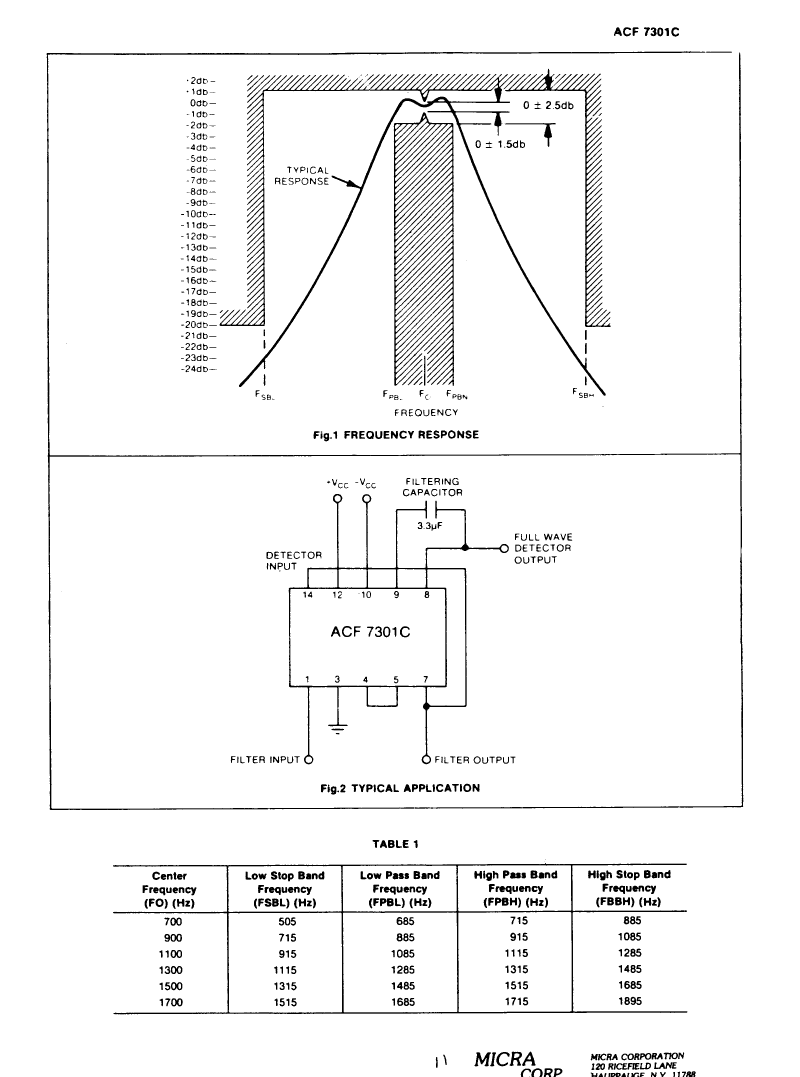

ACF7301C-1500: DescriptionActive Filter, 1 Func, Bandpass, HYBRID, CDIP14; CategoryAnalog mixed-signal IC filter; File Size145KB，2 Pages; ManufacturerMicra Corp

Download Datasheet Parametric Compare View All

ACF7301C-1500 Overview

Active Filter, 1 Func, Bandpass, HYBRID, CDIP14

ACF7301C-1500 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP14,1.0
Reach Compliance Code	unknown
JESD-30 code	R-XDIP-T14
JESD-609 code	e0
Nominal Negative Supply Voltage (Vsup)	-12 V
Number of functions	1
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Order	4TH
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP14,1.0
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	+-12 V
Certification status	Not Qualified
response	BANDPASS
Maximum supply current (Isup)	3 mA
Nominal supply voltage (Vsup)	12 V
surface mount	NO
technology	HYBRID
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

ACF7301C-1500 Related Products

	ACF7301C-1500	ACF7301C-0700	ACF7301C-1300	ACF7301C-1700	ACF7301C-0900	ACF7301C-1100
Description	Active Filter, 1 Func, Bandpass, HYBRID, CDIP14	Active Filter, 1 Func, Bandpass, HYBRID, CDIP14	Active Filter, 1 Func, Bandpass, HYBRID, CDIP14	Active Filter, 1 Func, Bandpass, HYBRID, CDIP14	Active Filter, 1 Func, Bandpass, HYBRID, CDIP14	Active Filter, 1 Func, Bandpass, HYBRID, CDIP14
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP14,1.0	DIP, DIP14,1.0	DIP, DIP14,1.0	DIP, DIP14,1.0	DIP, DIP14,1.0	DIP, DIP14,1.0
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
JESD-30 code	R-XDIP-T14	R-XDIP-T14	R-XDIP-T14	R-XDIP-T14	R-XDIP-T14	R-XDIP-T14
JESD-609 code	e0	e0	e0	e0	e0	e0
Nominal Negative Supply Voltage (Vsup)	-12 V	-12 V	-12 V	-12 V	-12 V	-12 V
Number of functions	1	1	1	1	1	1
Number of terminals	14	14	14	14	14	14
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Order	4TH	4TH	4TH	4TH	4TH	4TH
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP14,1.0	DIP14,1.0	DIP14,1.0	DIP14,1.0	DIP14,1.0	DIP14,1.0
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	+-12 V	+-12 V	+-12 V	+-12 V	+-12 V	+-12 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
response	BANDPASS	BANDPASS	BANDPASS	BANDPASS	BANDPASS	BANDPASS
Maximum supply current (Isup)	3 mA	3 mA	3 mA	3 mA	3 mA	3 mA
Nominal supply voltage (Vsup)	12 V	12 V	12 V	12 V	12 V	12 V
surface mount	NO	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1	1	1
