USB-AB1411-M01A datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> USB-AB1411-M01A

Preview

USB-AB1411-M01A: DescriptionInterconnection Device; CategoryThe connector The connector; File Size115KB，3 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric View All

USB-AB1411-M01A Overview

Interconnection Device

USB-AB1411-M01A Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Connector type	INTERCONNECTION DEVICE
Base Number Matches	1

Preview

Download Datasheet

View All

Computer I/O

USB

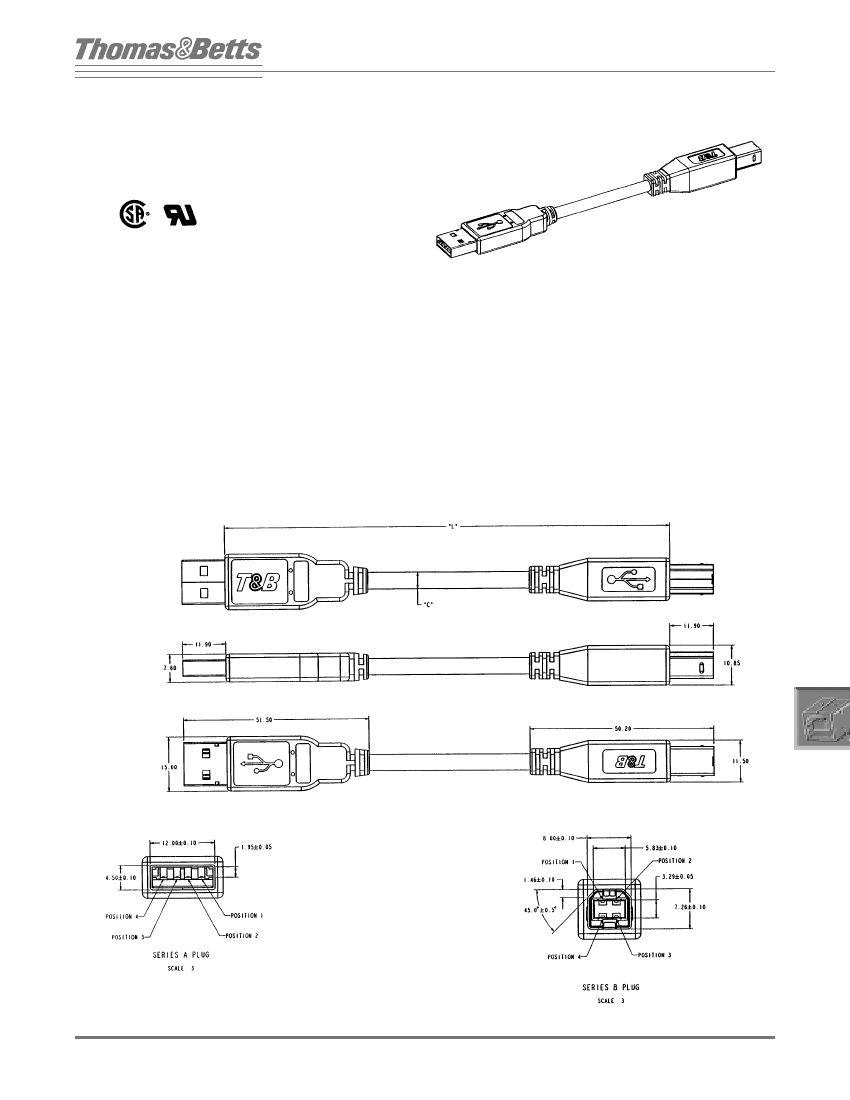

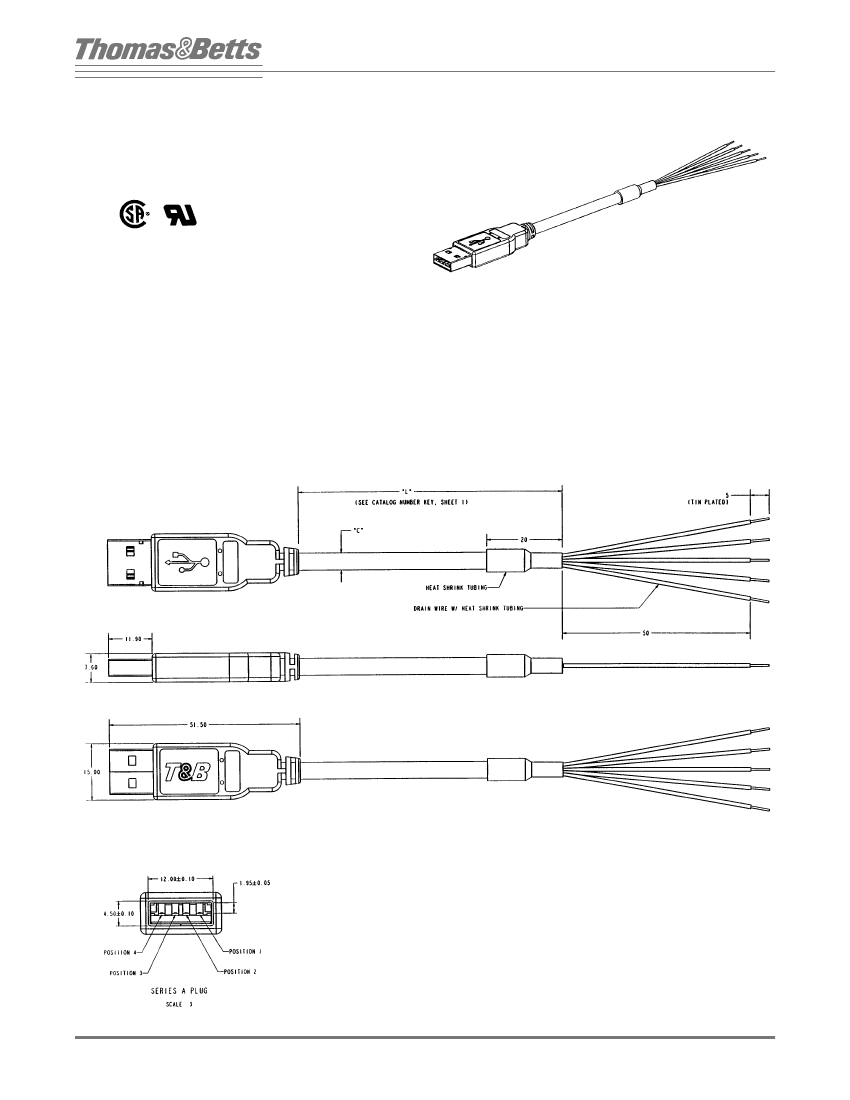

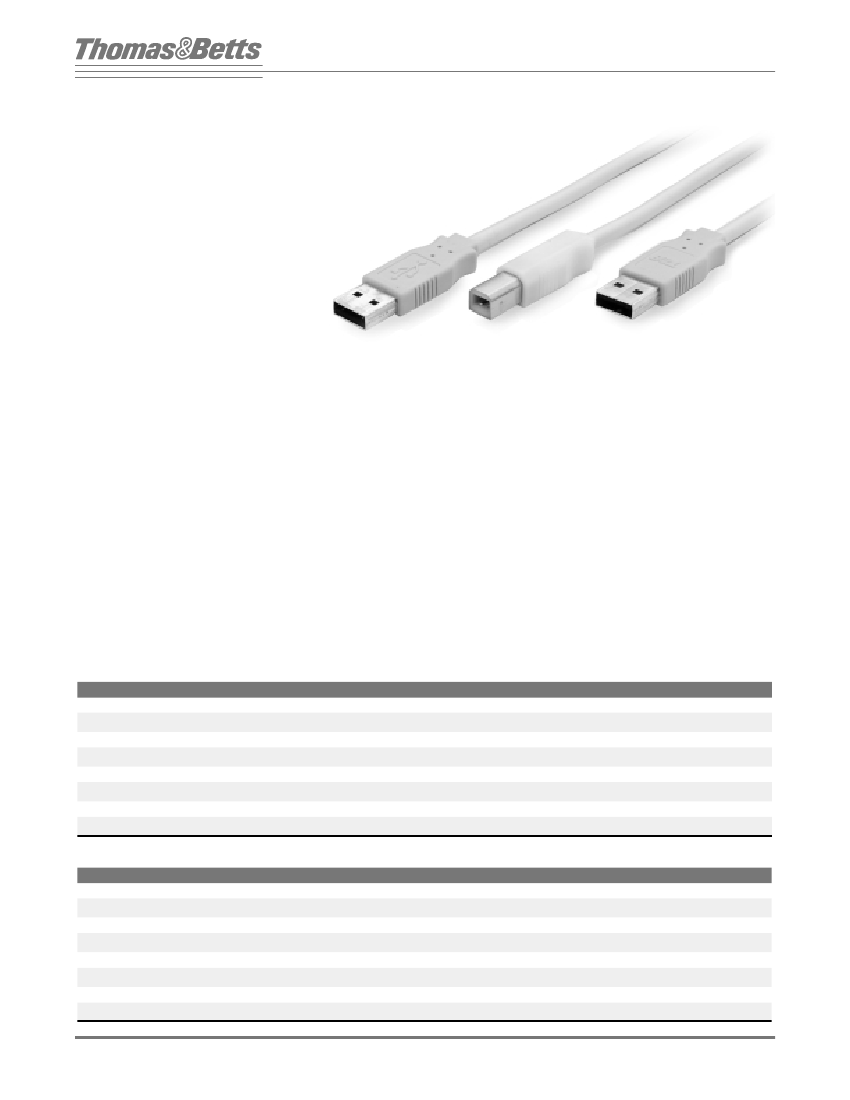

USB SERIES A TO STUB

AND A TO B

CABLE ASSEMBLIES

P

LUG

P

HYSICAL

P

ROPERTIES

I

NSULATION

M

ATERIAL

:

Glass filled thermoplastic,

rated UL 94V-0

I

NSULATION

C

OLOR

:

Natural

O

VERMOLD

M

ATERIAL

:

PVC

O

VERMOLD

C

OLOR

:

Frost White

C

ONTACT

M

ATERIAL

:

Copper alloy, See Ordering

Information below for plating in contact area

S

HIELD

M

ATERIAL

:

Series A: Steel, tin plating

Series B: Copper alloy, tin/lead

plating

P

LUG

E

LECTRICAL

P

ROPERTIES

C

URRENT

R

ATING

:

1.5 Amp

I

NSULATION

R

ESISTANCE

:

> 1 x 10

9

Ω

D

IELECTRIC

S

TRENGTH

:

1000 VRMS @ sea level

C

ABLE

P

HYSICAL

P

ROPERTIES

J

ACKET

M

ATERIAL

:

PVC

J

ACKET

C

OLOR

:

Frost white

S

HIELDING

:

Aluminum foil with tinned copper braid

C

ONDUCTOR

I

NSULATION

:

P

OWER

C

ONDUCTORS

:

Semi-rigid PVC

S

IGNAL

C

ONDUCTORS

:

HDPE

I

MPEDANCE

:

90 ± 15%

Ω

@ 1 MHz

C

APACITANCE

:

65 pF/m @ 1 MHz

A

TTENUATION

(

D

B/305

M

):

4.8 @ 64 kHz

6.7 @ 256 kHz

8.2 @ 512 kHz

9.4 @ 772 kHz

12 @ 1 mHz

24 @ 4 mHz

35 @ 8 mHz

38 @ 10 mHz

48 @ 16 mHz

P

ROPAGATION

D

ELAY

:

6 ns/m Max.

C

ABLE

E

LECTRICAL

P

ROPERTIES

E

NVIRONMENTAL

P

ROPERTIES

T

EMPERATURE

R

ATING

:

-40˚ C to 75˚ C

Ordering Information - A To B Cable Assembly

PART #

USB-AB1011-M050

USB-AB1211-M030

USB-AB1211-M02A

USB-AB1411-M020

USB-AB1411-M01A

USB-AB1611-M010

USB-AB1811-M00B

USB-AB1811-M00A

PLUG TYPE

A-B

WIRE GAGE

2 #28 - 2 #20

2 #28 - 2 #22

2 #28 - 2 #24

2 #28 - 2 #26

2 #28 - 2 #28

CONTACT CABLE DESCRIPTION

Gold 30 microinches / natural

LENGTH “L”

5.0 meters

3.0 meters

2.5 meters

2.0 meters

1.5 meters

1.0 meters

0.83 meters

0.5 meters

Ordering Information A To Stub Cable Assembly

PART #

USB-A1011-M050

USB-A1211-M030

USB-A1211-M02A

USB-A1411-M020

USB-A1411-M01A

USB-A1611-M010

USB-A1811-M00B

USB-A1811-M00A

PLUG TYPE

A-B

WIRE GAGE

2 #28 - 2 #20

2 #28 - 2 #22

2 #28 - 2 #24

2 #28 - 2 #26

2 #28 - 2 #28

CONTACT CABLE DESCRIPTION

Gold 30 microinches / natural

LENGTH “L”

5.0 meters

3.0 meters

2.5 meters

2.0 meters

1.5 meters

1.0 meters

0.83 meters

0.5 meters

Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312

Dimensions shown are for reference only. Dimensions are in millimeters.

474
