AM27C020-75DC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> AM27C020-75DC

AM27C020-75DC: DescriptionEPROM, 256KX8, 70ns, CMOS, CDIP32; Categorystorage storage; File Size111KB，2 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

AM27C020-75DC Overview

EPROM, 256KX8, 70ns, CMOS, CDIP32

AM27C020-75DC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP32,.6
Reach Compliance Code	unknown
Maximum access time	70 ns
I/O type	COMMON
JESD-30 code	R-XDIP-T32
JESD-609 code	e0
memory density	2097152 bit
memory width	8
Number of terminals	32
word count	262144 words
character code	256000
Maximum operating temperature	70 °C
Minimum operating temperature
organize	256KX8
Output characteristics	3-STATE
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP32,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Maximum standby current	0.0001 A
Maximum slew rate	0.03 mA
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

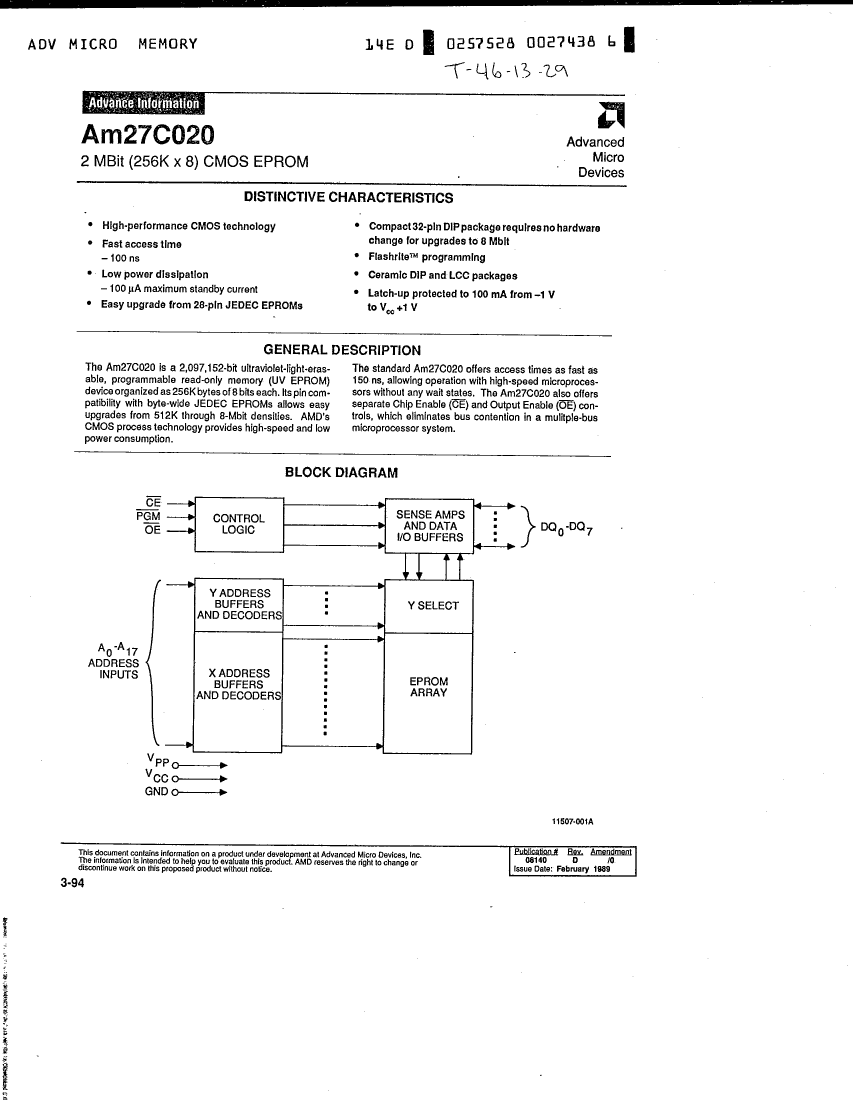

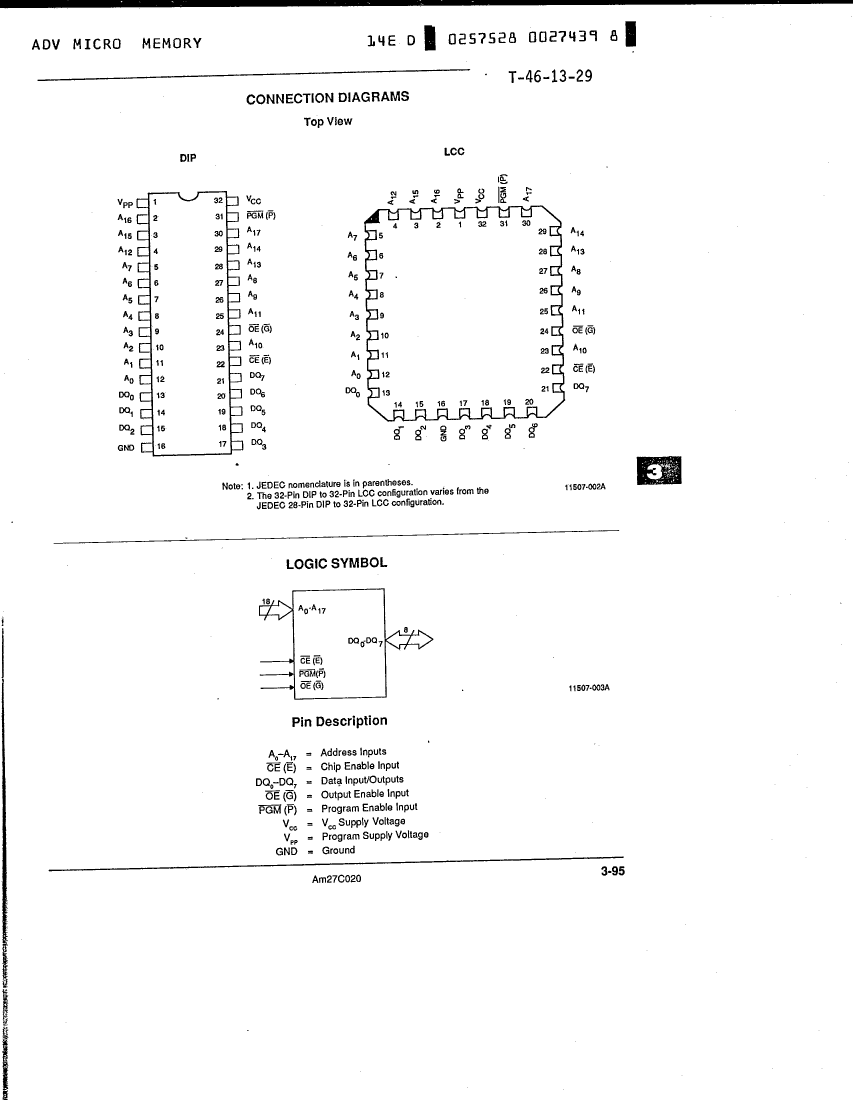

Preview

Download Datasheet

View All

AM27C020-75DC Related Products

	AM27C020-75DC	AM27C020-70LC	AM27C020-75DI	AM27C020-75LC	AM27C020-75LI	AM27C020-120LE	AM27C020-120LEB
Description	EPROM, 256KX8, 70ns, CMOS, CDIP32	EPROM, 256KX8, 70ns, CMOS, CQCC32	EPROM, 256KX8, 70ns, CMOS, CDIP32	EPROM, 256KX8, 70ns, CMOS, CQCC32	EPROM, 256KX8, 70ns, CMOS, CQCC32	EPROM, 256KX8, 120ns, CMOS, CQCC32	EPROM, 256KX8, 120ns, CMOS, CQCC32
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP32,.6	QCCN, LCC32,.45X.55	DIP, DIP32,.6	QCCN, LCC32,.45X.55	QCCN, LCC32,.45X.55	QCCN, LCC32,.45X.55	QCCN, LCC32,.45X.55
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum access time	70 ns	70 ns	70 ns	70 ns	70 ns	120 ns	120 ns
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-XDIP-T32	R-XQCC-N32	R-XDIP-T32	R-XQCC-N32	R-XQCC-N32	R-XQCC-N32	R-XQCC-N32
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
memory density	2097152 bit	2097152 bit	2097152 bit	2097152 bit	2097152 bit	2097152 bit	2097152 bit
memory width	8	8	8	8	8	8	8
Number of terminals	32	32	32	32	32	32	32
word count	262144 words	262144 words	262144 words	262144 words	262144 words	262144 words	262144 words
character code	256000	256000	256000	256000	256000	256000	256000
Maximum operating temperature	70 °C	70 °C	85 °C	70 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-	-	-40 °C	-	-40 °C	-40 °C	-40 °C
organize	256KX8	256KX8	256KX8	256KX8	256KX8	256KX8	256KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DIP	QCCN	DIP	QCCN	QCCN	QCCN	QCCN
Encapsulate equivalent code	DIP32,.6	LCC32,.45X.55	DIP32,.6	LCC32,.45X.55	LCC32,.45X.55	LCC32,.45X.55	LCC32,.45X.55
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	CHIP CARRIER	IN-LINE	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Maximum standby current	0.0001 A	0.0001 A	0.0001 A	0.0001 A	0.0001 A	0.0001 A	0.0001 A
Maximum slew rate	0.03 mA	0.03 mA	0.03 mA	0.03 mA	0.03 mA	0.03 mA	0.03 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	QUAD	DUAL	QUAD	QUAD	QUAD	QUAD
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-
Maker	-	-	AMD	AMD	AMD	AMD	AMD
