ATS037B-E

Description
Parallel - Fundamental Quartz Crystal, 3.6864MHz Nom, HC-49/US, 2 PIN
CategoryPassive components    Crystal/resonator
File Size582KB，9 Pages
ManufacturerCTS
Environmental Compliance
Download Datasheet Parametric View All

ATS037B-E Online Shopping

Suppliers Part Number Price MOQ In stock
ATS037B-E - - View Buy Now

ATS037B-E Overview

Parallel - Fundamental Quartz Crystal, 3.6864MHz Nom, HC-49/US, 2 PIN

ATS037B-E Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instructionHC-49/US, 2 PIN
Reach Compliance Codecompliant
Other featuresAT CUT
Ageing5 PPM/YEAR
Crystal/Resonator TypePARALLEL - FUNDAMENTAL
Drive level100 µW
frequency stability50%
frequency tolerance30 ppm
load capacitance18 pF
Installation featuresTHROUGH HOLE MOUNT
Nominal operating frequency3.6864 MHz
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
physical size10.85mm X 4.50mm X 3.68mm
Series resistance150 Ω
surface mountNO
Terminal surfaceTin/Silver/Copper - with Nickel barrier
Base Number Matches1

Preview

Download Datasheet

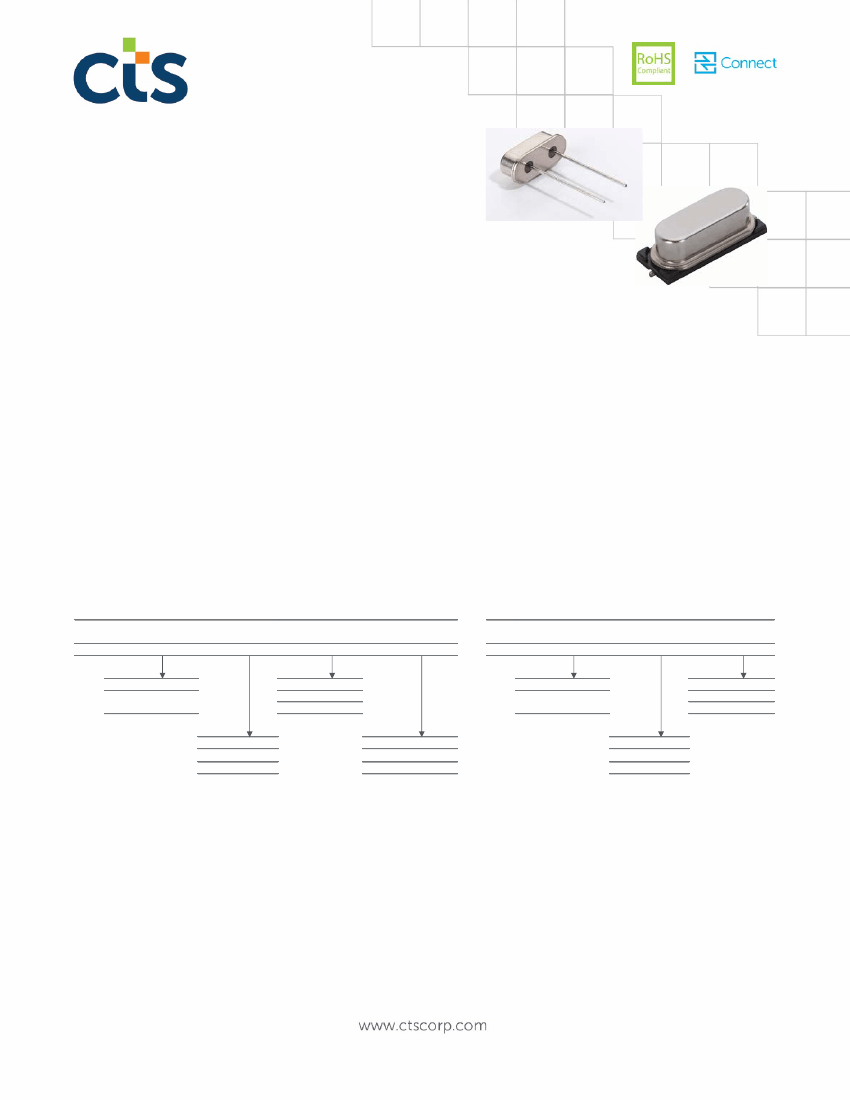

ATS/ATS-SM Series
Quartz Crystal
Features
Standard HC-49/US & HC-49/US-SM Metal Packages
Fundamental and 3
rd
Overtone Crystal Design
Frequency Range 3.2 – 64MHz
Frequency Tolerance, ±30ppm Standard
Frequency Stability, ±50ppm Standard
Operating Temperature Range -20°C to +70°C or -40°C to +85°C
Tape and Reel Packaging, EIA-418
Wireless Communications
Broadband Access
FPGA/Microcontrollers
Computer Peripherals
Microprocessors
Test and Measurement
Consumer Electronics
Portable Equipment
Part Dimensions:
ATS – 10.85 × 4.5 × 3.66mm
•
562.81mg
ATS-SM – 11.1 × 4.83 × 4.3mm
•
587.84mg
Applications
Description
CTS ATS and ATS-SM incorporates a high Q quartz resonator in a proven resistance-weld metal package. They are
ideal for supporting a wide range of commercial and industrial applications.
Ordering Information
ATS
Model
ATS
Frequency/Load
Code
XXX or XXXX
Packaging
-
Temperature
Range
Product
Options
ATS-SM
Model
ATS
Frequency/Load
Code
SM-
XXX or XXXX
Packaging
1
Temperature
Range
Code
Frequency
Frequency/Load Code
1
Code Temp. Range
Blank -20°C to +70°C
-40°C to +85°C
E
Code
Frequency
Frequency/Load Code
1
Code Temp. Range
Blank -20°C to +70°C
-40°C to +85°C
E
Packing
Code
Blank
Bulk
2
Radial Taping
1
Notes:
1] Refer to Standard Product Part Numbers tables on Page 2 and 3.
2] Standard packaging is bulk in a bag.
Option
Code
Blank
No Option
INS Insulation Spacer
Packing
Code
Blank
Bulk
1
Tape & Reel
2
Notes:
1] Refer to Standard Product Part Numbers tables on Page 3 and 4.
2] Standard packaging is tape and reel.
CTS Distributors may use -T for tape and reel indicator.
3] For tighter stabilities or frequencies not shown in Page 3 and 4 tables,
use ATSSMTS data sheet to build CTS part number.
Not all performance combinations and frequencies may be available.
Contact your local CTS Representative or CTS Customer Service for availability.
This product is specified for use only in standard commercial applications. Supplier disclaims all express and implied warranties and liability in connection with any use of this
product in any non-commercial applications or in any application that may expose the product to conditions that are outside of the tolerances provided in its specification.
DOC# 008-0309-0 Rev. M
Page 1 of 9
©2017 CTS® Corporation. Information/product(s) subject to change. No warranty that product(s) will meet the stated specifications for customer specific applications or test
equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote.
