Datasheet> All Categories > Passive components> oscillator> ACH-48.000MHZ-E-K

ACH-48.000MHZ-E-K: DescriptionHCMOS/TTL Output Clock Oscillator, 48MHz Nom, DIP-8/4; CategoryPassive components oscillator; File Size1MB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric Compare View All

ACH-48.000MHZ-E-K Overview

HCMOS/TTL Output Clock Oscillator, 48MHz Nom, DIP-8/4

ACH-48.000MHZ-E-K Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	DIP-8/4
Reach Compliance Code	compliant
Other features	TUBE
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	30%
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	48 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	HCMOS/TTL
Output load	10 TTL, 15 pF
physical size	12.7mm x 12.7mm x 6.39mm
longest rise time	5 ns
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
maximum symmetry	55/45 %
Base Number Matches	1

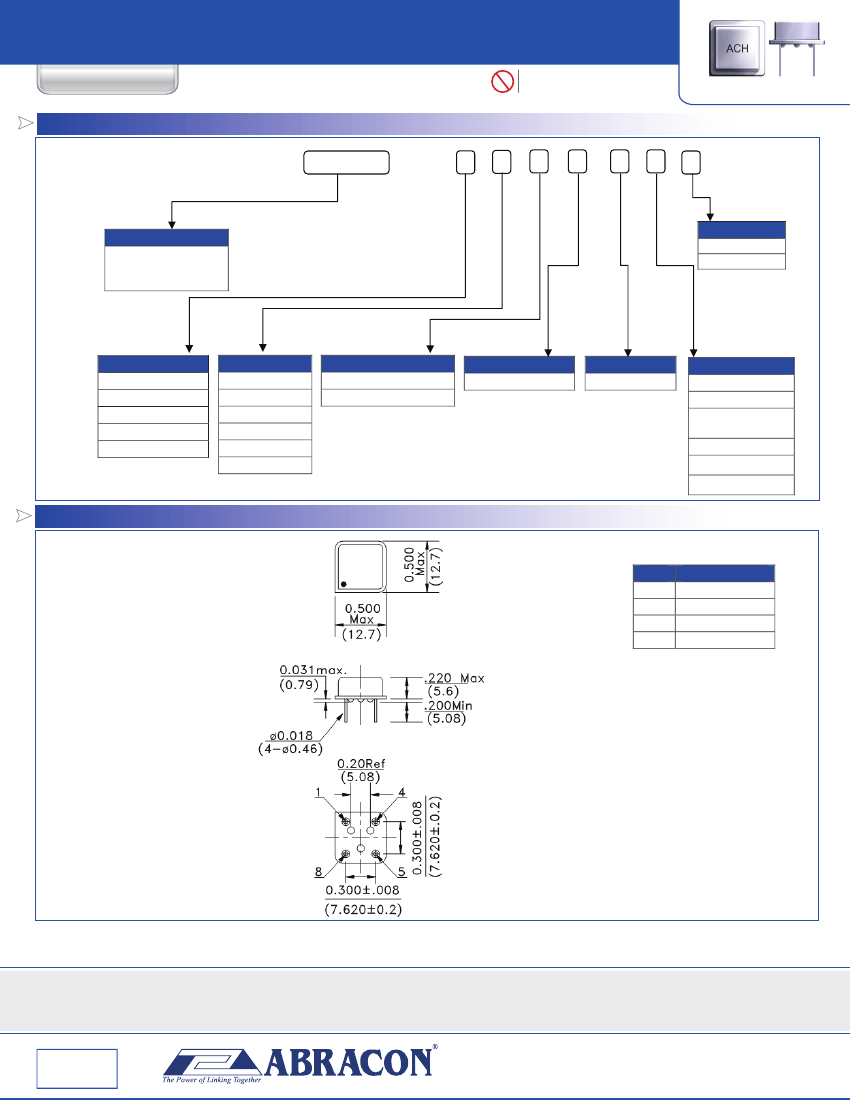

Preview

Download Datasheet

View All

HALF SIZE DIP LOW VOLTAGE

5.0V CRYSTAL CLOCK OSCILLATOR

RoHS/RoHS II Compliant

ACH Series

ESD Sensitive

FEATURES:

• Wide frequency range.

• HCMOS and TTL compatible.

• Tight symmetry option.

• Tri-state Enable / Disable function.

APPLICATIONS:

• Microprocessors.

• Digital circuit.

12.7 x 12.7 x 5.6mm

Moisture Sensitivity Level (MSL) – This product is Hermetically Sealed and not Moisture Sensitive - MSL = N/A: Not Applicable

STANDARD SPECIFICATIONS:

Parameters

Frequency Range

Operating Temperature

Storage Temperature

Overall Frequency Stability

Supply Voltage (Vdd)

Input Current

Symmetry

(@ 1/2Vdd)

Rise and Fall

Time (Tr/Tf)

32.768kHz ~ 23.999MHz

24.000MHz ~ 49.999MHz

50.000MHz ~ 79.999MHz

80.000MHz ~ 200.999MHz

32.768kHz ~ 49.999MHz

50.000MHz ~ 200.000MHz

32.768kHz ~ 1.999MHz

2.000MHz ~ 24.000MHz

24.001MHz ~ 200.000MHz

32.768kHz ~ 79.999MHz

Minimum

0.032768

-55

-100

4 .5

Typical

5 .0

Output Load

Output Voltage

80.000MHz ~ 200.000MHz

VOH

VOL

VIH

VIL

0.9*Vdd

2.2

Maximum

200.000

+70

+125

+100

5 .5

0.1*Vdd

Units

MHz

°C

ppm

TTL

Notes

See options

Tri-state Function

Output Enable time

Output Disable time

0.8

100

"1" or Open:

Oscillation

"0": Output disable

(Hi Z)

For option A only

Start-up Time

* Overall frequency stability includes initial tolerance and temperature stability.

ABRACON IS

ISO9001:2008

CE RTIFIED

LLC

2 Faraday, Suite# B

Irvine

CA 92618

Revised: 09.24.15

Ph. 949.546.8000

Fax. 949.546.8001

Visit

www.abracon.com

for Terms and Conditions of Sale

ACH-48.000MHZ-E-K Related Products

	ACH-48.000MHZ-E-K	ACH-40.000MHZ-L-C-A-50-Q25	ACH-2.560MHZ-L-A	ACH-24.576MHZ-E-K	ACH-50.000MHZ-E-K
Description	HCMOS/TTL Output Clock Oscillator, 48MHz Nom, DIP-8/4	HCMOS/TTL Output Clock Oscillator, 40MHz Nom, DIP-8/4	HCMOS/TTL Output Clock Oscillator, 2.56MHz Nom, DIP-8/4	HCMOS/TTL Output Clock Oscillator, 24.576MHz Nom, DIP-8/4	HCMOS/TTL Output Clock Oscillator, 50MHz Nom, DIP-8/4
Reach Compliance Code	compliant	unknown	unknown	compliant	compliant
Other features	TUBE	TRI-STATE; ENABLE/DISABLE FUNCTION; TUBE	TRI-STATE; ENABLE/DISABLE FUNCTION; TUBE	TUBE	TUBE
maximum descent time	5 ns	5 ns	10 ns	5 ns	5 ns
Frequency Adjustment - Mechanical	NO	NO	NO	NO	NO
frequency stability	30%	50%	100%	30%	30%
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Nominal operating frequency	48 MHz	40 MHz	2.56 MHz	24.576 MHz	50 MHz
Maximum operating temperature	70 °C	85 °C	85 °C	70 °C	70 °C
Minimum operating temperature	-20 °C	-40 °C	-40 °C	-20 °C	-20 °C
Oscillator type	HCMOS/TTL	HCMOS/TTL	HCMOS/TTL	HCMOS/TTL	HCMOS/TTL
Output load	10 TTL, 15 pF	10 TTL, 50 pF	10 TTL, 15 pF	10 TTL, 15 pF	10 TTL, 15 pF
physical size	12.7mm x 12.7mm x 6.39mm	12.7mm x 12.7mm x 6.35mm	12.7mm x 12.7mm x 6.39mm	12.7mm x 12.7mm x 6.39mm	12.7mm x 12.7mm x 6.39mm
longest rise time	5 ns	5 ns	10 ns	5 ns	5 ns
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO
maximum symmetry	55/45 %	55/45 %	55/45 %	55/45 %	60/40 %
Base Number Matches	1	1	1	1	1
Is it Rohs certified?	conform to	-	-	conform to	conform to
package instruction	DIP-8/4	-	-	DIP-8/4	DIP-8/4
