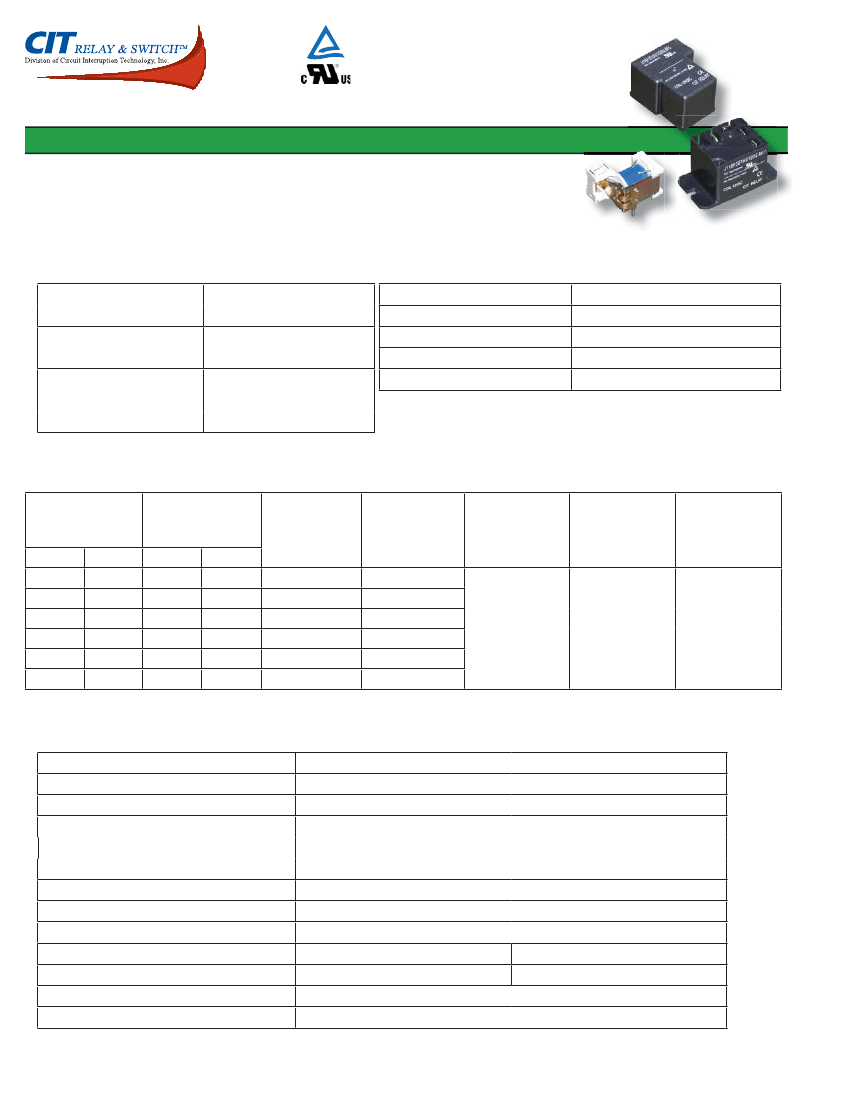

RoHS Compliant
J115F1E, J115F2E, J115F3E
E197852
m
21.5 x 15.8 x 16.5 mm
Features
•
•
•
30A economical version
Small size and light weight, low coil power consumption
Heavy contact load, strong shock and vibration resistance
Contact Data
TÜV Contact Rating N.O. 30A @ 240VAC; 14VDC
N.C.
UL Contact Rating N.O.
N.C.
Contact Arrangement
20A @ 240VAC; 14VDC
30A @ 240VAC Resistive
20A @ 240VAC Resistive
1A = SPST N.O.
1B = SPST N.C.
1C = SPST N.O.
Contact Resistance
Contact Material
Maximum Switching Power
Maximum Switching Voltage
Maximum Switching Current
< 30 milliohms initial
AgSnO
2
, AgCdO
840W, 7200VA
277VAC, 110VDC
30A

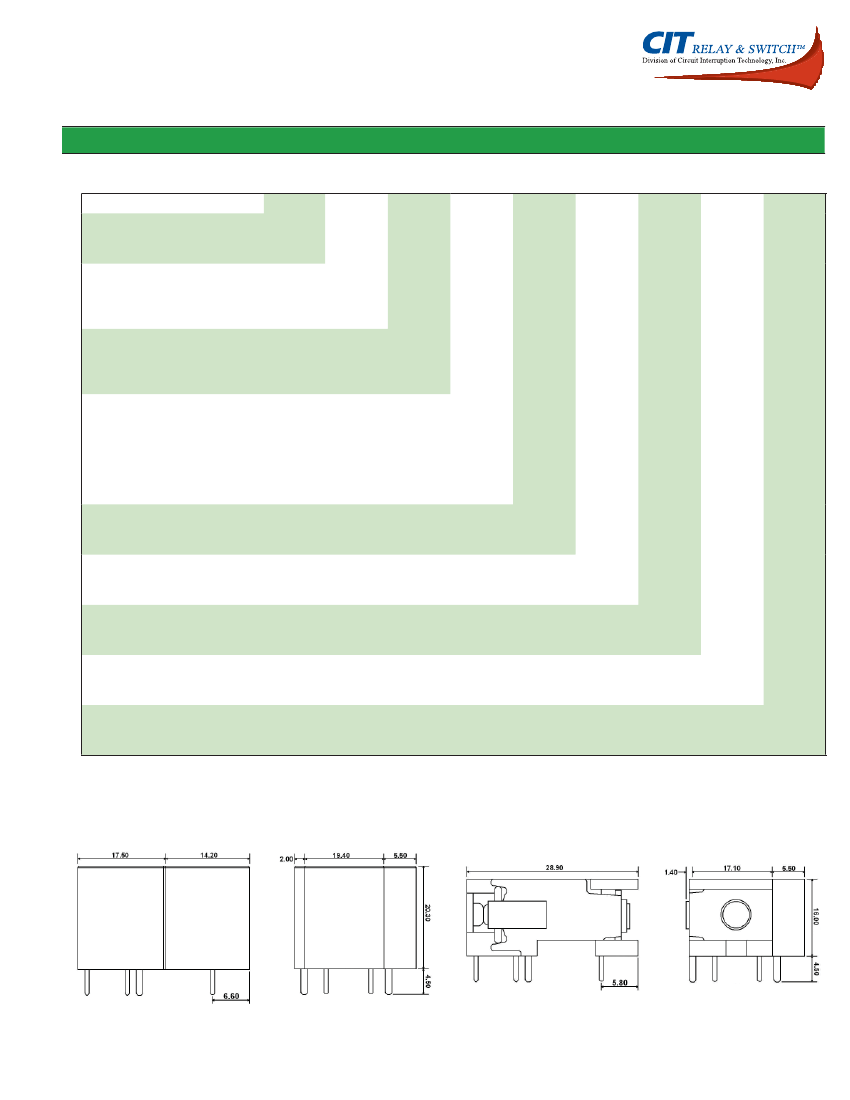

Dimensions shown in mm. Dimensions are shown for reference purposes only.
Coil Data DC Parameters
Coil Voltage
VDC
Rated
5
9
12
24
48
110
Max
6.5
11.7
15.6
31.2
62.4
140.3
Coil Resistance
Ω
+/- 10%
.6W
42
135
240
960
3840
20167
.9W
28
90
160
640
2560
13445
Pick Up Voltage Release Voltage
VDC (max)
VDC (min)
75% of rated
voltage
3.75
6.75
9.00
18.00
36.00
82.50
10% of rated
voltage
.5
.9
1.2
2.4
4.8
11.0
.60
.90
15
10
Coil Power
W
Operate Time
ms
Release Time
ms
General Data
Electrical Life @ rated load
Mechanical Life
Insulation Resistance
Dielectric Strength,
100K cycles, typical
10M cycles, typical
100M
Ω
min. @ 500VDC
Coil to Contact 4000V rms min. @ sea level (H = high dielectric strength option)
2500V rms min. @ sea level
Contact to Contact 1500V rms min. @ sea level
Shock Resistance
Vibration Resistance
Terminal (Copper Alloy) Strength
Operating Temperature
Storage Temperature
Solderability
Weight
www.citrelay.com
phone - 763.535.2339
fax - 763.535.2194
Specifications and availability subject to change without notice.
200m/s
2
for 11 ms
1.50mm double amplitude 10~40Hz
10N
-55
o
C to +125
o
C F Class
-55
o
C to +155
o
C F Class
260
o
C for 5 s
37g
-40
o
C to +85
o
C B Class
-40
o
C to +115
o
C B Class
page 1
J115F1E, J115F2E, J115F3E
Ordering Information
1. Series
J115F3E
1A
S
12D
S
X
.9
B
C
J115F1E
(PC terminals only)
J115F2E
(PC and quick connect terminals)
J115F3E
(quick connect terminals only)
2. Contact Arrangement
1A = SPST N.O.
1B = SPST N.C.
1C = SPDT
3. Profile
S = Standard Profile
L = Low Profile *J115F2E & J115F3E styles only
N = No cover *J115F1E & J115F2E styles only
4. Coil Voltage
5D = 5VDC
9D = 9VDC
12D = 12VDC
24D = 24VDC
48D = 48VDC
110D = 110VDC
5. Sealing Option
S = Sealed
X = No cover, non-sealed
6. High Dielectric Strength Option
X = Standard dielectric strength
H = High dielectric strength *J115F1E style only
7. Coil Power
.9 = .9W DC Coil
.6 = .6W DC Coil
8. Insulation
B = B Class
F = F Class
Dimensions shown in mm. Dimensions are shown for reference purposes only.
Specifications and availability subject to change without notice.
9. Contact Material
Z = AgSnO
2
C = AgCdO

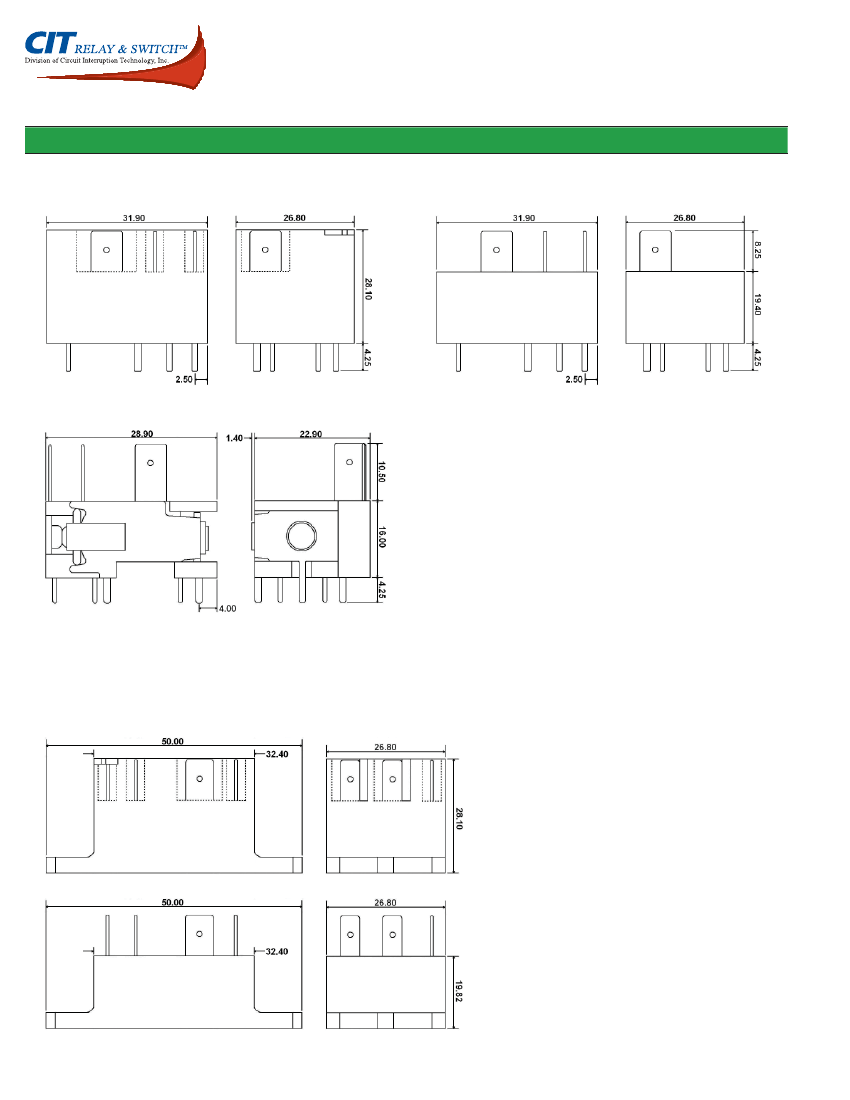

Dimensions - J115F1E
Units = mm
S = Standard Profile
N = No Cover
page 2
phone - 763.535.2339
www.citrelay.com
fax - 763.535.2194
J115F1E, J115F2E, J115F3E
E197851
21.5 x 15.8 x 16.5 mm
Dimensions - J115F2E
Units = mm
Dimensions shown in mm. Dimensions are shown for reference purposes only.
S = Standard Profile
L = Low Profile
** Quick Connect Terminals :
Contacts - 6.35 x .81mm (.250” x .032”)
N = No Cover
Dimensions - J115F3E
Units = mm
S = Standard Profile
** Quick Connect Terminals :
Contacts - 6.35 x .81mm (.250” x .032”)
Coil - 4.75 x .50mm (.187” x .020”)
Specifications and availability subject to change without notice.
L = Low Profile
** Quick Connect Terminals :
Contacts - 6.35 x .81mm (.250” x .032”)
Coil - 4.75 x .50mm (.187” x .020”)
www.citrelay.com
phone - 763.535.2339
fax - 763.535.2194
page 3
J115F1E, J115F2E, J115F3E
21.5 x 15.8 x 16.5 mm
E197851

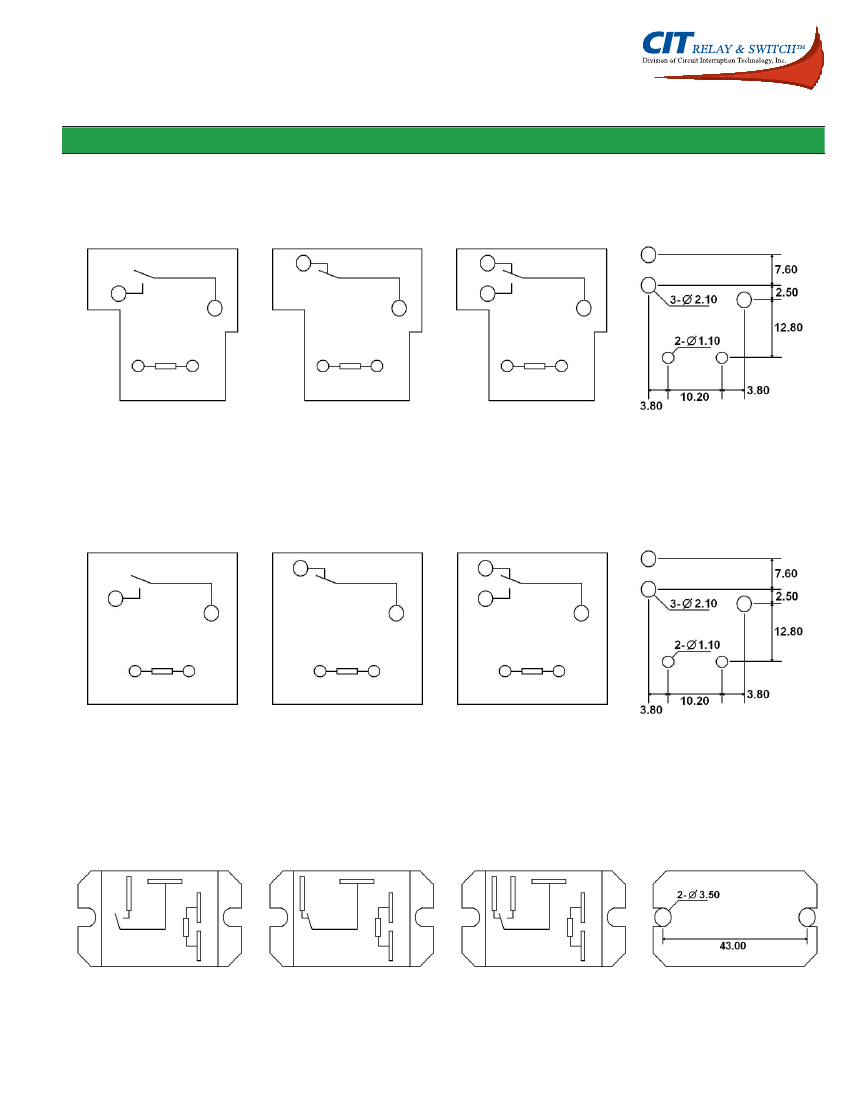

Schematics, PC Layouts & Panel Layouts
J115F1E
Bottom View
Specifications and availability subject to change without notice.
1A
1B
1C
J115F2E
Bottom View
Dimensions shown in mm. Dimensions are shown for reference purposes only.
1A
1B
1C
J115F3E
Top View
1A
1B
1C
page 4
phone - 763.535.2339
www.citrelay.com
fax - 763.535.2194
