A-502H-10: DescriptionLED Display; CategoryLED optoelectronic/LED photoelectric; File Size111KB，1 Pages; ManufacturerParalight; Websitehttp://www.paralighttaiwan.com/web/zh/home-tw/

Download Datasheet Parametric View All

A-502H-10 Overview

LED Display

A-502H-10 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Base Number Matches	1

Preview

Download Datasheet

View All

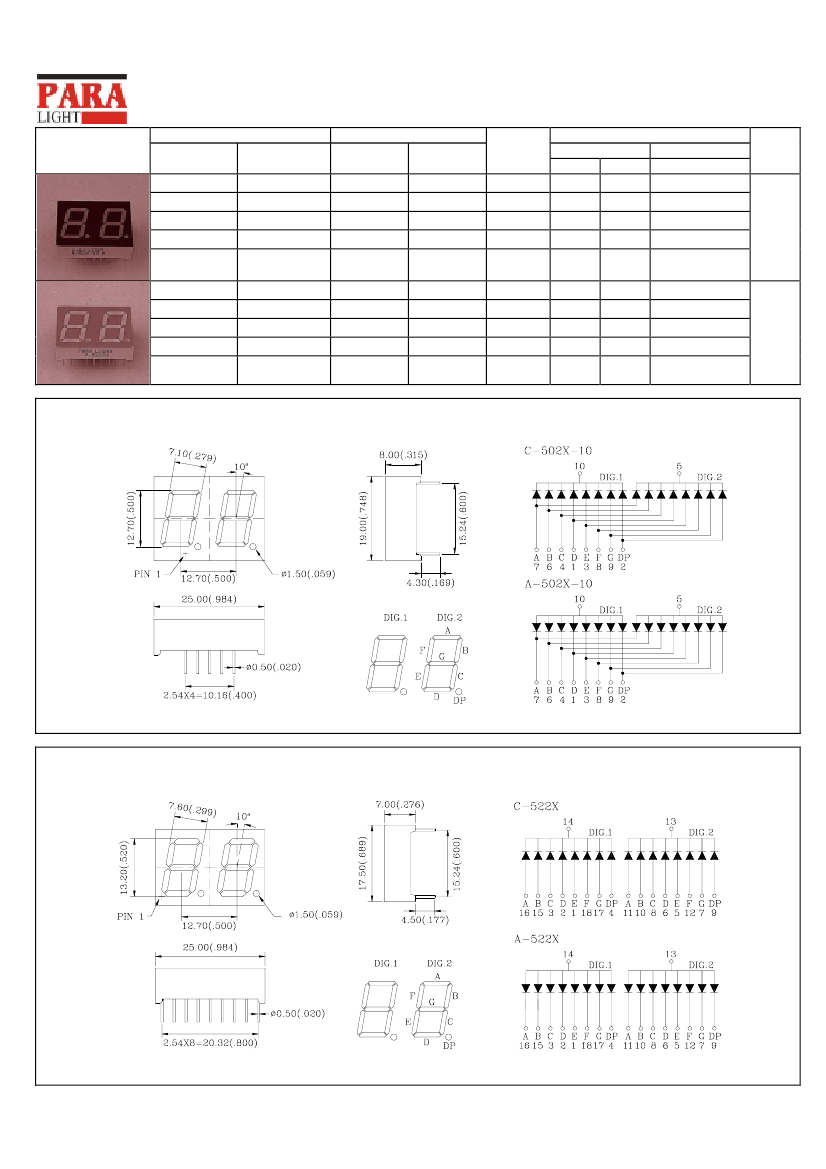

C/A-502X-10, C/A-522X

DUAL DIGITS DISPLAY

Shape

Part No.

Common

Cathode

Anode

Chip

Raw

Material

Emitted

Color

Wave

Length

λp(nm)

Electro-Optical Characteristics

Vf(V)20mA

Iv(ucd)10mA

Typ.

Max.

Typ.

Fig. No.

C-502H-10

C-502E-10

C-502G-10

C-502Y-10

C-502SR-10

C-522H

C-522E

C-522G

C-522Y

C-522SR

A-502H-10

A-502E-10

A-502G-10

A-502Y-10

A-502SR-10

A-522H

A-522E

A-522G

A-522Y

A-522SR

GaP

GaAsP/GaP

GaP

GaAsP/GaP

GaAlAs

GaP

GaAsP/GaP

GaP

GaAsP/GaP

GaAlAs

Red

Hi.effi Red

Green

Yellow

Super Red

Red

Hi.effi Red

Green

Yellow

Super Red

700

635

565

585

660

700

635

565

585

660

2.1

2.0

2.1

1.8

2.1

2.0

2.1

1.8

2.8

2.4

2.8

2.4

650

2000

1600

21000

650

2000

1600

21000

D31

D32

Fig.D31

Fig.D32

1.All dimension are in millimeters (inches).

2.Tolerance is

±0.25

mm (0.01”) unless otherwise specified.

Recommended Resources

Application of M37704 in frequency conversion speed regulation of three-phase asynchronous motors

300mA radio low frequency amplifier circuit

Electronic ballast circuit using triac dimming

Practical doorbell circuit

Stepped sawtooth wave circuit

IGBT short circuit protection circuit schematic diagram
