DESCRIPTION
Accutek
Microcircuit
Corporation
AK491024S / AK491024G
1,048,576 Word x 9 Bit CMOS
Dynamic Random Access Memory

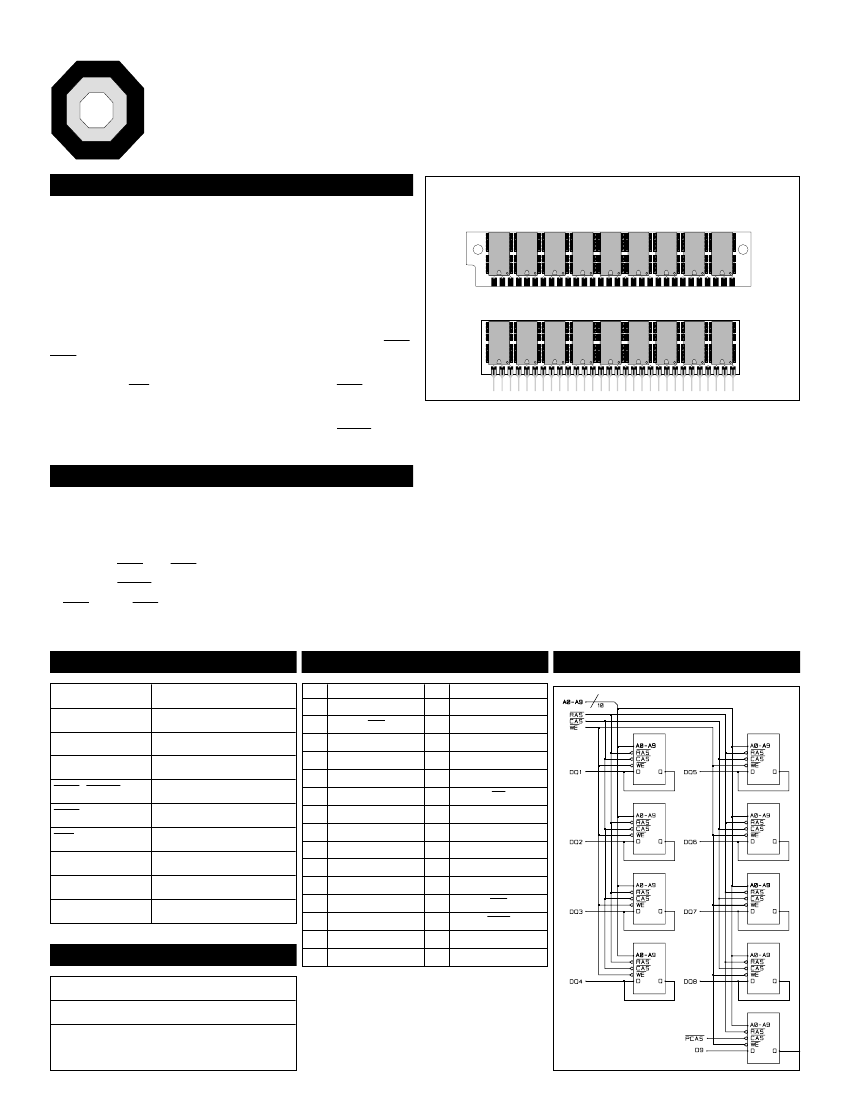

Front View
30-Pin SIM
The Accutek AK491024 high density memory module is a random
access memory organized in 1 Meg x 9 bit words. The assembly
consists of nine standard 1 Meg x 1 DRAMs in plastic leaded chip
carriers (SOJ) mounted on the front side of a printed circuit board.
The module can be configured as a leadless 30 pad SIM or a leaded
30 pin SIP. This packaging approach provides a 6 to 1 density in-
crease over standard DIP packaging.
The operation of the AK491024 is identical to nine 1 Meg x 1
DRAMs. For the lower eight bits data input is tied to the data output
and brought out separately for each device, with common RAS,
CAS control. This common I/O feature dictates the use of
early-write cycles to prevent contention of D and Q. Since the
Write-Enable (WE) signal must always go low before CAS in a write
cycle, Read-Write and Read-Modify-Write operation is not possible.
For the ninth bit, the data input (D
9
) and the data output (Q
9
) pins are
brought out separately and controlled by a separate PCAS for that
bit. Bit nine is generally used for parity.
1
30
30-Pin SIP
1
FEATURES
·
1,048,576 x 9 bit organization
·
Optional 30 Pad leadless SIM (Single In-Line Module) or 30
Pin leaded SIP (Single In-Line Package)
·
JEDEC standard pinout
·
Common CAS and RAS control for the lower eight bits
·
Separate PCAS control for D
9
and Q
9
·
CAS-before-RAS refresh
·
Power
3.465 Watt Max Active (80 nSEC)
2.97 Watt Max Active (100 nSEC)
2.475 Watt Max Active (120 nSEC)
49.5 mW Max Standby
·
Operating free air temperature 0
0
C to 70
0
C
·
Upward compatible with AK594096 and AK5916384
·
Downward compatible with AK49256
PIN NOMENCLATURE
DQ
1
- DQ
8
D
9
Q
9
A
0
- A
9
CAS, PCAS
RAS
WE
Vcc
Vss
NC
Data In / Data Out
Data In 9
Data Out 9
Address Inputs
Column Address Strobe
Row Address Strobe
Write Enable
5v Supply
Ground
No Connect
PIN ASSIGNMENT
PIN #
SYMBOL
PIN #
SYMBOL
FUNCTIONAL DIAGRAM
DQ5
A8
A9
NC
DQ6
WE
Vss
DQ7
NC
DQ8
Q9
RAS
PCAS
D9
Vcc
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Vcc
CAS
DQ1
A0
A1
DQ2
A2
A3
Vss
DQ3
A4
A5
DQ4
A6
A7
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
MODULE OPTIONS
Leadless SIM: AK491024S
Leaded SIP: AK491024G
Position
1
2
ORDERING INFORMATION
PART NUMBER CODING INTERPRETATION
1
2
3
4
5
6
7
8

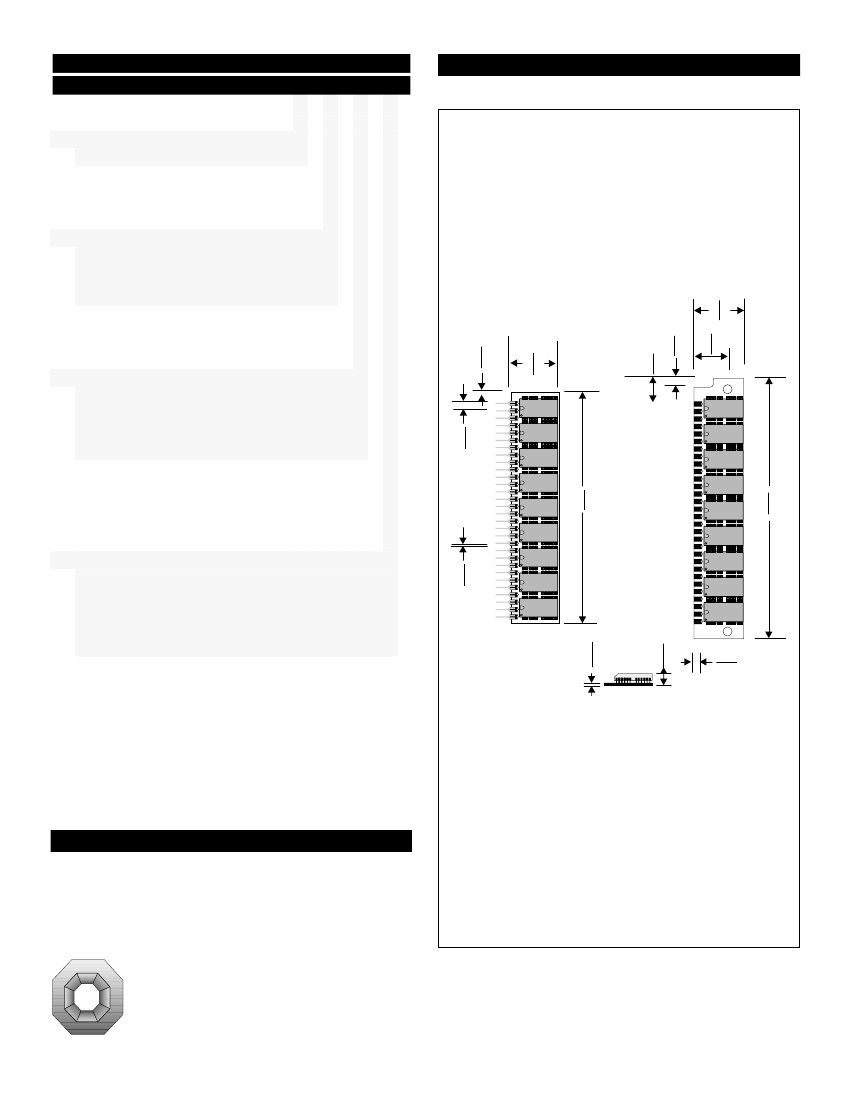

MECHANICAL DIMENSIONS
Inches
3
4
5
6
7
8
Product
AK = Accutek Memory
Type
4 = Dynamic RAM
5 = CMOS Dynamic RAM
6 = Static RAM
Organization/Word Width
1 = by 1 16 = by 16
4 = by 4 32 = by 32
8 = by 8 36 = by 36
9 = by 9
Size/Bits Depth
64 = 64K
4096 = 4 MEG
256 = 256K
8192 = 8 MEG
1024 = 1 MEG 16384 = 16 MEG
Package Type
G = Single In-Line Package (SIP)
S = Single In-Line Module (SIM)
D = Dual In-Line Package (DIP)
W = .050 inch Pitch Edge Connect
Z = Zig-Zag In-Line Package (ZIP)
Special Designation
P = Page Mode
N = Nibble Mode
K = Static Column Mode
W = Write Per Bit Mode
V = Video Ram
Separator
- = Commercial 0
0
C to +70
0
C
M = Military Equivalent Screened
(-55
0
C to +125
0
C)
I = Industrial Temperature Tested
(-45
0
C to +85
0
C)
X = Burned In
Speed (first two significant digits)
DRAMS
SRAMS
50 = 50 nS
8 =
8 nS
60 = 60 nS
10 = 10 nS
70 = 70 nS
12 = 12 nS
80 = 80 nS
15 = 15 nS
0.815
0.785
0.425
0.375
.100
.060
0.100
TYP
0.815
0.785
0.325
0.275
1
1
0.100
TYP
3.100
3.090
3.525
3.475
0.024
0.016
30
0.053
0.047
0.200
MAX
0.100
TYP
The numbers and coding on this page do not include all variations
available but are show as examples of the most widely used variations.
Contact Accutek if other information is required.
EXAMPLES:
AK491024SP-80
1 Meg x 9, 80 nSEC DRAM 30 pin SIM Configuration, Page Mode
AK491024GN-70
1 Meg x 9, 70 nSEC Dram 30 pin SIP Configuration, Nibble Mode
ACCUTEK MICROCIRCUIT CORPORATION
BUSINESS CENTER at NEWBURYPORT
2 NEW PASTURE ROAD, SUITE 1
NEWBURYPORT, MA 01950-4054
VOICE: 978-465-6200 FAX: 978-462-3396
Email: accutek@seacoast.com
Internet: www.accutekmicro.com
Accutek Reserves the right to make changes in specifications at any
time and without notice. Accutek does not assume any responsibility
for the use of any circuitry described; no circuit patent licenses are im-
plied. Preliminary data sheets contain minimum and maximum limits
based upon design objectives, which are subject to change upon full
characterization over the specific operating conditions.
