ATS-1-R30.0000MHZ: DescriptionParallel - 3Rd Overtone Quartz Crystal, 30MHz Nom, ROHS COMPLIANT, HERMETIC SEALED PACKAGE-2; CategoryPassive components Crystal/resonator; File Size332KB，2 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com; Environmental Compliance

Download Datasheet Parametric View All

ATS-1-R30.0000MHZ Overview

Parallel - 3Rd Overtone Quartz Crystal, 30MHz Nom, ROHS COMPLIANT, HERMETIC SEALED PACKAGE-2

ATS-1-R30.0000MHZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT, HERMETIC SEALED PACKAGE-2
Reach Compliance Code	unknown
Other features	AT CUT
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - 3RD OVERTONE
Drive level	100 µW
frequency stability	0.005%
frequency tolerance	30 ppm
JESD-609 code	e2
load capacitance	18 pF
Manufacturer's serial number	ATS-1
Installation features	SURFACE MOUNT
Nominal operating frequency	30 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
physical size	D3.2XH9.0 (mm)/D0.126XH0.354 (inch)
Series resistance	100 Ω
surface mount	YES
Terminal surface	Tin/Copper (Sn/Cu)
Base Number Matches	1

Preview

Download Datasheet

View All

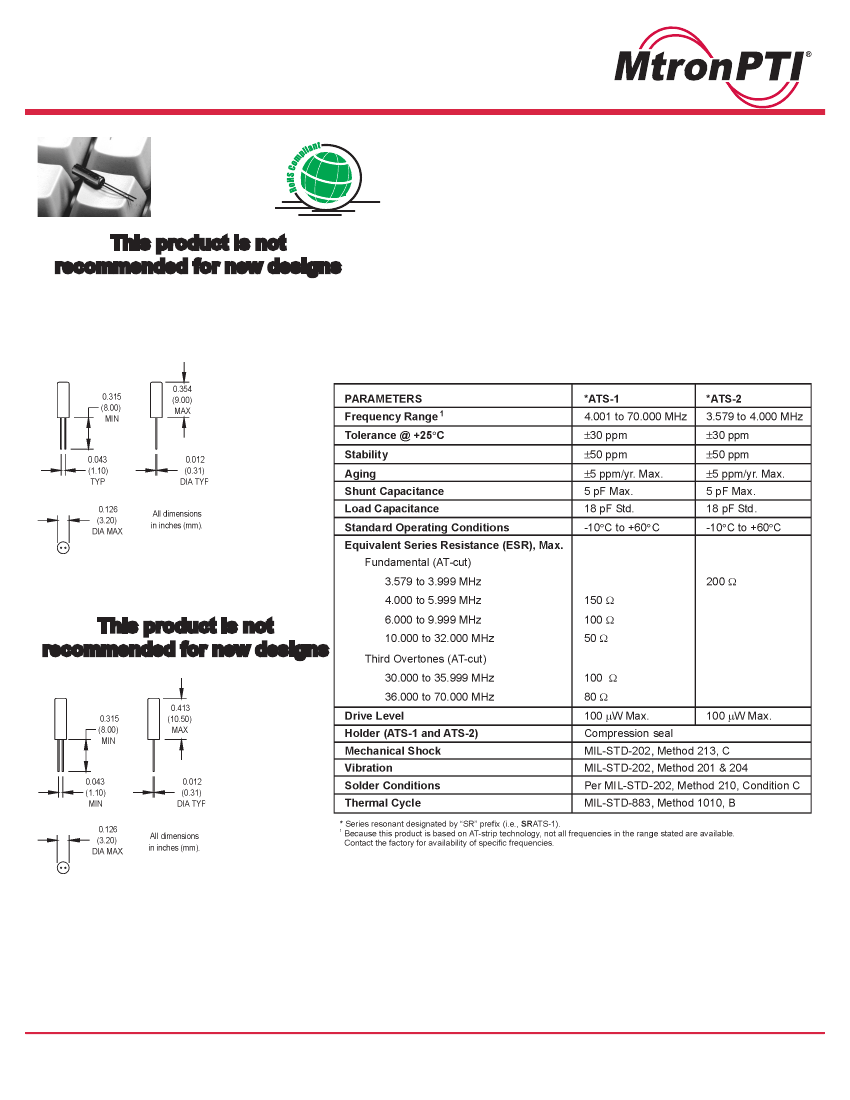

ATS-1 and ATS-2 Crystals

Hermetically sealed AT-strip crystals for incorporation in fre-

quency and time domain products

ATS-1 and ATS-2 crystals provide a convenient component

for incorporation into other components or subsystems. These

units are engineered for assembly in all common solder reflow

processes, including typical IR and vapor phase reflow temper-

ature profiles.

This product is not

recommended for new designs

M1009Sxxx - Contact factory for datasheet.

ATS-1 00.0000 MHz (customer specified frequency)

ATS-1-R 00.0000 MHz (RoHS Compliant and customer specified frequency)

This product is not

recommended for new designs

ATS-2 00.0000 MHz (customer specified frequency)

ATS-2-R 00.0000 MHz (RoHS Compliant and customer specified frequency

M1020Sxxx - Contact factory for datasheet.

MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.

Please see

www.mtronpti.com

for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI

1-800-762-8800.
