#A926AY-391K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> #A926AY-391K

#A926AY-391K: DescriptionGeneral Purpose Inductor, 390uH, 10%, 1 Element, SMD, ROHS COMPLIANT; CategoryPassive components inductor; File Size56KB，1 Pages; ManufacturerTOKO, INC.; Websitehttps://www.murata.com/; Environmental Compliance

Download Datasheet Parametric View All

#A926AY-391K Overview

General Purpose Inductor, 390uH, 10%, 1 Element, SMD, ROHS COMPLIANT

#A926AY-391K Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
Base Number Matches	1

Preview

Download Datasheet

View All

づ

け

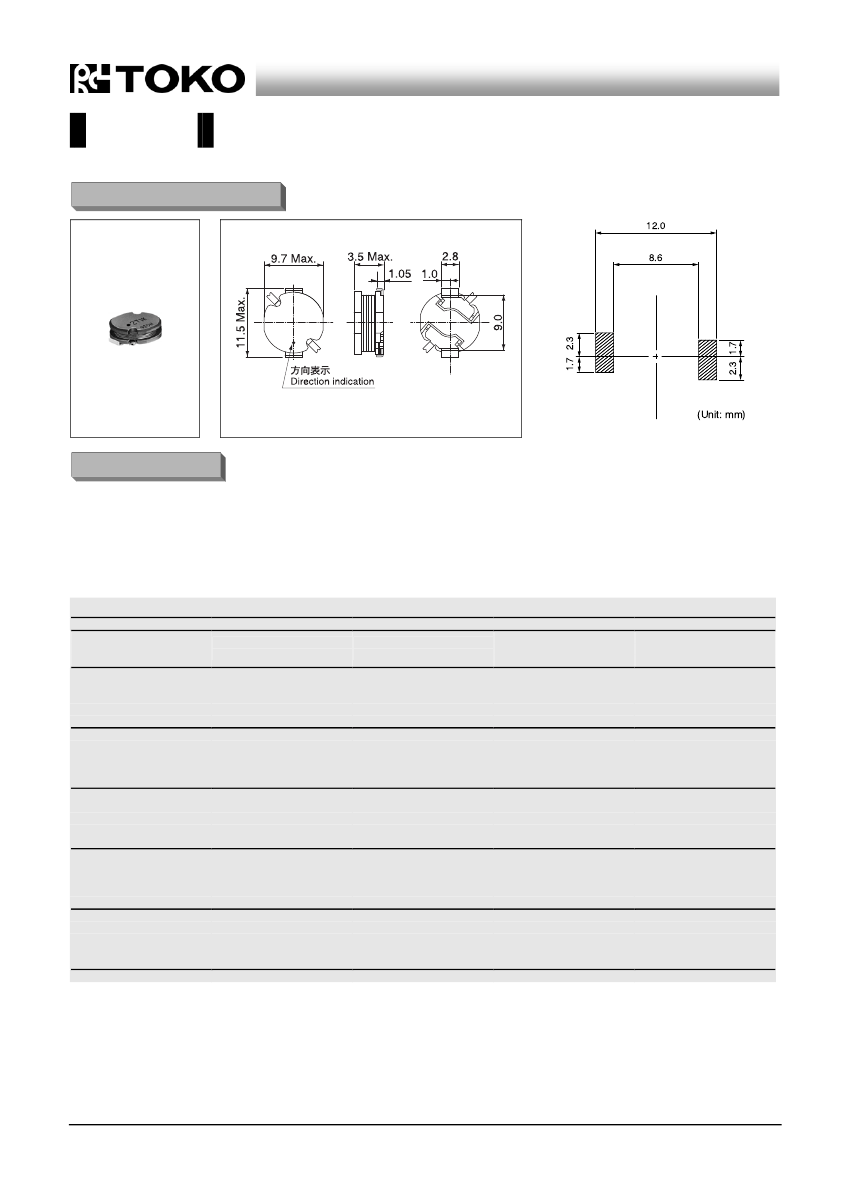

Fixed Inductors for Surface Mounting

面

実装

用固定インダクタ

D10FS

Inductance Range:

10~1200μH

DIMENSIONS／外½寸法図

Recommended patterns

推奨パターン図

12.0

8.6

2.3

1.7

(Unit: mm)

FEATURES／特長

•

Low profile (9.7

11.5mm Max. and 3.5mm Max. height).

Suitable for large current.

Ideal for CCFL driving inverter circuit applications.

RoHS compliant.

•

薄½構造（9.7

11.5mm Max.、高さ3.5mm Max.）

大電流対応

各種機器の冷陰極管駆動回路用

RoHS指令対応

SELECTION GUIDE FOR STANDARD COILS

TYPE D10FS (Quantity/reel; 500 PCS)

東光品番

TOKO

Part

Number

#A926AY-100M

#A926AY-120M

#A926AY-150M

#A926AY-180M

#A926AY-220M

#A926AY-270M

#A926AY-330M

#A926AY-390M

#A926AY-470K

#A926AY-560K

#A926AY-680K

#A926AY-820K

#A926AY-101K

#A926AY-121K

#A926AY-151K

#A926AY-181K

#A926AY-221K

#A926AY-271K

#A926AY-331K

#A926AY-391K

#A926AY-471K

#A926AY-561K

#A926AY-681K

#A926AY-821K

#A926AY-102K

#A926AY-122K

インダクタンス

(1)

Inductance

L (μH)

100

120

150

180

220

270

330

390

470

560

680

820

1000

1200

(1)

許容差

Tolerance

(%)

直流抵抗

(2)

Resistance

(Ω) Max.

0.051

0.059

0.070

0.082

0.10

0.13

0.15

0.18

0.21

0.25

0.29

0.34

0.41

0.48

0.59

0.70

0.84

1.05

1.30

1.50

1.80

2.20

2.60

3.20

3.90

4.60

最大許容電流

(3)

Rated

(3)

DC Current

(A) Max.

2.15

2.00

1.80

1.65

1.50

1.35

1.22

1.14

1.04

0.94

0.88

0.78

0.72

0.66

0.58

0.53

0.48

0.42

0.38

0.35

0.32

0.29

0.26

0.23

0.21

0.19

(1) Inductance is measured with a LCR meter 4284A (Agilent

Technologies) or equivalent.

Test frequency at 100kHz

(2) DC resistance is measured with a Digital Multimeter TR6871

(Advantest) or equivalent.

(3) Rated DC current is that which causes a 10% inductance

reduction from the initial value, or coil temperature to rise by 40°C

whichever is smaller.(Reference ambient temperature: 20°C)

(1)

インダクタンスはLCRメータ4284A（Agilent

Technologies）また

は同等品により測定する。

測定周波数は100kHzです。

(2)

直流抵抗はデジタルマルチメータTR6871（Advantest）または同

等品により測定する。

(3)

最大許容電流は、直流重畳電流を流した時インダクタンスの値が

初期値より10％減少する直流電流値、または直流電流により、コ

イルの温度が40℃上昇の½れか小さい値です。（周囲温度20℃

を基準とする。）

2.3

1.7
