BAR3504D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BAR3504D

BAR3504D: DescriptionRectifier Diode, 1 Phase, 1 Element, 35A, 400V V(RRM), Silicon, DIE-1; CategoryDiscrete semiconductor diode; File Size132KB，1 Pages; ManufacturerDiotec Electronics Corp; Environmental Compliance

Download Datasheet Parametric Compare View All

BAR3504D Overview

Rectifier Diode, 1 Phase, 1 Element, 35A, 400V V(RRM), Silicon, DIE-1

BAR3504D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Parts packaging code	DIE
package instruction	O-XUUC-N1
Contacts	1
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	HIGH RELIABILITY
application	GENERAL PURPOSE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	O-XUUC-N1
Maximum non-repetitive peak forward current	600 A
Number of components	1
Phase	1
Number of terminals	1
Maximum output current	35 A
Package body material	UNSPECIFIED
Package shape	ROUND
Package form	UNCASED CHIP
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	400 V
surface mount	YES
Terminal form	NO LEAD
Terminal location	UPPER
Base Number Matches	1

Preview

Download Datasheet

View All

DIOTEC ELECTRONICS CORP.

18020 Hobart Blvd., Unit B

Gardena, CA 90248 U.S.A

Tel.: (310) 767-1052 Fax: (310) 767-7958

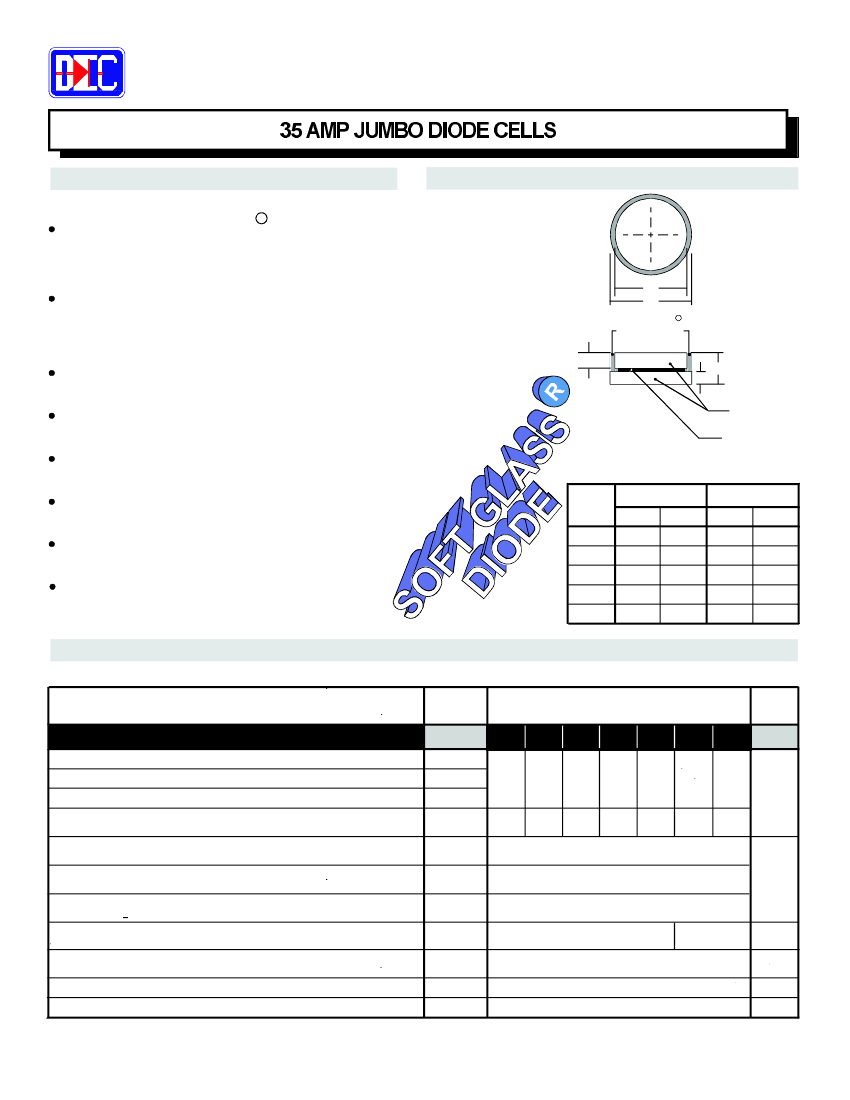

Data Sheet No. BUDI-3500D-1A

FEATURES

MECHANICAL SPECIFICATION

PROPRIETARY

SOFT GLASS

JUNCTION

PASSIVATION FOR SUPERIOR RELIABILITY AND

PERFORMANCE

VOID FREE VACUUM DIE SOLDERING FOR MAXIMUM

MECHANICAL STRENGTH AND HEAT DISSIPATION

(Solder Voids: Typical < 2%, Max. < 10% of Die Area)

Die Size:

0.165" x 0.165"

Square

Soft Glass

Passivation

Silver Plated

Copper Slugs

Silicon Die

Large die for high power capability

Very low forward voltage drop

Built-in stress relief mechanism for die protection

MILLIMETERS

DIM

Protects expensive automotive electronics and mobile

equipment

MIN

5.33

2.03

4.70

0.64

0.96

MAX

5.46

2.16

4.83

0.76

1.09

INCHES

MIN

0.210

0.080

0.185

0.025

0.038

MAX

0.215

0.085

0.190

0.030

0.043

Silver plated substrates for easy soldering or installation

Soldering temperature: 250

C maximum

MAXIMUM RATINGS & ELECTRICAL CHARACTERISTICS

Ratings at 25 °C ambient temperature unless otherwise specified.

PARAMETER (TEST CONDITIONS)

Series Number

Maximum Recurrent Peak Reverse Voltage

Working Peak Reverse Voltage

Maximum DC Blocking Voltage

Non-repetitive Peak Reverse Voltage

(Half wave, Single phase, 60Hz peak)

Average Rectified Forward Current (Single phase, Resistive load,

60Hz)

Non-repetitive Peak Forward Surge Current

(Half wave, Single phase, 60Hz sine applied to rated load)

Repetitive Peak Reverse Surge Current (Time constant = 10 mSec,

Duty cycle < 1.0%, Tc = 25

Maximum Instantaneous Forward Voltage

= 80A @300

Sec pulse, Tc = 25

Maximum DC Reverse Current

@ Tc = 25

At Rated DC Blocking Voltage

@ Tc = 100

Maximum Thermal Resistance, Junction to Lead (Note 1)

Operating & Storage Temperature Range

Notes: 1) Single Side Cooled

SYMBOL

RATINGS

BAR BAR BAR BAR BAR BAR BAR

3500D 3501D 3502D 3504D 3506D 3508D 3510D

UNITS

RRM

RWM

RSM

FSM

RSM

θJC

STG

120

240

480

600

110

1.1 (1.05 Typical)

0.5

0.9

-65 to +175

1.2

VOLTS

µA

°C/W

°C

BAR35d

100

200

400

600

800

1000

VOLTS

720

960

1200

AMPS

BAR3504D Related Products

	BAR3504D	BAR3506D	BAR3502D	BAR3501D	BAR3508D	BAR3510D	BAR3500D
Description	Rectifier Diode, 1 Phase, 1 Element, 35A, 400V V(RRM), Silicon, DIE-1	Rectifier Diode, 1 Phase, 1 Element, 35A, 600V V(RRM), Silicon, DIE-1	Rectifier Diode, 1 Phase, 1 Element, 35A, 200V V(RRM), Silicon, DIE-1	Rectifier Diode, 1 Phase, 1 Element, 35A, 100V V(RRM), Silicon, DIE-1	Rectifier Diode, 1 Phase, 1 Element, 35A, 800V V(RRM), Silicon, DIE-1	Rectifier Diode, 1 Phase, 1 Element, 35A, 1000V V(RRM), Silicon, DIE-1	Rectifier Diode, 1 Phase, 1 Element, 35A, 50V V(RRM), Silicon, DIE-1
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Parts packaging code	DIE	DIE	DIE	DIE	DIE	DIE	DIE
package instruction	O-XUUC-N1	O-XUUC-N1	O-XUUC-N1	O-XUUC-N1	O-XUUC-N1	O-XUUC-N1	O-XUUC-N1
Contacts	1	1	1	1	1	1	1
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	O-XUUC-N1	O-XUUC-N1	O-XUUC-N1	O-XUUC-N1	O-XUUC-N1	O-XUUC-N1	O-XUUC-N1
Maximum non-repetitive peak forward current	600 A	600 A	600 A	600 A	600 A	600 A	600 A
Number of components	1	1	1	1	1	1	1
Phase	1	1	1	1	1	1	1
Number of terminals	1	1	1	1	1	1	1
Maximum output current	35 A	35 A	35 A	35 A	35 A	35 A	35 A
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	400 V	600 V	200 V	100 V	800 V	1000 V	50 V
surface mount	YES	YES	YES	YES	YES	YES	YES
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Maker	-	Diotec Electronics Corp	-	Diotec Electronics Corp	Diotec Electronics Corp	Diotec Electronics Corp	Diotec Electronics Corp
