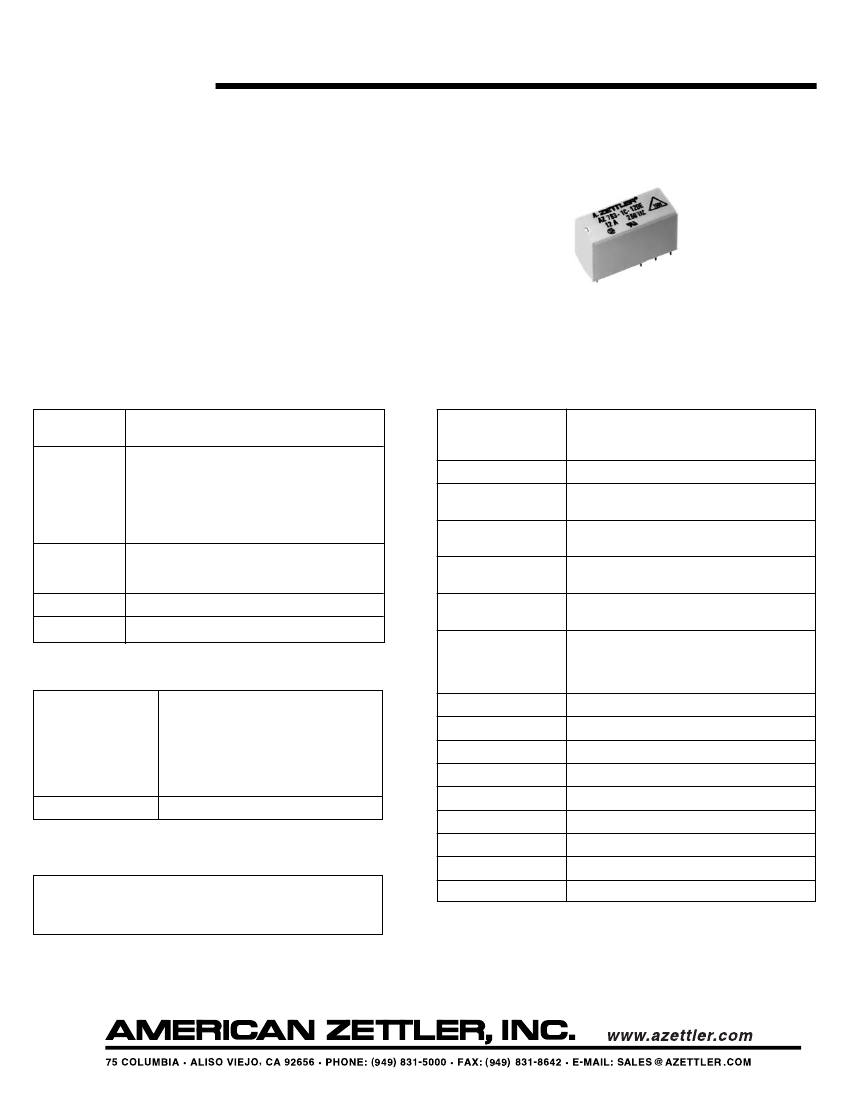

AZ763
AZ
12 A SPDT MINIATURE
POWER RELAY
FEATURES
•
•
•
•
•
•
•
•
•
Dielectric strength 5000 Vrms
Low height: 15.7 mm
Epoxy sealed version available
12 Amp switching
AC and DC coils
Isolation spacing greater than 10 mm
Proof tracking index (PTI/CTI) 250
Surpasses requirements of VDE 0631/0700
UL, CUR file E43203; VDE 112904
GENERAL DATA
SPDT (1 Form C)
SPST (N.O.) (1 Form A)
Resistive load:
Max. switched power: 360 W or 3000 VA
Max. switched current: 12 A
Max. switched voltage: 300* VDC or 400 VAC
*
Note: If switching voltage is greater than 30 VDC, special
CONTACTS
Arrangement
Ratings
Life Expectancy
Mechanical
Electrical
Operate Time (typical)
Release Time (typical)
Minimum operations
3 x 10
7
1 x 10
5
at 12 A 240 VAC res.
7 ms at nominal coil voltage
3 ms at nominal coil voltage
(with no coil suppression)
precautions must be taken. Please contact the factory.
Rated Load
UL, CUR
VDE
Material
Resistance
Dielectric Strength
5000 Vrms coil to contact
(at sea level for 1 min.)
1000 Vrms between open contacts
Insulation
Resistance
Dropout
Ambient Temperature
Operating
1000 megohms min. at 20°C
500 VDC 50% RH
Greater than 10% of nominal coil voltage - DC
Greater than 15% of nominal coil voltage - AC
At nominal coil voltage
-40°C (-40°F) to 90°C (194°F) - DC coils
-40°C (-40°F) to 75°C (167°F) - AC coils
-40°C (-40°F) to 115°C (239°F)
0.062" DA at 10–55 Hz
30 g
P.B.T. polyester, UL-94 : V0
Tinned copper alloy, P. C.
270°C (518°F)
5 seconds
80°C (176°F)
30 Seconds
14 grams
12 A at 250 VAC resistive
12 A at 250 VAC
Silver nickel or silver nickel gold plated
< 100 milliohms initially
COIL
Power
At Pickup Voltage
(typical)
Max. Continuous
Dissipation
Temperature Rise
Max. Temperature
200 mW (DC coil)
.422
VA (AC coil)
1.7 W at 20°C (68°F) ambient
26°C (47°F) at nominal coil voltage
115°C (239°F)
Storage
Vibration
Shock
Enclosure
Terminals
Max. Solder Temp.
Max. Solder Time
Max. Solvent Temp.
NOTES
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Specifications subject to change without notice.
Max. Immersion Time
Weight
6/11/04W
AZ763
AZ

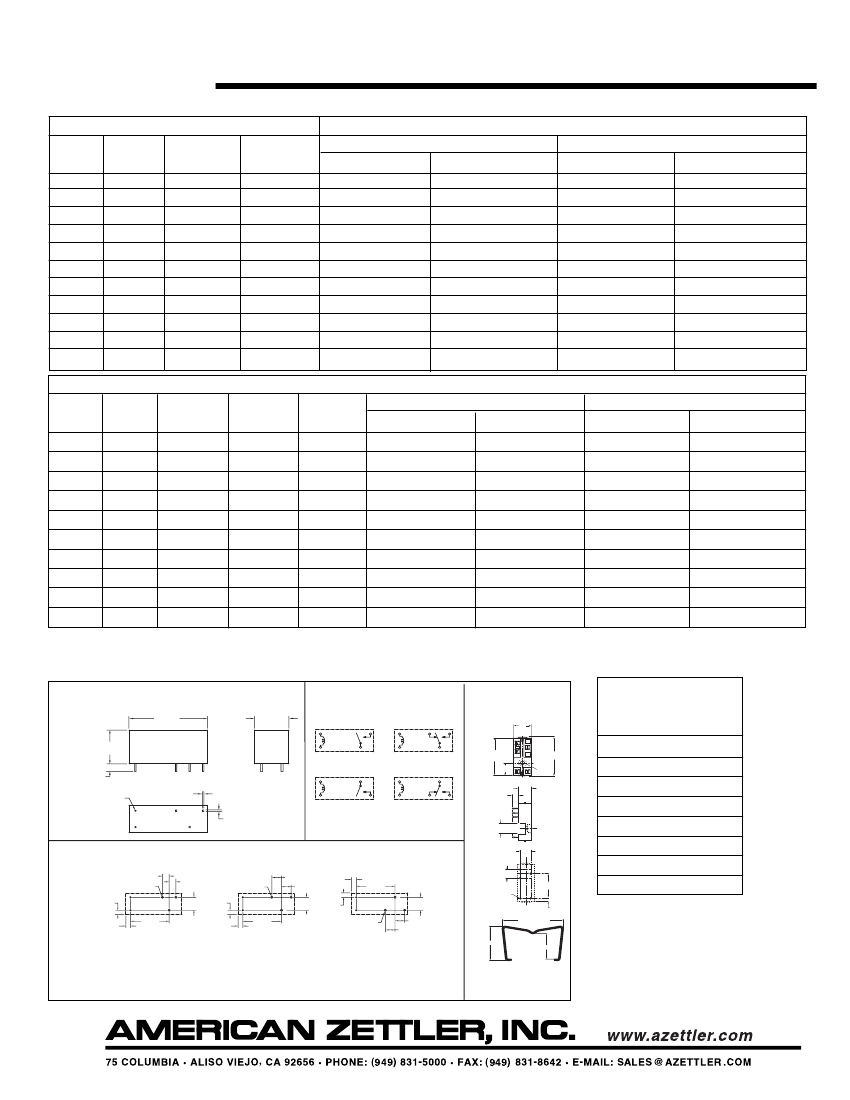

RELAY ORDERING DATA
COIL SPECIFICATIONS - DC Coil
Nominal
Coil
VDC
3
5
6
9
12
18
24
36
48
60
110
Must
Operate
VDC
2.1
3.5
4.2
6.3
8.4
12.6
16.8
25.2
33.6
42.0
77.0
Max.
Continuous
VDC
7.6
12.7
15.3
22.9
30.6
45.9
61.2
92
122.0
153.0
280.0
Coil
Resistance
± 10%
22
60
90
200
360
710
1,440
3,140
5,700
7,500
25,200
Unsealed
3.5 mm STD
5 mm STD Left
AZ763–1C–3D
AZ763–1C–5D
AZ763–1C–6D
AZ763–1C–9D
AZ763–1C–12D
AZ763–1C–18D
AZ763–1C–24D
AZ763–1C–36D
AZ763–1C–48D
AZ763–1C–60D
AZ763–1C–110D
AZ763L–1C–3D
AZ763L–1C–5D
AZ763L–1C–6D
AZ763L–1C–9D
AZ763L–1C–12D
AZ763L–1C–18D
AZ763L–1C–24D
AZ763L–1C–36D
AZ763L–1C–48D
AZ763L–1C–60D
AZ763L–1C–110D
ORDER NUMBER*
Sealed
3.5mm
AZ763–1C–3DE
AZ763–1C–5DE
AZ763–1C–6DE
AZ763–1C–9DE
AZ763–1C–12DE
AZ763–1C–18DE
AZ763–1C–24DE
AZ763–1C–36DE
AZ763–1C–48DE
AZ763–1C–60DE
AZ763–1C–110DE
5 mm STD Left
AZ763L–1C–3DE
AZ763L–1C–5DE
AZ763L–1C–6DE
AZ763L–1C–9DE
AZ763L–1C–12DE
AZ763L–1C–18DE
AZ763L–1C–24DE
AZ763L–1C–36DE
AZ763L–1C–48DE
AZ763L–1C–60DE
AZ763L–1C–110DE
COIL SPECIFICATIONS - AC Coil
Nominal
Coil
VAC
12
24
48
60
110
115
120
220
230
Must
Operate
VAC
9.0
18.0
36.0
45.0
82.5
86.3
90.0
165.0
172.5
Max.
Continuous
VAC
18.0
36.0
72.0
90.0
165.0
172.5
180.0
330.0
345.0
Nominal
Current
mA ± 10%
63.0
31.3
15.6
12.5
6.8
6.5
6.3
3.4
3.3
Coil
Resistance
± 10%
100
400
1550
2600
8900
9600
10200
35500
38500
ORDER NUMBER*
Unsealed
3.5 mm STD
5 mm STD Left
AZ763–1C–12A
AZ763–1C–24A
AZ763–1C–48A
AZ763–1C–60A
AZ763–1C–110A
AZ763–1C–115A
AZ763–1C–120A
AZ763–1C–220A
AZ763–1C–230A
AZ763L–1C–12A
AZ763L–1C–24A
AZ763L–1C–48A
AZ763L–1C–60A
AZ763L–1C–110A
AZ763L–1C–115A
AZ763L–1C–120A
AZ763L–1C–220A
AZ763L–1C–230A
Sealed
3.5mm
AZ763–1C–12AE
AZ763–1C–24AE
AZ763–1C–48AE
AZ763–1C–60AE
AZ763–1C–110AE
AZ763–1C–115AE
AZ763–1C–120AE
AZ763–1C–220AE
AZ763–1C–230AE
5 mm STD Left
AZ763L–1C–12AE
AZ763L–1C–24AE
AZ763L–1C–48AE
AZ763L–1C–60AE
AZ763L–1C–110AE
AZ763L–1C–115AE
AZ763L–1C–120AE
AZ763L–1C–220AE
AZ763L–1C–230AE
240
180.0
360.0
3.1
42500
AZ763–1C–240A
AZ763L–1C–240A AZ763–1C–240AE AZ763L–1C–240AE
*For 5 mm “Right” spacing substitute “AZ763R” for “AZ763L”. For Form A contacts substitute “-1A” for “-1C”. For gold plated contacts substitute “-1AG”
for “-1A” or “-1CG” for “-1C”.
NOTE:
Form A contacts only available for DC coil versions.
MECHANICAL DATA
1.142 Max.
[29.0]
.500 Max.
[12.7]
1
WIRING DIAGRAM
2
1
2
3
HARDWARE
ST482-U1
.500
(12.7)
HARDWARE
ORDERING
DATA
DESCRIPTION
1.28
(32.5)
.618 Max.
[15.7]
5
4
1 FORM A
STANDARD & LEFT
4
5
4
1 FORM C
STANDARD & LEFT
4
1.22
(30.9)
.414
(10.5)
.154
[3.9]
3 x .020
[0.5]
5
5
.125 DIA
(3.2)
Socket
ORDER NUMBER
ST482–U1
.354
(9.0)
.177
MAX.
(4.5)
2 x ø.024
[ø0.6]
1
3
1 FORM A
RIGHT
1
2
1 FORM C
RIGHT
3
3 x .035
[0.9]
VIEWED TOWARD TERMINALS
.366
(9.3)
DESCRIPTION
.295
(7.5)
PC BOARD LAYOUT
.138
[3.5]
5 x ø.051
[ø1.3]
.138
[3.5]
Retainer
ORDER NUMBER
VIEWED TOWARD TERMINALS
.276
(7.0)
.197
[5.0]
5 x ø.051
[ø1.3]
.098
[2.5]
.197
[5.0]
.098
[2.5]
.787
[20.0]
.059 DIA
(1.5)
.792
(20.1)
ST482–2
.098
[2.5]
*
.787
[20.0]
.295
[7.5]
*
.787
[20.0]
.295
[7.5]
.098
[2.5]
*
5 x ø.051
[ø1.3]
.197
[5.0]
.295
[7.5]
RETAINING CLIP
.098
[2.5]
.098
[2.5]
.197
[5.0]
.118
(3.0)
1.385 [35.19]
AZ763
3.5mm SPACING
1 FORM C
AZ763L
5.0mm LEFT SPACING
1 FORM C
AZ763R
5.0mm RIGHT SPACING
1 FORM C
.895 [22.73]
.661 [16.79]
*
Not used on 1 Form A relay
Viewed toward terminals
ST482-3
Dimensions in inches with metric equivalents in parentheses. Tolerance: ± .010"
6/11/04W
