AZ980-1A-24D: DescriptionPower/Signal Relay, 1 Form A, SPST, Latched, 37.9VDC (Coil), 80A (Contact), 30VDC (Contact), DC Input, Random, DC Output; CategoryMechanical and electronic products relay; File Size5MB，2 Pages; ManufacturerAZETTLER; Websitehttp://www.azettler.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

AZ980-1A-24D Overview

Power/Signal Relay, 1 Form A, SPST, Latched, 37.9VDC (Coil), 80A (Contact), 30VDC (Contact), DC Input, Random, DC Output

AZ980-1A-24D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
body width	33 mm
body height	35 mm
Body length or diameter	35 mm
Coil operating voltage (DC)	15.6 V
Coil resistance	360 Ω
Maximum coil voltage (DC)	37.9 V
Nominal coil voltage	24 V
Coil/Input Power Type	DC
Maximum contact current (DC)	80 A
Contact (DC) maximum rated power R load	1120W@30VDC
Contact (DC) maximum rated R load	80A@30VDC
Contact resistance	50 mΩ
Maximum contact voltage (DC)	30 V
Contact/Output Power Type	DC
Dielectric strength between coil and contacts	500 Vrms
Dielectric strength between breaking contacts	500 Vrms
Electrical life	100000 Cycle(s)
End contact material	Silver Tin Oxide
Input switching control type	Random
Insulation resistance	100000000 Ω
Manufacturer's serial number	AZ980
Number of terminals	5
operating hours	7 ms
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	35mm x 33mm x 35mm
Relay action	LATCHED
Relay style	1 FORM A
Relay function	SPST
Relay type	POWER/SIGNAL RELAY
release time	5 ms
Termination type	QUICK CONNECT
weight	46 g
Base Number Matches	1

Preview

Download Datasheet

View All

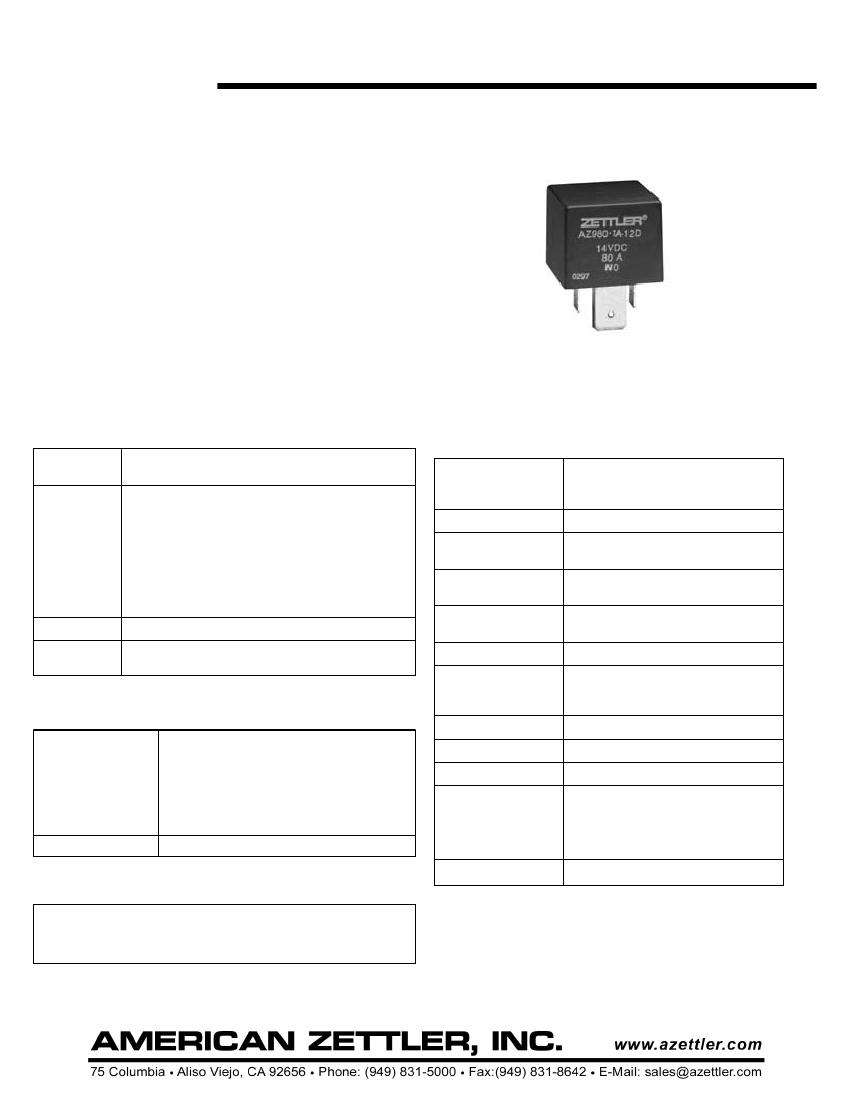

AZ980

80 AMP

SUPER-ISO

AUTOMOTIVE RELAY

FEATURES

•

80 Amp contact rating – “Super ISO”

•

High momentary carry current (500 A)

•

High operating temperature (85°C)

•

SPST - N.O. (1 Form A), SPDT (1 Form C)

SPST - N.C. (1 Form B)

•

Quick connect terminals

•

ISO/TS 16949, ISO14001

CONTACTS

Arrangement

Ratings

SPST - N.O. (1 Form A), SPST - N.C. (1 Form B),

SPDT (1 Form C)

Resistive load:

Max. switched power: 1120 W (SPST) Form A

840 W (N.O.) Form C

840 W (N.C.) Form C, Form B

Max. switched current: 80 A (SPST) Form A

60 A (N.O.) Form C

60 A (N.C.) Form C, Form B

Max. switched voltage: 30 VDC

GENERAL DATA

Life Expectancy

Mechanical

Electrical

Operate Time (typical)

Release Time (typical)

Minimum operations

1 x 10

at 80 A 14 VDC Res.

7 ms at nominal coil voltage

5 ms at nominal coil voltage

(with no coil suppression)

Dielectric Strength

500 Vrms coil to contact

(at sea level for 1 min.)

500 Vrms contact to contact

Insulation Resistance

100 megohms min. at 500 VDC, 20°C

50% RH

Greater than 10% of nominal coil voltage

-40°C (-40°F) to 85°C (185°F)

-40°C (-40°F) to 105°C (211°F)

0.062" DA at 10-55 Hz

10 g

P.B.T. polyester

Copper alloy

Quick Connect

Note: Allow suitable slack on leads when wiring,

and do not subject the terminals to excessive

force.

Material

Resistance

Silver tin oxide

< 50 milliohms initially

(24 V, 1 A voltage drop method)

Dropout

Ambient Temperature

Operating

Storage

COIL

Power

At Pickup Voltage

(typical)

Max. Continuous

Dissipation

Temperature Rise

Temperature

0.76 W

3.0 W at 20°C (68°F)

56°C (101°F) at nominal coil voltage

Max. 155°C (311°F)

Vibration

Shock

Enclosure

Terminals

Weight

46 grams

NOTES

1. All values at 20°C (68°F).

2. Relay may pull in with less than “Must Operate” value.

3. Specifications subject to change without notice.

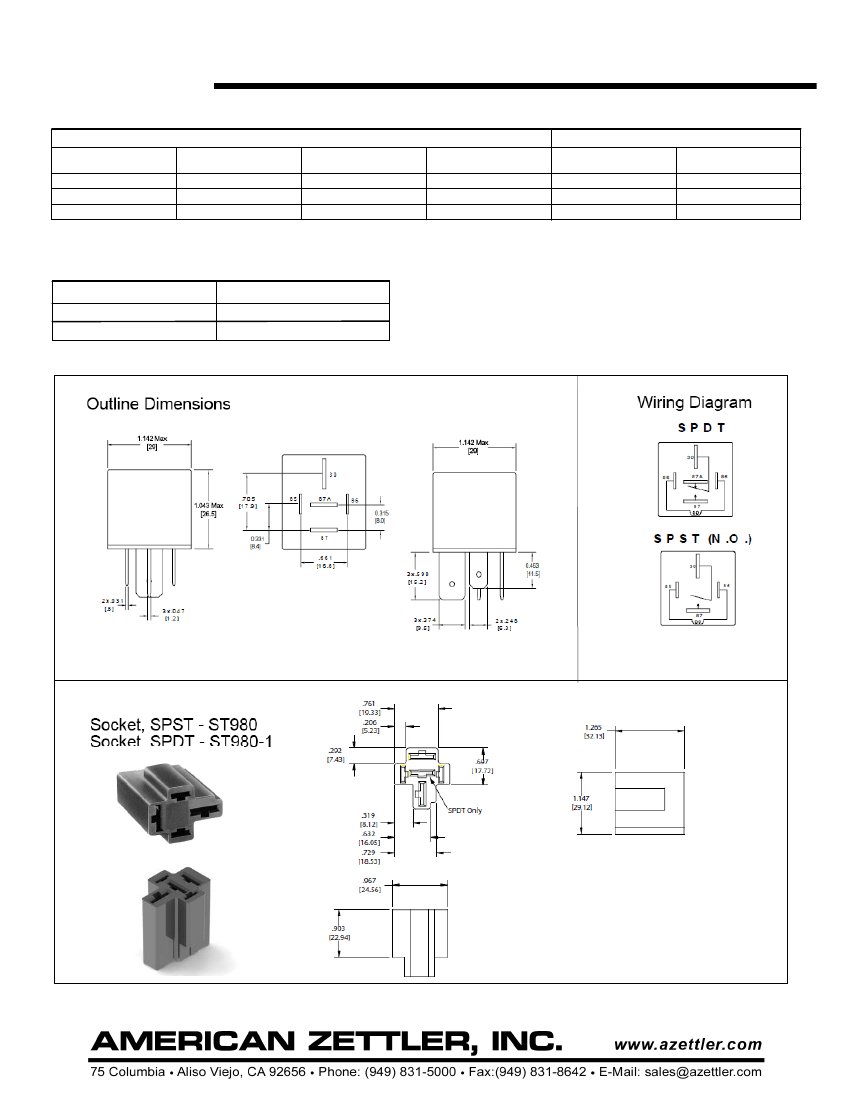

1/7/15

AZ980-1A-24D Related Products

	AZ980-1A-24D	AZ980-1A-12D	AZ980-1A-6D
Description	Power/Signal Relay, 1 Form A, SPST, Latched, 37.9VDC (Coil), 80A (Contact), 30VDC (Contact), DC Input, Random, DC Output	Power/Signal Relay, 1 Form A, SPST, Latched, 19VDC (Coil), 80A (Contact), 30VDC (Contact), DC Input, Random, DC Output	Power/Signal Relay, 1 Form A, SPST, Latched, 7.8VDC (Coil), 80A (Contact), 30VDC (Contact), DC Input, Random, DC Output
Reach Compliance Code	unknown	unknown	compliant
ECCN code	EAR99	EAR99	EAR99
body width	33 mm	33 mm	33 mm
body height	35 mm	35 mm	35 mm
Body length or diameter	35 mm	35 mm	35 mm
Coil operating voltage (DC)	15.6 V	7.8 V	3.9 V
Coil resistance	360 Ω	90 Ω	20 Ω
Maximum coil voltage (DC)	37.9 V	19 V	7.8 V
Nominal coil voltage	24 V	12 V	6 V
Coil/Input Power Type	DC	DC	DC
Maximum contact current (DC)	80 A	80 A	80 A
Contact (DC) maximum rated power R load	1120W@30VDC	1120W@30VDC	1120W@30VDC
Contact (DC) maximum rated R load	80A@30VDC	80A@30VDC	80A@30VDC
Contact resistance	50 mΩ	50 mΩ	50 mΩ
Maximum contact voltage (DC)	30 V	30 V	30 V
Contact/Output Power Type	DC	DC	DC
Dielectric strength between coil and contacts	500 Vrms	500 Vrms	500 Vrms
Dielectric strength between breaking contacts	500 Vrms	500 Vrms	500 Vrms
Electrical life	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)
End contact material	Silver Tin Oxide	Silver Tin Oxide	Silver Tin Oxide
Input switching control type	Random	Random	Random
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω
Manufacturer's serial number	AZ980	AZ980	AZ980
Number of terminals	5	5	5
operating hours	7 ms	7 ms	7 ms
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
physical size	35mm x 33mm x 35mm	35mm x 33mm x 35mm	35mm x 33mm x 35mm
Relay action	LATCHED	LATCHED	LATCHED
Relay style	1 FORM A	1 FORM A	1 FORM A
Relay function	SPST	SPST	SPST
Relay type	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY
release time	5 ms	5 ms	5 ms
Termination type	QUICK CONNECT	QUICK CONNECT	QUICK CONNECT
weight	46 g	46 g	46 g
Base Number Matches	1	1	1
Is it Rohs certified?	conform to	conform to	-
