SURFACE MOUNT DISPLAY
APDC03-41SURKWA-F01
HYPER RED
Features
0.3 INCH DIGIT HEIGHT.
LOW CURRENT OPERATION.
EXCELLENT CHARACTER APPEARANCE.
I.C. COMPATIBLE.
MECHANICALLY RUGGED.
GRAY FACE,WHITE SEGMENT.
PACKAGE :600PCS / REEL.
RoHS COMPLIANT.
Description
The Hyper Red source color devices are made with DH
InGaAlP on GaAs substrate Light Emitting Diode.
Package Dimensions & Internal Circuit Diagram
Notes:
1. All dimensions are in millimeters (inches), Tolerance is
±0.25(0.01")unless
otherwise noted.
2. Specifications are subject to change without notice.
SPEC NO: DSAF2739
APPROVED: J. Lu
REV NO: V.2
CHECKED: Joe Lee
DATE: APR/26/2005
DRAWN: W.J.ZHU
PAGE: 1 OF 5
ERP:1352000063-01
Selection Guide
Part No.
Dice
Lens Type
Iv (ucd)
@ 10mA
Min.
APDC03-41SURKWA-F01
HYPER RED (InGaAlP)
WHITE DIFFUSED
3000
Typ.
15257
Common Cathode, Rt.
Hand Decimal.
Description
Electrical / Optical Characteristics at T
A
=25°C
Symbol
λpeak
λD
∆λ1/2
C
V
F
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Device
Hyper Red
Hyper Red
Hyper Red
Hyper Red
Hyper Red
Hyper Red
Typ.
650
635
28
35
1.95
2.5
10
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
= 5V
Absolute Maximum Ratings at T
A
=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
Hyper Red
75
30
185
5
-40°C To +85°C
Units
mW
mA
mA
V
SPEC NO: DSAF2739
APPROVED: J. Lu
REV NO: V.2
CHECKED: Joe Lee
DATE: APR/26/2005
DRAWN: W.J.ZHU
PAGE: 2 OF 5
ERP:1352000063-01

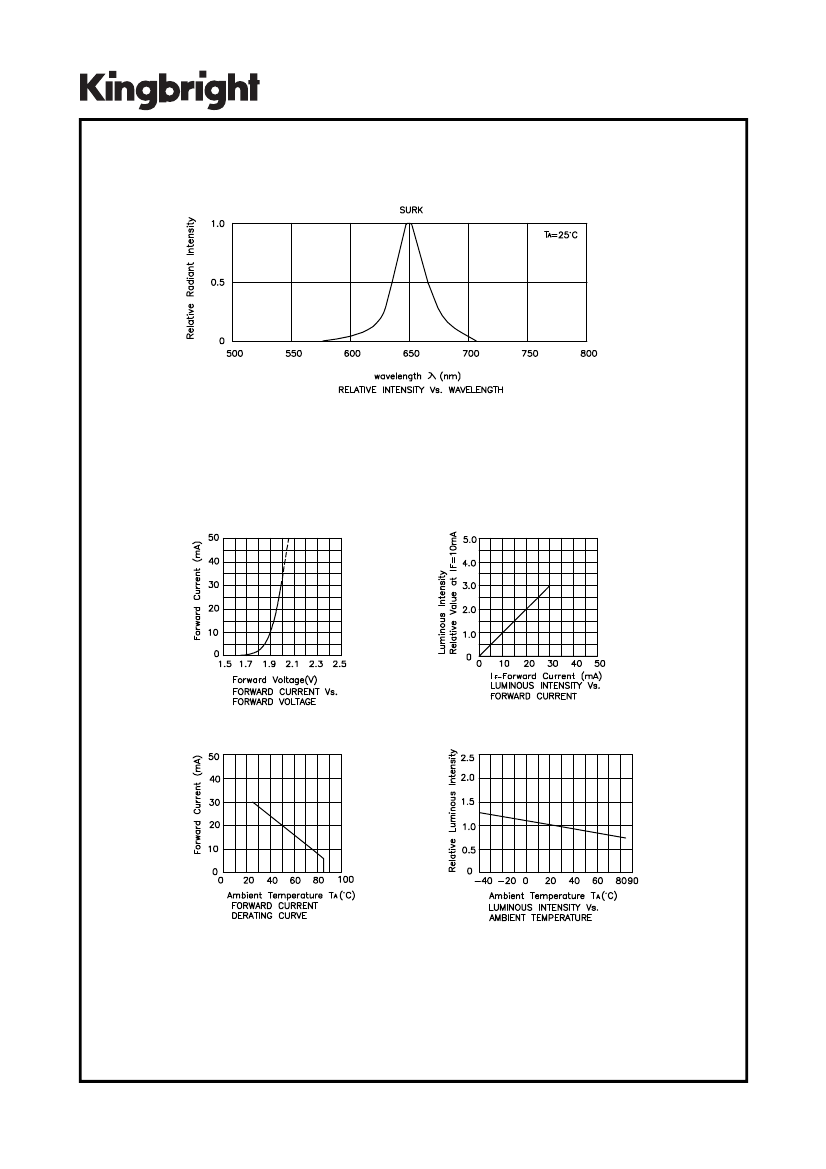

Hyper Red
APDC03-41SURKWA-F01
SPEC NO: DSAF2739
APPROVED: J. Lu
REV NO: V.2
CHECKED: Joe Lee
DATE: APR/26/2005
DRAWN: W.J.ZHU
PAGE: 3 OF 5
ERP:1352000063-01
APDC03-41SURKWA-F01

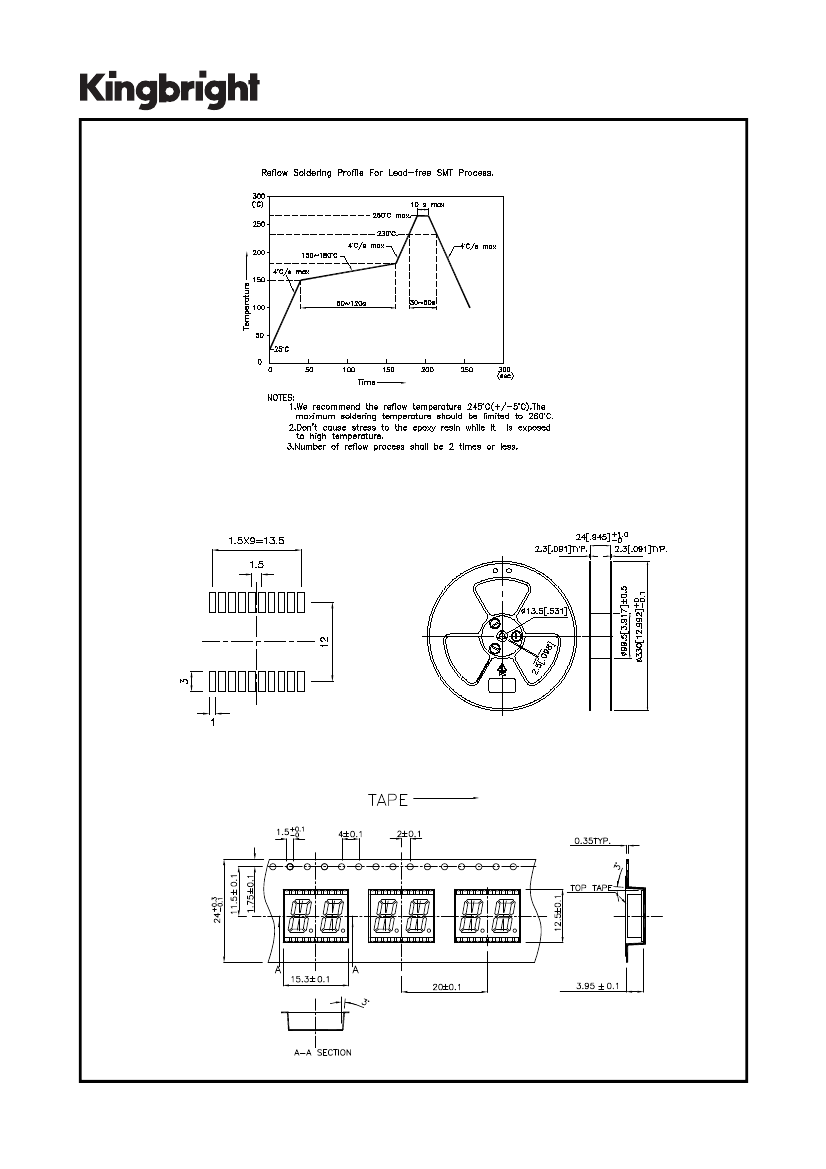

Recommended Soldering Pattern
(Units : mm)
Reel Dimension
Tape Specifications
(Units : mm)
SPEC NO: DSAF2739
APPROVED: J. Lu
REV NO: V.2
CHECKED: Joe Lee
DATE: APR/26/2005
DRAWN: W.J.ZHU
PAGE: 4 OF 5
ERP:1352000063-01

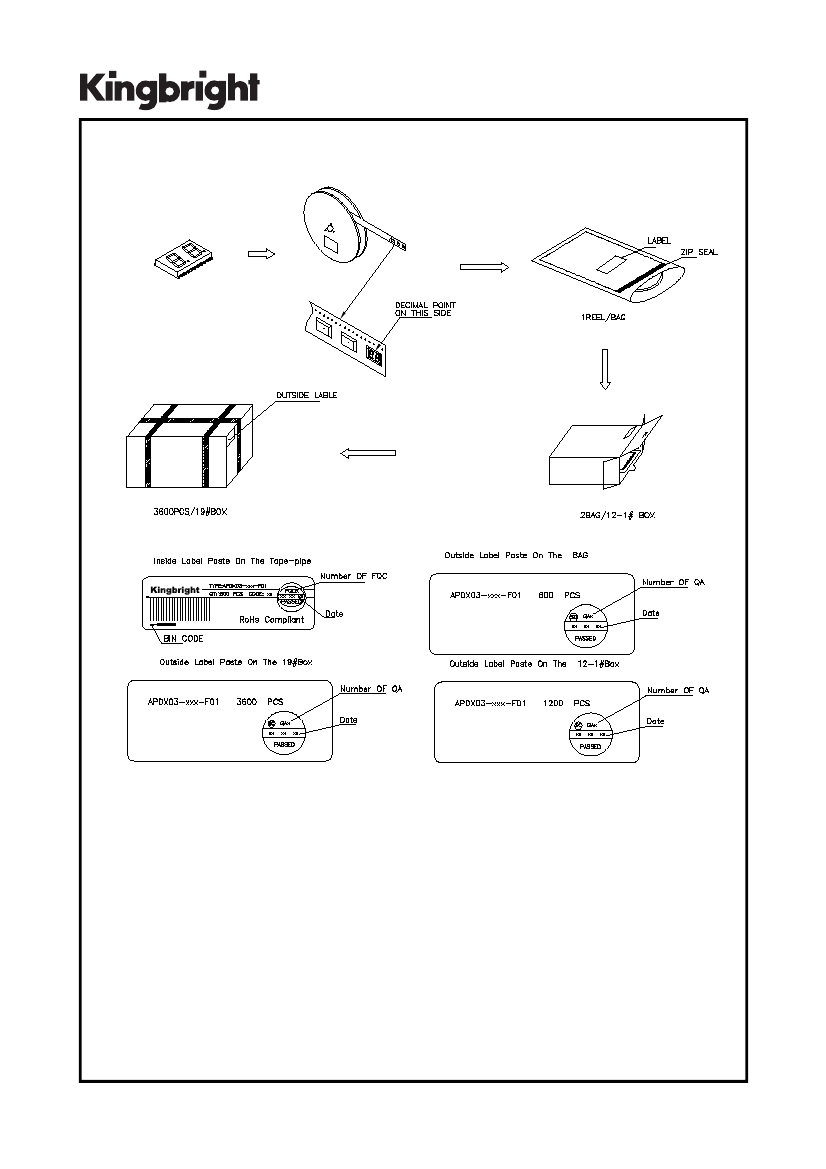

PACKING & LABEL SPECIFICATIONS
APDC03-41SURKWA-F01
Remarks:
If special sorting is required (e.g. binning based on forward voltage, luminous intensity, or wavelength),
the typical accuracy of the sorting process is as follows:
1. Wavelength: +/-1nm
2. Luminous Intensity: +/-15%
3. Forward Voltage: +/-0.1V
Note: Accuracy may depend on the sorting parameters.
SPEC NO: DSAF2739
APPROVED: J. Lu
REV NO: V.2
CHECKED: Joe Lee
DATE: APR/26/2005
DRAWN: W.J.ZHU
PAGE: 5 OF 5
ERP:1352000063-01
