ABMM2-FREQ-S-80-7-A1-F-T datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ABMM2-FREQ-S-80-7-A1-F-T

ABMM2-FREQ-S-80-7-A1-F-T: DescriptionSeries - Fundamental Quartz Crystal, 8MHz Min, 30MHz Max; CategoryPassive components Crystal/resonator; File Size210KB，1 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ABMM2-FREQ-S-80-7-A1-F-T Overview

Series - Fundamental Quartz Crystal, 8MHz Min, 30MHz Max

ABMM2-FREQ-S-80-7-A1-F-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Other features	FREQ STABILITY 100 PPM AVAILABLE OVER TEMPERATURE RANGE -10 TO 60 DEG CELCIUS
Ageing	2 PPM/FIRST YEAR
Crystal/Resonator Type	SERIES - FUNDAMENTAL
Drive level	500 µW
frequency stability	0.0004%
frequency tolerance	15 ppm
JESD-609 code	e4
Manufacturer's serial number	ABMM2
Installation features	SURFACE MOUNT
Maximum operating frequency	30 MHz
Minimum operating frequency	8 MHz
Maximum operating temperature	50 °C
Minimum operating temperature
physical size	L6XB3.6XH1.2 (mm)/L0.24XB0.142XH0.048 (inch)
Series resistance	50 Ω
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
Base Number Matches	1

Preview

Download Datasheet

View All

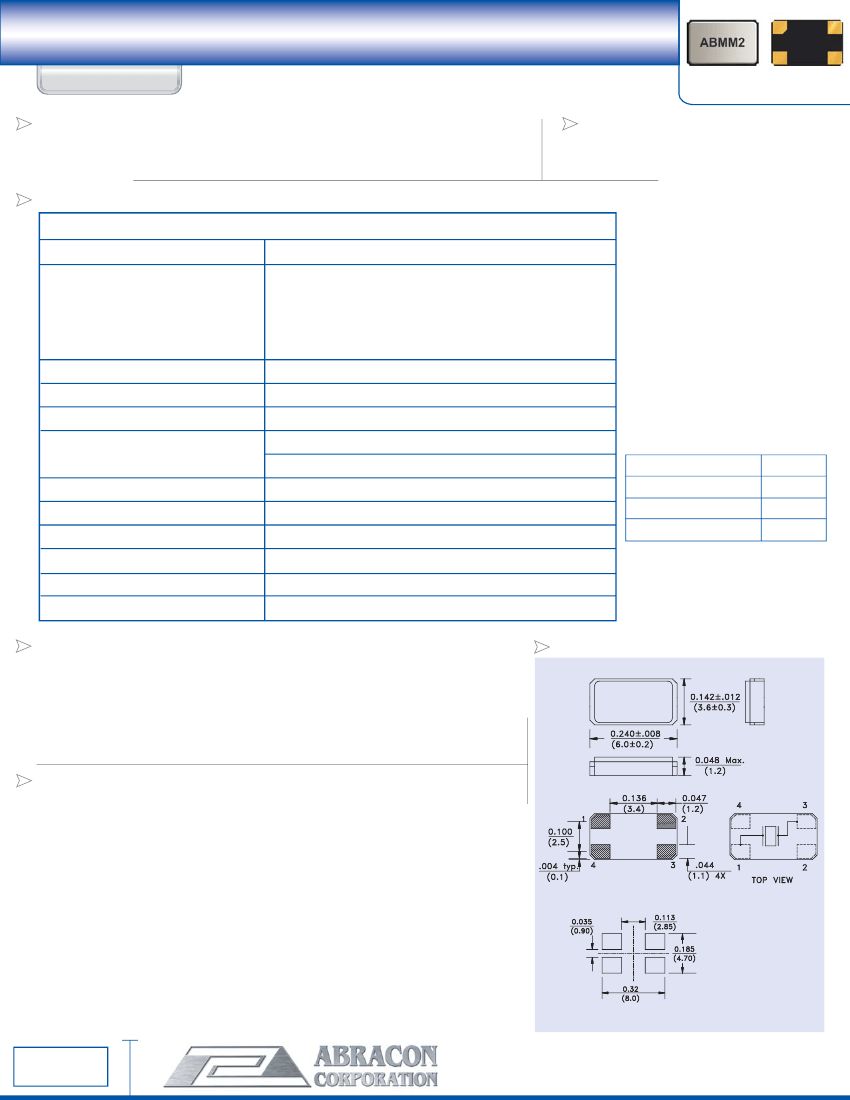

LOW PROFILE CERAMIC SURFACE MOUNT

QUARTZ CRYSTALS

ABMM2

6.0 X 3.6 X 1.2mm

| | | | | | | | | | | | | | |

FEATURES:

• Low in height (1.2 mm max.)

• Tight tolerance and stability available

• Seam welded ceramic package

• Suitable for solder reflow

APPLICATIONS:

• PCMCIA Applications

• Thin equipment

STANDARD SPECIFICATIONS:

PARAMETERS

Frequency Range

Operation Mode

Fundamental

Third-Overtone

Fifth-Overtone

Operating Temperature

Storage Temperature

Frequency Tolerance @ 25°C

Frequency Stability over Temp.

Equivalent Series Resistance

Shunt Capacitance C

Load Capacitance C

Drive Level

Aging at 25°C First Year

Insulation Resistance

8.00 MHz - 110.00 MHz

8.0 MHz - 30.0 MHz

30.01 MHz - 100.0 MHz

F ~ 90.00 MHz - 110 MHz

-10°C to + 60°C (See Options)

- 40°C to + 85°C

± 20 ppm max. (See Options)

± 20 ppm max. (See Table 1)

± 100 ppm @ -10 °C to + 60° C for Fundamental BT

See Table 1

7pF max.

18pF (see options)

500µW max., 100µW correlation

± 2ppm max.

500MΩ min. @ 100Vdc ± 15V

TABLE 1

Frequency (MHz) ESR (Ω)

8.0 - 30.0 (Fund)

30 - 100 (3rd OT)

90 - 110 (5th O/T)

MARKING:

TUH or XXX.X (See note)

AMM2 ZY (See note)

XXX.X for F >=100MHz

Ex: 110.0 for 110MHz

ZY : Date Code, Z = Month (A to L),

Y = Year (0 for 2000)

TUH : Frequency for F <99.9999MHz

T= First " ten " digit of frequency

U = First " unit " of frequency

H = First " tenth " of frequency

Example: 128 for 12.8 MHz

999 for 99.9 MHz

OUTLINE DRAWING:

OPTIONS AND PART IDENTIFICATION (Left blank if standard):

ABMM2 - Freq - CL - ESR - Temp. - Tolerance - Temp & Stability - Mode - Packaging

CL option:

Please enter load cap. in pF or S for Series

Frequency tolerance options:

1 for ± 10 ppm max.

7 for ± 15 ppm max.

Operating mode options:

F for Fundamental AT for F >30 MHz

FB for Fundamental BT for F >30 MHz

O for 3rd Overtone for F >= 90 MHz

Packaging option:

T for Tape and Reel

(1000 pcs/reeel)

ESR Options:

RXXX ( Value in

Ω

max. )

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

Temp. & Frequency stability options:

A1 for ± 4 ppm max. @ 0°C to +50°C

A2 for ± 5 ppm max. @ 0°C to +50°C

A3 for ± 10 ppm max. @ 0°C to +50°C

A4 for ± 20 ppm max. @ 0°C to +50°C

B1 for ± 4 ppm max. @ -10°C to +50°C

B2 for ± 5 ppm max. @ -10°C to +50°C

B3 for ± 10 ppm max. @ -10°C to +50°C

B4 for ± 20 ppm max. @ -10°C to +50°C

C2 for ± 5 ppm max. @ -10°C to +60°C

C1 for ± 10 ppm max. @ -10°C to +60°C

E1 for ± 10 ppm max. @ -20°C to +70°C

E2 for ± 20 ppm max. @ -20°C to +70°C

D1 for ± 20 ppm max. @ -40°C to +85°C

Recommended land pattern

Dimensions: inch (mm)

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com
