ARE0208LI1A: DescriptionRF/MICROWAVE DOWN CONVERTER, HERMETIC SEALED, ULTRA SMALL PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size76KB，2 Pages; ManufacturerMITEQ Inc

Download Datasheet Parametric Compare View All

ARE0208LI1A Overview

RF/MICROWAVE DOWN CONVERTER, HERMETIC SEALED, ULTRA SMALL PACKAGE

ARE0208LI1A Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	SMA-F, IMAGE REJECTION, LOW NOISE
structure	COAXIAL
Downconversion gain - minimum	26 dB
Maximum IF frequency	40 MHz
Minimum IF frequency	20 MHz
LO tunable	YES
maximum noise index	2.5 dB
Maximum operating temperature	85 °C
Minimum operating temperature	-54 °C
Maximum RF input frequency	8000 MHz
Minimum RF input frequency	2000 MHz
RF/Microwave Device Types	DOWN CONVERTER
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

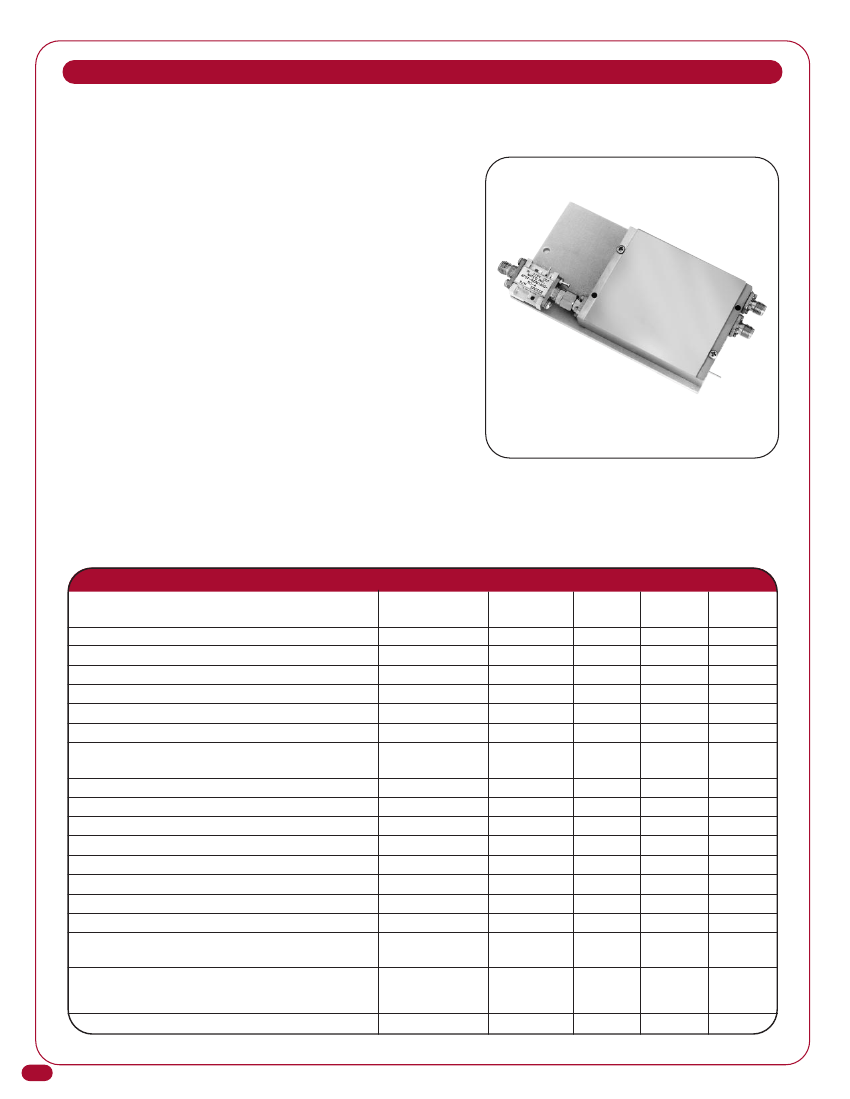

2 TO 8 GHz LOW-NOISE ENHANCED IMAGE REJECTION MIXERS

MODELS: ARE0208LI1A, ARE0208LI1B AND ARE0208LI1C

FEATURES

• RF/LO Coverage ......... 2 to 8 GHz

• Image Rejection .......... 30 dB Typical

• Noise Figure............... 2.5 dB Maximum

• Hermetically Sealed Package

MITEQ’s ARE model series offers state-of-the-art low-noise amplifiers integrated with an enhanced image

rejection mixer that provides greater than 30 dB of image rejection across multioctave bands. This design

inherently suppresses image frequencies by an additional 15 dB over conventional image rejection mixers

without the need for phase and amplitude alignment during production test, allowing for consistent reliable

performance throughout production. This design also rejects the 3LO ± RF responses.

ELECTRICAL SPECIFICATIONS

INPUT PARAMETERS

RF frequency range

RF VSWR (RF = -10 dBm, LO = +13 dBm)

LO frequency range

LO power range

LO VSWR (RF = -10 dBm, LO = +13 dBm)

DC power

TRANSFER CHARACTERISTICS

Conversion gain (Note 1)

Single-sideband noise figure

Image rejection (Note 1)

LO-to-RF isolation

LO-to-IF isolation

RF-to-IF isolation

Output power at 1 dB compression

Output two-tone third-order intercept point

OUTPUT PARAMETERS

IF frequency range

CONDITION

ARE0208LI1A

ARE0208LI1B

ARE0208LI1C

@ 25°C

+15 VDC

CONDITION

UNITS

GHz

Ratio

GHz

dBm

Ratio

mA

UNITS

dB

dBm

UNITS

MHz

Ratio

MIN.

20

40

100

27

40

MIN.

26

2

+13

2.5:1

150

TYP.

30

2

30

50

20

0

+10

TYP.

MAX.

40

80

200

2.5

MAX.

MIN.

2

2.5:1

8

+16

TYP.

MAX.

8

IF VSWR (IF = -10 dBm, LO = +13 dBm)

2:1

71

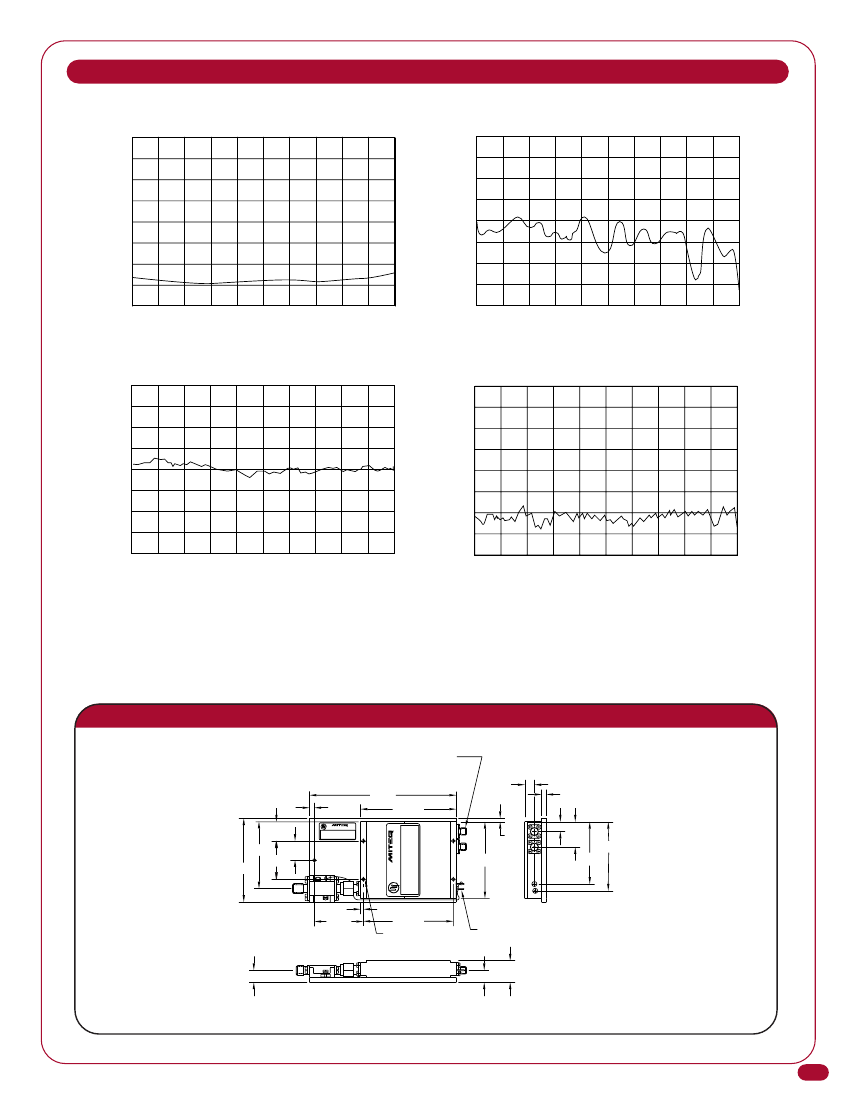

ARE0208LI1A Related Products

	ARE0208LI1A	ARE0208LI1C	ARE0208LI1B
Description	RF/MICROWAVE DOWN CONVERTER, HERMETIC SEALED, ULTRA SMALL PACKAGE	RF/MICROWAVE DOWN CONVERTER, HERMETIC SEALED, ULTRA SMALL PACKAGE	RF/MICROWAVE DOWN CONVERTER, HERMETIC SEALED, ULTRA SMALL PACKAGE
Reach Compliance Code	unknown	unknown	unknown
Other features	SMA-F, IMAGE REJECTION, LOW NOISE	SMA-F, IMAGE REJECTION, LOW NOISE	SMA-F, IMAGE REJECTION, LOW NOISE
structure	COAXIAL	COAXIAL	COAXIAL
Downconversion gain - minimum	26 dB	26 dB	26 dB
Maximum IF frequency	40 MHz	200 MHz	80 MHz
Minimum IF frequency	20 MHz	100 MHz	40 MHz
LO tunable	YES	YES	YES
maximum noise index	2.5 dB	2.5 dB	2.5 dB
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-54 °C	-54 °C	-54 °C
Maximum RF input frequency	8000 MHz	8000 MHz	8000 MHz
Minimum RF input frequency	2000 MHz	2000 MHz	2000 MHz
RF/Microwave Device Types	DOWN CONVERTER	DOWN CONVERTER	DOWN CONVERTER
Maximum voltage standing wave ratio	2	2	2
Base Number Matches	1	1	1
