P16, PA16
Vishay Sfernice
Knob Potentiometer
FEATURES
Test according to CECC 41000 or IEC 60393-1
P16
- Version for professional and industrial
applications (cermet)
1 W at 40 °C
PA16
- Version for professional audio applications
(conductive plastic)
0.5 W at 40 °C
Compact (integrated)
The P16 is a revolutionary concept in panel mounted
potentiometers. This unique design consists of a knob
driving and incorporating a cermet potentiometer. Only the
mounting hardware and terminals are situated on the back
side of the panel reducing to a minimum the required
clearance.
High dielectric strength: 2500 V
RMS
Fully sealed and panel sealed
Metallic or plastic knob options
Custom knob on request
Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912

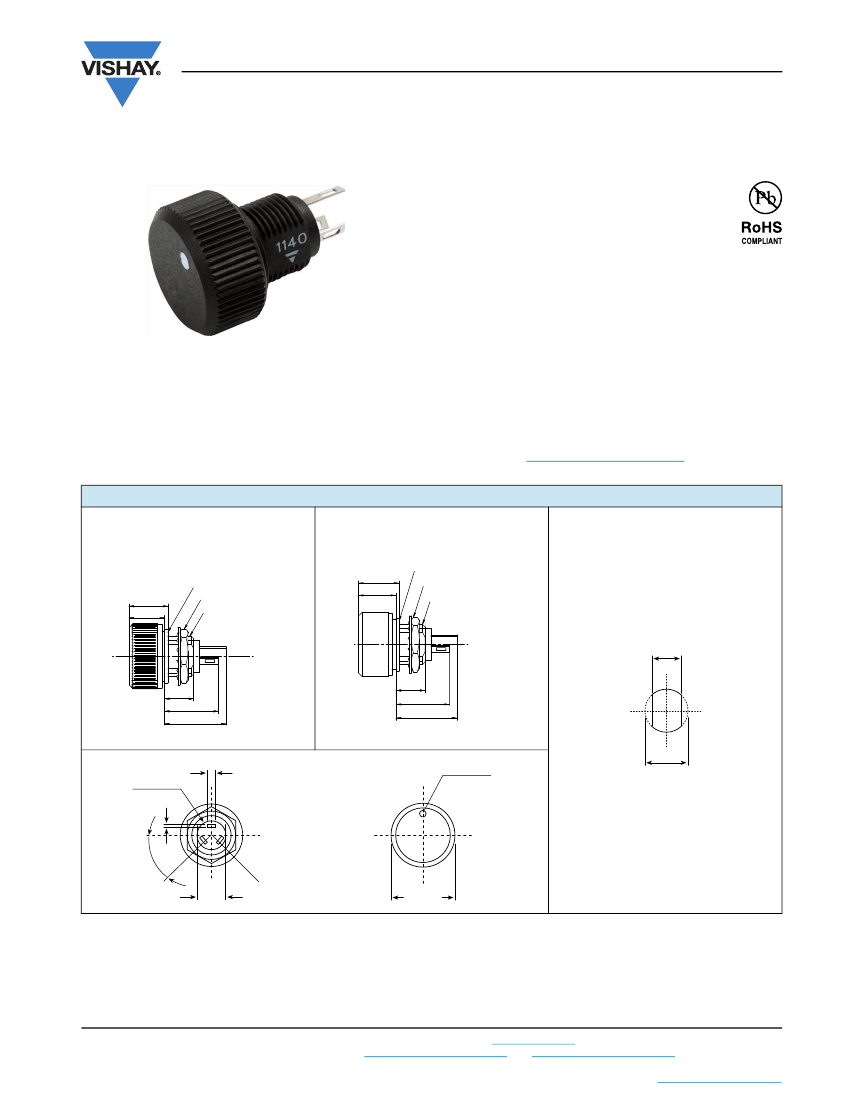

DIMENSIONS
in millimeters (± 0.5 mm)
P16NP
P16NM
Thickness nut 2 mm
washer
1.5 mm
10.2
9.4
Panel sealing ring
12
wrench
Thread M10 x 0.75
PANEL CUTOUT
Thickness nut 2 mm
washer
1.5 mm
9.6
8.8
Panel sealing ring
12
wrench
Thread M10 x 0.75
8.1
+ 0
+ 0.1
7.2
13.5 ± 1
15.5 ± 1
7.2
13.5 ± 1
15.5 ± 1
b
3 terminals
0.3
1.8
Reference mark
ø 10
+ 0.1
+0
Panel thickness max.: 3 mm
30
c
8
a
Ø 16
Document Number: 51036
Revision: 19-Mar-12
www.vishay.com
For technical questions, contact:
sfer@vishay.com
1
See also Application Note:
www.vishay.com/doc?51001
and
www.vishay.com/doc?52029
This document is subject to change without notice.
THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
P16, PA16
Vishay Sfernice
Knob Potentiometer
ELECTRICAL SPECIFICATIONS
P16
Resistive Element
Electrical Travel
1.25
P16
LIN. TAPER “A”
”
1.00
RATED POWER IN W
PA16
Conductive plastic
270° ± 10°
Cermet
270° ± 10°
0.75
P16
LOG. TAPER “L & F”
0.50
& PA16
LIN. TAPER
0.25
PA16
LOG. TAPER
20
40
NM
NP
NM
Power Rating Chart
NM
NP
NP
0
0
60
80
100
120
140
AMBIENT TEMPERATURE IN °C
a
c
(3)
b
(2)
cw
Circuit Diagram
(1)
100
80
F
% TOTAL RESISTANCE
60
A
L
40
Taper
20
0
0
20
40
60
80
100
% CLOCKWISE SHAFT ROTATION
Resistance Range
Standard Series E3
Tolerance
Power Rating
Linear Taper
Logarithmic Taper
Standard
On Request
Linear
Logarithmic
22
to 10 M
100
to 2.2 M
1 - 2.2 - 4.7 and on request 1 - 2 - 5
± 20 %
± 10 %
1 W at + 40 °C
0.5 W at + 40 °C
± 150 ppm/°C
2500 V
350 V
3 % Rn or 3
1
10
6
M
1 k
to 1 M
470
to 500 k
1 - 2.2 - 4.7
± 20 %
± 10 % (1 k to 100 k)
0.5 W at + 40 °C
0.25 W at + 40 °C
± 500 ppm/°C
2500 V
350 V
2 % Rn or 3
1
10
6
M
Temperature Coefficient (Typical)
Dielectric Strength (RMS)
Limiting Element Voltage (Linear Law)
Contact Resistance Variation
End Resistance (Typical)
Insulation Resistance (500 V
DC
)
www.vishay.com
2
Document Number: 51036
For technical questions, contact:
sfer@vishay.com
See also Application Note:
www.vishay.com/doc?51001
and
www.vishay.com/doc?52029
Revision: 19-Mar-12
This document is subject to change without notice.
THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
P16, PA16
Knob Potentiometer
Vishay Sfernice
MECHANICAL SPECIFICATIONS
Mechanical Travel
Operating Torque
End Stop Torque
Max. Tightening Torque of Mounting Nut
Unit Weight
300° ± 5°
2 Ncm typical
25 Ncm maximum
250 Ncm maximum
4.5 g typical
ENVIRONMENTAL SPECIFICATIONS
Metallic Knob
Temperature Range
Climatic Category
Sealing
Protection Grades
- 40 °C to 125 °C
40/100/56
Sealed container and panel sealed
IP67
Plastic Knob
- 40 °C to
85
°C
40/85/56
MARKING
Ohmic value code, tolerance code and taper
Manufacturing date code
PACKAGING
Carton box of 20 pieces
CONTROL KNOB
Black metallic knob (NM).
Black plastic knob (NP).
For white and blue color see ordering information.
Other dimensions, shapes, colors of control knobs are
manufactured on request - please consult Vishay.
Other reference marks (shapes, colors) and legends can be
printed on plastic knob on request - please consult Vishay.
P16 STANDARD RESISTANCE ELEMENT DATA
STAN-
DARD
RESIS-
TANCE
VALUES
22
47
100
220
470
1K
2.2K
4.7K
10K
22K
47K
100K
220K
470K
1M
2.2M
4.7M
10M
LINEAR TAPER
LOG TAPER
MAX.
MAX.
MAX.
MAX.
POWER
MAX.
CUR.
POWER
MAX.
CUR.
AT
AT
VOLTAGE THROUG
VOLTAGE THROUG
40 °C
H WIPER 40 °C
H WIPER
W
1
1
1
1
1
1
1
1
1
1
1
1
0.56
0.26
0.12
0.05
0.02
0.01
V
4.69
6.85
10
14.8
21.7
31.6
46.9
68.5
100
148
217
316
350
350
350
350
350
350
mA
213
146
100
67.4
46.1
31.6
21.3
14.6
10
6.74
4.61
3.16
1.59
0.75
0.35
0.16
0.07
0.012
W
V
mA
PA16 STANDARD RESISTANCE ELEMENT DATA
LINEAR TAPER
LOG TAPER
STAN-
DARD
MAX.
MAX.
RESIS- POWER MAX. MAX. CUR. POWER MAX. MAX. CUR.
THROUGH
THROUGH
TANCE
AT
VOLTAGE
AT
VOLTAGE
WIPER
WIPER
VALUES 40 °C
70 °C
470
1K
2.2K
4.7K
10K
22K
47K
100K
220K
470K
1M
W
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.26
0.12
V
22.4
33.2
48.5
70.7
105
153
224
332
350
350
mA
22.4
15.1
10.3
7.07
4.77
3.26
2.24
1.51
0.74
0.35
W
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
V
10.8
15.8
23.5
34.3
50.0
74
108
158
235
343
mA
23.1
16
11
7
5.0
3.4
2.3
1.6
1.1
0.7
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.26
0.12
0.056
7.1
10.5
15.3
22.4
33.2
48.5
70.7
105
153
224
332
350
350
350
71
48
32.6
22.4
15.1
10.3
7.07
4.77
3.26
2.24
1.51
0.74
0.35
0.16
Document Number: 51036
Revision: 19-Mar-12
www.vishay.com
For technical questions, contact:
sfer@vishay.com
3
See also Application Note:
www.vishay.com/doc?51001
and
www.vishay.com/doc?52029
This document is subject to change without notice.
THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
P16, PA16
Vishay Sfernice
Knob Potentiometer
PERFORMANCE
TESTS
Electrical Endurance
Damp Heat, Steady State
Mechanical Endurance
Shock
CONDITIONS
1000 h at rated power
90'/30' cycle at + 40 °C
56 days
40 °C, 93 % HR
50 000 cycles
50
g’s
at 11 ms
3 successive shocks
in 3 directions
10 Hz to 55 Hz
0.75 mm or 10
g’s
during 6 h
TYPICAL VALUES AND DRIFTS
R
T
/R
T
(%)
±5%
±2%
±5%
± 0.2 %
R
1-2
/R
1-2
(%)
-
±1%
-
± 0.5 %
OTHER
Insulation resistance: > 10
4
M
Contact res. variation: < 2 % Rn
Insulation resistance: > 10
4
M
Contact res. variation: < 2 % Rn
-
Vibration
± 0.2 %
-
V
1-2
V
1-3
± 0.5 %
ORDERING INFORMATION
P
1
6
N
P
2
2
3
M
A
B
1
5
MODEL
P16
=
Cermet
PA16
=
Conductive
plastic
STYLE
NM:
Metallic black
NP:
Plastic black
WM:
Metallic white
WP:
Plastic white
BP:
Plastic blue
OHMIC VALUE
223
= 22 k
for ohmic value
range see
electrical
specification
TOLERANCE
M
= ± 20 %
On request:
K
= ± 10 %
TAPER
A:
Linear
L:
Clockwise logarithmic
F:
Inverse clockwise logarithmic
PACKAGING
CODE
B15
=
Box of
20 pieces
SPECIAL
NUMBER
(If applicable)
Given by
Vishay
for custom
design
PART NUMBER DESCRIPTION
(for information only)
P16
MODEL
NP
STYLE
22 k
VALUE
20
%
TOLERANCE
A
TAPER
SPECIAL
BO
PACKAGING
SPECIAL
e3
LEAD
(Pb)-FREE
www.vishay.com
4
Document Number: 51036
For technical questions, contact:
sfer@vishay.com
See also Application Note:
www.vishay.com/doc?51001
and
www.vishay.com/doc?52029
Revision: 19-Mar-12
This document is subject to change without notice.
THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Legal Disclaimer Notice
www.vishay.com
Vishay
Disclaimer
ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,
“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other
disclosure relating to any product.
Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or
the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all
liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,
consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular
purpose, non-infringement and merchantability.
Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical
requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements
about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular
product with the properties described in the product specification is suitable for use in a particular application. Parameters
provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All
operating parameters, including typical parameters, must be validated for each customer application by the customer’s
technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,
including but not limited to the warranty expressed therein.
Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining
applications or for any other application in which the failure of the Vishay product could result in personal injury or death.
Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please
contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by
any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.
Material Category Policy
Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as RoHS-Compliant fulfill the
definitions and restrictions defined under Directive 2011/65/EU of The European Parliament and of the Council
of June 8, 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment
(EEE) - recast, unless otherwise specified as non-compliant.
Please note that some Vishay documentation may still make reference to RoHS Directive 2002/95/EC. We confirm that
all the products identified as being compliant to Directive 2002/95/EC conform to Directive 2011/65/EU.
Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as Halogen-Free follow Halogen-Free
requirements as per JEDEC JS709A standards. Please note that some Vishay documentation may still make reference
to the IEC 61249-2-21 definition. We confirm that all the products identified as being compliant to IEC 61249-2-21
conform to JEDEC JS709A standards.
Revision: 02-Oct-12
1
Document Number: 91000
京公网安备 11010802033920号
EEWORLD
