ACS573MS
January 1996
Radiation Hardened Octal
Three-State Transparent Latch
Pinouts
20 LEAD CERAMIC DUAL-IN-LINE
MIL-STD-1835 DESIGNATOR,
CDIP2-T20, LEAD FINISH C
TOP VIEW
OE
D0
D1
D2
D3
D4
D5
D6
D7
1
2
3
4
5
6
7
8
9
20 VCC
19 Q0
18 Q1
17 Q2
16 Q3
15 Q4
14 Q5
13 Q6
12 Q7
11 LE
Features
• Devices QML Qualified in Accordance with MIL-PRF-38535
• Detailed Electrical and Screening Requirements are Contained in
SMD# 5962-96724 and Intersil’s QM Plan
• 1.25 Micron Radiation Hardened SOS CMOS
• Total Dose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . >300K RAD (Si)
• Single Event Upset (SEU) Immunity: <1 x 10
-10
Errors/Bit/Day
(Typ)
• SEU LET Threshold . . . . . . . . . . . . . . . . . . . . . . . >100 MEV-cm
2
/mg
• Dose Rate Upset . . . . . . . . . . . . . . . . >10
11
RAD (Si)/s, 20ns Pulse
• Dose Rate Survivability . . . . . . . . . . . >10
12
RAD (Si)/s, 20ns Pulse
• Latch-Up Free Under Any Conditions
• Military Temperature Range . . . . . . . . . . . . . . . . . . -55
o
C to +125
o
C
• Significant Power Reduction Compared to ALSTTL Logic
• DC Operating Voltage Range . . . . . . . . . . . . . . . . . . . . 4.5V to 5.5V
• Input Logic Levels
- VIL = 30% of VCC Max
- VIH = 70% of VCC Min
• Input Current
≤
1µA at VOL, VOH
• Fast Propagation Delay . . . . . . . . . . . . . . . . 17ns (Max), 12ns (Typ)
GND 10
20 LEAD CERAMIC FLATPACK
MIL-STD-1835 DESIGNATOR,
CDFP4-F20, LEAD FINISH C
TOP VIEW
Description
OE
1
2
3
4
5
6
7
8
9
10
20
19
18
17
16
15
14
13
12
11
VCC
Q0
Q1
Q2
Q3
Q4
Q5
Q6
Q7
LE
The Intersil ACS573MS is a Radiation Hardened Octal Transparent
Latch with an active low output enable. The outputs are transparent to
the inputs when the latch enable (LE) is High. When the latch goes low
the data is latched. The output enable controls the three-state outputs.
When the output enable pins (OE) are high the output is in a high
impedance state. The latch operation is independent of the state of
output enable.
The ACS573MS utilizes advanced CMOS/SOS technology to achieve
high-speed operation. This device is a member of a radiation hardened,
high-speed, CMOS/SOS Logic family.
The ACS573MS is supplied in a 20 lead Ceramic Flatpack (K suffix) or a
D0
D1
D2
D3
D4
D5
D6
D7
GND
Ordering Information
PART NUMBER
5962F9672401VRC
5962F9672401VXC
ACS573D/Sample
ACS573K/Sample
ACS573HMSR
TEMPERATURE RANGE
-55
o
C to +125
o
C
-55
o
C to +125
o
C
25
o
C
25
o
C
25
o
C
SCREENING LEVEL
MIL-PRF-38535 Class V
MIL-PRF-38535 Class V
Sample
Sample
Die
PACKAGE
20 Lead SBDIP
20 Lead Ceramic Flatpack
20 Lead SBDIP
20 Lead Ceramic Flatpack
Die
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 321-724-7143 | Copyright © Intersil Corporation 1999
Spec Number
1
518893
File Number
4093
ACS573MS
Functional Diagram
1 OF 8 IDENTICAL CIRCUITS
VCC
LE
Dn
p
n
LE
LE
p
n
LE
OE
n
VSS
Qn
OE
p
COMMON CONTROLS
LE
LE
LE
OE
OE
OE
TRUTH TABLE
OE
L
L
L
L
H
LE
H
H
L
L
X
DATA
H
L
l
h
X
OUTPUT
H
L
L
H
Z
NOTE: L = Low Logic Level, H = High Logic Level, X = Don’t Care, Z = High Impedance, l = Low Voltage Level Prior to High-to-Low Latch
Enable Transition, h = High Voltage Level Prior to High-to-Low Latch Enable Transition.
Spec Number
2
518893

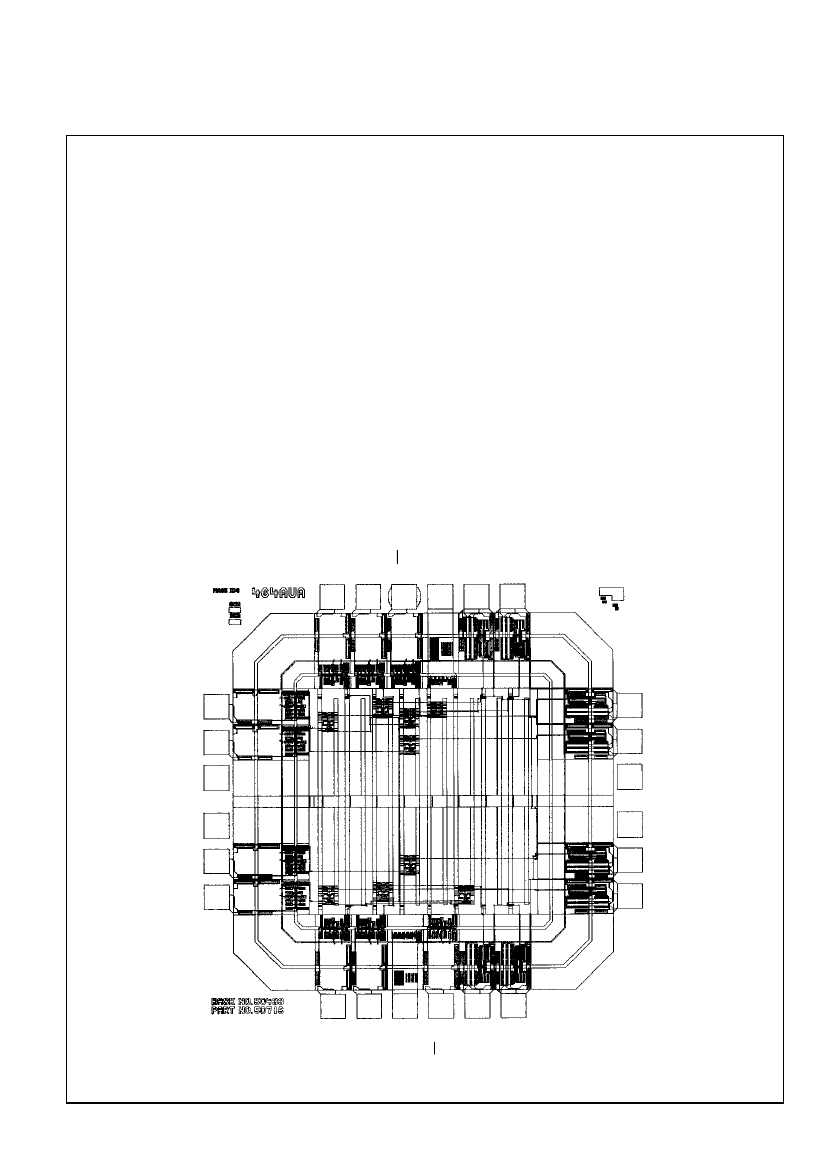

ACS573MS
All Intersil semiconductor products are manufactured, assembled and tested under
ISO9000
quality systems certification.
Intersil products are sold by description only. Intersil Corporation reserves the right to make changes in circuit design and/or specifications at any time without
notice. Accordingly, the reader is cautioned to verify that data sheets are current before placing orders. Information furnished by Intersil is believed to be accurate
and reliable. However, no responsibility is assumed by Intersil or its subsidiaries for its use; nor for any infringements of patents or other rights of third parties which
may result from its use. No license is granted by implication or otherwise under any patent or patent rights of Intersil or its subsidiaries.
