BT138-700F datasheet, PDF - EEWORLD Datasheet

BT138-700F: DescriptionTRIAC, 700V V(DRM), 12A I(T)RMS,; CategoryAnalog mixed-signal IC Trigger device; File Size569KB，11 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

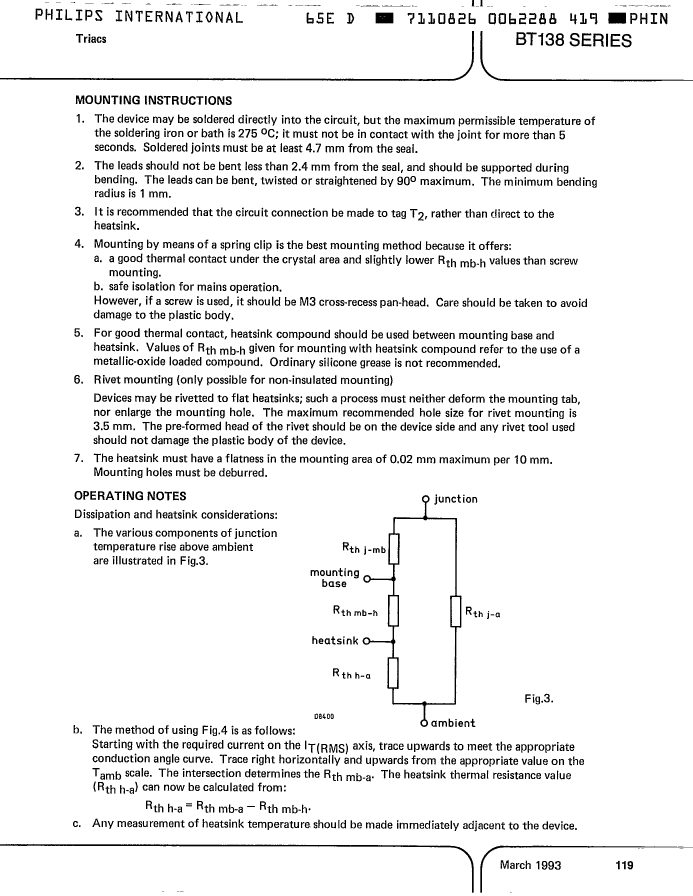

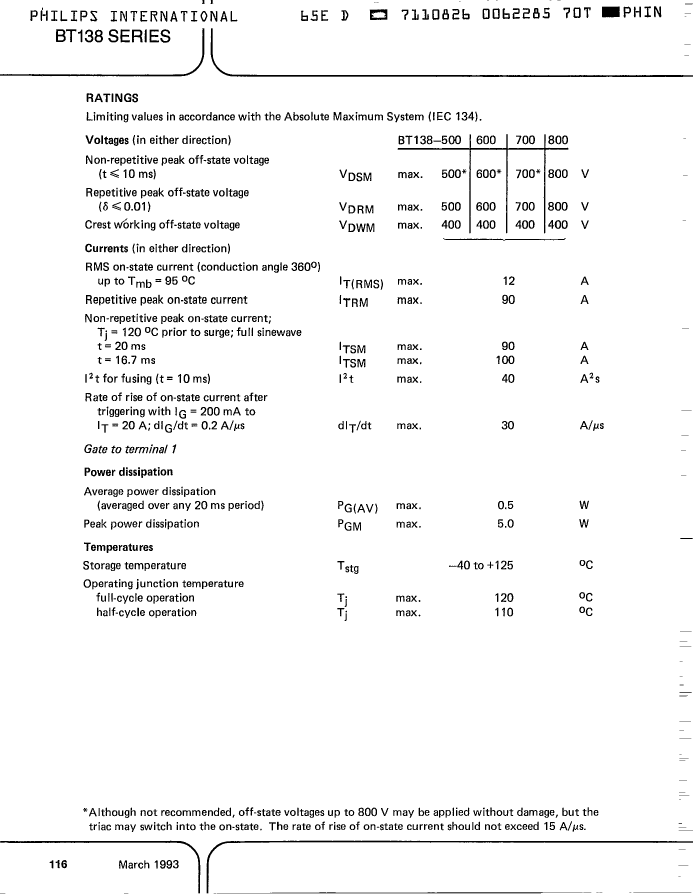

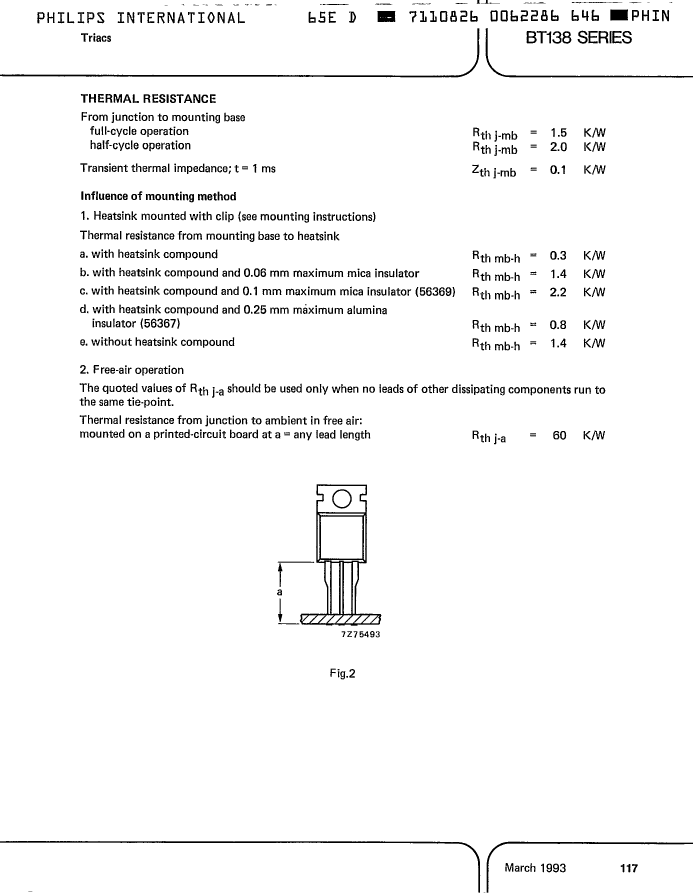

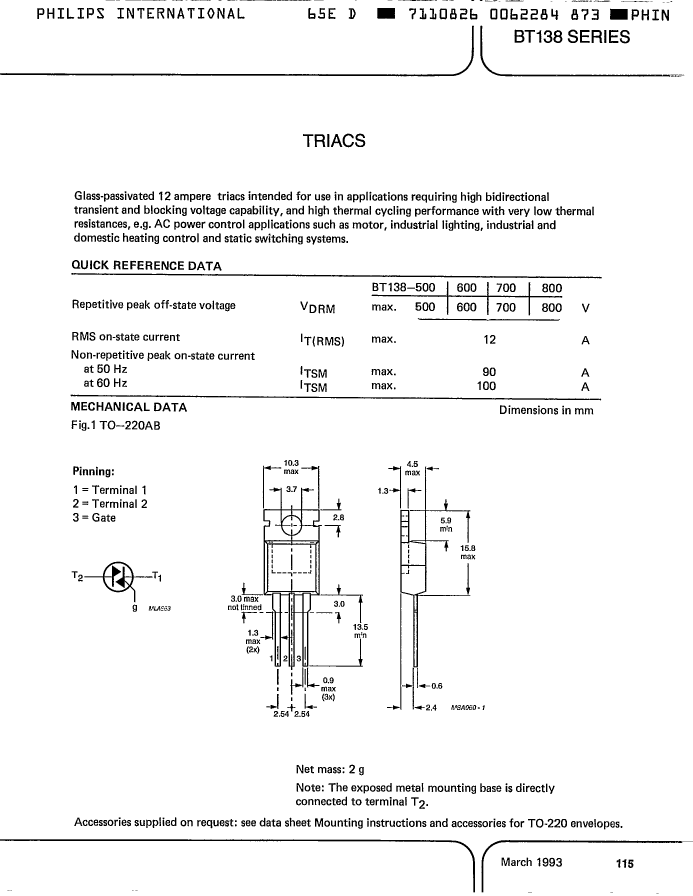

BT138-700F Overview

TRIAC, 700V V(DRM), 12A I(T)RMS,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	,
Reach Compliance Code	unknown

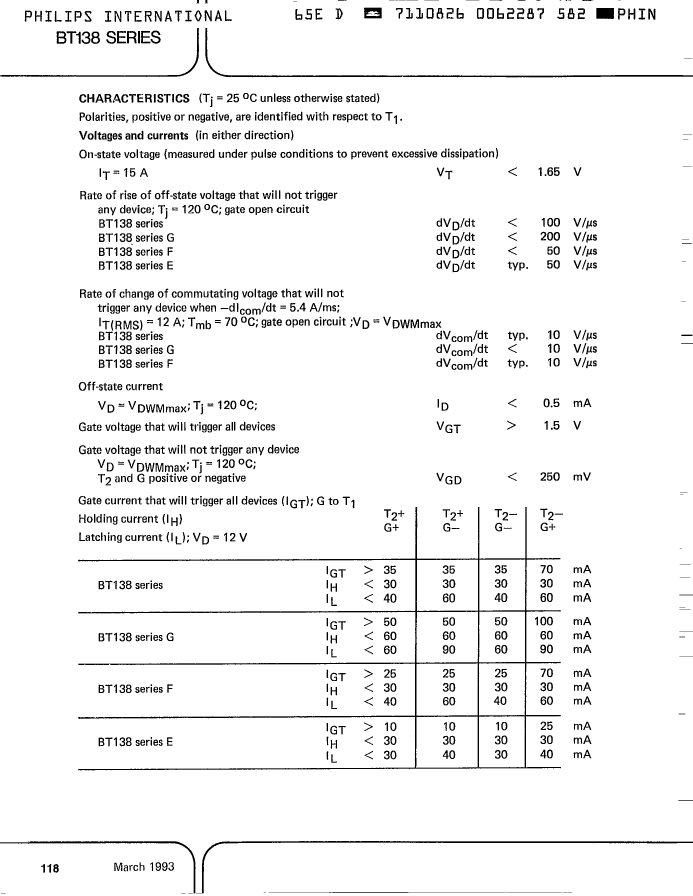

Critical rise rate of minimum off-state voltage	50 V/us
Maximum DC gate trigger current	25 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	30 mA
JESD-609 code	e0
Maximum leakage current	0.5 mA
Maximum on-state voltage	1.6 V
Maximum operating temperature	120 °C
Maximum rms on-state current	12 A
Off-state repetitive peak voltage	700 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Trigger device type	TRIAC

	BT138-700F	BT138-700E	BT138-700G
Description	TRIAC, 700V V(DRM), 12A I(T)RMS,	TRIAC, 700V V(DRM), 12A I(T)RMS,	TRIAC, 700V V(DRM), 12A I(T)RMS,
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
Reach Compliance Code	unknown	unknown	unknown
Critical rise rate of minimum off-state voltage	50 V/us	50 V/us	200 V/us
Maximum DC gate trigger current	25 mA	10 mA	50 mA
Maximum DC gate trigger voltage	1.5 V	1.5 V	1.5 V
Maximum holding current	30 mA	30 mA	60 mA
JESD-609 code	e0	e0	e0
Maximum leakage current	0.5 mA	0.5 mA	0.5 mA
Maximum on-state voltage	1.6 V	1.6 V	1.6 V
Maximum operating temperature	120 °C	120 °C	120 °C
Maximum rms on-state current	12 A	12 A	12 A
Off-state repetitive peak voltage	700 V	700 V	700 V
surface mount	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Trigger device type	TRIAC	TRIAC	TRIAC
