GMSTBA2,5/3-G-7,62BK datasheet, PDF

Datasheet> All Categories > The connector> GMSTBA2,5/3-G-7,62BK

GMSTBA2,5/3-G-7,62BK: DescriptionStrip Terminal Block,; CategoryThe connector; File Size83KB，4 Pages; ManufacturerPHOENIX CONTACT; Websitehttps://www.phoenixcontact.com; Environmental Compliance

Download Datasheet Parametric View All

GMSTBA2,5/3-G-7,62BK Overview

Strip Terminal Block,

GMSTBA2,5/3-G-7,62BK Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	PHOENIX CONTACT
Reach Compliance Code	compliant
Terminal and terminal strip types	STRIP TERMINAL BLOCK

Preview

Download Datasheet

View All

https://www.phoenixcontact.com/in/products/1731637

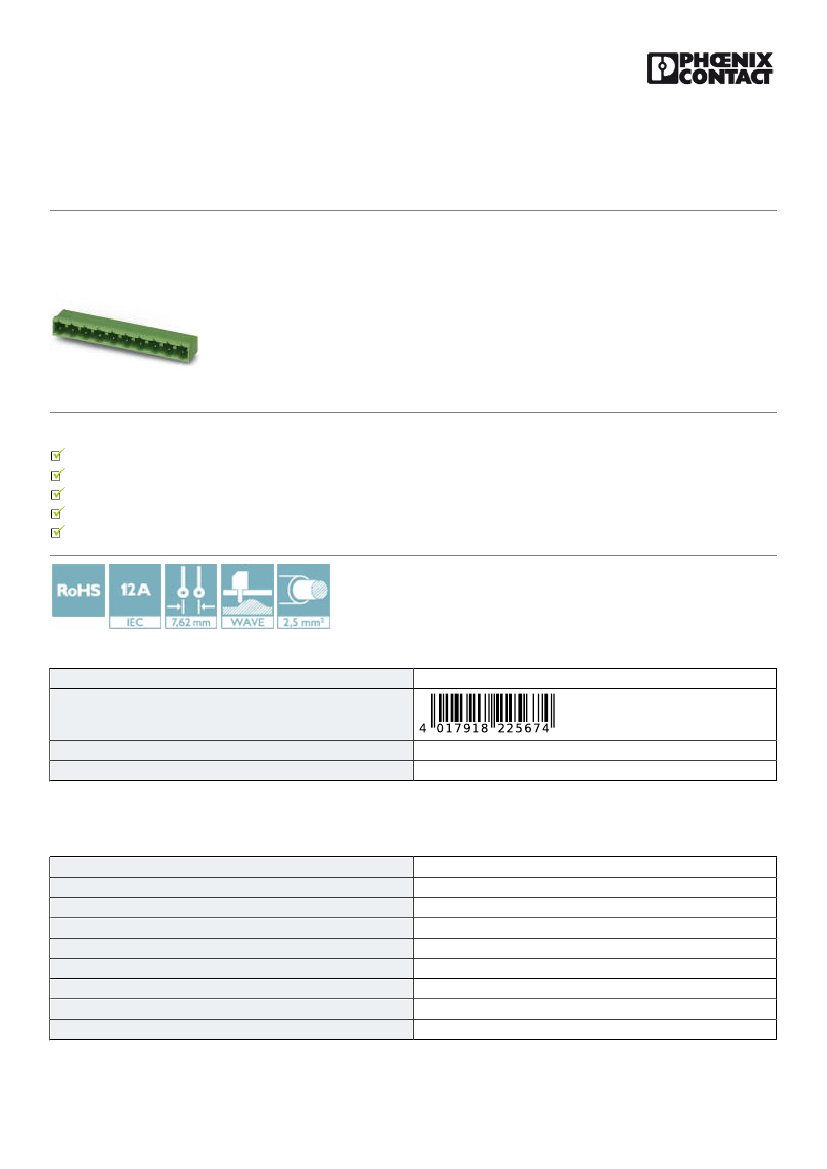

Printed-circuit board connector - GMSTBA 2,5/ 3-G-7,62 BK - 1731637

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

PCB headers, nominal current: 12 A, number of positions: 3, pitch: 7.62 mm, color: black, contact surface: Tin,

mounting: Wave soldering

The figure shows a 10-position

version of the product

Your advantages

Maximum flexibility when it comes to device design – one header for connectors with different connection technologies

Well-known mounting principle allows worldwide use

Larger pitch for increased voltage requirements

Closed contour for optimum stability of the plug-in connection

Plug-in direction parallel to the PCB

Key Commercial Data

Packing unit

GTIN

Custom tariff number

4017918225674

85366930

Technical data

Dimensions

Length [ l ]

Width

Pitch

Dimension a

Width [ w ]

Height [ h ]

Height

Length of the solder pin

Pin dimensions

12 mm

22.86 mm

7.62 mm

15.24 mm

22.86 mm

12.1 mm

8.6 mm

3.5 mm

1 x 1 mm

12/27/2018 Page 1 / 4
