NHSA50 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> NHSA50

NHSA50: DescriptionRESISTOR, WIRE WOUND, 20W, 0.25; 0.5; 1; 2; 3; 5; 10%, 30; 50ppm, 0.051ohm - 86000ohm, CHASSIS MOUNT, AXIAL LEADED; CategoryPassive components The resistor; File Size157KB，4 Pages; ManufacturerPiher; Websitehttps://www.piher.net/

Download Datasheet Parametric Compare View All

NHSA50 Overview

RESISTOR, WIRE WOUND, 20W, 0.25; 0.5; 1; 2; 3; 5; 10%, 30; 50ppm, 0.051ohm - 86000ohm, CHASSIS MOUNT, AXIAL LEADED

NHSA50 Parametric

Parameter Name	Attribute value
Maker	Piher
package instruction	AXIAL LEADED
Reach Compliance Code	unknown
Other features	NON-INDUCTIVE; RATED POWER WITH HEAT SINK: 50W; STANDARD: CECC-40203-001
Manufacturer's serial number	NHS
Installation features	CHASSIS MOUNT
Number of terminals	2
Package shape	RECTANGULAR PACKAGE
Rated temperature	25 °C
Resistor type	FIXED RESISTOR
surface mount	NO
technology	WIRE WOUND
Terminal shape	LUG
Operating Voltage	1250 V

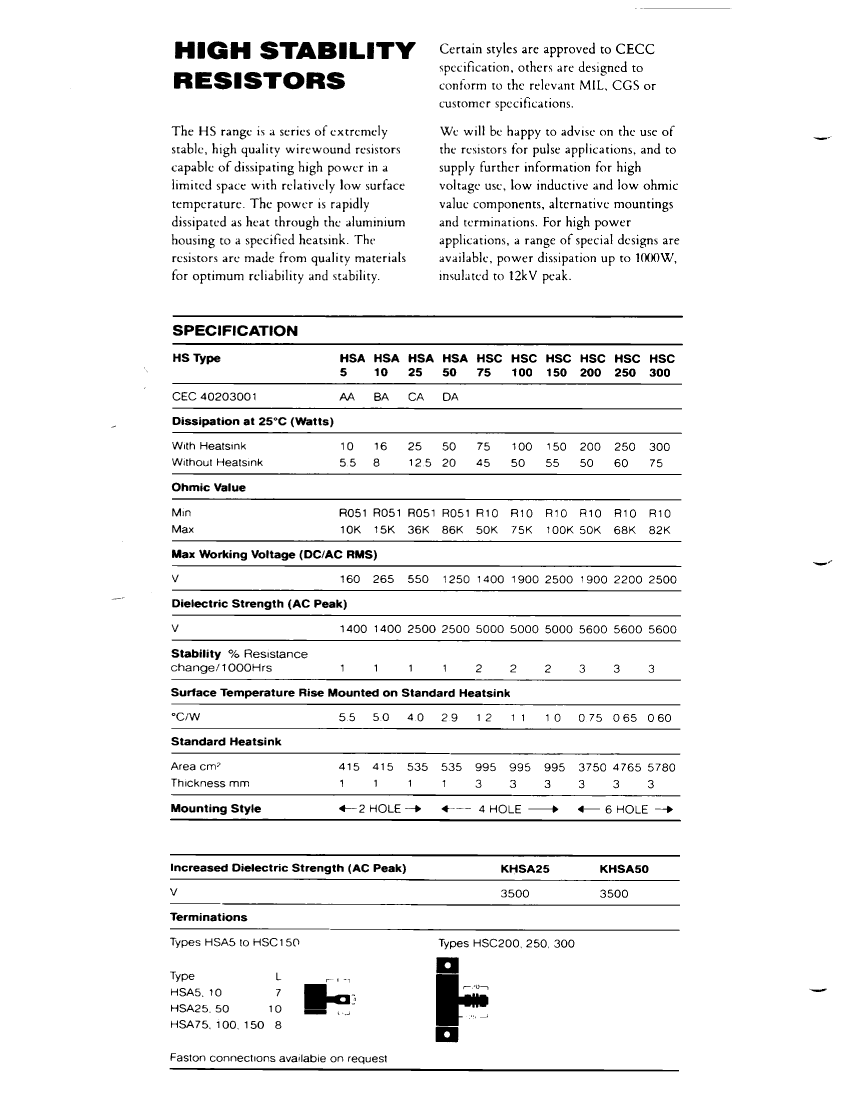

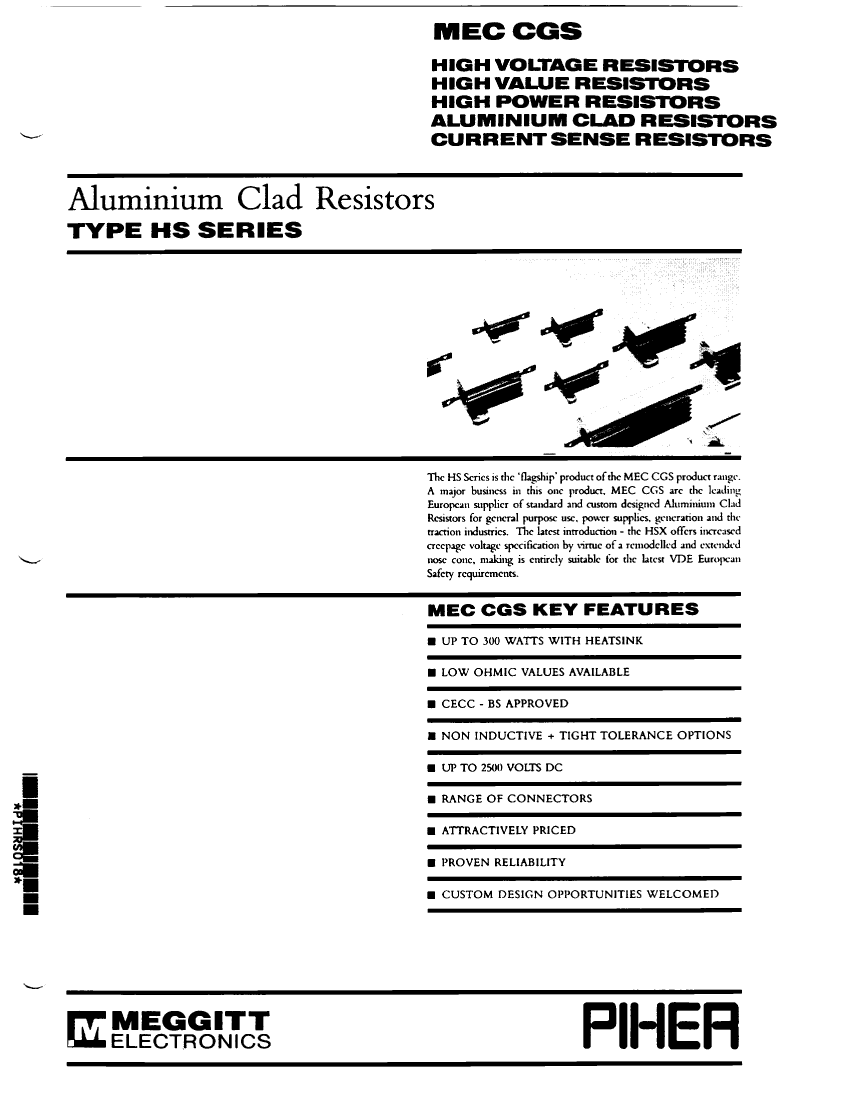

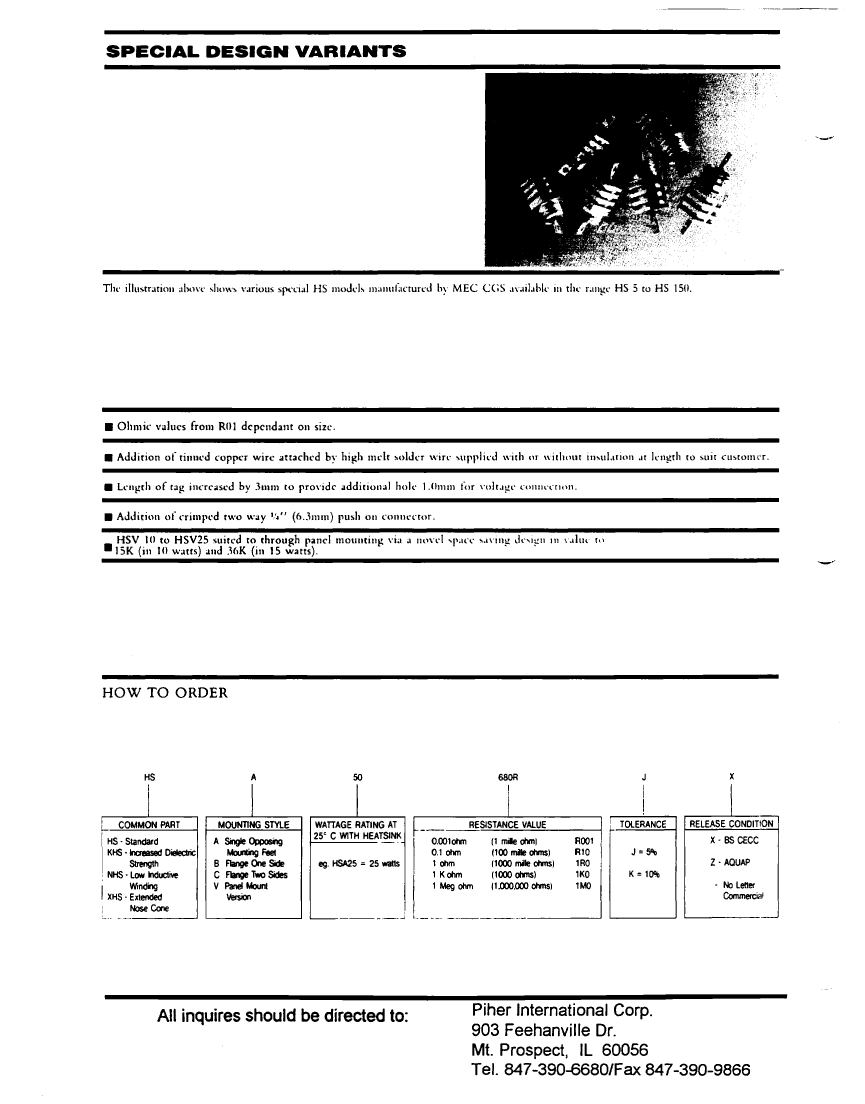

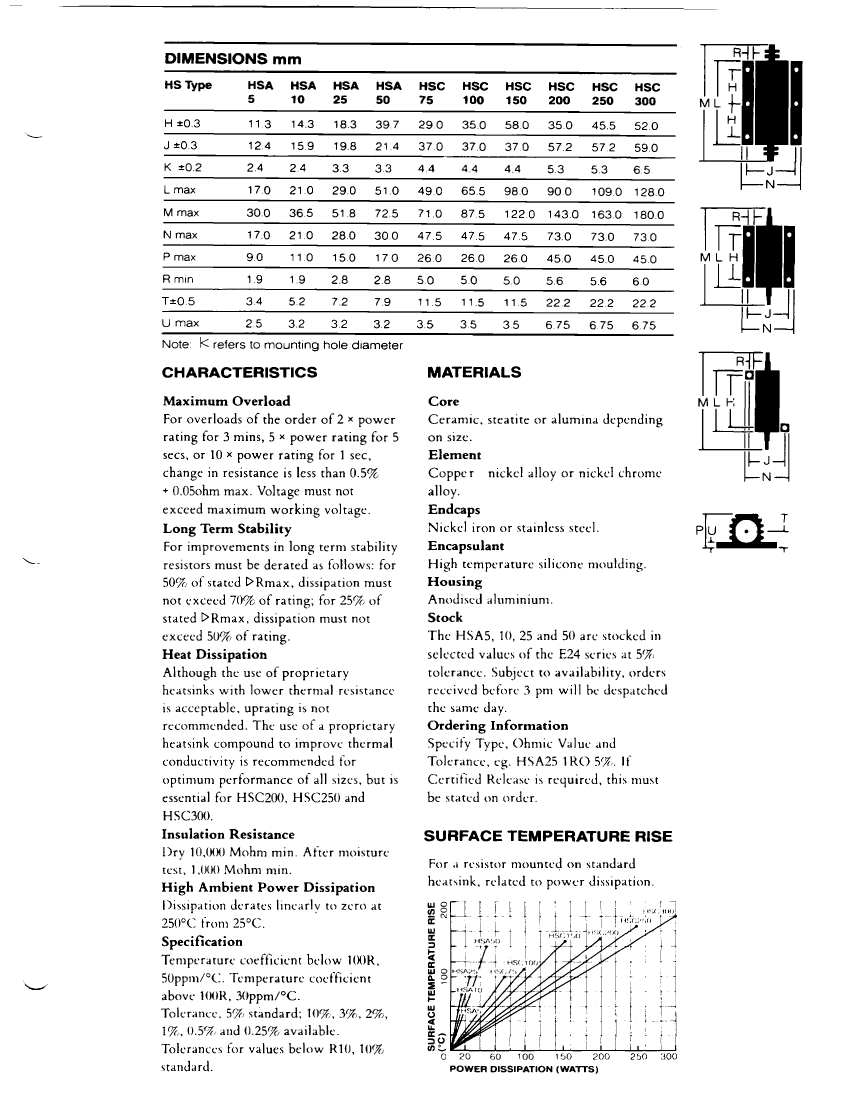

Preview

Download Datasheet

View All

NHSA50 Related Products

	NHSA50	KHSA25	NHSA5	NHSC100	NHSC200	NHSC250	HSC300
Description	RESISTOR, WIRE WOUND, 20W, 0.25; 0.5; 1; 2; 3; 5; 10%, 30; 50ppm, 0.051ohm - 86000ohm, CHASSIS MOUNT, AXIAL LEADED	RESISTOR, WIRE WOUND, 12.5W, 0.25; 0.5; 1; 2; 3; 5; 10%, 30; 50ppm, 0.051ohm - 36000ohm, CHASSIS MOUNT, AXIAL LEADED	RESISTOR, WIRE WOUND, 5.5W, 0.25; 0.5; 1; 2; 3; 5; 10%, 30; 50ppm, 0.051ohm - 10000ohm, CHASSIS MOUNT, AXIAL LEADED	RESISTOR, WIRE WOUND, 50W, 0.25; 0.5; 1; 2; 3; 5; 10%, 30; 50ppm, 0.1ohm - 75000ohm, CHASSIS MOUNT, AXIAL LEADED	RESISTOR, WIRE WOUND, 50W, 0.25; 0.5; 1; 2; 3; 5; 10%, 30; 50ppm, 0.1ohm - 50000ohm, CHASSIS MOUNT, AXIAL LEADED	RESISTOR, WIRE WOUND, 60W, 0.25; 0.5; 1; 2; 3; 5; 10%, 30; 50ppm, 0.1ohm - 68000ohm, CHASSIS MOUNT, AXIAL LEADED	RESISTOR, WIRE WOUND, 75W, 0.25; 0.5; 1; 2; 3; 5; 10%, 30; 50ppm, 0.1ohm - 82000ohm, CHASSIS MOUNT, AXIAL LEADED
package instruction	AXIAL LEADED	AXIAL LEADED	AXIAL LEADED	AXIAL LEADED	AXIAL LEADED	AXIAL LEADED	AXIAL LEADED
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	NON-INDUCTIVE; RATED POWER WITH HEAT SINK: 50W; STANDARD: CECC-40203-001	RATED POWER WITH HEAT SINK: 25W; STANDARD: CECC-40203-001	NON-INDUCTIVE; RATED POWER WITH HEAT SINK: 10W; STANDARD: CECC-40203-001	NON-INDUCTIVE; RATED POWER WITH HEAT SINK: 100W	NON-INDUCTIVE; RATED POWER WITH HEAT SINK: 200W	NON INDUCTIVE	RATED POWER WITH HEAT SINK: 300W
Installation features	CHASSIS MOUNT	CHASSIS MOUNT	CHASSIS MOUNT	CHASSIS MOUNT	CHASSIS MOUNT	CHASSIS MOUNT	CHASSIS MOUNT
Number of terminals	2	2	2	2	2	2	2
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
Rated temperature	25 °C	25 °C	25 °C	25 °C	25 °C	25 °C	25 °C
Resistor type	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR
surface mount	NO	NO	NO	NO	NO	NO	NO
technology	WIRE WOUND	WIRE WOUND	WIRE WOUND	WIRE WOUND	WIRE WOUND	WIRE WOUND	WIRE WOUND
Terminal shape	LUG	LUG	LUG	LUG	BINDING POST	BINDING POST	BINDING POST
Operating Voltage	1250 V	550 V	160 V	1900 V	1900 V	2200 V	2500 V
Maker	Piher	-	Piher	Piher	Piher	Piher	Piher
Manufacturer's serial number	NHS	KHS	NHS	NHS	NHS	-	HS
