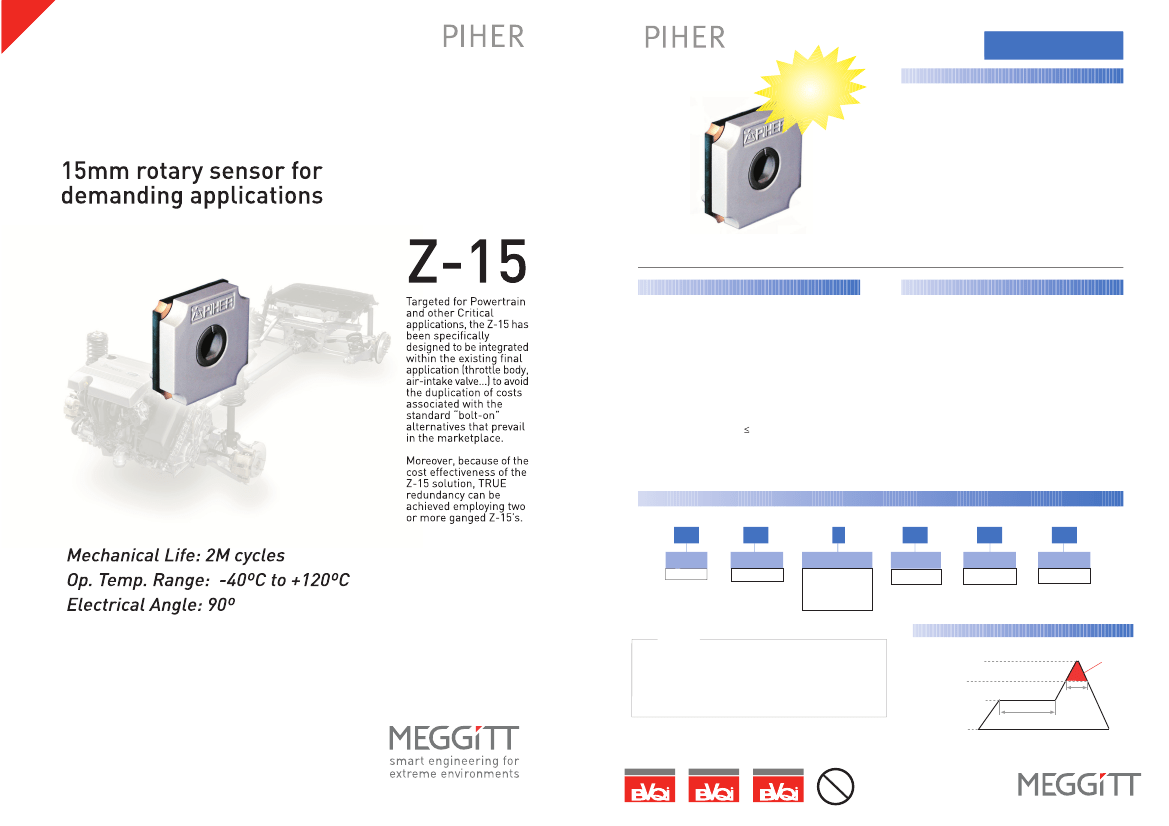

Z-15
FEATURES
Long Life (2M cycles)
Endless Rotation (360º)
15mm Position
Sensor
Conceived and designed for customisation
SMD or Through-hole Mount
Functional Electrical Angle: 90º
Working Temperature Range (-40ºC to +120ºC)
Low Profile (4.4 mm)
Linearity ± 3% (standard)
Embossed Tape or Bulk packaging
Shaft insertable from both sides
Polarised "T" rotor (European Home Appliance standard)
All PT/ PTC 15 shafts compatible
STANDARD SPECIFICATIONS
Resistance values*:
Tolerance:
Nominal Power:
Linearity (absolute):
Taper:
Mechanical Life:
Temperature Range:
Mechanical Angle:
Electrical Angle:
Rotational Torque:
Max. Voltage:
(*) Others upon request
TYPICAL APPLICATIONS
The Z15 series offers an SMD and Through Hole mount
solution for the majority of
Position/Rotary Sensor
and
multi-purpose Control
applications such as:
- Automotive HVAC, Seat, Rear-view mirror actuator
feedback sensors and HVAC Controls
-Temperature Control for Boilers, Wall Heaters, Showers,
Radiators, Conventional and Microwave Ovens, Freezers...
- Timer & Function/Programme Select for Washing
Machines, Dishwashers and all White Goods in general.
- Size and Position detectors
5k
± 30%
0.15 W @ 50ºC
± 3%
Linear
2M cycles
-40ºC to +120ºC
360º
110º ± 10º
20 mN.m
250 VDC
HOW TO ORDER
Z-15
Series
Z-15
(See note 1)
T
Rotors
T
S
Mounting Method
V =Through Hole
S = SMD
H = Horizontal Adjust
(See note 4)
502
Value
502 = 5 K
A
Taper
A = Lin.
(See note 2)
3030
Tolerance
3030 = ± 30%
(See note 3)
RoHS RECOMMENDED REFLOW PROFILE
NOTES:
(1)
A wide variety of custom substrates available
Availability of a wide range of customised tapers and step curves
Optional precision laser-trimmed voltage divider calibration
Horizontal adjust versions will be studied case by case
Max. temp 250ºCs
(2)
(3)
(4)
Heat used to
melt solder
paste
200ºC (*)
Preheat temp. 150ºC (*)
30-45 s
Rotor colour: black. Shafts are not available mounted to the potentiometer
and should be ordered separately
NOTE: The information contained here should be used for reference purposes only.
Between 60-120 s
Room temp.
(*) Melting point temp. depends on solder properties
