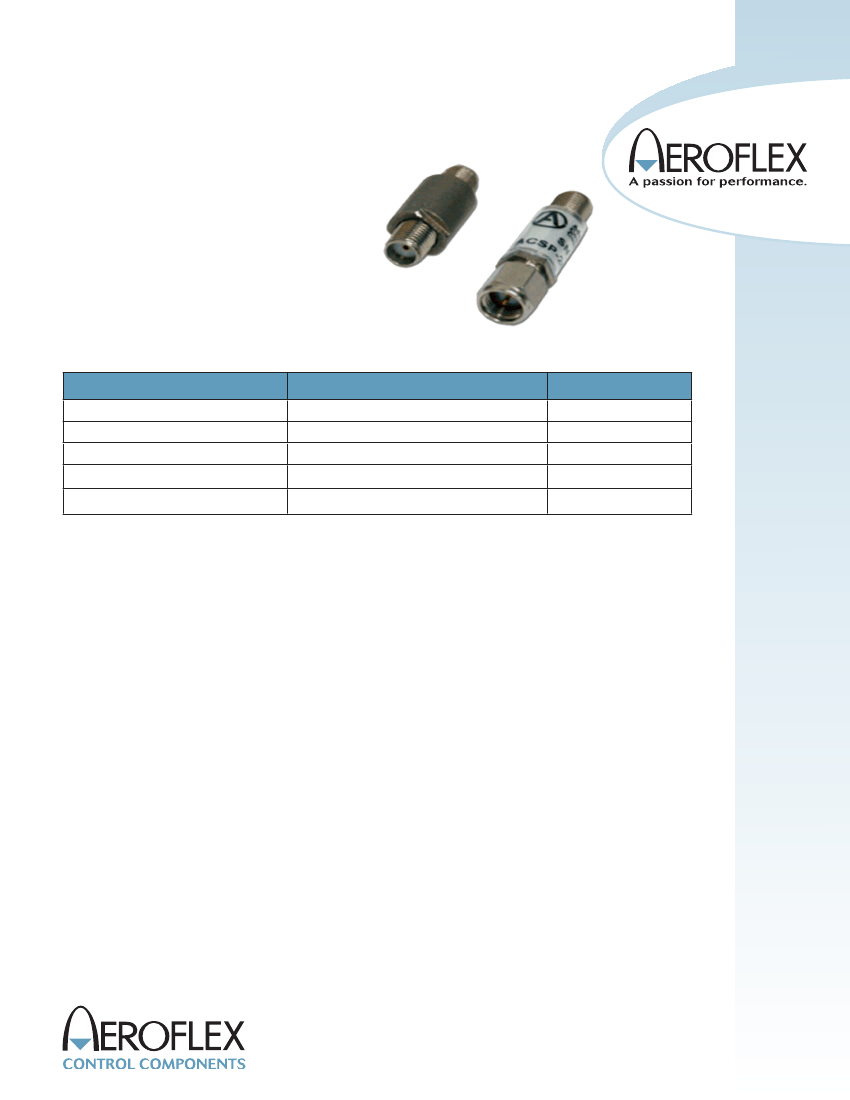

ACSP-2501
Biased Coaxial Schottky Detector
Features:
•
Contains hermetically sealed modules, inter-
nal RF matching, DC return, and RF bypass
capacitor.
The video port is protected from static or
transient charges.
Input impedance matching.
Models may be chosen for broadband RF
performance of for optimized narrow bands
•
•
•
Specifications:
Parameter
Frequency Range (min)
Sensitivity (min)
Flatness vs. Frequency (max)
Typical TSS
Nominal Video Capacitance
Specification
0.5 – 2
2000
0.3
-53
75
Units
GHz
mV/mW
±dB
dBm
pF
Notes:
Maximum input power: +20dBm
Sensitivity is measured into an open circuit load
(>10k ohm).
VSWR is measured at or below -20dBm input power
level.
Standard bias is 100uA.
SCREENING:
Internal Visual per MIL-STD-883, Method 2017
Temperature Cycle: -65°C to +100°C, 10 cycles
OPTIONAL HIGH-REL SCREENING
(Ref MIL-PRF-38534):
Stabilization Bake per MIL-STD-883, Method 1008
Temperature Cycle per MIL-STD-883, Method 1010
Constant Acceleration per MIL-STD-883, Method
2001
Burn-in per MIL-STD-883, Method 1015
Leak Test per MIL-STD-883, Method 1014
External Visual per MIL-STD-883, Method 2009
Environmental Specifications:
Designed to meet:
MIL-E-5400, MIL-STD-202, MIL-E-16400
Operating Temp: -55°C to +125°C
Storage Temp: -65°C to +150°C
Humidity: MIL-STD-202F, M103, Cond B
Shock: MIL-STD-202F, M213, Cond B
Altitude: MIL-STD-202F, M105, Cond B
Vibration: MIL-STD-202F, M204, Cond B
Thermal Shock: MIL-STD-202F, M107, Cond A
Temperature Cycle: MIL-STD-202F, M105C, Cond D
40 Industrial Way East, Eatontown , NJ 07724 [USA]
Phone: (732) 460-0212, Fax: (732) 460-0214
www.aeroflex.com/acc, email: acc-sales@aeroflex.com
Revision Date: 2/23/2011
Outline Drawing:
SMA MALE
(INPUT)
SMA FEMALE
(OUTPUT)
0.312
1.32±.02
STANDARD CASE STYLE C3
(Optional Case Styles – C8, C15)
Part Number Ordering Information:
•
•
•
•
•
•
•
•
•
Add desired polarity suffix: “N” for Negative, “P” for Positive (Ex: ACSP-2501N)
Add “Z” for zero biased schottky option (Ex: ACSP-2501NZ)
Add desired case style suffix: “C3” (Ex: ACSP-2501NZC3)
Add “R” suffix: Reverse Connector Configuration (Ex: ACSP-2501NZC3R)
(SMA Female Input/SMA Male Output)
Add “-RC” suffix: RoHS-compliant (Ex: ACSP-2501NZC3R-RC)
Video capacitance is used for RF bypass. This value can be changed if required for video
response time. Contact the factory for more information.
This part number is also available with a zero bias schottky diode.
Due to higher impedance, the zero bias schottky will exhibit less sensitive
TSS (typically a 3dB reduction)
The temperature performance of the zero bias schottky is poor when operating at
low input power levels.
