AT28C17F-25PI datasheet, PDF - EEWORLD Datasheet

AT28C17F-25PI: DescriptionEEPROM, 2KX8, 250ns, Parallel, CMOS, PDIP28, 0.600 INCH, PLASTIC, DIP-28; Categorystorage storage; File Size237KB，10 Pages; ManufacturerAtmel (Microchip)

Download Datasheet Parametric View All

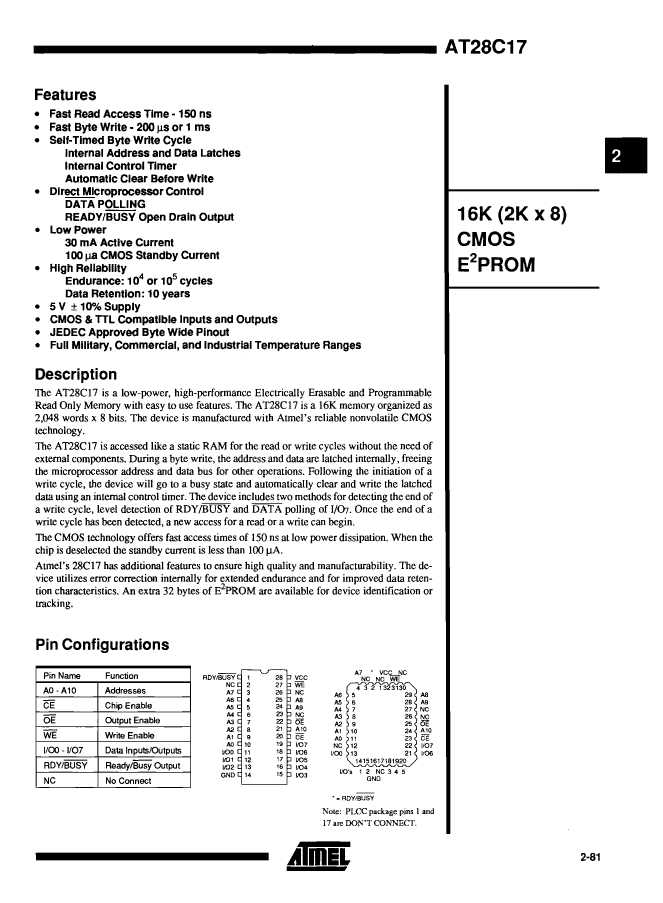

AT28C17F-25PI Overview

EEPROM, 2KX8, 250ns, Parallel, CMOS, PDIP28, 0.600 INCH, PLASTIC, DIP-28

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	DIP, DIP28,.6
Contacts	28
Reach Compliance Code	unknown
ECCN code	EAR99

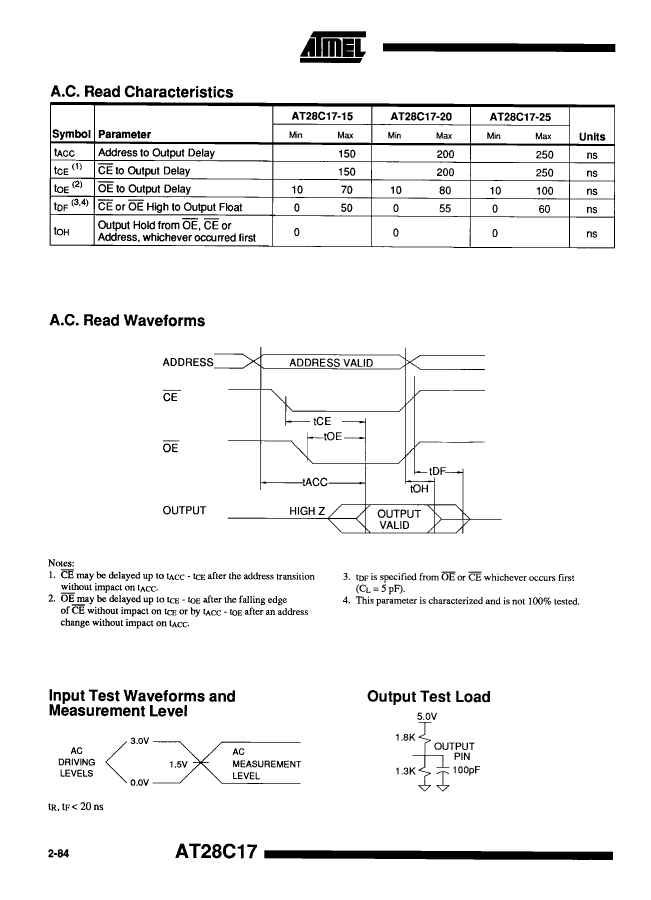

Maximum access time	250 ns

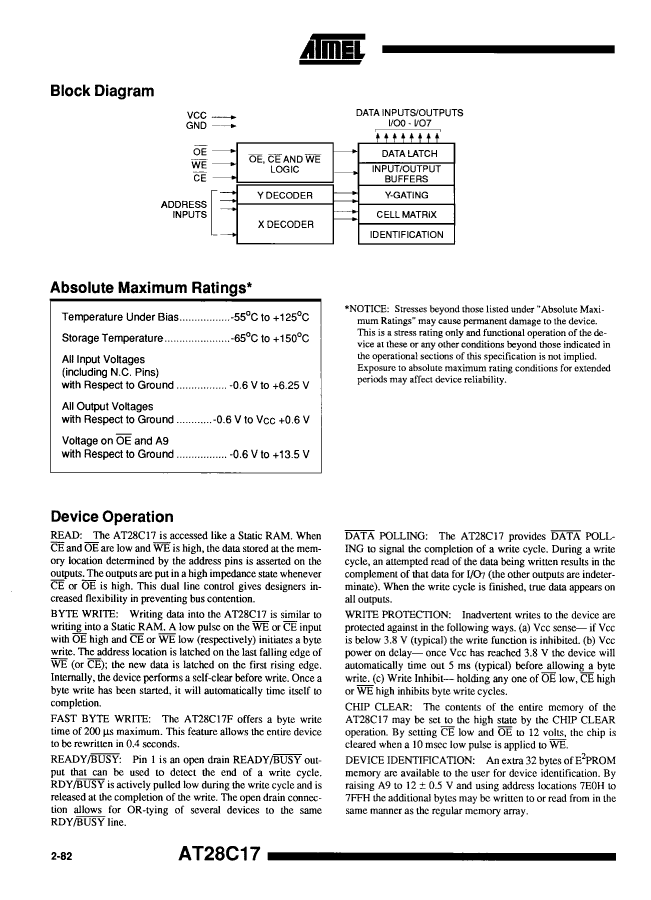

Other features	AUTOMATIC WRITE
command user interface	NO
Data polling	YES
Durability	10000 Write/Erase Cycles
JESD-30 code	R-PDIP-T28
JESD-609 code	e0
length	36.95 mm
memory density	16384 bit
Memory IC Type	EEPROM
memory width	8
Number of functions	1
Number of terminals	28
word count	2048 words
character code	2000
Operating mode	ASYNCHRONOUS

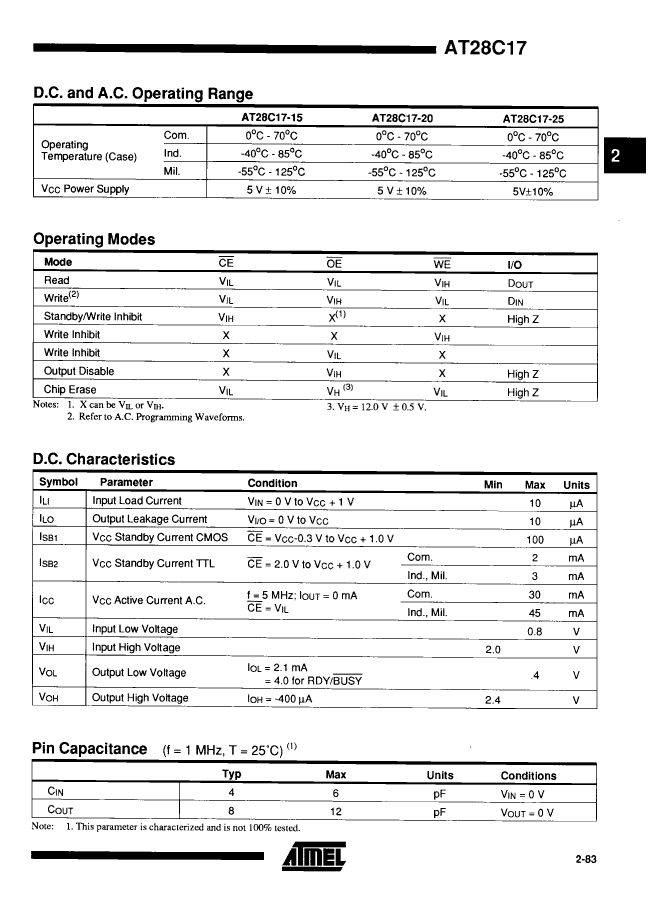

Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	2KX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Programming voltage	5 V
Certification status	Not Qualified
ready/busy	YES
Maximum seat height	5.59 mm
Maximum standby current	0.0001 A
Maximum slew rate	0.045 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
switch bit	NO
width	15.24 mm

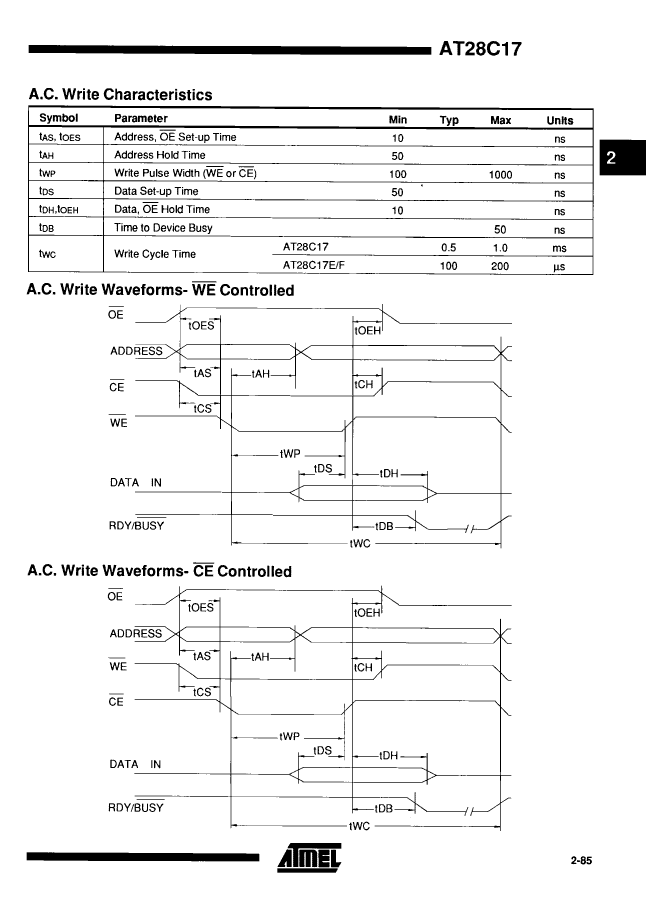

Maximum write cycle time (tWC)	0.2 ms
Base Number Matches	1
