ARD32012Q: DescriptionRF Coaxial Relay, SP6T, Latched, 0.063A (Coil), 12VDC (Coil), 750mW (Coil), 0.1A (Contact), 30VDC (Contact), 13000MHz, 120W (RF Input), DC Input, AC/DC Output, Panel Mount, ROHS COMPLIANT; CategoryMechanical and electronic products relay; File Size737KB，14 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html; Environmental Compliance

Download Datasheet Parametric Compare View All

ARD32012Q Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ARD32012Q	-	-	View	Buy Now

ARD32012Q Overview

RF Coaxial Relay, SP6T, Latched, 0.063A (Coil), 12VDC (Coil), 750mW (Coil), 0.1A (Contact), 30VDC (Contact), 13000MHz, 120W (RF Input), DC Input, AC/DC Output, Panel Mount, ROHS COMPLIANT

ARD32012Q Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
body height	39.5 mm
Body length or diameter	78 mm
Characteristic impedance	50 Ω
Maximum coil current (DC)	0.063 A
Coil power	750 mW
Coil resistance	190 Ω
Maximum coil voltage (DC)	12 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	.1A@30VAC
Maximum contact current (AC)	0.1 A
Maximum contact current (DC)	0.1 A
Contact (DC) maximum rated R load	.1A@30VDC
Maximum contact voltage (AC)	30 V
Maximum contact voltage (DC)	30 V
Contact/Output Power Type	AC/DC
Electrical life	5000000 Cycle(s)
Maximum input power	120 W
Maximum insertion loss	0.4 dB
Maximum isolation	65 dB
Manufacturer's serial number	ARD
Installation features	PANEL MOUNT
operating hours	20 ms
Maximum operating frequency	13000 MHz
Minimum operating frequency	8000 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
method of packing	BOX; BULK
Relay action	LATCHED
Relay function	SP6T
Relay type	RF COAXIAL RELAY
surface mount	NO
switching time	20 ms
Termination type	WIRE
voltage standing wave ratio	1.35
Base Number Matches	1

Preview

Download Datasheet

View All

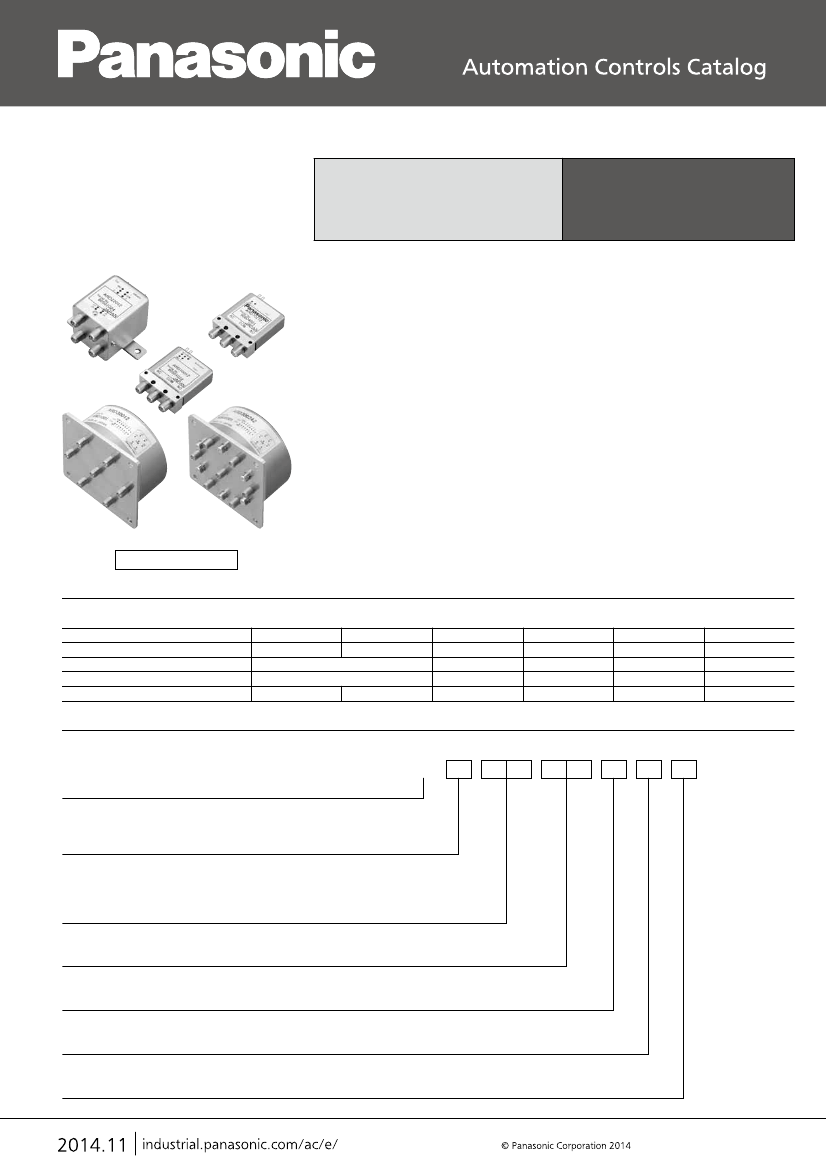

26.5 GHz max. Coaxial

switches coming in SPDT,

Transfer, and SP6T types

RD COAXIAL

SWITCHES (ARD)

TYPICAL APPLICATIONS

Wireless and mobile communication

• Cellular phone base station

• Ampliﬁer switching

Digital broadcasting

• Broadcasting relay station

• Broadcasting equipment

High frequency measuring market

All types of inspection equipment

If you consider using applications with

low level loads or with high frequency

switching, please consult us.

FEATURES

1. Excellent high frequency

characteristics (50Ω, to 26.5Ghz)

2. SPDT, Transfer and SP6T types are

available.

3. High sensitivity

Nominal operating power:

840 mW (SPDT/SP6T, Fail-safe type,

with indicator)

1,540 mW (Transfer, Fail-safe type,

with indicator)

*Without 24V type

6GHz type

RoHS compliant

4. Long-lasting life: min. 5

5. With termination type is added.

(SP6T)

Thanks to the addition of termination,

steady high frequency characteristics

can be maintained when contacts are

either open or closed and this

contributes to increase system

reliability.

HIGH FREQUENCY CHARACTERISTICS (Impedance 50Ω)

Frequency

V.S.W.R. (max.)

V.S.W.R. (SP6T With termination) (max.)

Insertion loss (dB. max.)

Isolation (dB. min.)

to 1 GHz

1.1

1.20

0.2

1 to 4 GHz

1.15

4 to 8 GHz*

1.25

1.40

0.3

8 to 12.4 GHz

1.35

1.50

0.4

12.4 to 18 GHz

1.5

—

0.5

18 to 26.5 GHz*

1.7

—

0.8

Notes: *1 The 6GHz type only has the above characteristics up to 6GHz.

*2 18 to 26.5GHz characteristics can be applied 26.5GHz type only (SPDT, Transfer)

ORDERING INFORMATION

ARD

RD coaxial switches

Frequency

1: to 18GHz (SPDT)

2: to 18GHz (Transfer)

3: to 13GHz (SP6T)

5: to 26.5GHz (SPDT)

6: to 26.5GHz (Transfer)

7: to 6GHz (SPDT)

02: Fail-safe (without indicator)

22: Latching (without indicator)

53: Latching with TTL driver (SPDT)

(with self cut-off function) (without indicator)

12: 12

24: 24

Operating function

00: Fail-safe (with indicator)

20: Latching (with indicator)

51: Latching with TTL driver (SPDT, Transfer)

(with self cut-off function) (with indicator)

Nominal operating voltage, V DC

4H: 4.5 (Fail-safe, Latching type only)

05: 5 (Latching with TTL driver type only)

Operation terminal

Nil: Solder terminal

C: Connector cable (SPDT type only)

Termination (SP6T type only)

Nil: No termination

Z: With termination

HF data attached

Nil: No HF test data attached

Q: HF test data attached

Note: Sealed types also available, please consult us (SPDT only)

–1–

ASCTB103E 201411-T
