ATF20V8BQL-25NM datasheet, PDF

ATF20V8BQL-25NM: DescriptionFlash PLD, 25ns, CMOS, CQCC28, CERAMIC, LCC-28; CategoryProgrammable logic devices Programmable logic; File Size68KB，2 Pages; ManufacturerAtmel (Microchip)

Download Datasheet Parametric Compare View All

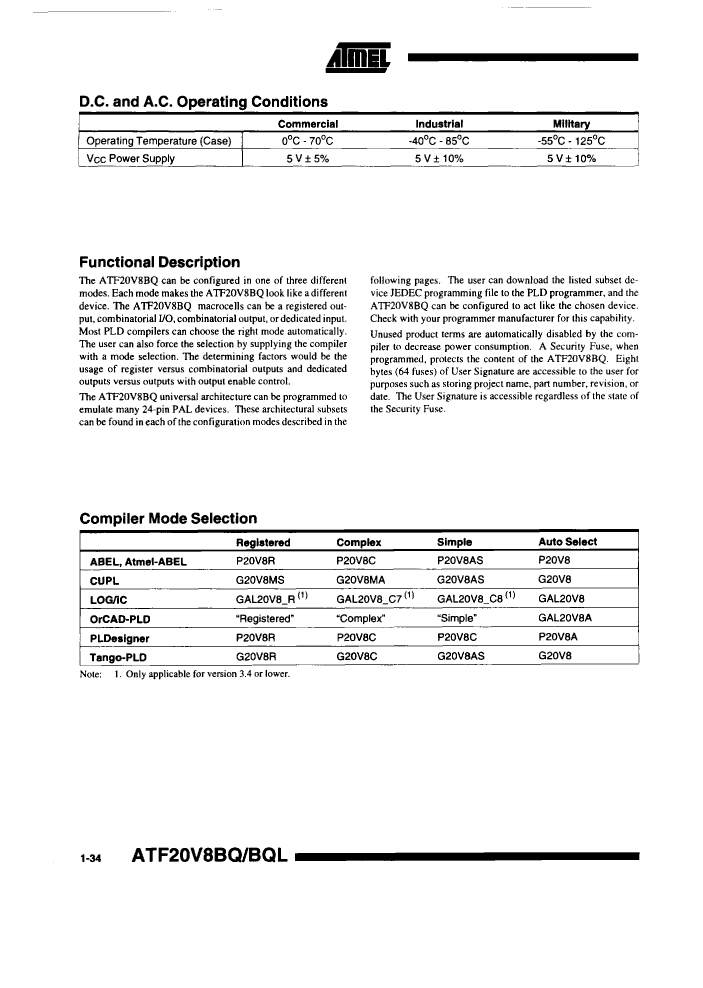

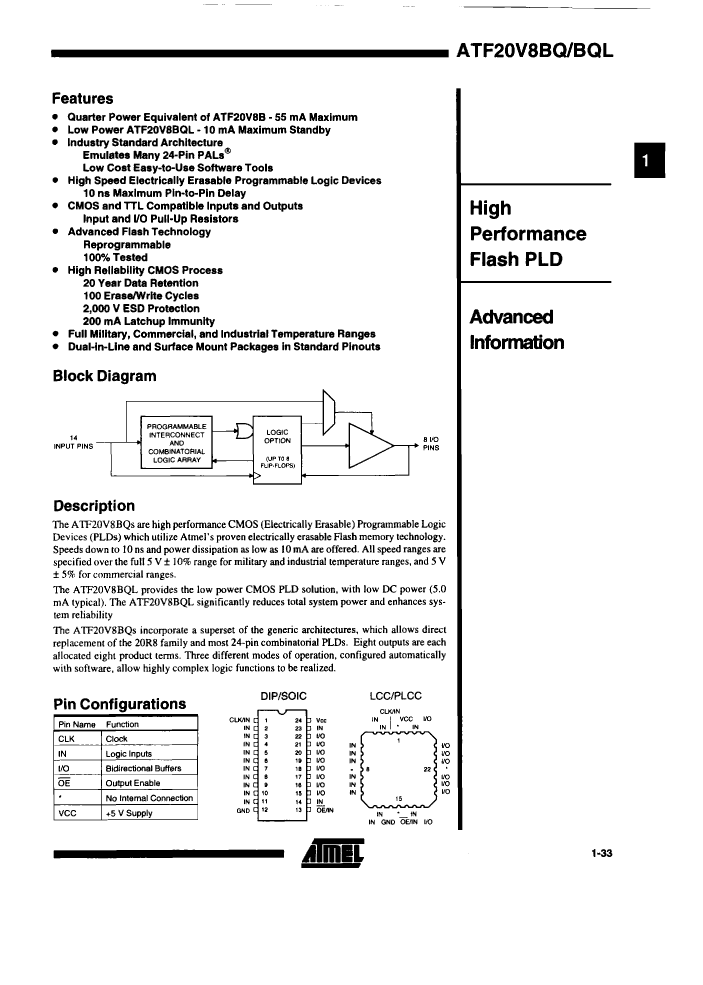

ATF20V8BQL-25NM Overview

Flash PLD, 25ns, CMOS, CQCC28, CERAMIC, LCC-28

Parameter Name	Attribute value
Parts packaging code	QLCC
package instruction	QCCN,
Contacts	28
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Other features	8 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK
JESD-30 code	S-CQCC-N28
length	11.43 mm
Dedicated input times	12
Number of I/O lines	8
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	12 DEDICATED INPUTS, 8 I/O
Output function	MACROCELL
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
Programmable logic type	FLASH PLD
propagation delay	25 ns
Certification status	Not Qualified
Maximum seat height	2.54 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	11.43 mm
Base Number Matches	1

	ATF20V8BQL-25NM	ATF20V8BQL-25GM
Description	Flash PLD, 25ns, CMOS, CQCC28, CERAMIC, LCC-28	Flash PLD, 25ns, CMOS, CDIP24, 0.300 INCH, CERDIP-24
Parts packaging code	QLCC	DIP
package instruction	QCCN,	DIP,
Contacts	28	24
Reach Compliance Code	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C
Other features	8 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK	8 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK
JESD-30 code	S-CQCC-N28	R-GDIP-T24
length	11.43 mm	32 mm
Dedicated input times	12	12
Number of I/O lines	8	8
Number of terminals	28	24
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
organize	12 DEDICATED INPUTS, 8 I/O	12 DEDICATED INPUTS, 8 I/O
Output function	MACROCELL	MACROCELL
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED
encapsulated code	QCCN	DIP
Package shape	SQUARE	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE
Programmable logic type	FLASH PLD	FLASH PLD
propagation delay	25 ns	25 ns
Certification status	Not Qualified	Not Qualified
Maximum seat height	2.54 mm	5.08 mm
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	YES	NO
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal form	NO LEAD	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	QUAD	DUAL
width	11.43 mm	7.62 mm
Base Number Matches	1	1
