AM26S11CN datasheet, PDF - EEWORLD Datasheet

AM26S11CN: DescriptionLine Transceiver, 1 Func, 4 Driver, 4 Rcvr, BIPolar, PDIP16, PACKAGE-16; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size318KB，7 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

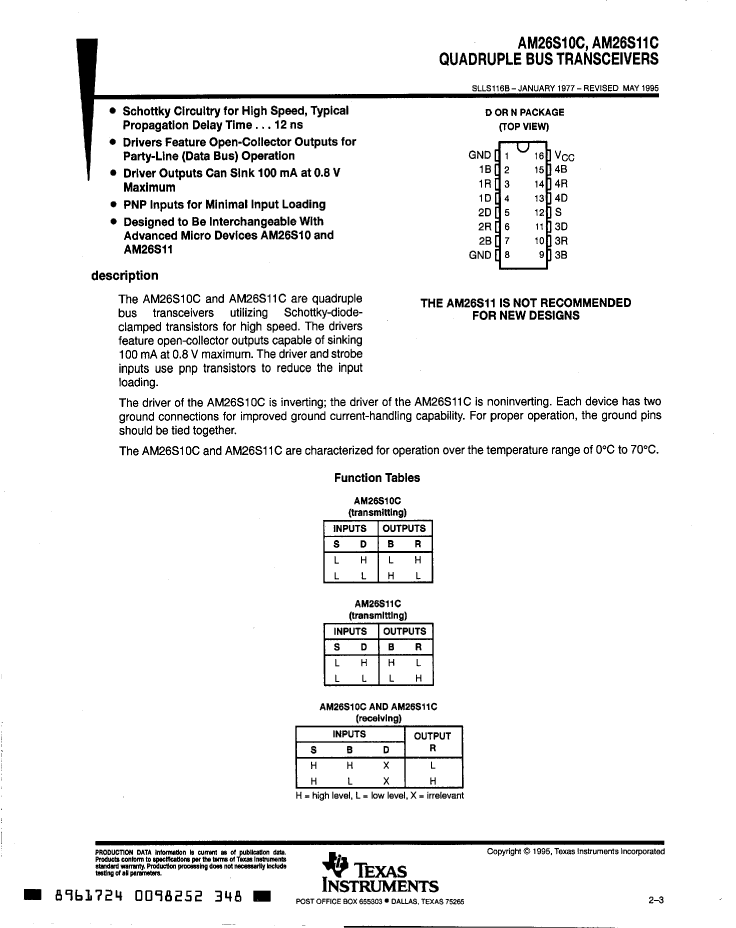

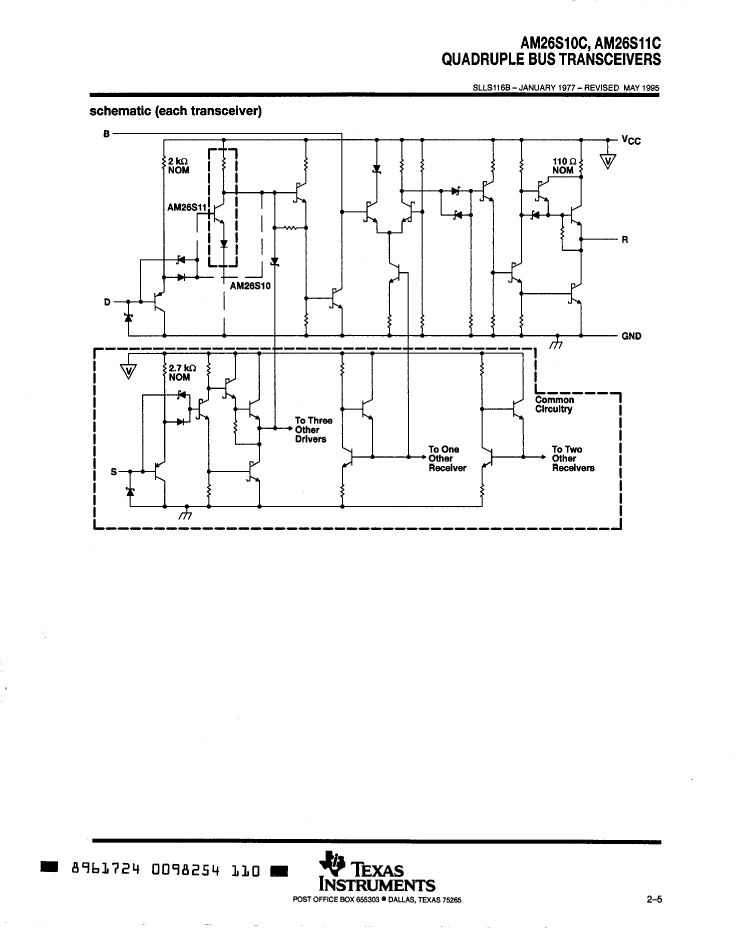

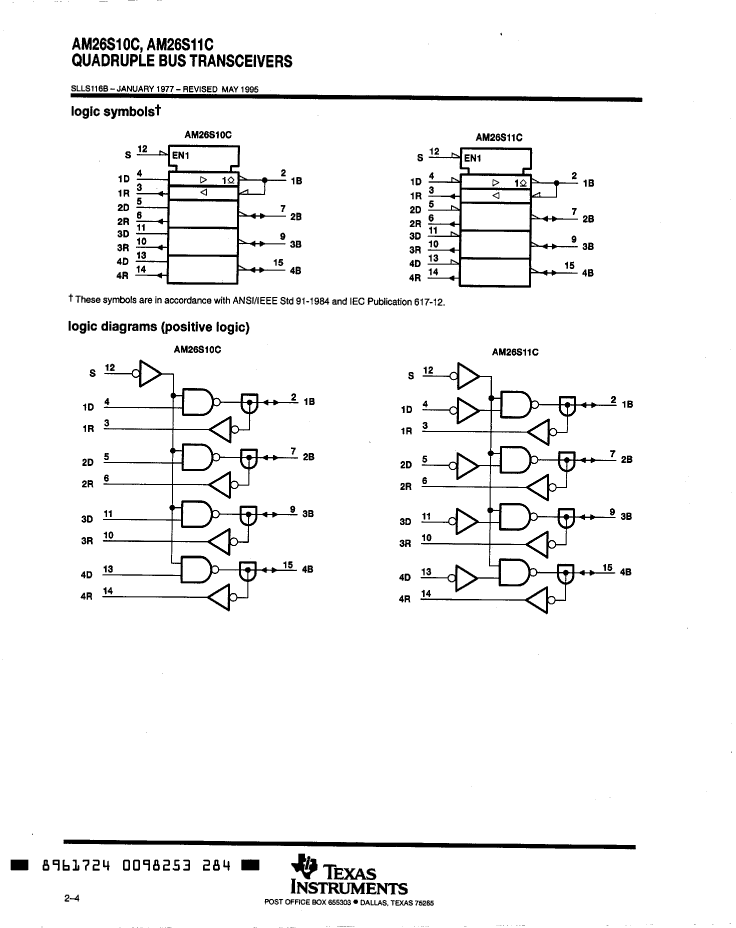

AM26S11CN Overview

Line Transceiver, 1 Func, 4 Driver, 4 Rcvr, BIPolar, PDIP16, PACKAGE-16

Parameter Name	Attribute value
package instruction	DIP,
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	COMMON I/O
Differential output	NO
Number of drives	4
Input properties	STANDARD
Interface integrated circuit type	LINE TRANSCEIVER
Interface standards	GENERAL PURPOSE
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
length	19.305 mm
Number of functions	1
Number of terminals	16

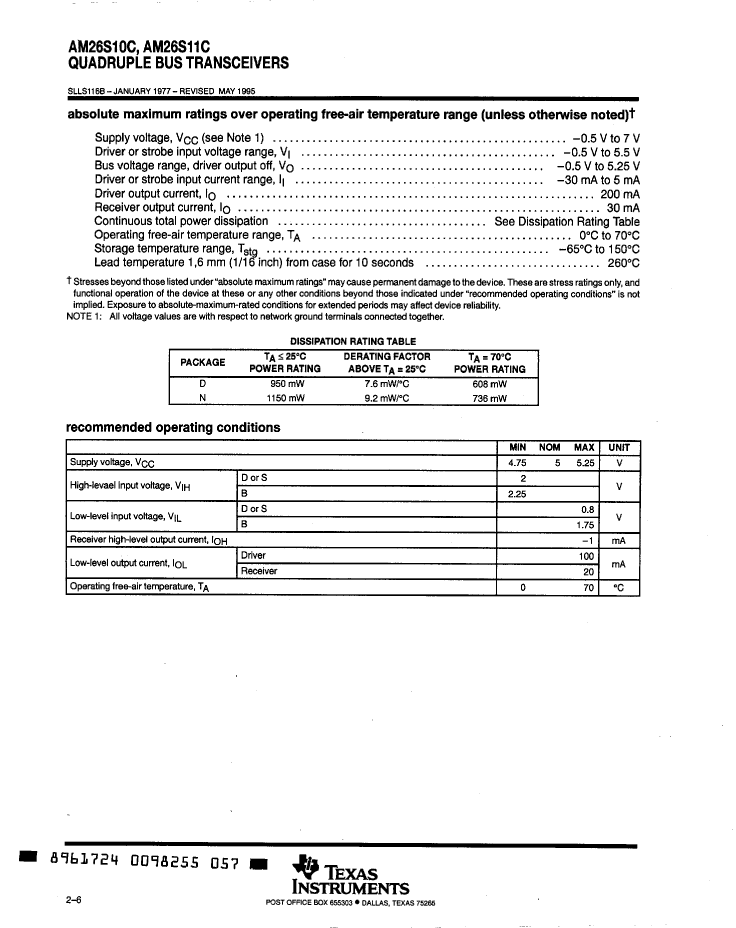

Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE

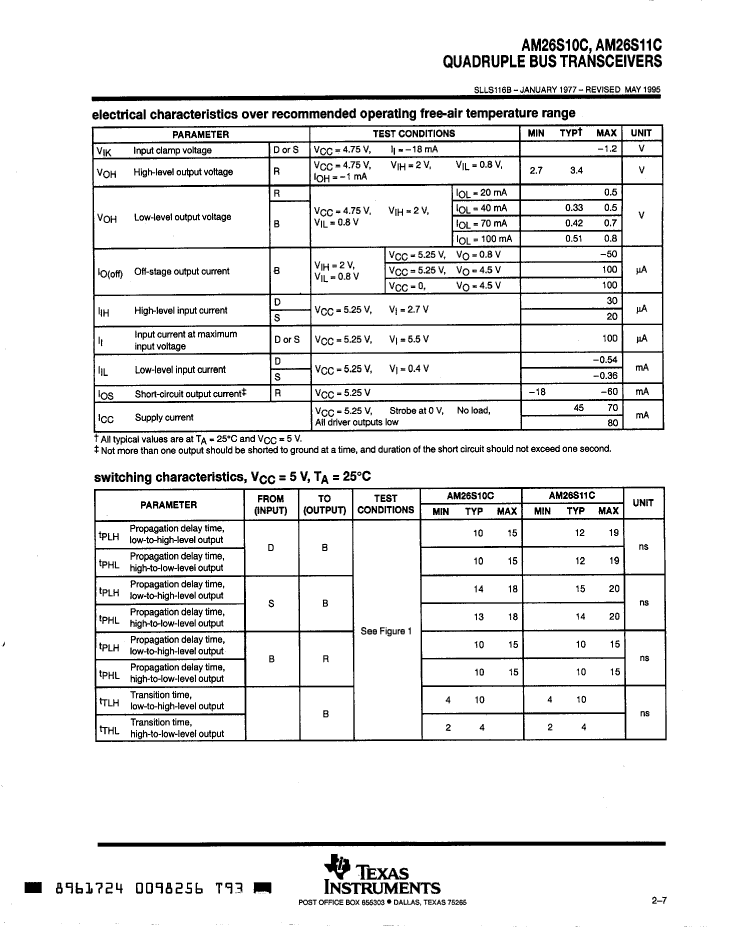

Maximum receive delay	15 ns
Number of receiver bits	4
Maximum seat height	5.08 mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
maximum transmission delay	19 ns
width	7.62 mm
Base Number Matches	1

	AM26S11CN	AM26S11CN3	AM26S11CDR
Description	Line Transceiver, 1 Func, 4 Driver, 4 Rcvr, BIPolar, PDIP16, PACKAGE-16	Line Transceiver	Line Transceiver
Reach Compliance Code	unknown	unknown	unknown
Base Number Matches	1	1	1
